Homo erectus - Homo ergaster


(Note that Homo erectus and Homo ergaster are now considered by most researchers to be identical, although some consider ergaster to be the African form, and erectus to be the Asian form of essentially the same species - Don)

Homo erectus was probably the first early human species to form part of a hunter-gatherer society, and used more diverse and sophisticated tools than its predecessors. Homo erectus was the first to use fire in a controlled manner.

Readers may also be interested in these pages:

bilzingsleben Bilzingsleben in Germany near Halle, is globally one of the most important sites of early human history. At just six other locations in Europe has it been possible to recover skeletal remains of Homo erectus. Only here, however, structures and material remains contain such astonishing details as to allow extraordinary insights into the life and behaviour of this archaic hominid. This is the only record and map that we have of a complete and detailed Homo erectus living site.

370 000 years ago, a small group of hominids established a permanent camp site on a lake shore. They left behind a large number of tools, artefacts, and food remains. In this carefully chosen locality it was possible to identify areas for living, working, and other activities. To date 1600 m2 of this site have been excavated. The remains of hearths and circular shelters provide ample evidence for their advanced stage of development. The most impressive remains are those of Homo erectus himself, which allow us to come face-to-face with our ancestors and the earliest known evidence for abstract thought.

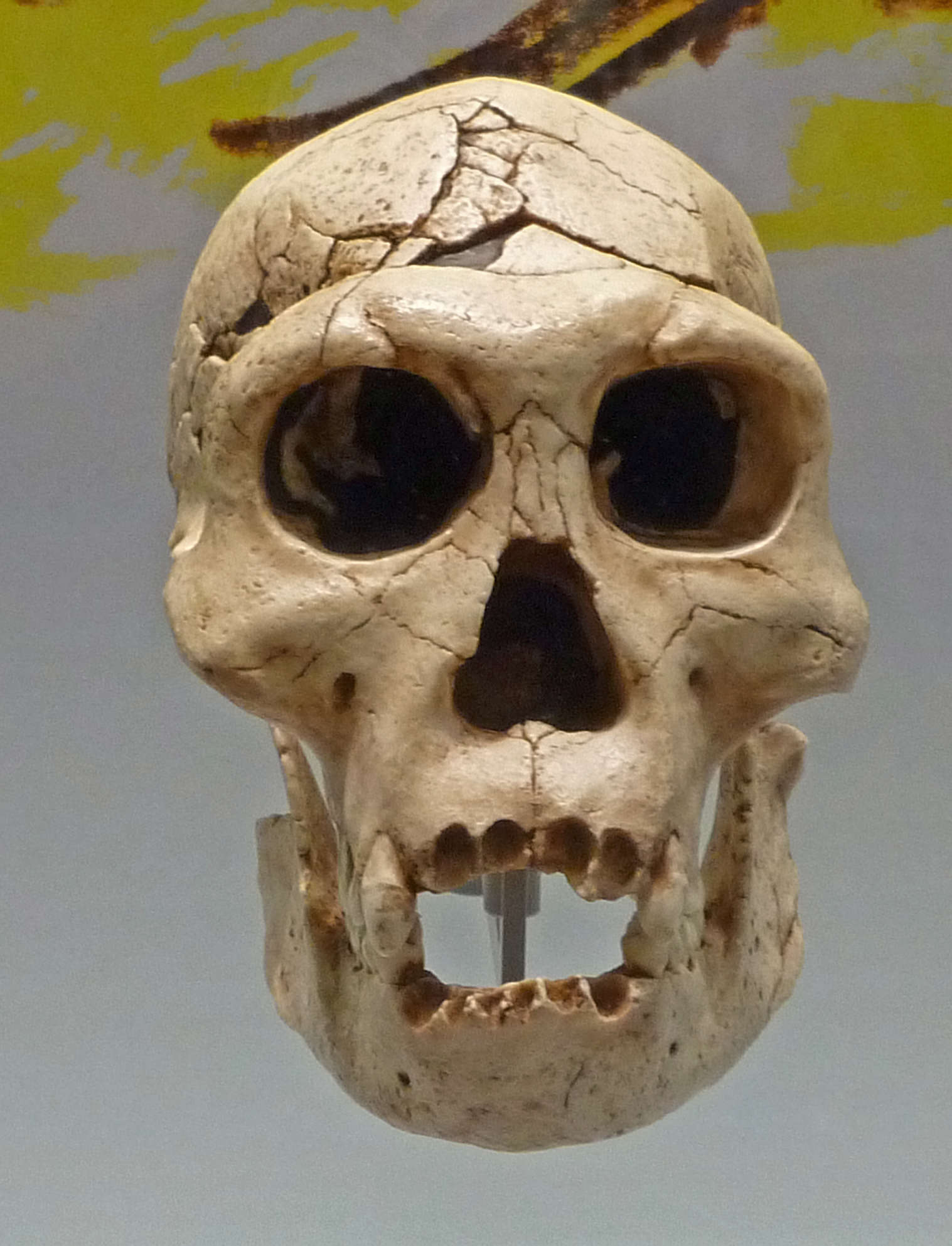

  Homo Erectus Sites The Homo erectus site at Dmanisi

pasiega cave

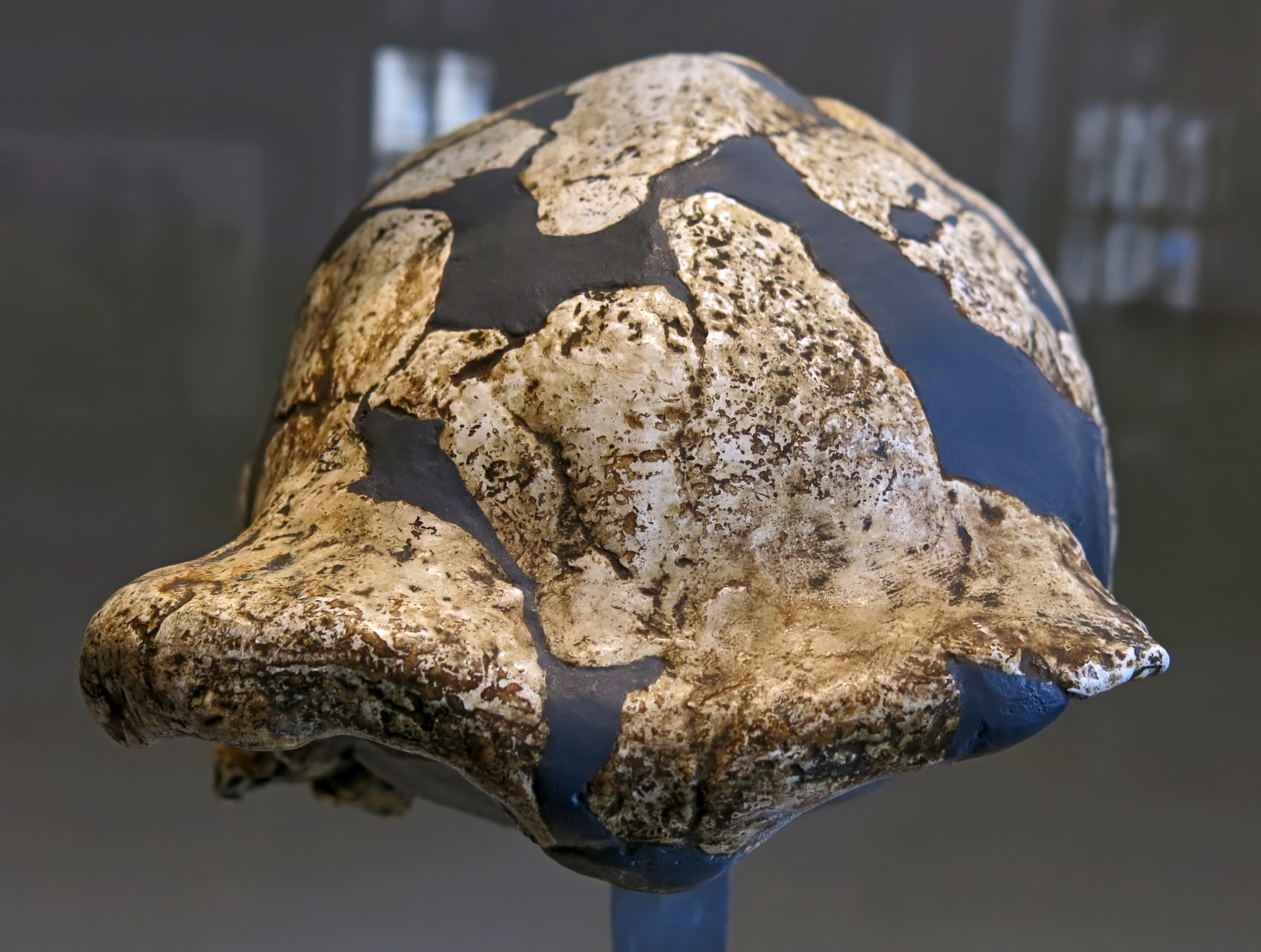

On the banks of the Bengawan Solo River in Java, Indonesia, 19th-century physician Eugène Dubois uncovered an astounding fossil find: the bones of what appeared to be an ancient human, surrounded by animal remains and shells. Excavated in the 1890s, the site gained fame as the home of 'Java Man', better known today as Homo erectus. Deliberate scratching on a fossil Pseudodon shell is almost certainly an engraving made by Homo erectus at Trinil in Indonesia.

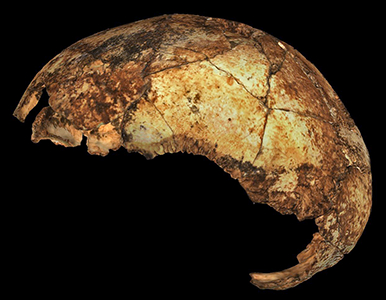

The oldest Homo erectus yet found


drimolinsitesm

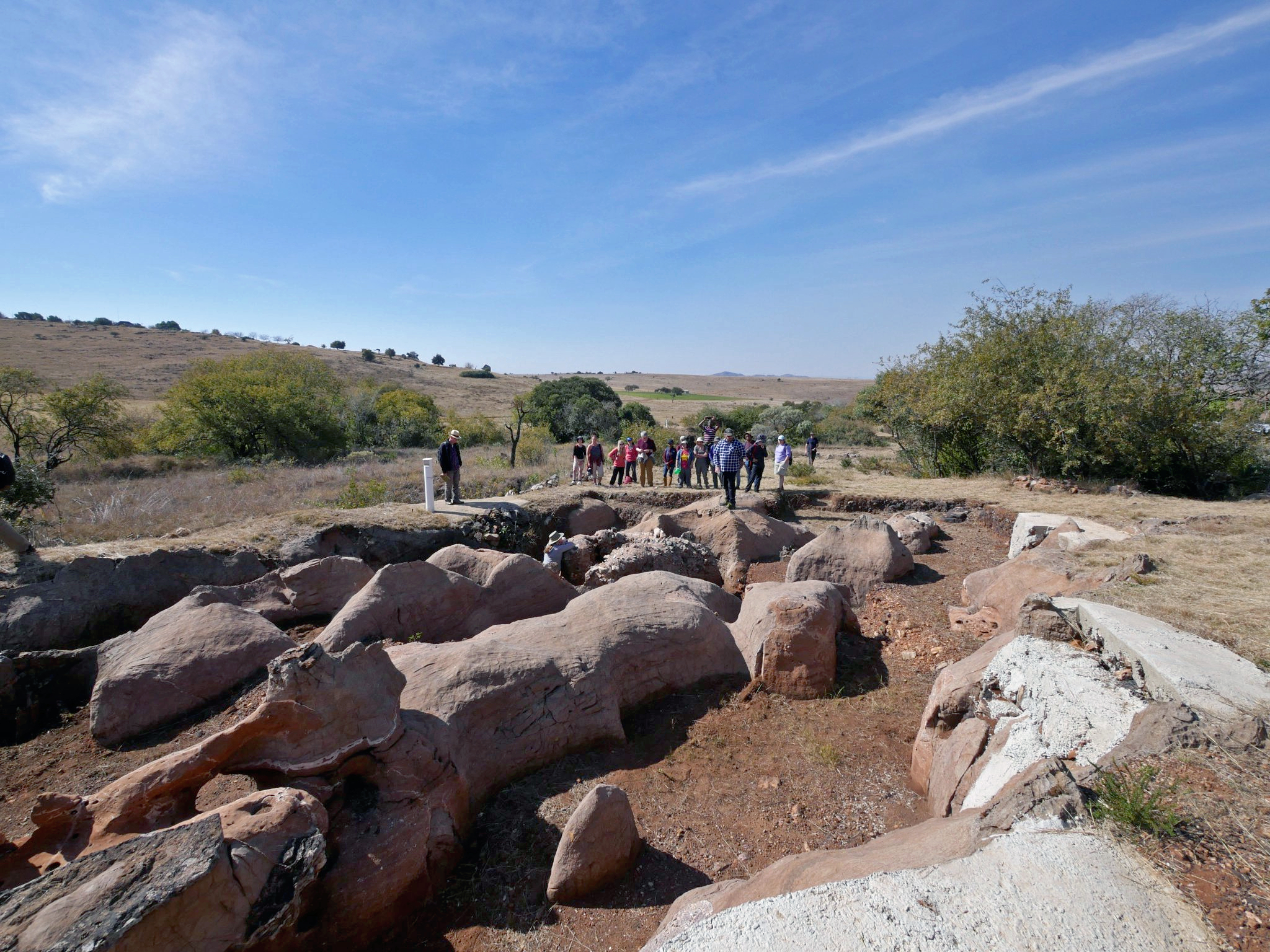

The Homo erectus site at Drimolen Makondo.

Photo: Andy Herries
Permission: Creative Commons Attribution-Share Alike 4.0 International license.





Nestled in South Africa's Cradle of Humankind, the Drimolen paleocave is an amphitheater hosting the remains of ancient ancestors of humans. Most famous among the hominins found there are Orpheus and Eurydice, a pair of Paranthropus robustus unearthed in 1994 and named after the lovers from Greek mythology. They are just two of more than 160 fossilized specimens of our extinct early relatives dug up at the roofless cave.

Now, archaeologists excavating the site have discovered even more remains that could transform our understanding of when and where our human ancestors and their relatives lived millions of years ago in this part of Africa.

In Science on Thursday, they published a paper identifying the skullcap and teeth of another Paranthropus robustus, as well as the cranium of our direct ancestor, Homo erectus. Both specimens date to between 1.95 and 2.04 million years ago. If confirmed, the findings would be the oldest known Paranthropus robustus, as well as the oldest known Homo erectus, nudging out the next oldest known specimen by 150,000 to 200,000 years.

The discoveries offer evidence that Homo erectus trekked from the bottom of South Africa, across the African continent and into the Caucasus region within only a couple of hundreds of thousands of years.

'That species is beautifully romantic because without Homo erectus there is no Homo sapiens,' said Stephanie Baker, a doctoral student at the University of Johannesburg who oversees the Drimolen site. 'He was the first one to take that giant step for mankind.'

Homo erectus roamed the planet for two million years before going extinct, far longer than we Homo sapiens have so far. That makes Homo erectusthe most successful species of our family, which also included the Neanderthals and Denisovans, according to Susan Antón, a paleoanthropologist at New York University who wrote a commentary accompanying Dr. Baker and her colleagues' paper.

The findings also suggest these two early human relatives lived contemporaneously with another of Africa's hominins, the 'ape-man' Australopithecus. First discovered elsewhere in South Africa, the species began disappearing from the fossil record around the time the other two started popping up.

'Here we have evidence of all three genera, Homo, Paranthropus and Australopithecus, sharing the landscape at just about the same time,' said David Strait, a paleoanthropologist at Washington University in St. Louis and a co-author. 'It is our first really good look at the time that this replacement is taking place and that's pretty exciting.'

Paranthropus were shorter than Homo erectus and Australopithecus and they used their massive teeth to grind roots and tubers. Using a technique called paleomagnetism that analyzes how Earth's magnetic field has changed over time, the team, led by Andy Herries, a geoarchaeologist from La Trobe University in Australia, showed that both the Homo erectus and Paranthrope specimens at the cave site were between 1.95 and 2.04 million years old.

In 2015, Richard Curtis, now a graduate student at La Trobe University, was taking part in a field school program at the site when he found a tiny, thin bit of bone. At the time, the researchers thought it came from a baboon. They continued to uncover similar bones, most no bigger than a stamp.

'These beautiful bits and pieces of crania started coming up,' Ms. Baker said. She wasn't quite convinced the bones belonged to a baboon, so one night while the group gathered to listen to a lecture, she sat in the back and tried to stick a couple of pieces together.

After much fiddling, the two finally fit and it was clear the skull was more humanlike than baboon. She showed it off like someone who had just solved her first Rubik's cube.

She had a hominin. But which one?

Ms. Baker gave the skull pieces to Jesse Martin, now a doctoral student at La Trobe University, and Angeline Leece, a paleoanthropologist at the university. They cleaned the skull and painstakingly glued and rebuilt the cranium. Mr. Martin is the team's go-to expert for such reconstructions, a skill he attributes to an accident he suffered as a child that decreased feeling in his left arm and has allowed him to keep it still for long durations.

To recreate the specimen, called DNH 134, the pair had to hold it together without talking and while controlling their breathing, sometimes for 40 minutes. Any stray cough or sneeze could jeopardize their meticulous work.

'It's nerve-racking, my heart goes every time,' Dr. Leece said. After several years they fit together more than 150 pieces into the Pleistocene jigsaw puzzle. The two are also now married.

'We're a couple that is clearly comfortable with awkward silences,' Mr. Martin said.

With each clue they glued together they came closer to figuring out their mystery hominin. Then one day while looking at its long, low skull that had a bony ridge running from the back toward the front, it became clear: They had Homo erectus, the so-called 'upright man.'

They also concluded that the specimen was a child, perhaps 3 years old. They named it after Simon Mokobane, a co-author of the study who died from cancer.

The beautifully written text above is by Nicholas St. Fleur, April 2, 2020, from https://www.nytimes.com/2020/04/02/science/skulls-africa-caves.html

The New York Times has a time-honoured tradition of employing only the best available talent for their paper. Founded in 1851, the paper has won 127 Pulitzer Prizes, more than any other newspaper.

erectusskulllgesm
Homo erectus

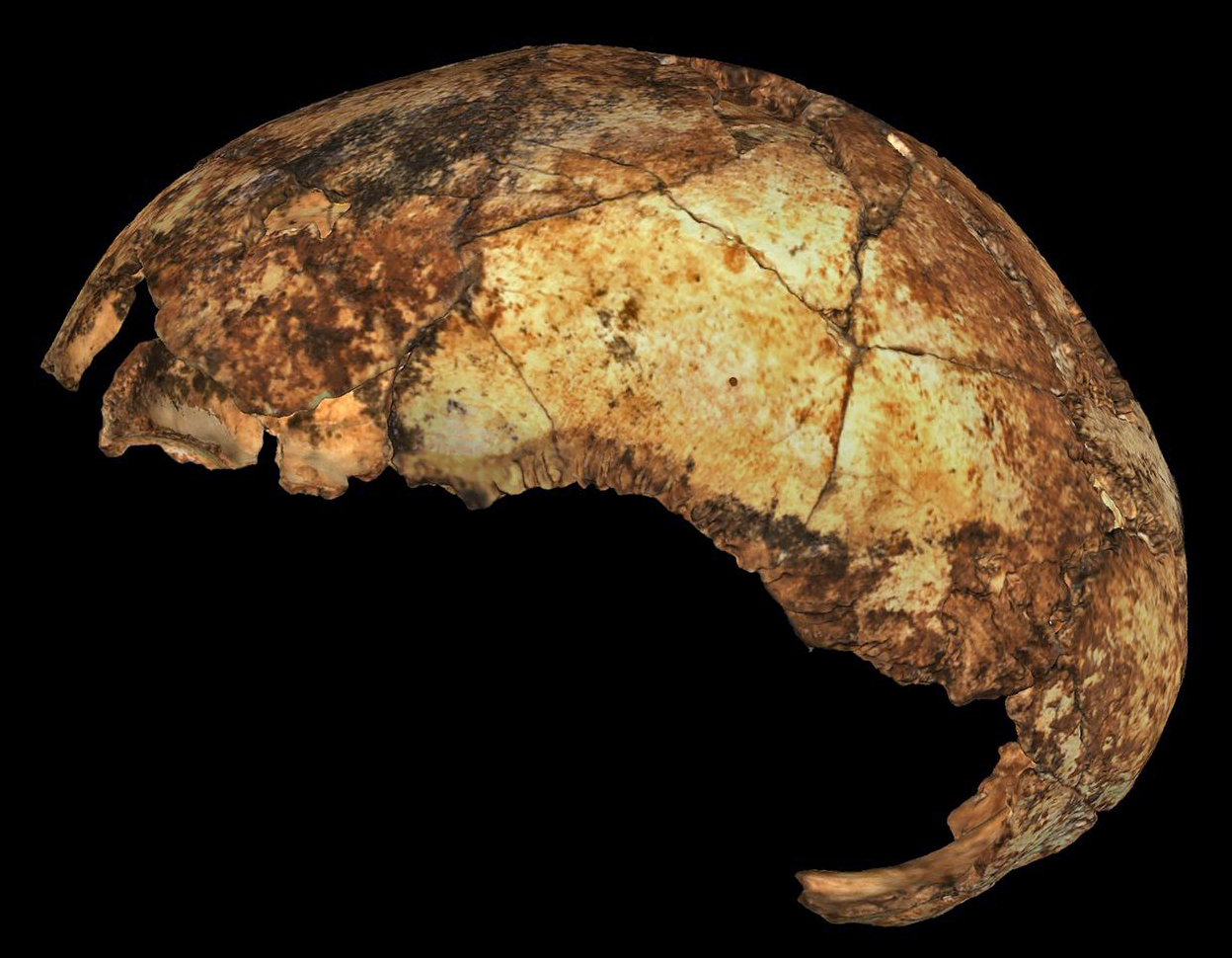

Skull pieces from a 2-million-year-old Homo erectus specimen found at the Drimolen paleo cave site in South Africa.

Photo: Andy Herries, Jessie Martin and Joannes-Boyau
Proximate source: https://www.nytimes.com/2020/04/02/science/skulls-africa-caves.html




erectusskulllgesm
Homo erectus

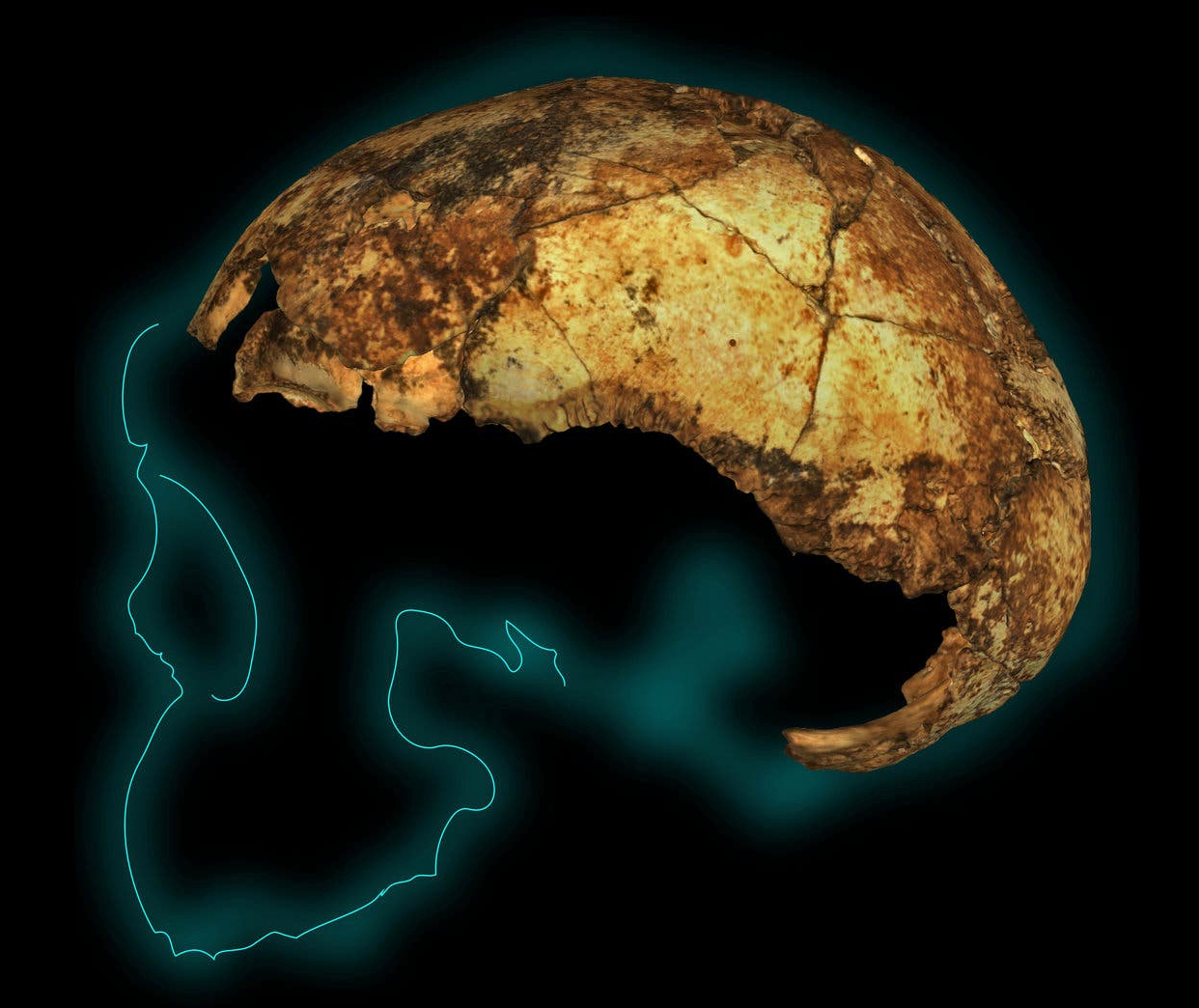

DNH 134 H. erectus from South Africa

Photo: Andy Herries, Jessie Martin and Joannes-Boyau
Proximate source: https://science.sciencemag.org/content/368/6486/eaaw7293
Further reading: Herries et al. (2020)




drimolen_2gsm

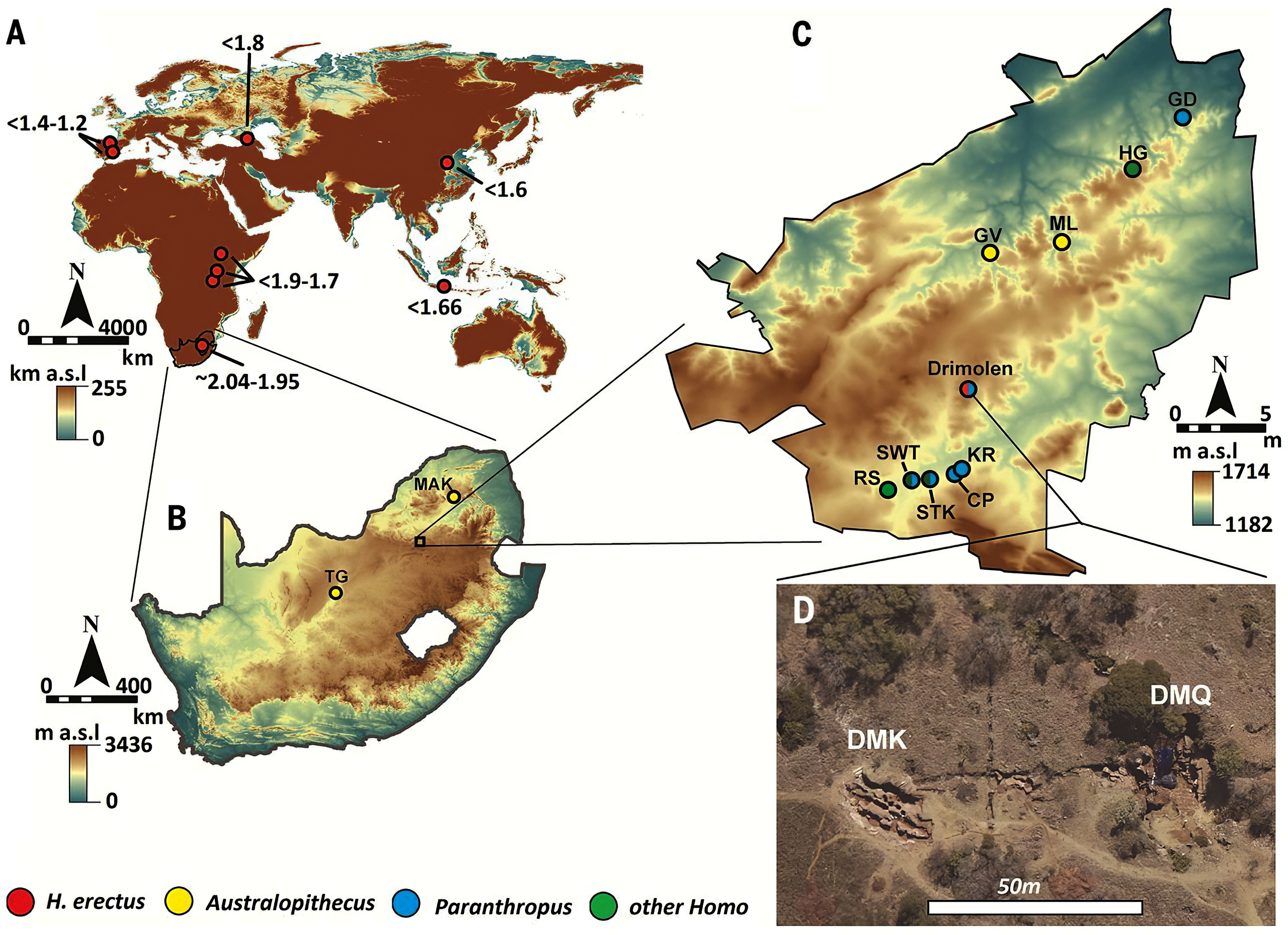

The Location of the Drimolen palaeocave complex.

(A) The location of Drimolen in comparison with other H. erectus sites worldwide and their approximate maximal age.

(B) The location of Drimolen within South Africa in relation to other early hominin fossil sites and the Gauteng Malmani sites.

(C) The location of Drimolen within the Gauteng Malmani in relation to other hominin sites. The Blaauwbank Stream Valley is represented by sites running from Bolt’s Farm (BF) to Kromdraai (KR). CP, Coopers D; STK, Sterkfontein (also contains Australopithecus); SWT, Swartkrans; RS, Rising Star; GV, Gladysvale; ML, Malapa; HG, Haasgat; GD, Gondolin. Colors indicate the predominant genus or species represented.

(D) An aerial view of the Drimolen site and the relationship of the hominin-bearing DMQ (2.04 to 1.95 Ma) and nonhominin-bearing DMK (~2.61 Ma).

Photo and text: Herries et al. (2020)




images_of_skull_erectus_child_2gsm

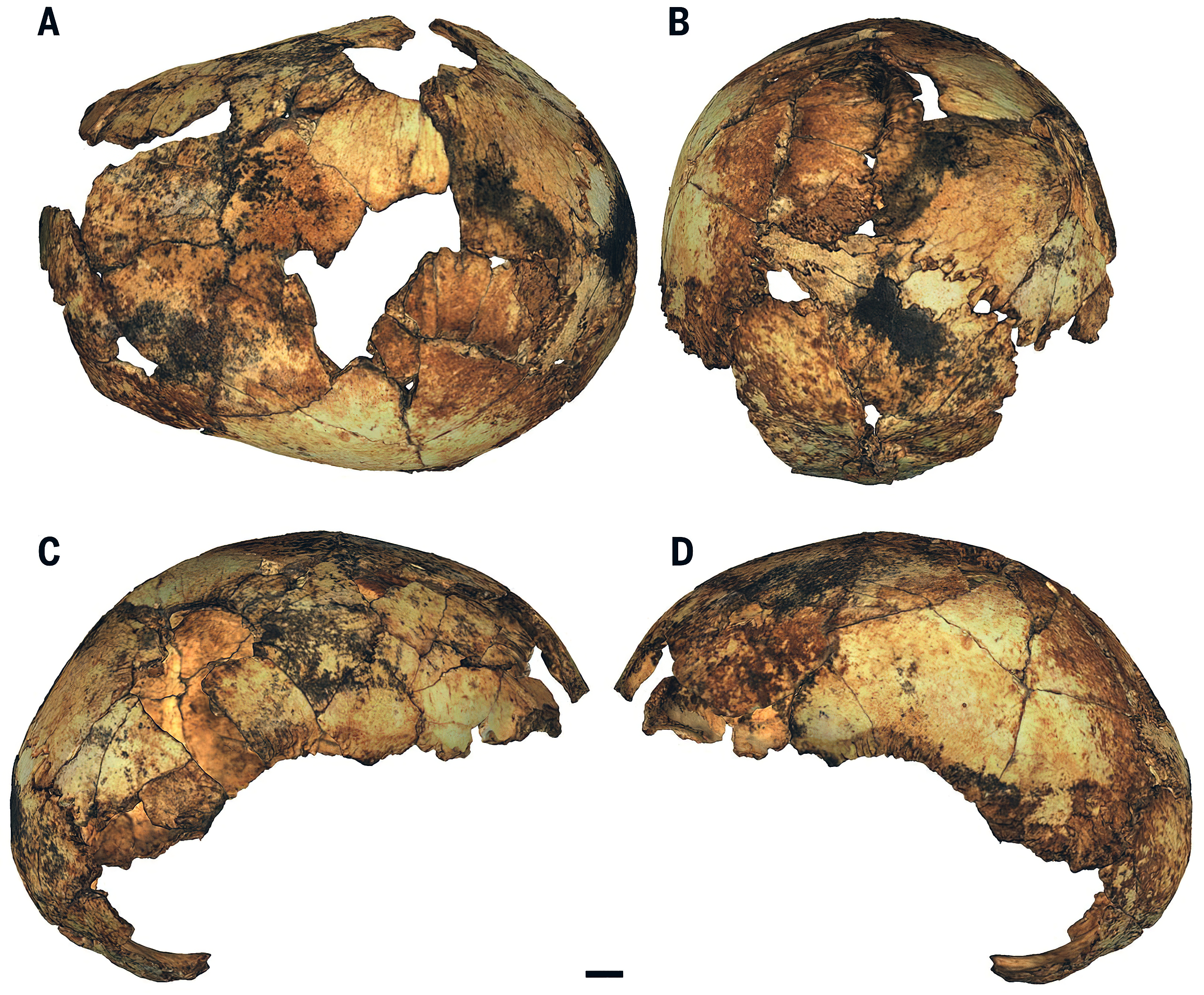

The DNH 134 Homo aff. erectus neurocranium.

(A) Superior view, anterior to the left.

(B) Posterior view.

( C) Right lateral view, anterior to right. (D)

Photo and text: Herries et al. (2020)








Turkana Boy Turkana Boy

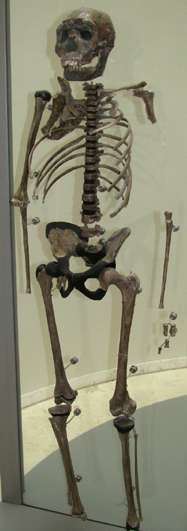

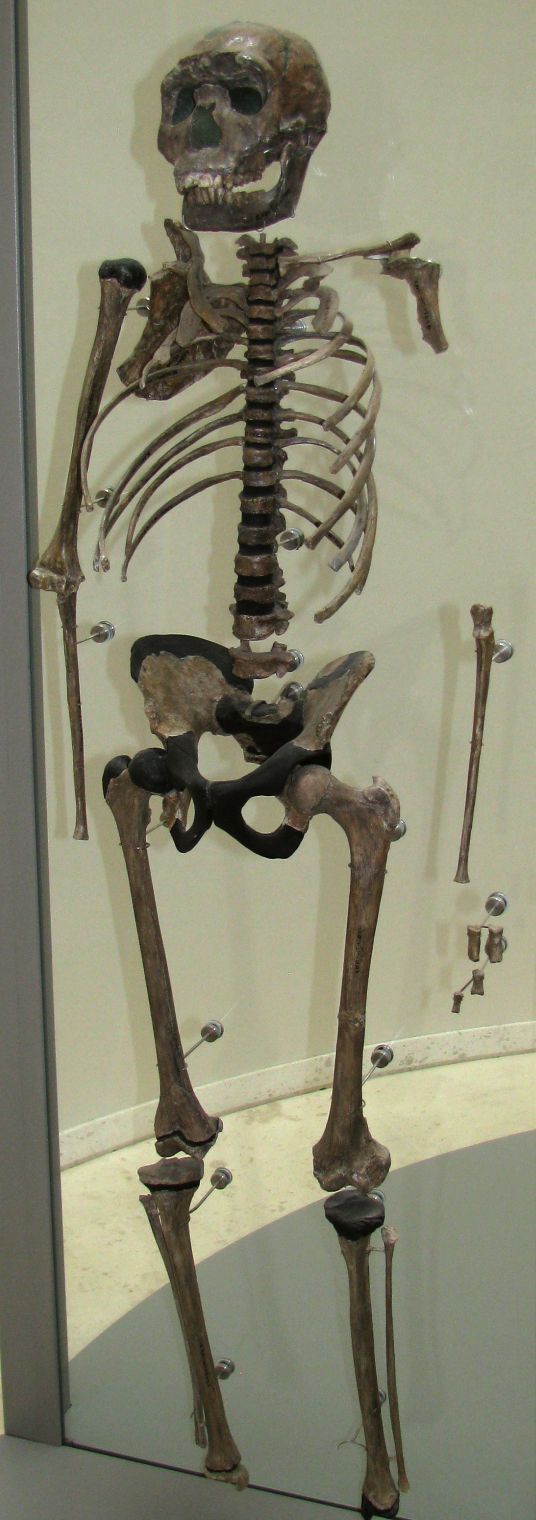

The most famous Homo erectus find is the 'Turkana Boy', KNM WT 15000, a young male discovered in Kenya by Kamoya Kimeu in 1984. The original is now kept at the Kenya National Museum.

His reconstructed skeleton - with a narrow pelvis and tall, thin body - is interpreted as showing adaptation to the hot climate and the need to run long distances.

Photo: Don Hitchcock 2014

Source: Display at Musée National de Préhistoire, Les Eyzies

Artist responsible for the hyperrealistic reconstruction of Turkana Boy: Elisabeth Daynès




Homo erectus reconstruction

Homo erectus Turkana Boy reconstruction.

Photo: Cicero Moraes
Permission: Creative Commons Attribution-Share Alike 3.0 Unported license.




Homo ergaster Homo ergaster Homo ergaster
Homo erectus

'Nariokotome Boy' - also known as 'Turkana Boy'

KNM-WT 15000 (skeleton)

East Turkana, Kenya

ca 1.5 million BP

Discovered by K. Kimeu, 1984

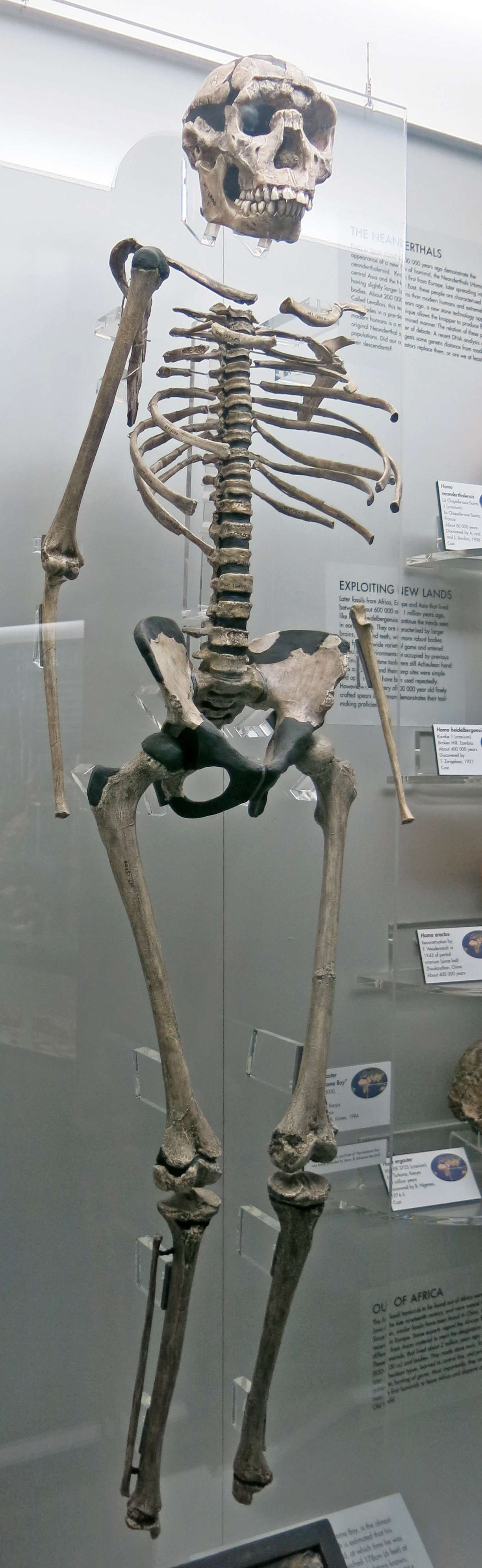

This cast of Homo erectus, known as Nariokotome Boy, is the almost complete skeleton of a young male individual. It is estimated that his age at death was between 10 and 12 years old, at which time he was 163 cm (5 feet 6 inches) tall, and may have reached 178 cm (6 feet) at maturity.

One of the most complete ancient hominid skeletons known, this find began with the discovery of a small fragment of skull in 1984. The complete excavation of the site took five consecutive field seasons, although most of the bones were found in the first two.

Facsimile

Photo: Don Hitchcock 2013
Source and text: Western Australian Museum




Homo ergaster





Another photo of the reconstruction of 'Turkana Boy' by Elizabeth Daynès.

Facsimile

Photo: Shakti
Permission: GNU Free Documentation License, Version 1.2
Source: Display at Musée National de Préhistoire, Les Eyzies
Artist responsible for this fine reconstruction of Turkana Boy: Elizabeth Daynès







Early Homo erectus skeleton from west Lake Turkana, Kenya

Brown, Harris, Leakey and Walker (1985)


Homo erectus map

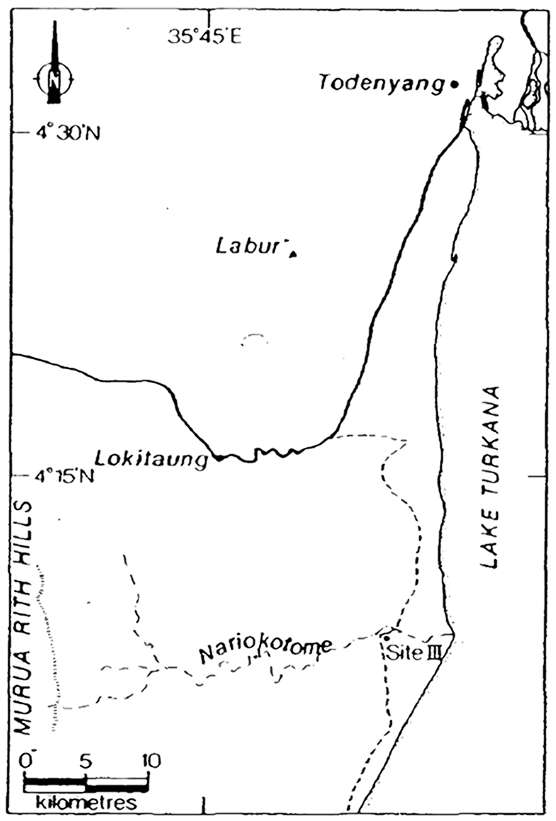

Map of northern Kenya to show the location of the site Nariokotome III.

During the course of palaeontological exploration on the west side of Lake Turkana, Bw. Kamoya Kimeu found a small fragment of hominid frontal bone exposed on the surface at the site of Nariokotome Ill, on the south bank of the Nariokotome River.

The approximate latitude and longitude of the site are 4°08'N, 35°54'E. Near the site the Plio-Pleistocene beds strike N 7°E and dip 5° to the west. Exposures are reasonably good along the south bank of the Nariokotome where a section was measured to establish the stratigraphic position of the hominid. Several tuffs occur within this section that have been correlated with tuffs elsewhere in the Turkana Basin on the basis of their chemical composition.

The hominid derives from a siltstone that immediately overlies a tuff identified as a component ash of the Okote Tuff complex of the Koobi Fora Formation. The age of this tuff is ~1.65 Myr.

An ash that correlates with Tuff L of the Shungura Formation (Chari Tuff of the Koobi Fora Formation) dated at I .39 Myr lies 34 m above the hominid level. An un-named tuff dated at 1.33 Myr lies 46 m above the specimen. Thus, the hominid is probably very close to 1.6 Myr in age.

Photo and text: Brown, Harris, Leakey and Walker (1985)









Lake Turkana

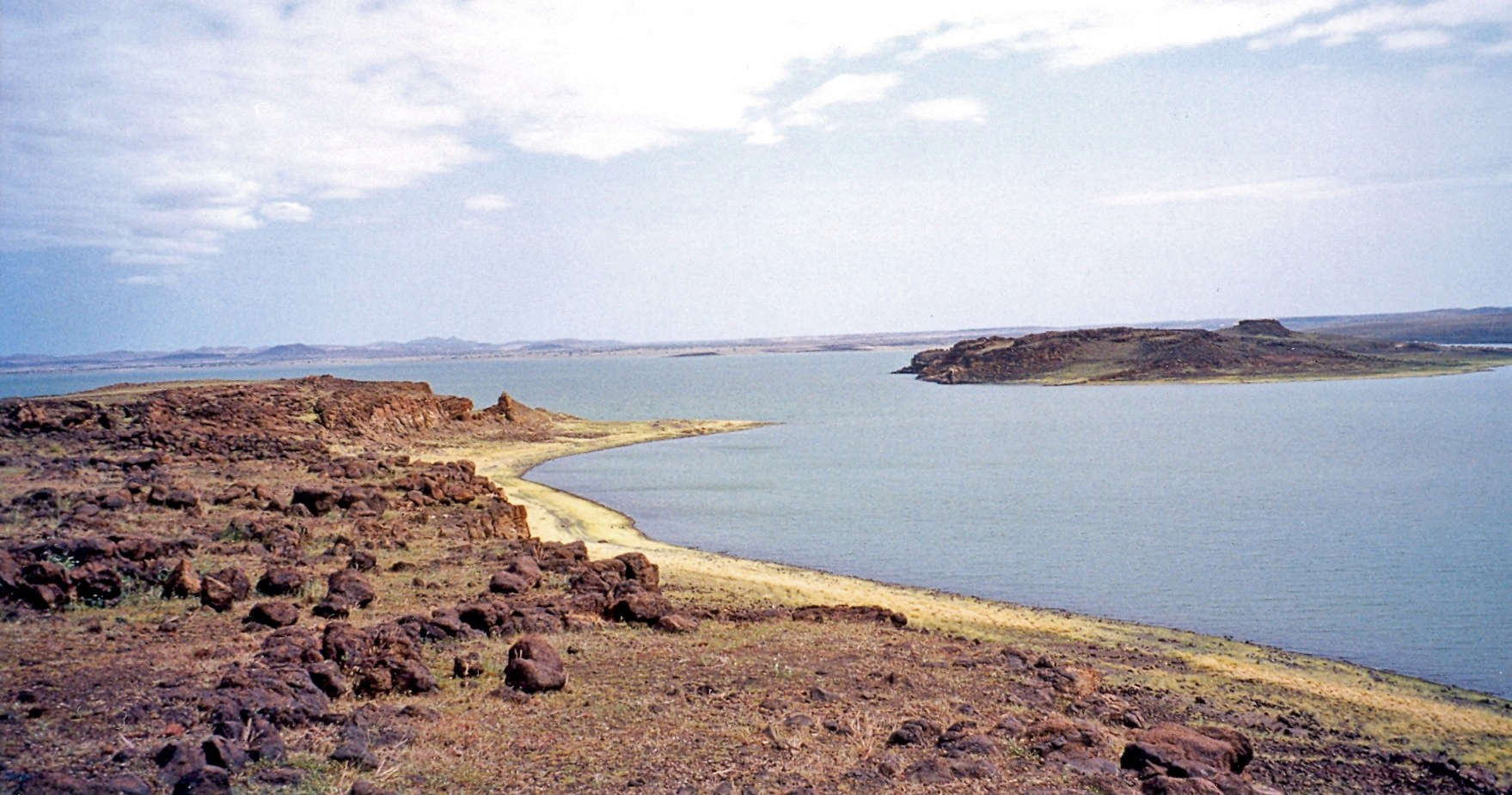

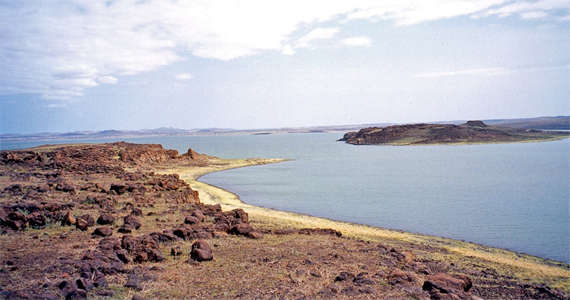

Lake Turkana seen from the South Island.

Lake Turkana, formerly known as Lake Rudolf, is a lake in the Kenyan Rift Valley, with its far northern end crossing into Ethiopia. It is the world's largest permanent desert lake and the world's largest alkaline lake. By volume it is the world's fourth-largest salt lake after the Caspian Sea, Issyk-Kul, and Lake Van, and among all lakes it ranks 24th. The water is potable, but not palatable. It supports a rich lacustrine wildlife. The climate is hot and very dry.


The rocks of the surrounding area are predominantly volcanic. Central Island is an active volcano, emitting vapors. Outcrops and rocky shores are found on the east and south shores of the lake, while dunes, spits and flats are on the west and north, at a lower elevation.

Photo: Doron
Permission: GNU Free Documentation License, Version 1.2 or later
Text: Wikipedia




Homo ergaster

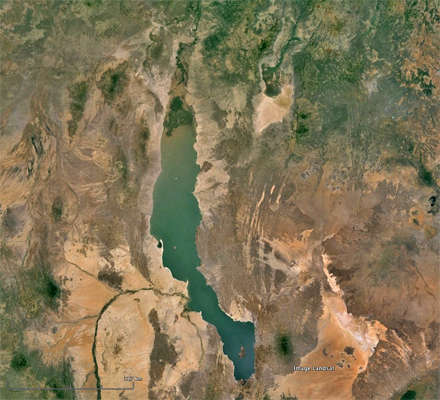

Lake Turkana.

On-shore and off-shore winds can be extremely strong, as the lake warms and cools more slowly than the land. Sudden, violent storms are frequent. Three rivers (the Omo, Turkwel and Kerio) flow into the lake, but lacking outflow, its only water loss is by evaporation. Lake volume and dimensions are variable. For example, its level fell by 10 metres between 1975 and 1993.

Due to temperature, aridity and geographic inaccessibility, the lake retains its wild character. Nile crocodiles are found in great abundance on the flats. The rocky shores are home to scorpions and carpet vipers. Although the lake and its environs have been popular for expeditions of every sort under the tutelage of guides, rangers and experienced persons, they certainly must be considered hazardous for unguided tourists.

Lake Turkana National Parks are now listed as a UNESCO World Heritage Site. Sibiloi National Park lies on the lake's eastern shore, while Central Island National Park and South Island National Park lie in the lake. Both are known for their crocodiles.


The Lake Turkana area is regarded by many anthropologists as the cradle of humankind due to the abundance of hominid fossils.

Photo: Google Earth
Text: Wikipedia









Homo ergaster Homo ergaster

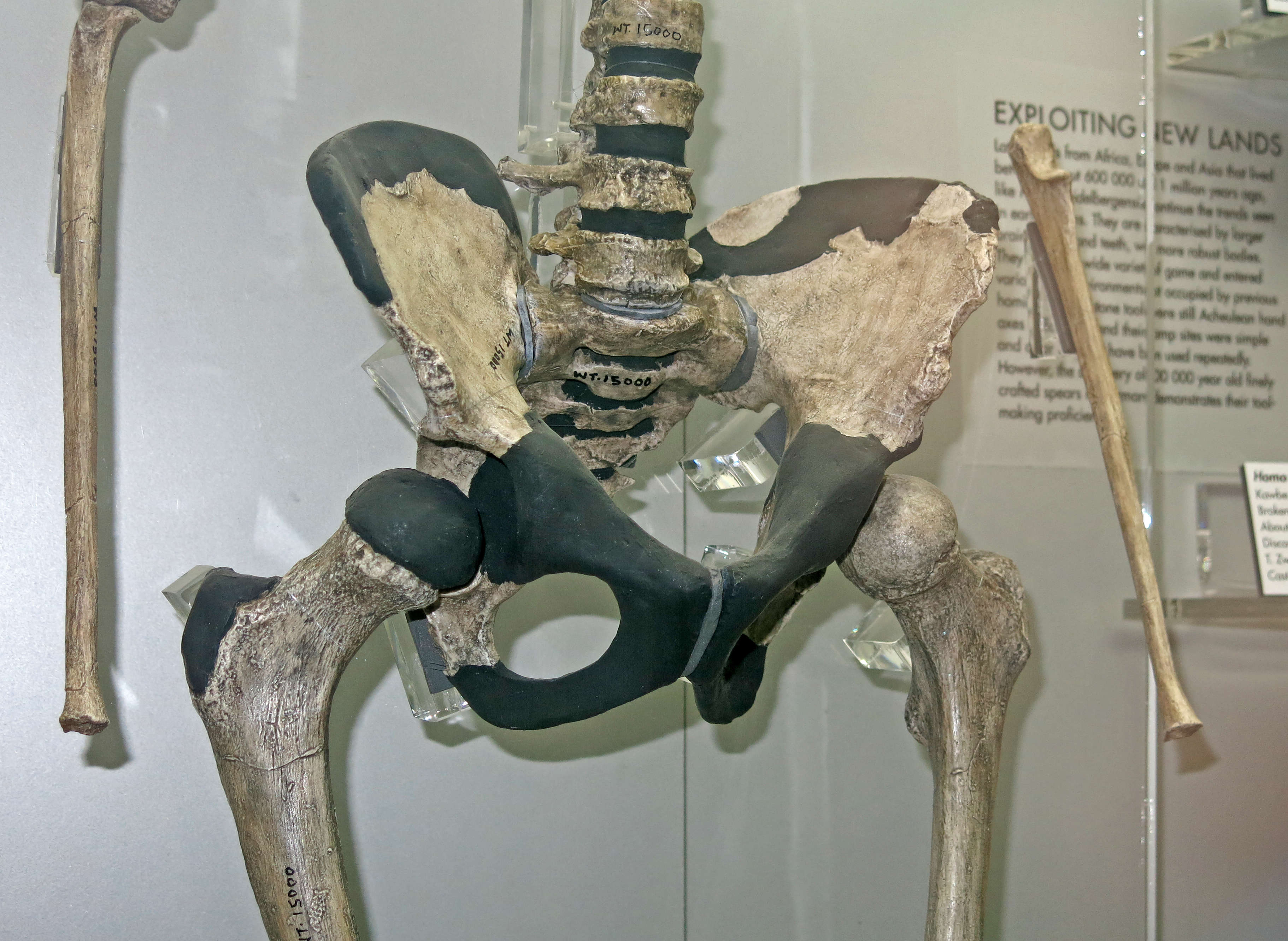

Skull and pelvis of Homo erectus, 'Nariokotome Boy', also known as 'Turkana Boy'

Facsimile

Photo: Don Hitchcock 2013
Source and text: Western Australian Museum

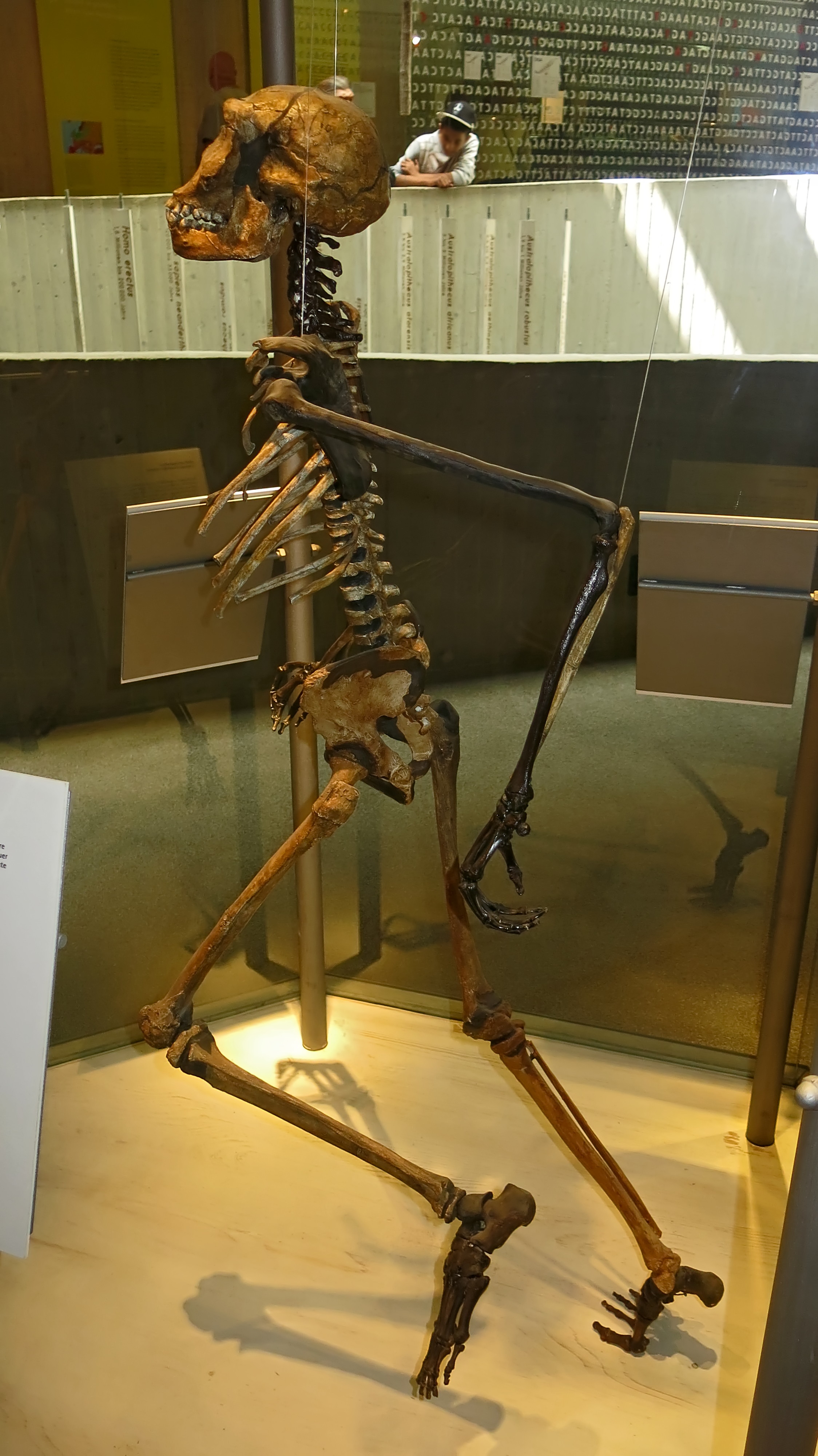

erectus

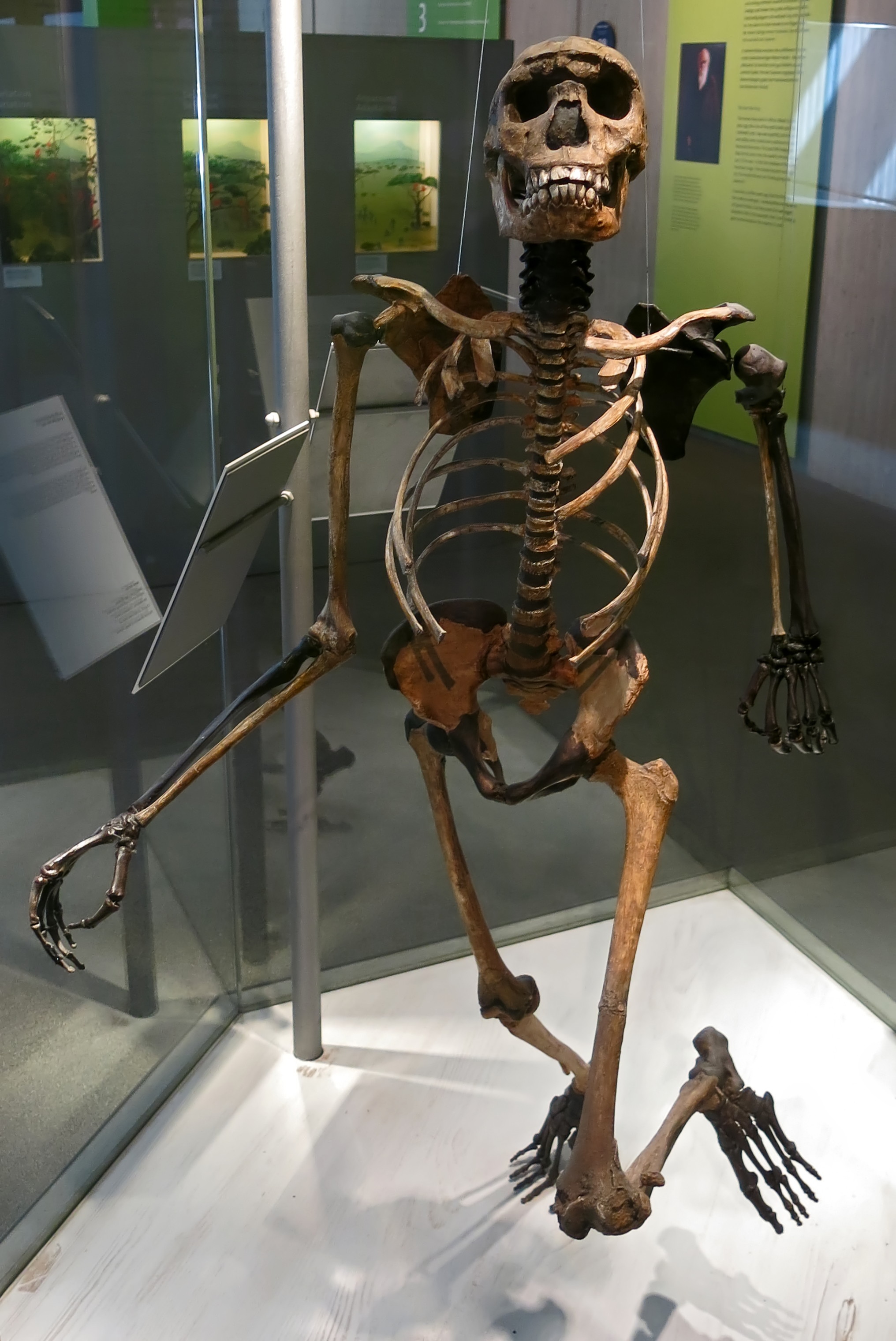

Long legs increase Man's mobility

Homo began to walk exclusively on his two 'rear legs'. Soon the spine and pelvis adapted to this type of movement. Man's hands were now free to carry small children, food and tools. Homo erectus was already much taller than Australopithecus. Along with the rest of his body, his legs grew, making him more mobile - an invaluable asset in the vast savannahs. Man also grew in strength, enabling him to kill large animals, a source of food and clothing.

Eating raw plants requires strong teeth - particularly the molars which grind food like millstones. But Homo learned to use fire to cook food, allowing it to be chewed with smaller teeth. The less man had to chew, the more energy he saved, and the smaller his teeth and jaw gradually became.

Skeleton: Homo erectus, from Nariokotome, Lake Turkana, Kenya, 1 600 000 BP

Photo: Don Hitchcock 2015
Source and text: Facsimile, Neanderthal Museum, Mettmann, near Düsseldorf, Germany




erectus
Coping with the heat

This skeleton may not show it, but Homo erectus had already shed the long body hair typical of great apes. Man was constantly on the move - often enough in the searing sun - so he needed to keep cool. Fur was a hindrance. Homo slowly lost his body hair and developed sweat glands. Perspiration reduces the body temperature, expelling the heat via evaporation.

When women lost their body hair, their offspring had no fur to cling to. Children became a burden and had to be carried everywhere. Additionally, they were so ungainly that they needed constant supervision. Consequently the fathers had to help feed and care for them. Slowly the parents formed a more tightly-knit social unit. New types of social interaction arose as fathers became actively involved in raising their children.

Skeleton: Homo erectus, from Nariokotome, Lake Turkana, Kenya, 1 600 000 BP

Photo: Don Hitchcock 2015
Source and text: Facsimile, Neanderthal Museum, Mettmann, near Düsseldorf, Germany




erectus
Big brain, cool head

The enlargement of the brain gave human evolution a decisive nudge. However the brain also consumed large amounts of energy - forcing man to eat more - and required extremely efficient blood circulation. This allowed man to keep a cool head in the scorching sun. The more intelligent these savannah-dwellers became, the more adeptly they could access and exploit the diffuse sources of food.

Language - although in its infancy - helped generate new forms of social interaction. Together with man's brain, his manual skills also improved. The verb 'grasp' - with its dual meanings of 'understand' and 'take in one's hand' - points back to the parallel development of brain and hands.

Skeleton: Homo erectus, from Nariokotome, Lake Turkana, Kenya, 1 600 000 BP

Photo: Don Hitchcock 2015
Source and text: Facsimile, Neanderthal Museum, Mettmann, near Düsseldorf, Germany

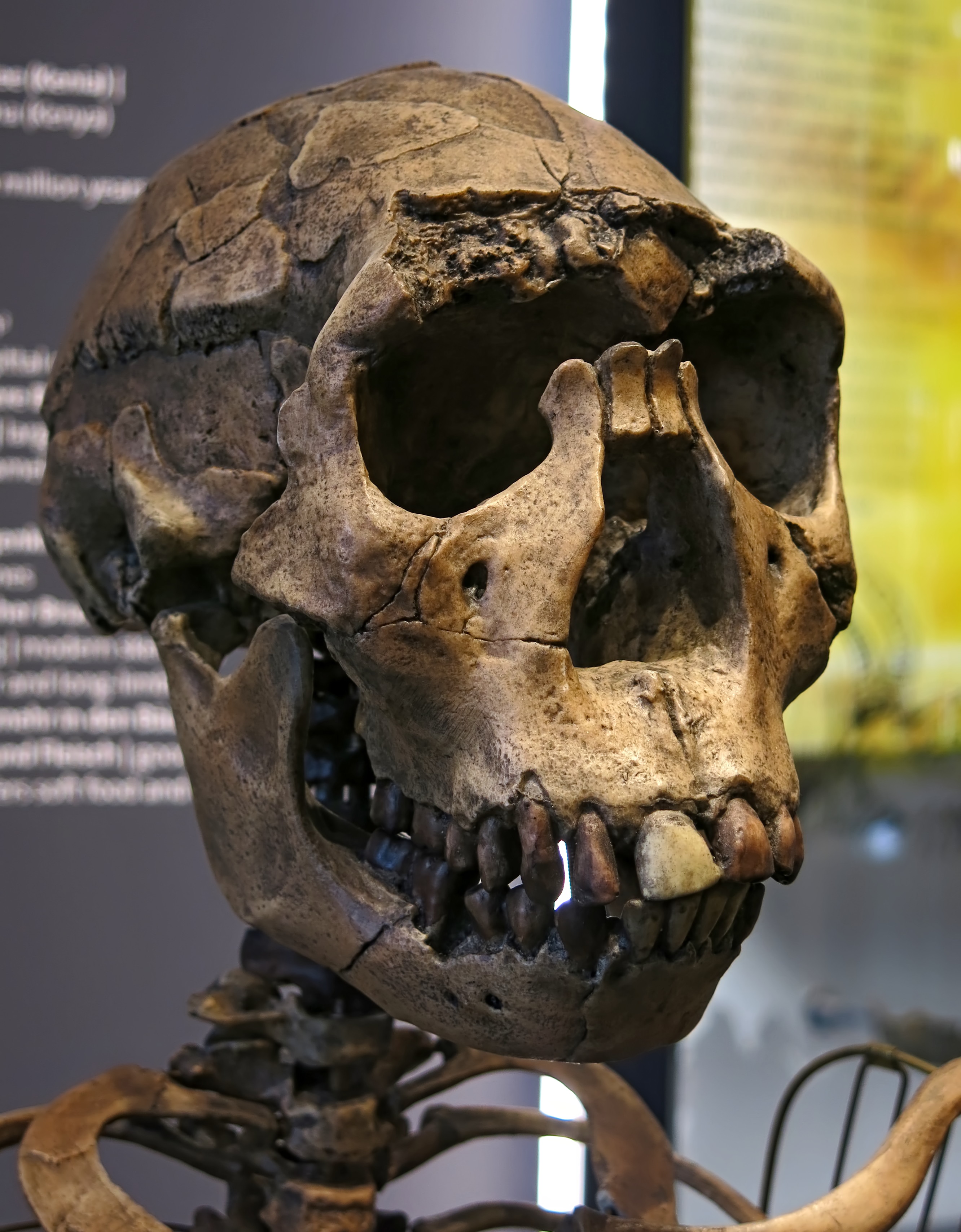

Homo ergaster

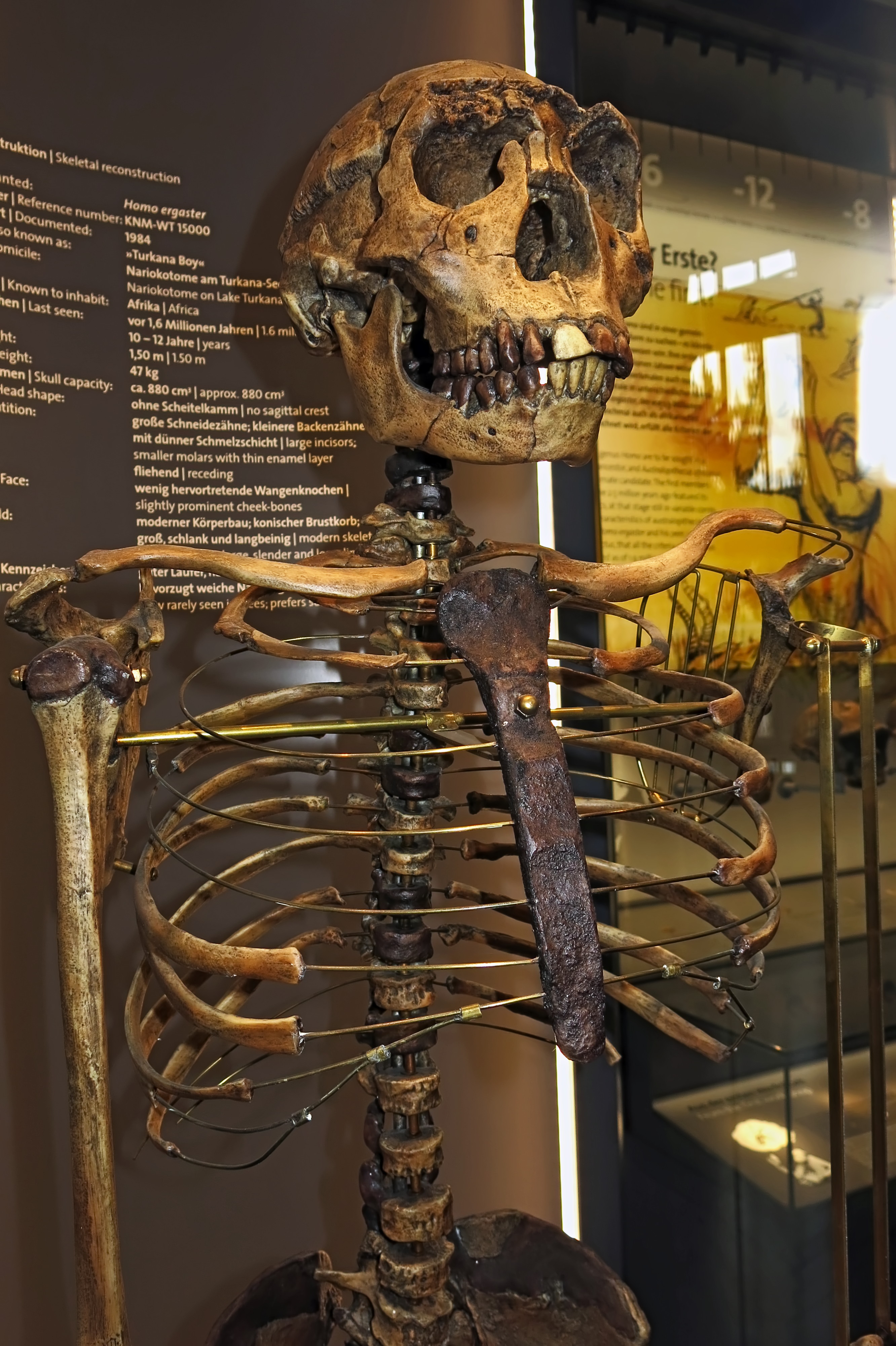

Homo ergaster, KNM-WT 15000.

Found in 1984 at Nariokotome on Lake Turkana, Kenya, known as Turkana Boy.

Circa 1 600 000 BP.

Age: 10 - 12 years old, 47 kg, skull capacity circa 880 cm3

Head shape: no sagittal crest

Large incisors, smaller molars with thin enamel layer, receding chin, slightly prominent cheek bones.

Other characteristics: Modern skeleton. Conical ribcage. Large, slender, and long-limbed. Good runner, rarely used trees, preferred soft food and meat.

Photo: Don Hitchcock 2015
Source and text: Facsimile, Vienna Natural History Museum, Naturhistorisches Museum Wien




Homo ergaster
Homo ergaster, KNM-WT 15000.

Man's dominant characteristic is his unmatched ability to manufacture and employ tools. Homo habilis was already using simple stone tools. Their sharp edges enabled him to cut objects too tough for his teeth and fingernails. Man's larger brain also helped improve his dexterity. As he grew increasingly skilful in making stone tools, these tools became more efficient. Soon Homo could use these to carve other objects from wood or bone.

Photo: Don Hitchcock 2015
Source and text: Facsimile, Vienna Natural History Museum, Naturhistorisches Museum Wien
Additional text: Neanderthal Museum, Mettmann, near Düsseldorf, Germany







Homo erectus

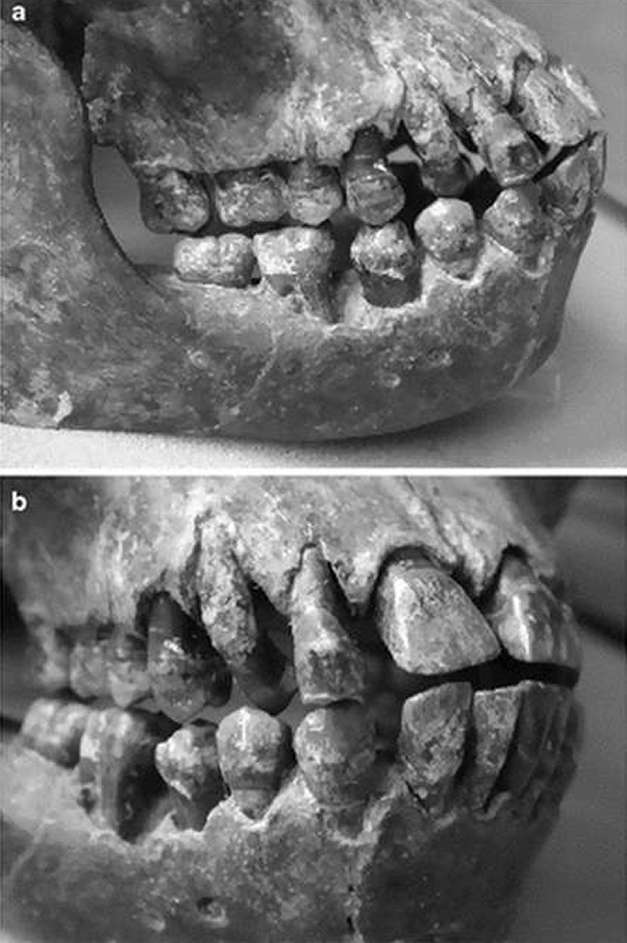

The teeth and jaws of KNM-WT 15000.

a) the recently erupted second permanent molars, premolars and lower canine are viewed laterally. The upper third molar region is broken away on this side (although the unerupted crown is preserved on the other side).

b) the oblique view shows the permanent upper and lower incisors; the permanent canine is erupted in the mandible, but the deciduous canine was still present in the maxilla.

Original

Photo and text: Dean and Smith (2009)




Saint CesaireSaint Cesaire

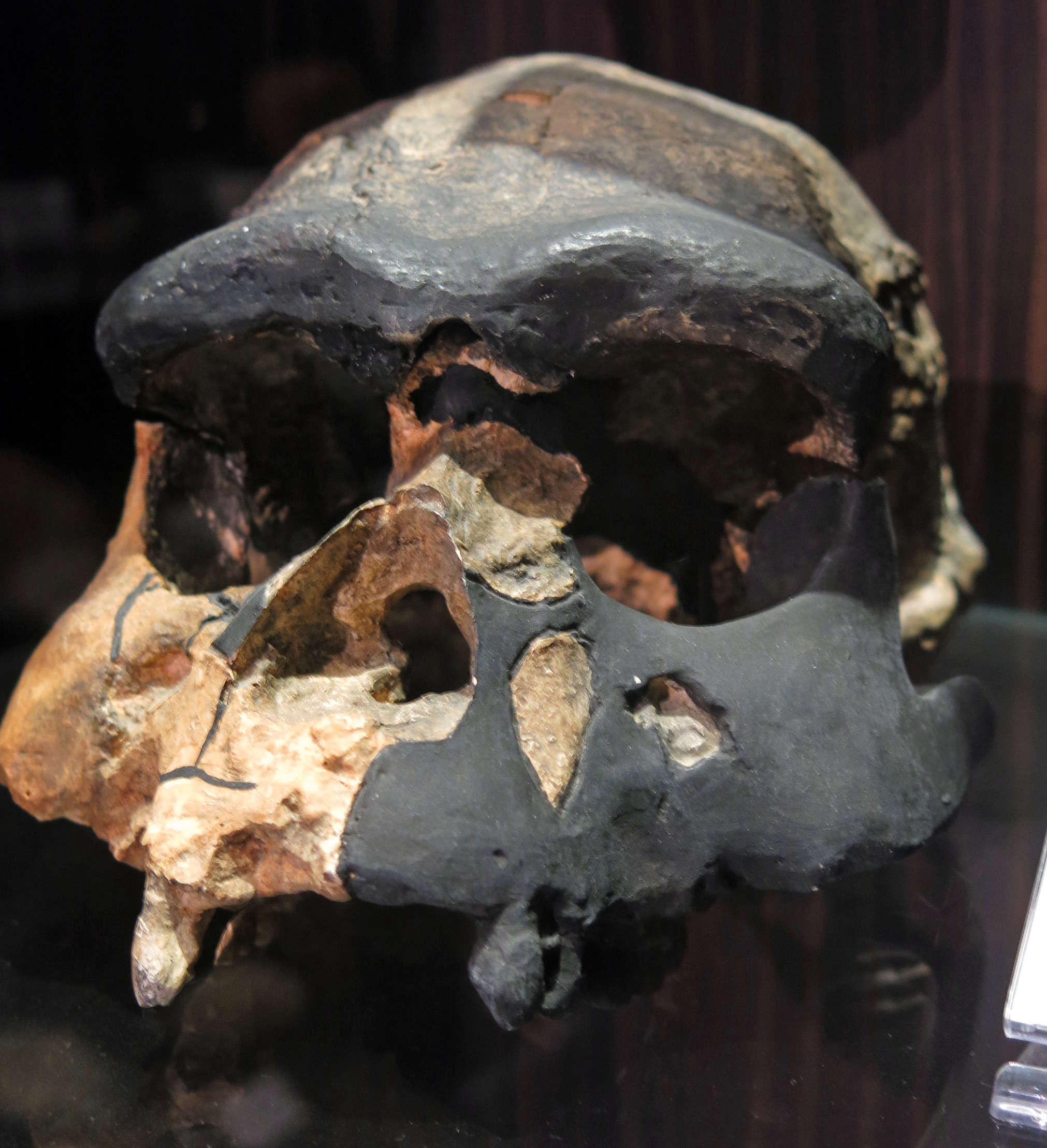

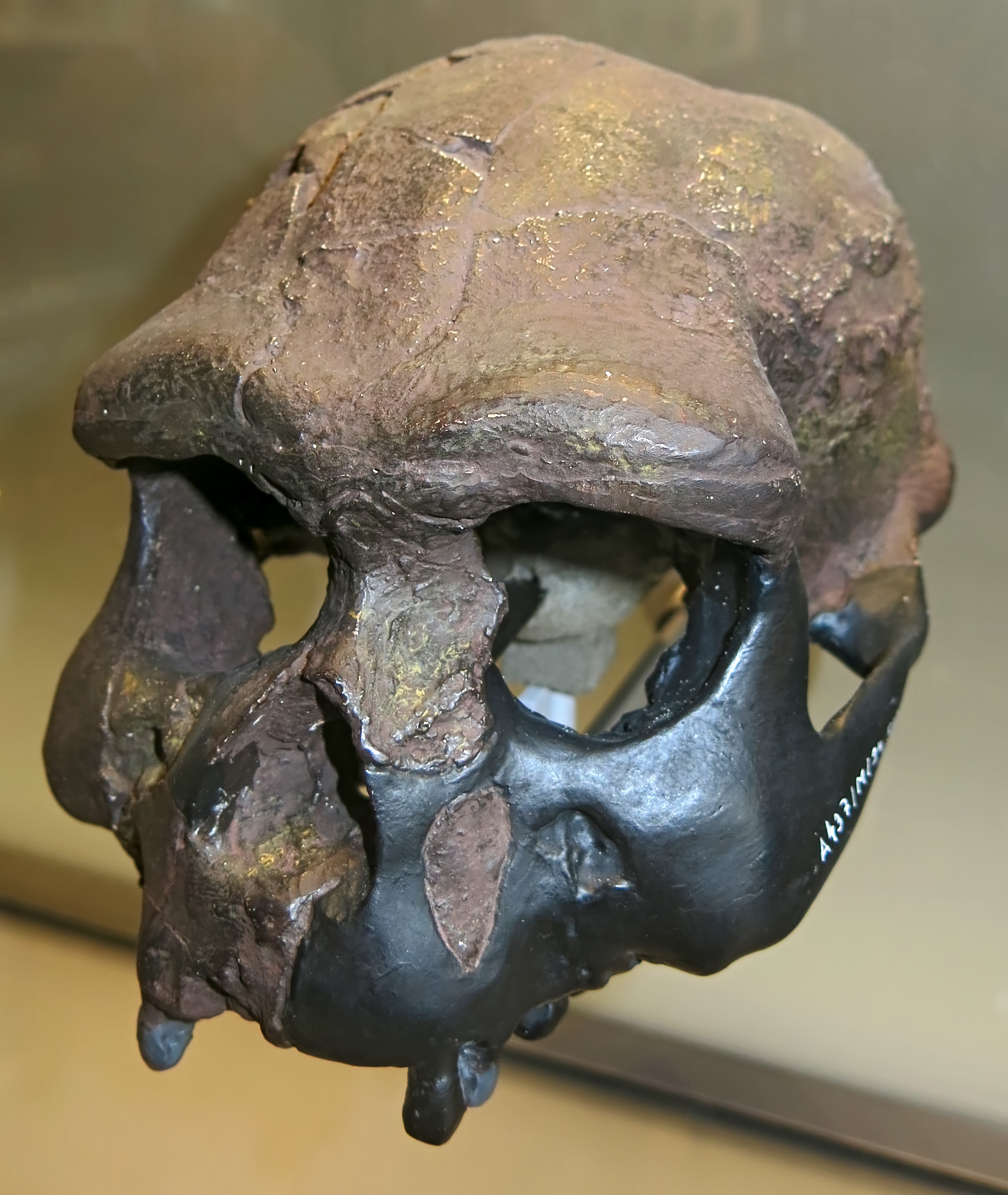

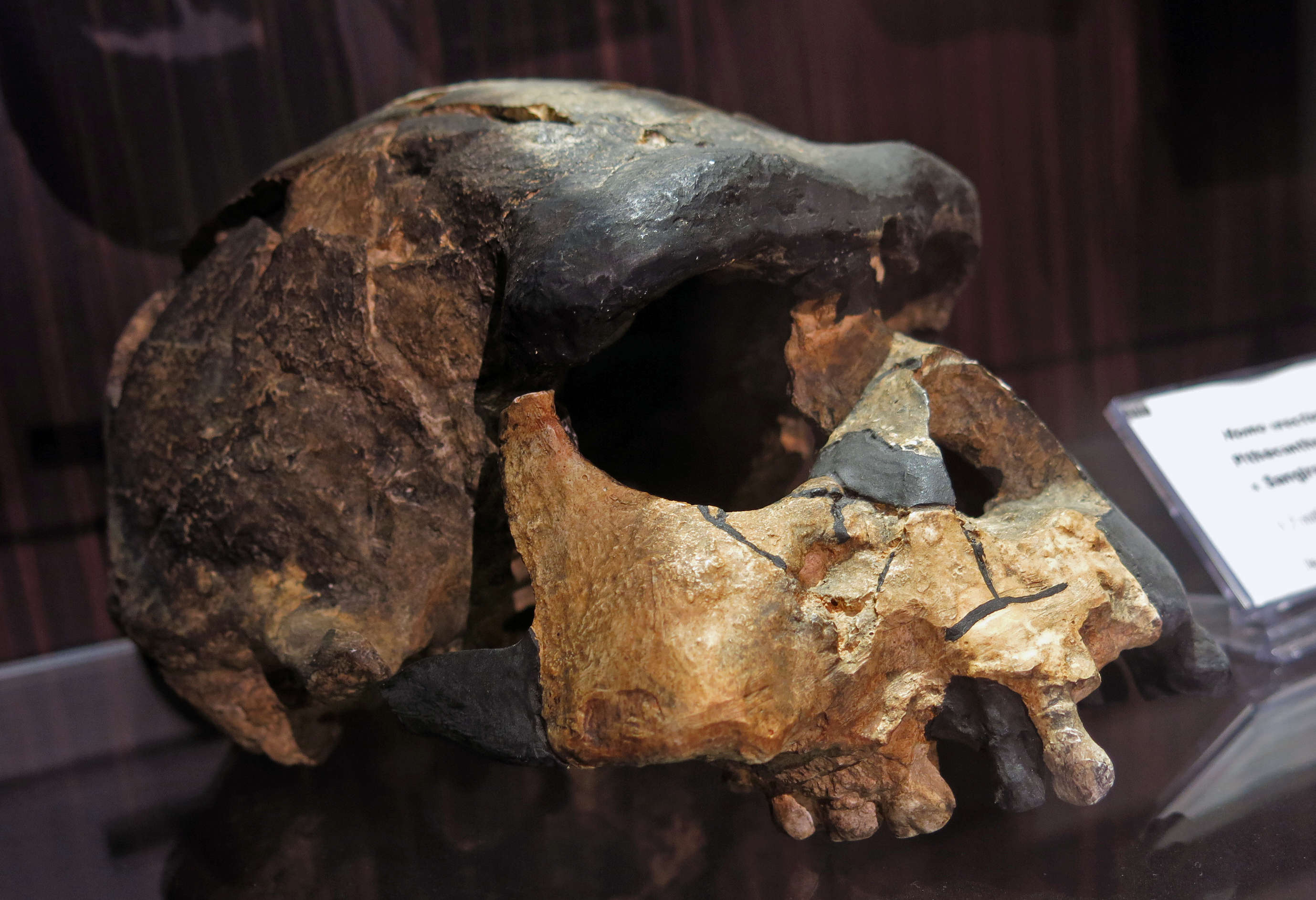

Homo erectus, Sangiran 17.

Facsimile.

This skull was discovered in Sangiran, Java, Indonesia in 1969 by Towikromo.

Age 1 300 000 BP - 1 100 000 BP.

Photo: Don Hitchcock 2014
Source: Display, Paléosite at Saint Césaire.
Text: Adapted from http://humanorigins.si.edu/evidence/human-fossils/fossils/sangiran-17




Homo erectus Homo erectus
Homo erectus

Cranium, without lower jaw, Sangiran 17.

Circa 1 300 000 BP, Java, Indonesia.

Photo: Don Hitchcock 2015
Source and text: Facsimile, Vienna Natural History Museum, Naturhistorisches Museum Wien




Homo erectus Homo erectus

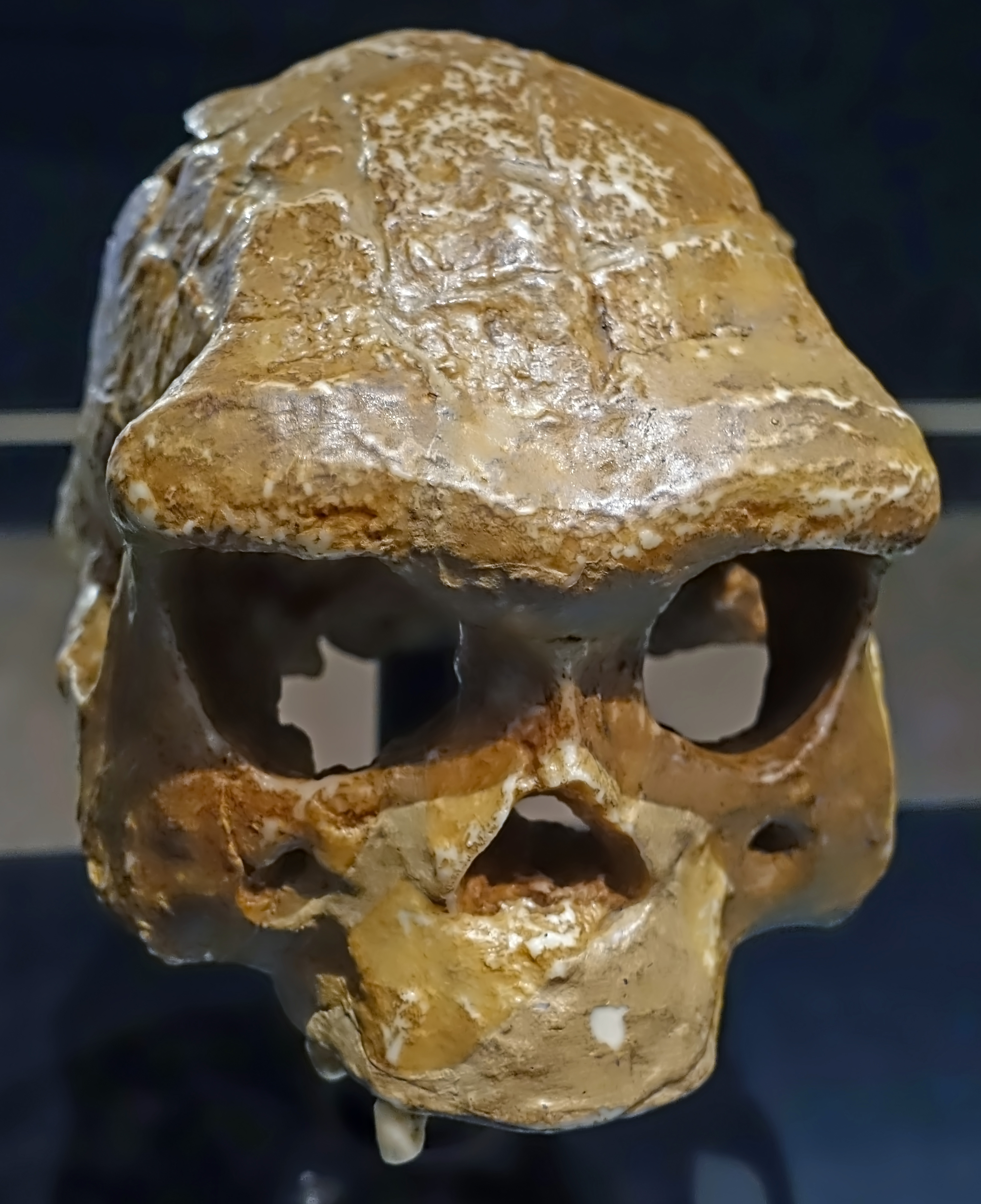

Homo erectus adult man, Sangiran 17, Java, Indonesia.

Featuring a huge brow ridge, low forehead, relatively small teeth and large brain, Homo erectus ranged over Africa, Asia, and possibly Europe. These ancient humans survived for well over one million years, dying out within the past 500 000 years.

Circa 1 000 000 BP, Java, Indonesia.

Photo: Don Hitchcock 2018
(left) Facsimile, original in Sangiran Museum, Java, Indonesia, AQ PEG 2015 825
(right) Sculptor: Kennis & Kennis Reconstructions
Source and text: The Natural History Museum, Cromwell Road, London




Homo erectus Homo erectus
Homo erectus

Cranium, LANTIAN (PA 102, 105).

Circa 1 200 000 BP - 700 000 BP, Gongwangling, China.

Photo: Don Hitchcock 2015
Source and text: Facsimile, Vienna Natural History Museum, Naturhistorisches Museum Wien




Homo erectus Homo erectus

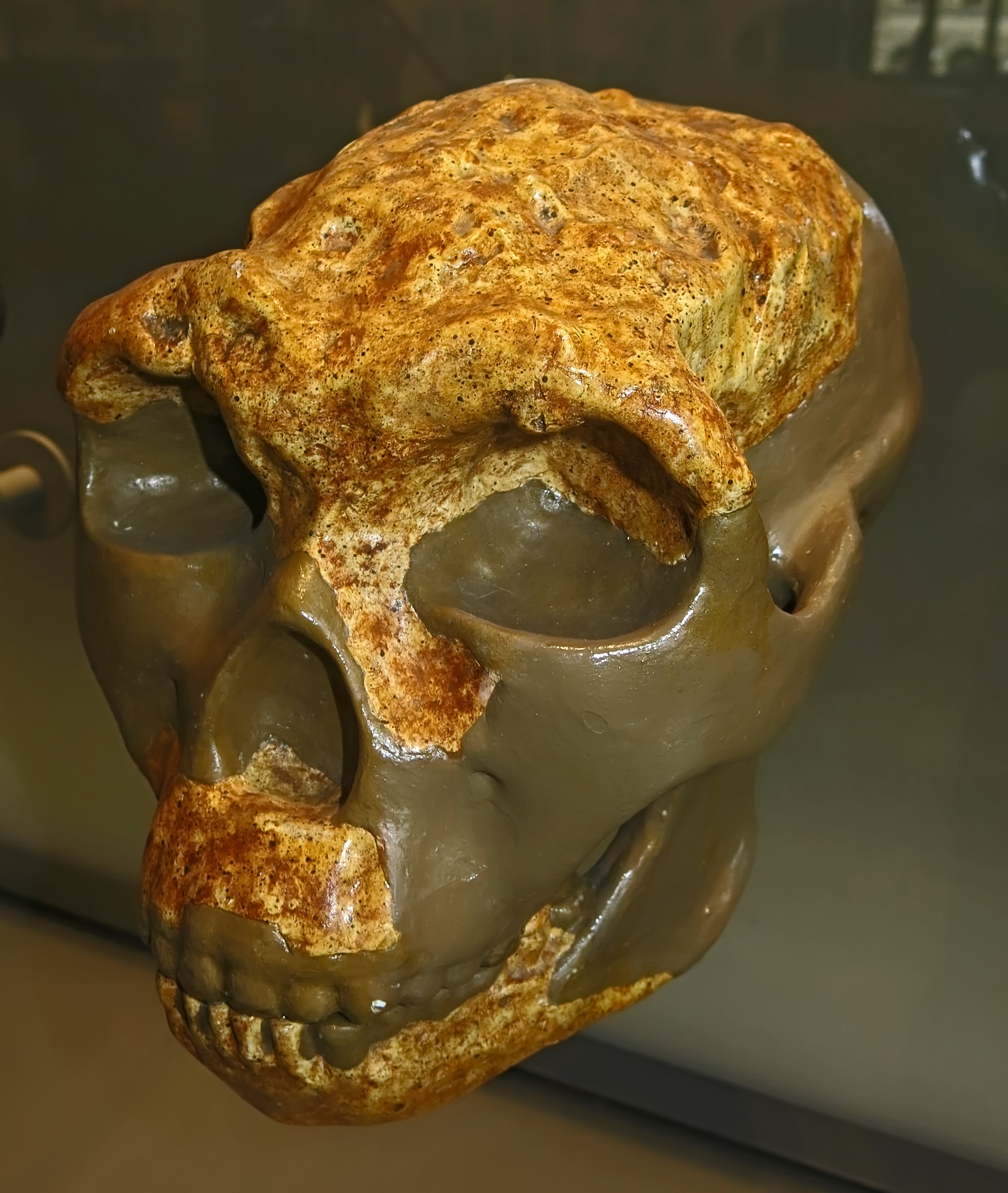

Homo erectus.

Partial cranium, SKULL X.

Circa 780 000 BP - 600 000 BP, Zhoukoudian, China.

Photo: Don Hitchcock 2015
Source and text: Facsimile, Vienna Natural History Museum, Naturhistorisches Museum Wien

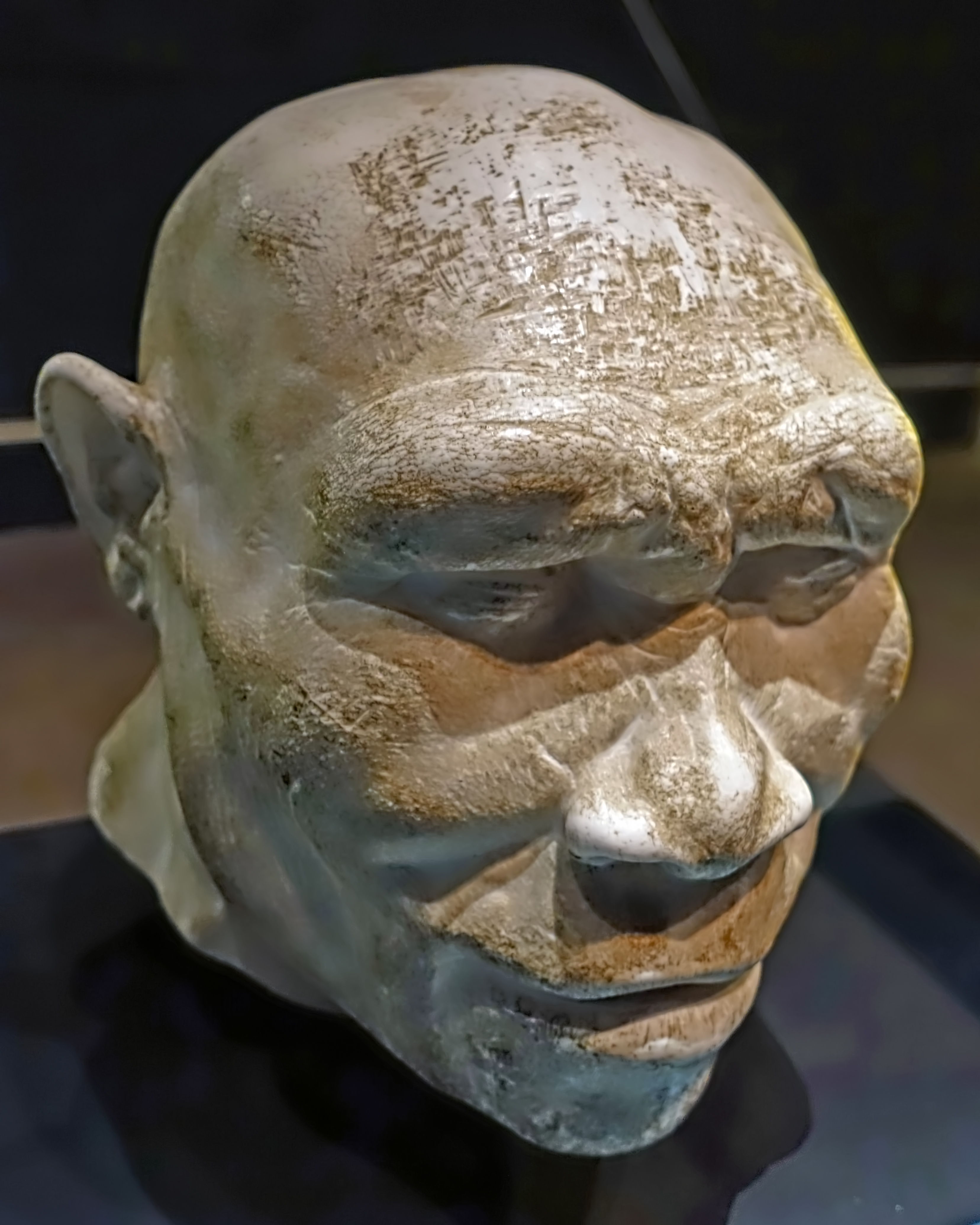

Homo erectus
Homo erectus

Soft tissue reconstruction based on the skull reconstruction by G.J. Sawyer & I. Tattersall. They used the Zhoukoudian skull fragments XII, III, XIV/VI, X/I, X/II, the mandible fragments GI/II and the isolated teeth 2, 6, and 13.

Zhoukoudian, China, circa 780 000 BP - 600 000 BP.

Photo: Don Hitchcock 2015
Sculptor: Atelier Élisabeth Daynès, Paris
Source and text: Facsimile, Vienna Natural History Museum, Naturhistorisches Museum Wien




Homo erectus
Homo erectus

Closeup of the sculpture above. As always, Élisabeth Daynès has produced a masterpiece of the genre.

Photo: Don Hitchcock 2015
Sculptor: Atelier Élisabeth Daynès, Paris
Source and text: Facsimile, Vienna Natural History Museum, Naturhistorisches Museum Wien




Homo erectus Homo erectus

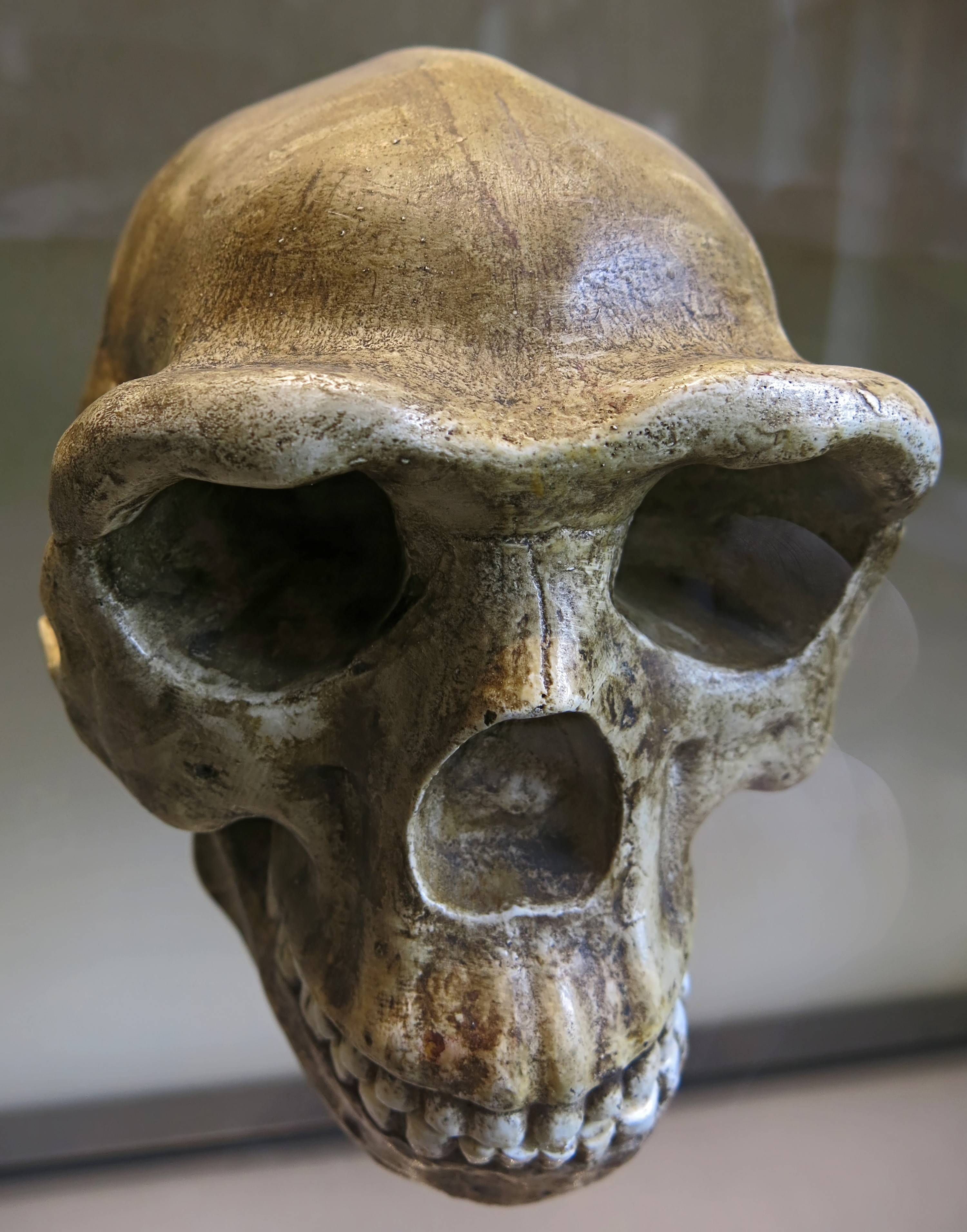

Homo erectus

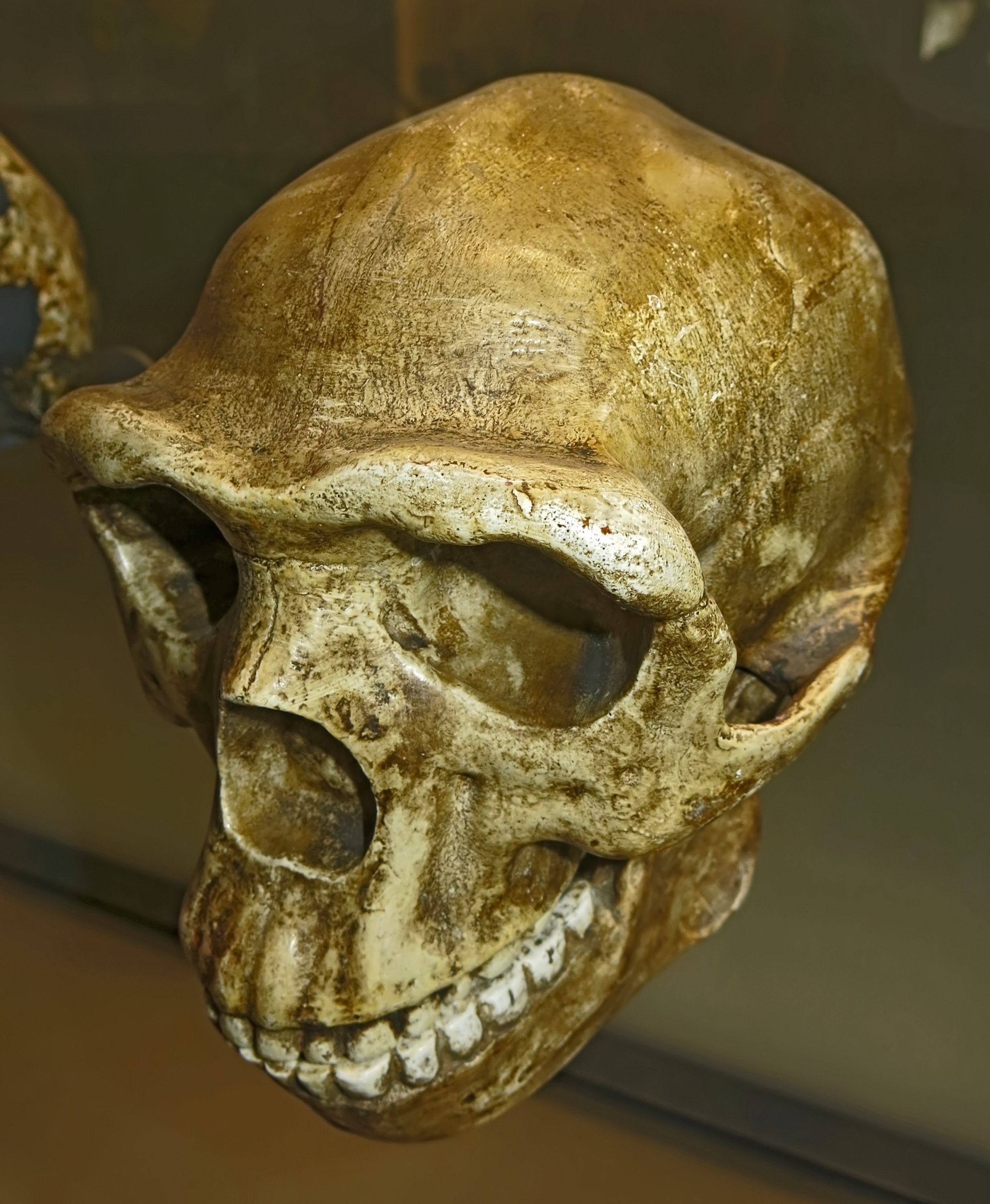

Cranium, SKULL XI.

Circa 780 000 BP - 600 000 BP, Zhoukoudian, China.

Photo: Don Hitchcock 2015
Source and text: Facsimile, Vienna Natural History Museum, Naturhistorisches Museum Wien




Homo erectus Homo erectus
Homo erectus

Cranium, SKULL XII.

Circa 780 000 BP - 600 000 BP, Zhoukoudian, China.

Photo: Don Hitchcock 2015
Source and text: Facsimile, Vienna Natural History Museum, Naturhistorisches Museum Wien




Homo erectus site

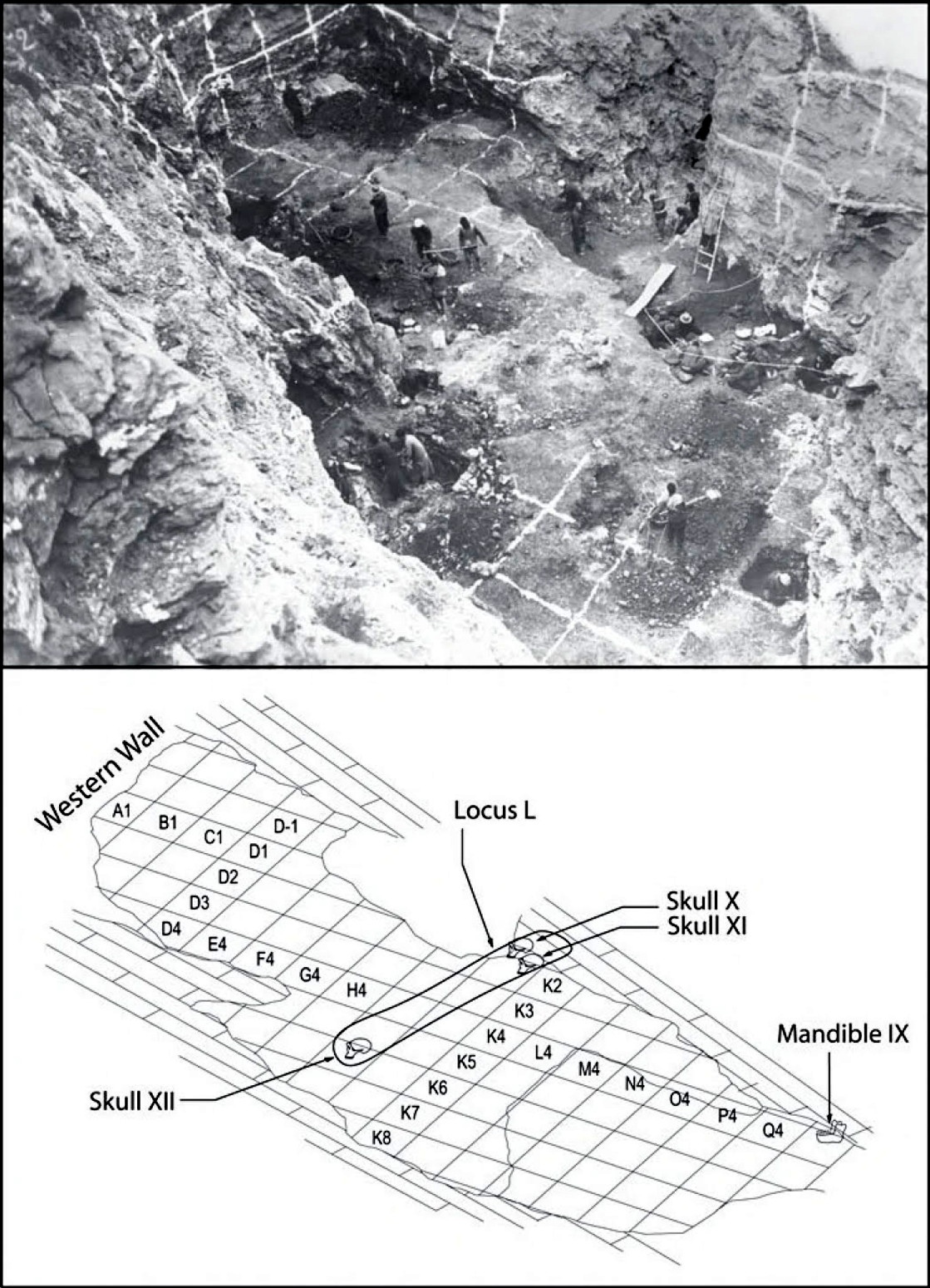

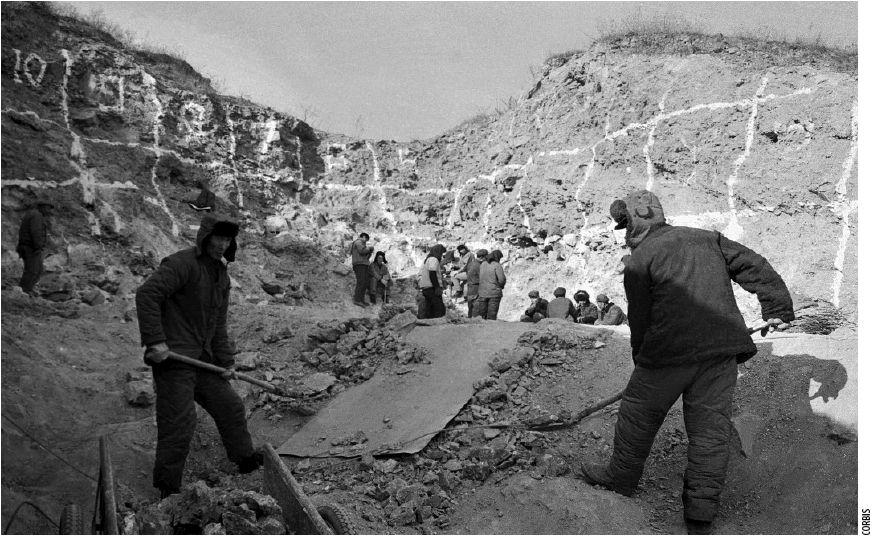

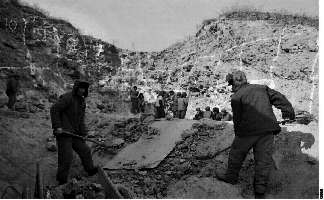

Homo erectus site, Dragon Bone Hill.

Discovery of Locus L at Dragon Bone Hill, viewed from the southwest.

Top: Excavation of Skulls X and XI on the right, and the area in left foreground is where Skull XII was later found.

Bottom: Excavation plan view of Locus L showing location of the three hominin skulls discovered in 1936 within Locus L, as well as Adult Mandible IX, discovered in 1959, at Level 27 of Layer 10.

Photo: November 15, 1936, Boaz and Ciochon (2004)

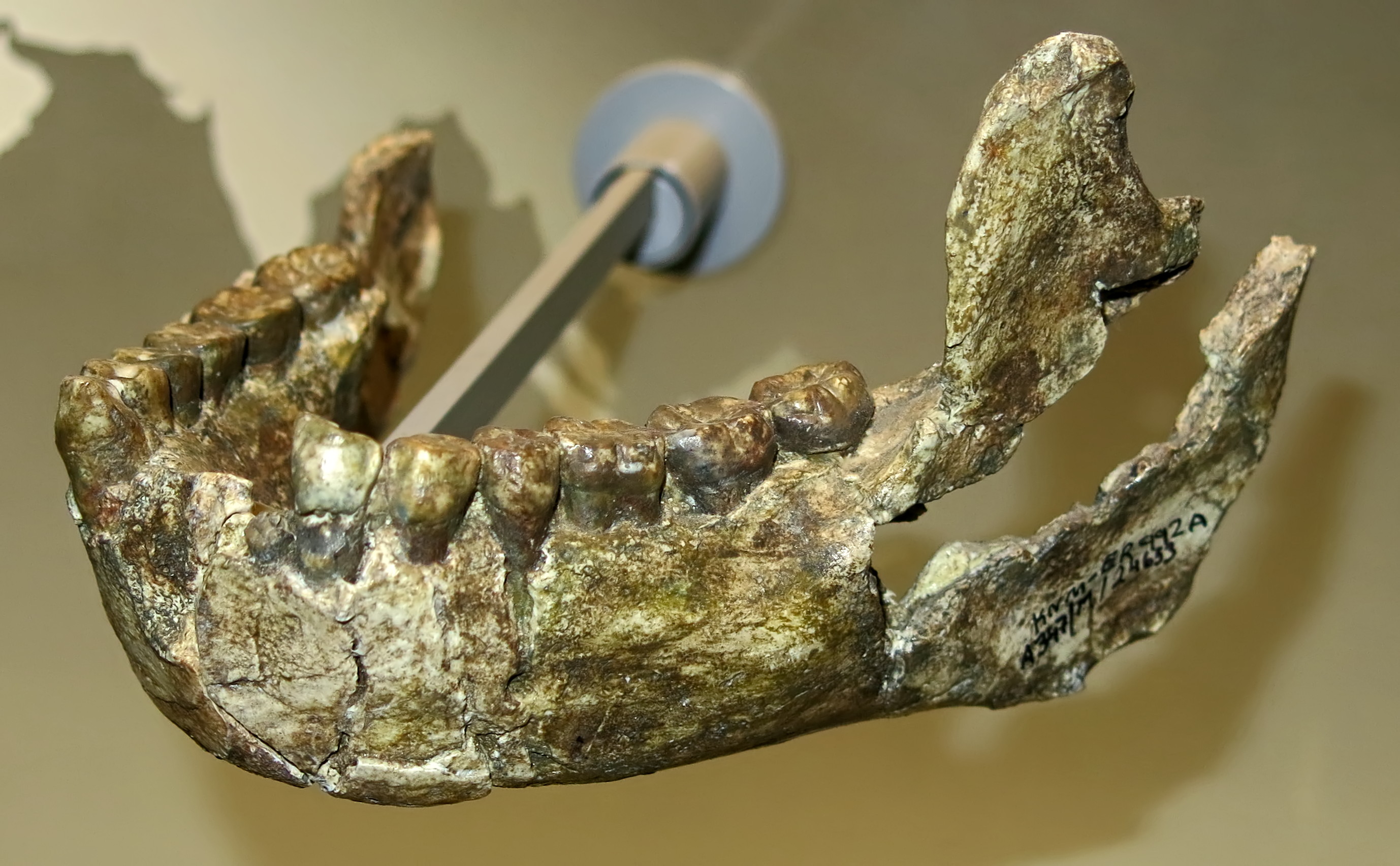

Homo ergaster

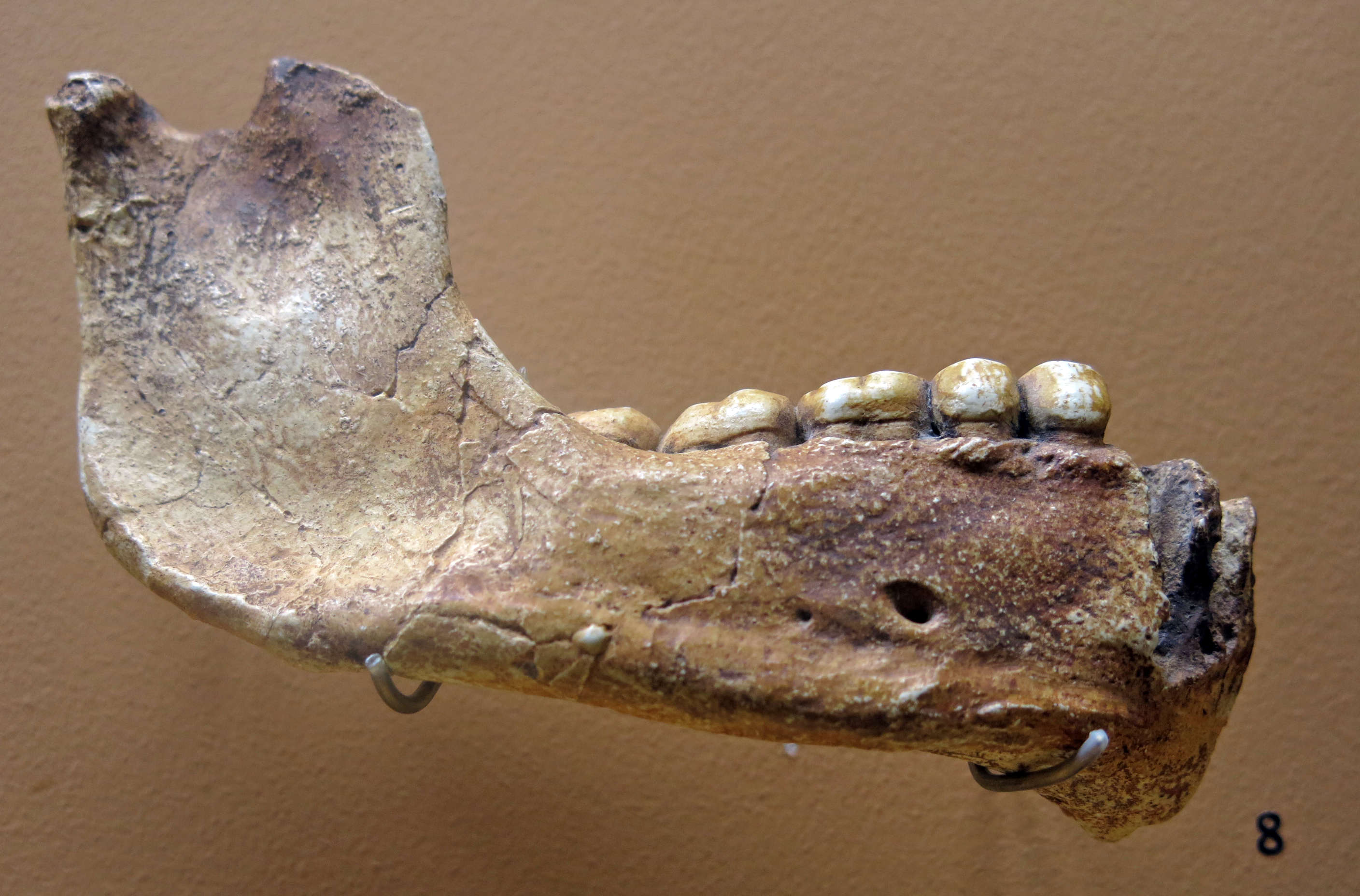

Homo ergaster Type specimen.

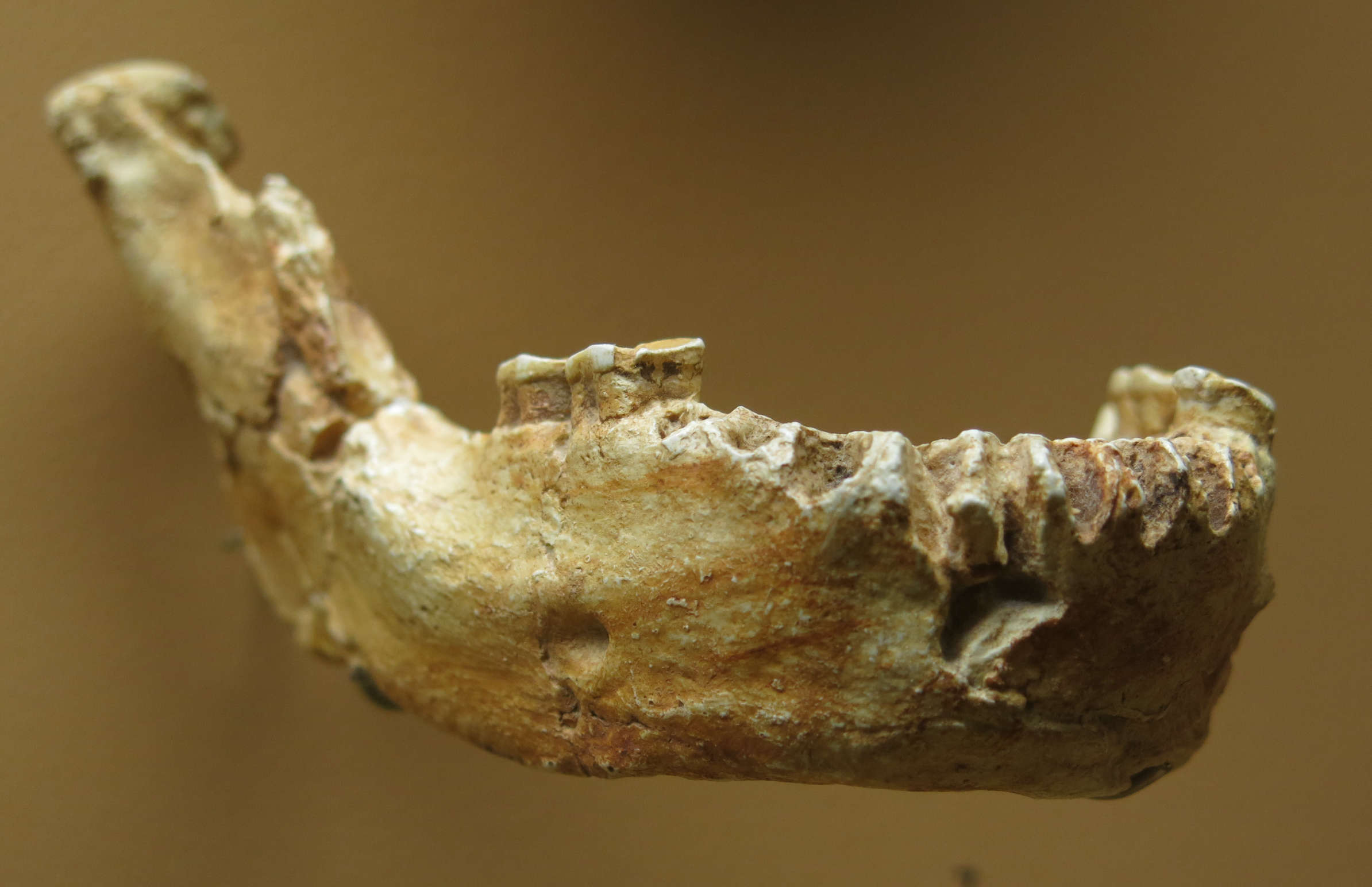

Mandible, KNM-ER 992.

Koobi Fora, Kenya. Circa 1 000 000 BP.

Photo: Don Hitchcock 2015
Source and text: Facsimile, Vienna Natural History Museum, Naturhistorisches Museum Wien




Homo ergaster Homo ergaster

Homo ergaster

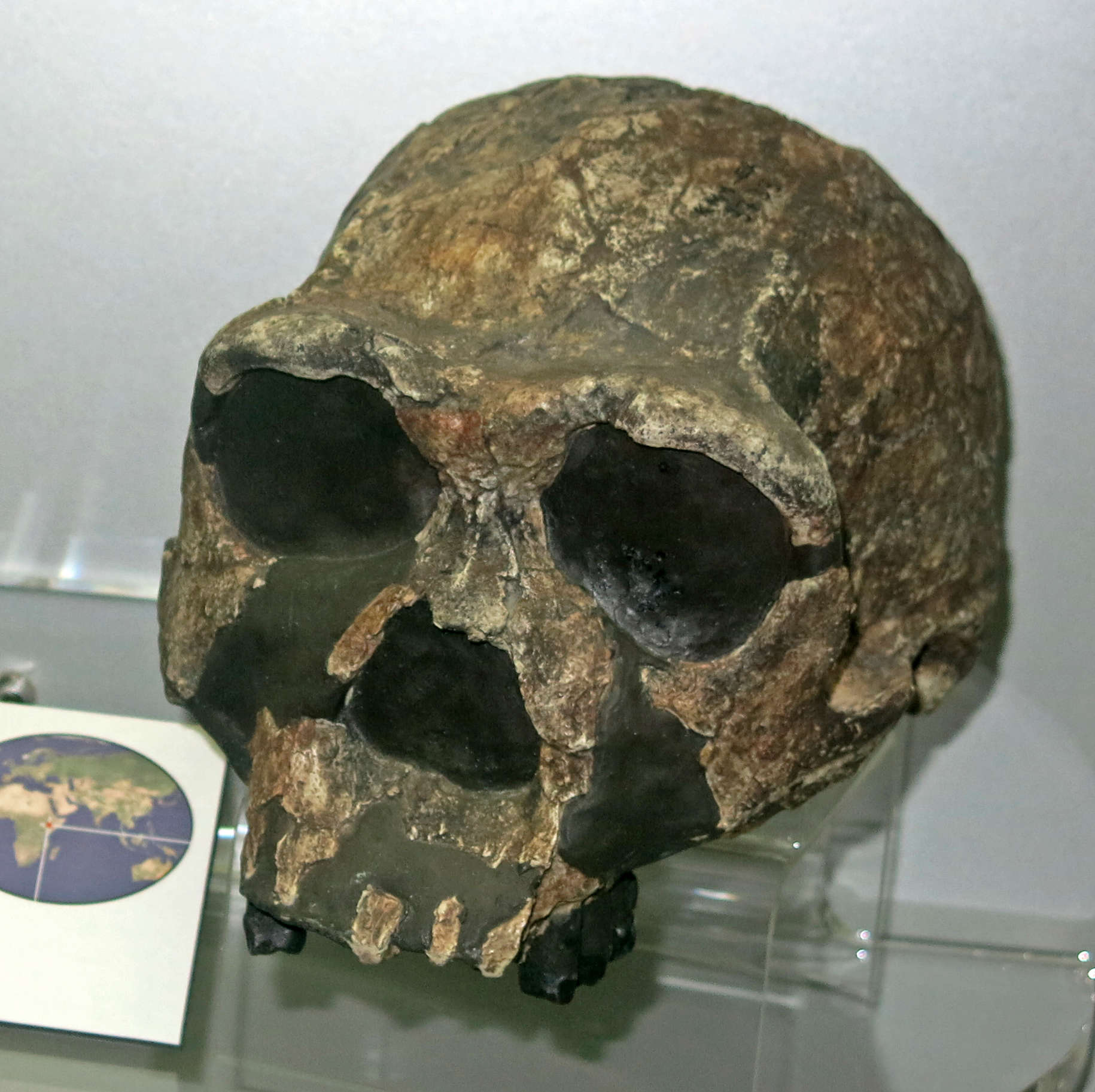

Cranium only, no lower jaw, KNM-ER 3733.

Koobi Fora, Kenya. Circa 1 800 000 BP.

Photo: Don Hitchcock 2015
Source and text: Facsimile, Vienna Natural History Museum, Naturhistorisches Museum Wien




Homo erectus Homo erectus
Homo erectus

Sculpture of the female from Koobi Fora, Kenya, probably KNM-ER 3733.

In comparison to Turkana Boy, this find is from a shorter female with a wider chest - a feature more commonly found now in humans from colder, even Arctic climates. The wide pelvis suggests the birth canal and brain size were co-evolving, as Homo erectus adapted to the need to give birth to larger babies above the need to adapt to the pressure of external environmental factors.

KNM-ER 3733 is a fossilised hominid cranium of the extinct hominid Homo ergaster, which is interchangeably referred to as Homo erectus. It was discovered in 1975 in Koobi Fora, Kenya, right next to Lake Turkana, by Bernard Ngeneo, a field worker for Richard Leakey. Its geographic location is not to be confused with that of KNM-WT 15000, Turkana Boy, also known as Nariokotome Boy, who was also found near Lake Turkana on the bank of the Nariokotome River nine years later in 1984.

KNM-ER 3733 is one of the oldest Homo ergaster skulls in the world. Recent research using magnetostratigraphy has determined the age of KNM-ER 3733 to be circa 1 600 000 BP KNM-ER 3733 is a find of a near-complete cranium. Its brain size is about 850 cm3. KNM-ER 3733 was compared to male fossils KNM-ER 3833 and KNM-WT 15000 (Turkana Boy), who were also found in the Lake Turkana area, and because of this, is said to be female. The features of KNM ER 3733 are less robust compared to the two male crania. It is considered to be an adult because of the extensive wear of its teeth, the fact that its third molars were present before the individual died, and because its cranial sutures were fully fused, which is only possible in adult specimen.

Photo: Don Hitchcock 2015
Sculptor: Atelier Élisabeth Daynès, Paris, for the Neanderthal Museum, 1996.
Source and text: Facsimile, Neanderthal Museum, Mettmann, near Düsseldorf, Germany
Additional text: Wikipedia




chopper

Chopper and flake.

Koobi Fora, Kenya. Circa 1 900 000 BP - 1 600 000 BP.

Photo: Don Hitchcock 2015
Source and text: Facsimile, Vienna Natural History Museum, Naturhistorisches Museum Wien

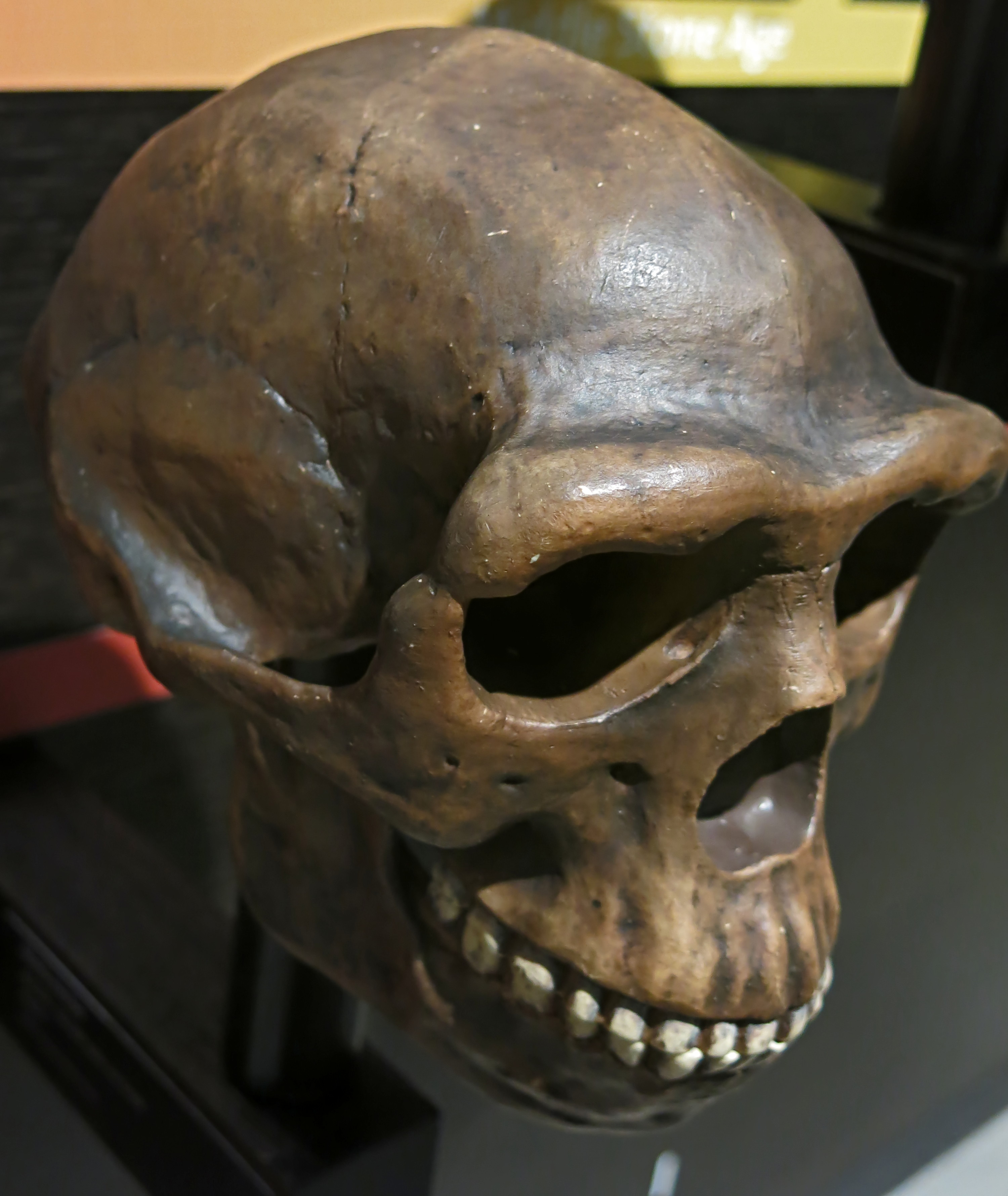

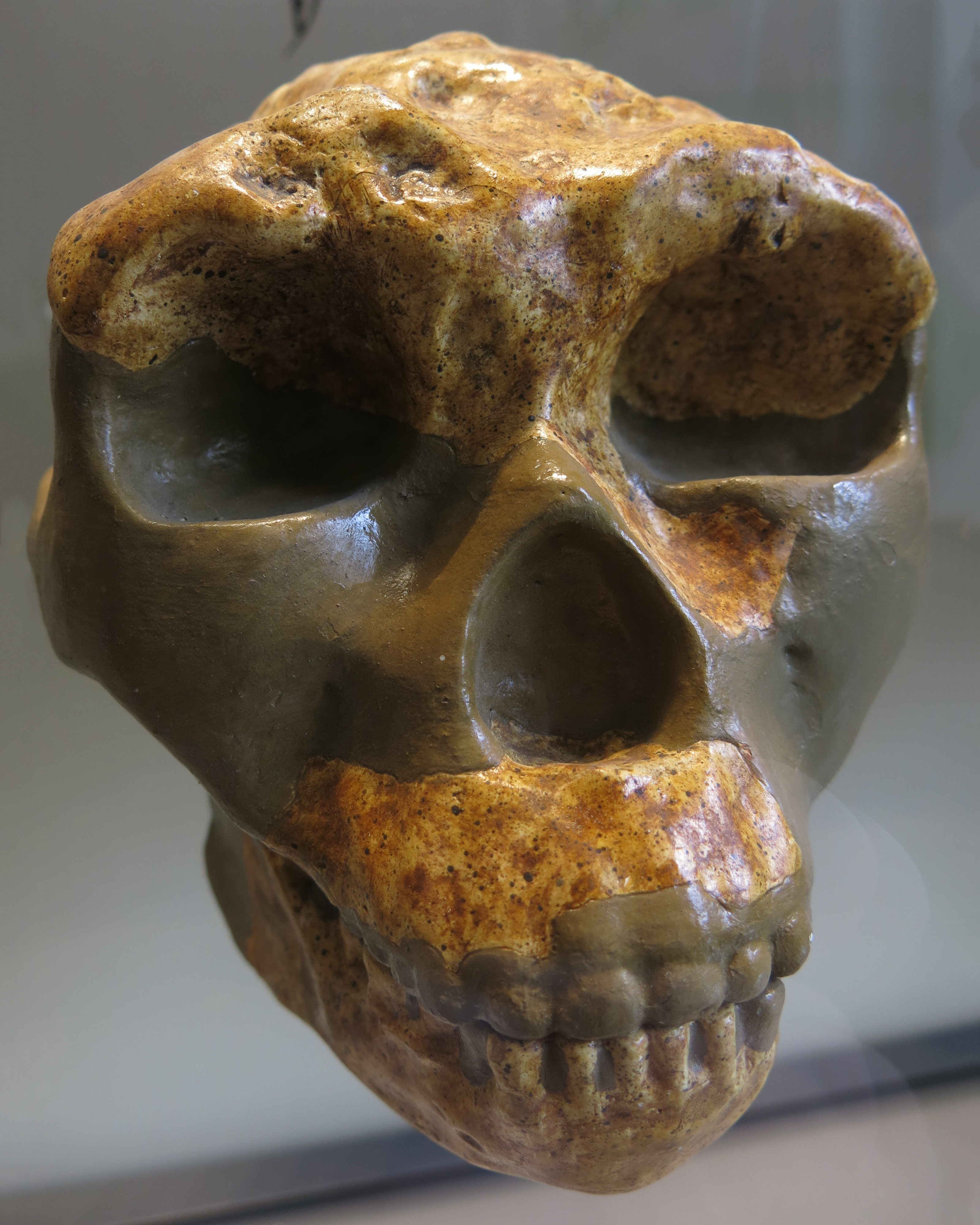

 Heidelbergensis
Homo erectus

500 000 BP - 400 000 BP

Zhoukoudian Cave, China

Photo: Don Hitchcock 2015
Source: facsimile, LVR-Landesmuseum Bonn, Germany

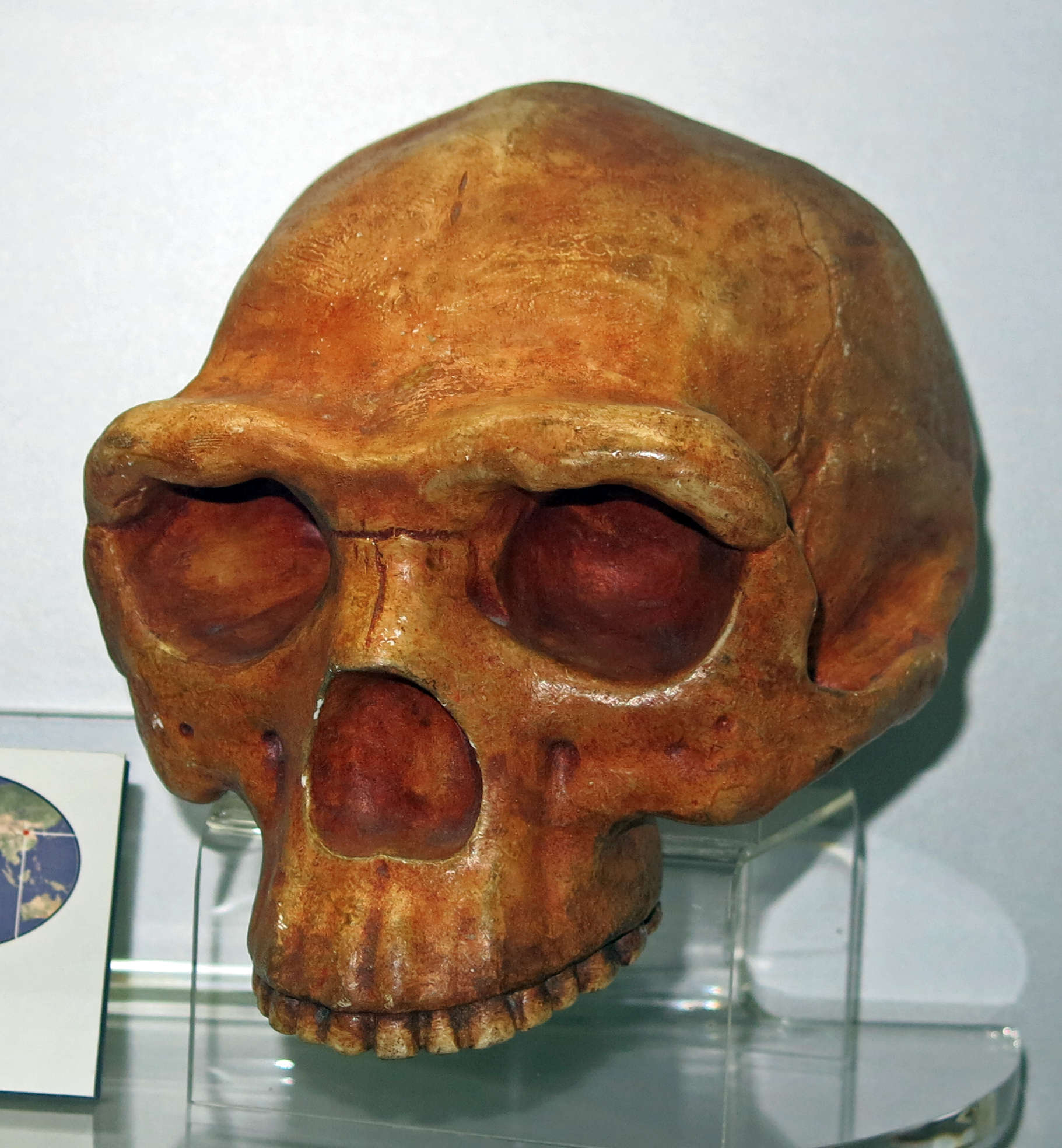

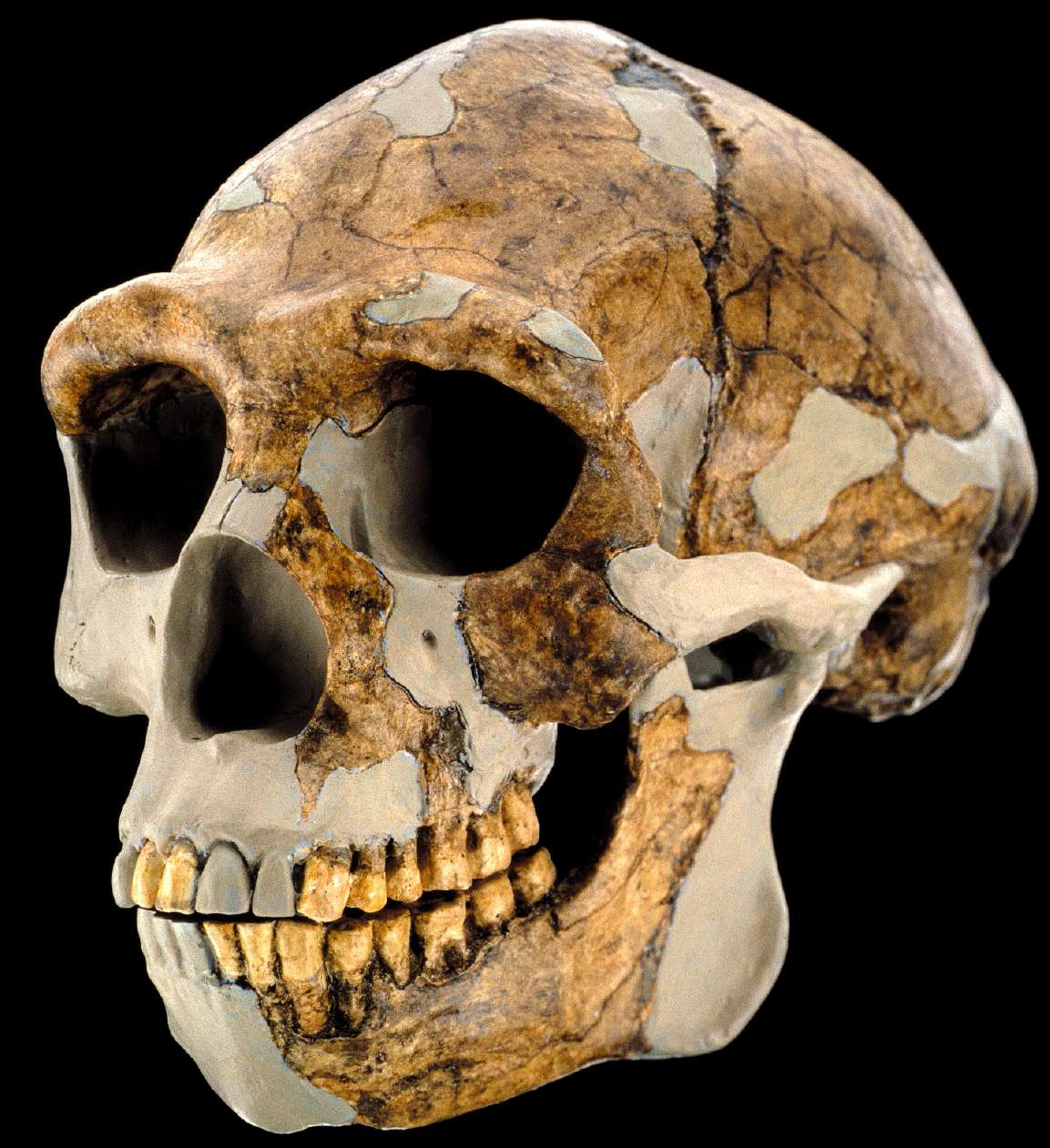

Homo erectus
Homo erectus

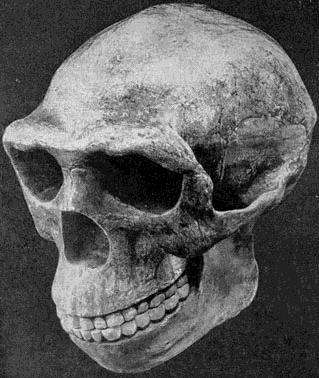

Reconstruction by F. Weidenreich in 1943 of partial cranium (since lost)

Zhoukoudian, China

Circa 400 000 BP

Facsimile

Photo: Don Hitchcock 2013
Source and text: Western Australian Museum




Neanderthal reconstruction

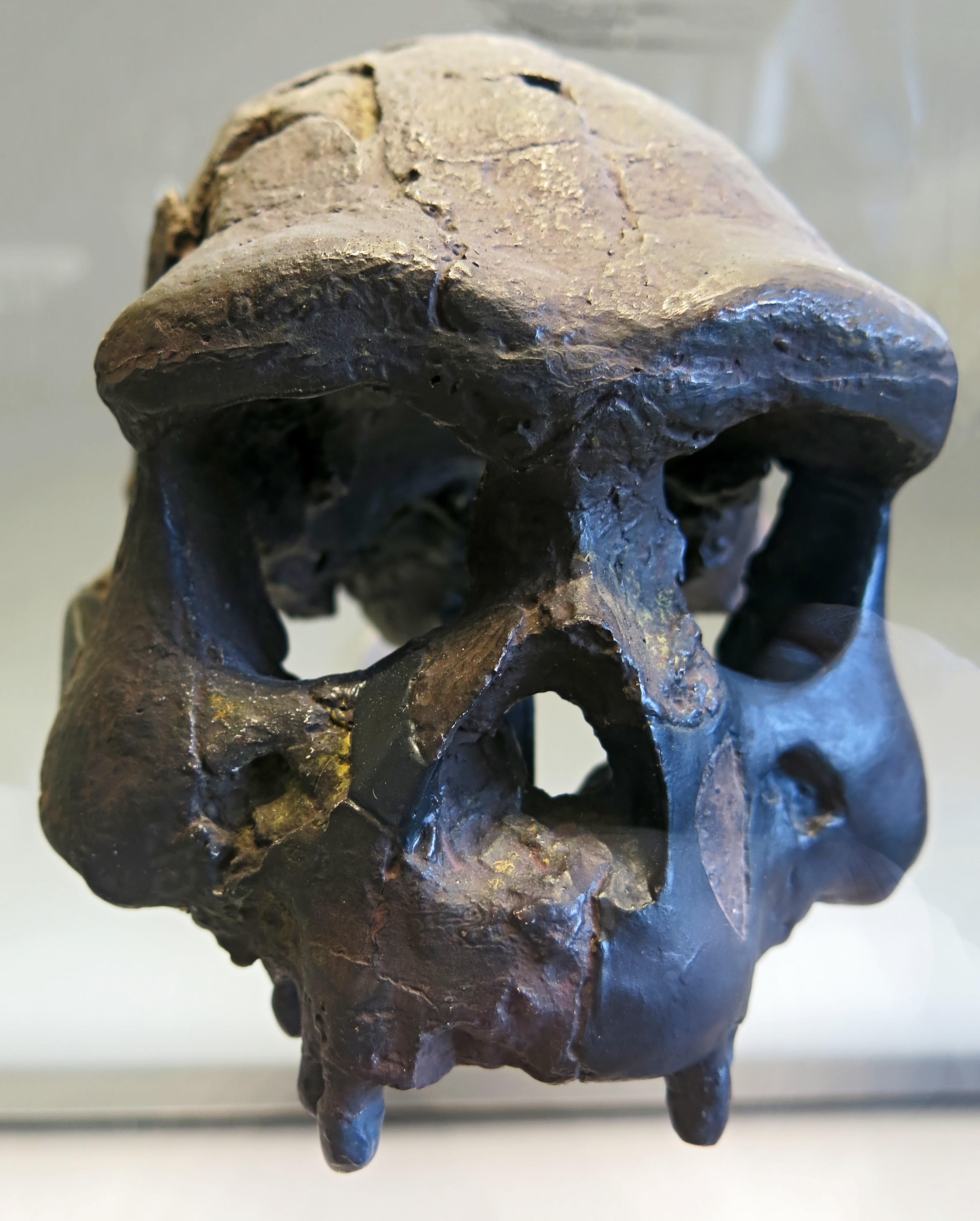

Homo erectus

Cranium (reconstruction) Gongwangling, China

ca 1 200 000 - 700 000 BP

Photo: Ralph Frenken
Source: Museum of Natural History, Vienna, Austria









Tautavel Man (Homo erectus tautavelensis )



Tautavel and the 'Microlithic' industries

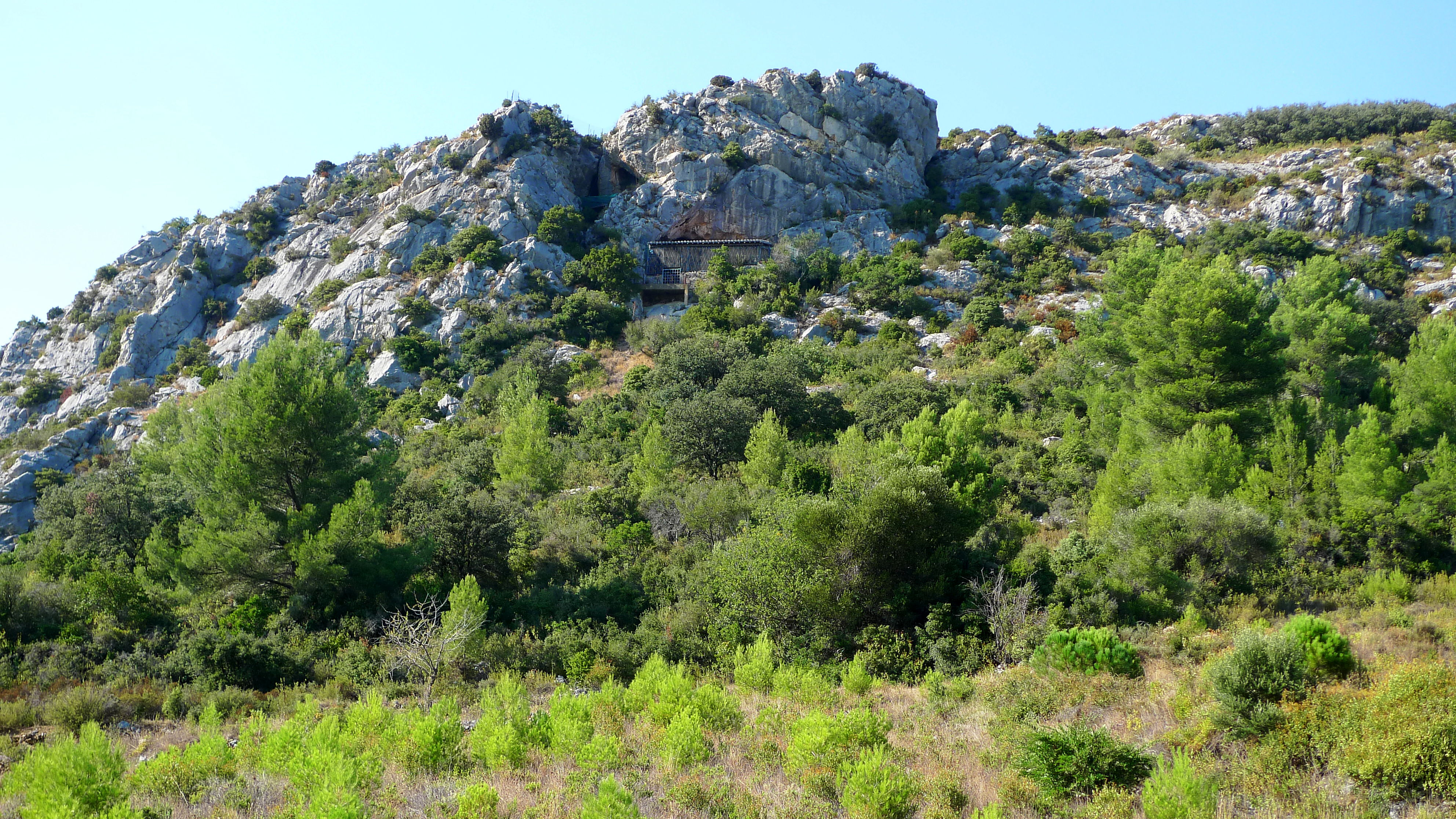

Arago Cave

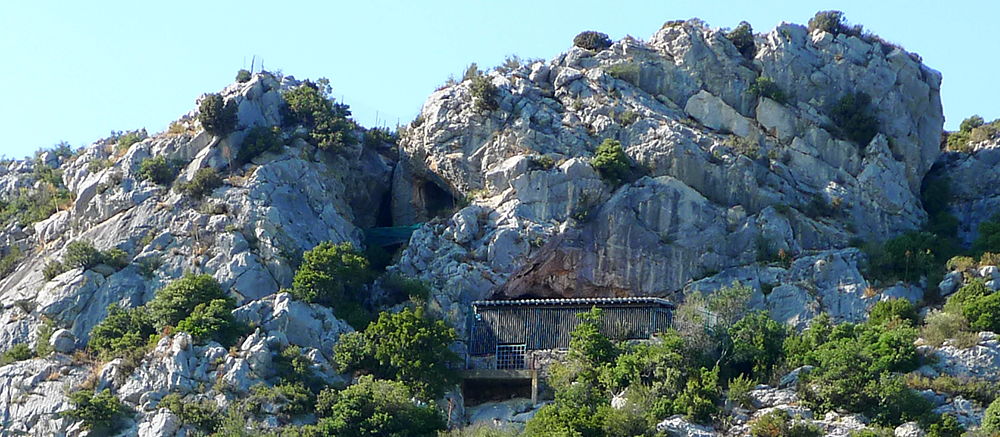

La Caune de l'Arago, Arago Cave, is named after the Arago valley, which it overlooks.

Photo: Courtesy Jeff Marohl


La Caune de l'Arago, Arago Cave, is also known as Tautavel Cave. The cave had a sedimentary fill 11 metres thick. Twenty periods of prehistoric habitats have been unearthed. Many human remains dated from 600 000 to 400 000 years old have been discovered during excavations there.

Anthropologists who have studied the deposits classify them as 'pre-neanderthal', that is to say direct ancestors of the Neanderthal. The Tautavel industry is composed of pebble tools and flakes. The original piece of flint is shaped to obtain a nucleus, from which flakes are struck. Then the edges of the flakes are modified to create tools of various types.

These so-called microlithic industries are considered to be atypical. In the lower palaeolithic, simple techniques of knapping produce flakes whose edges must be strongly retouched to be usable. In addition, the rocks which are available for harvest in the immediate vicinity are not always appropriate to produce an elegant tool. It is therefore sometimes difficult to classify the tools into neat categories.

Text above translated and adapted from the display at Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye

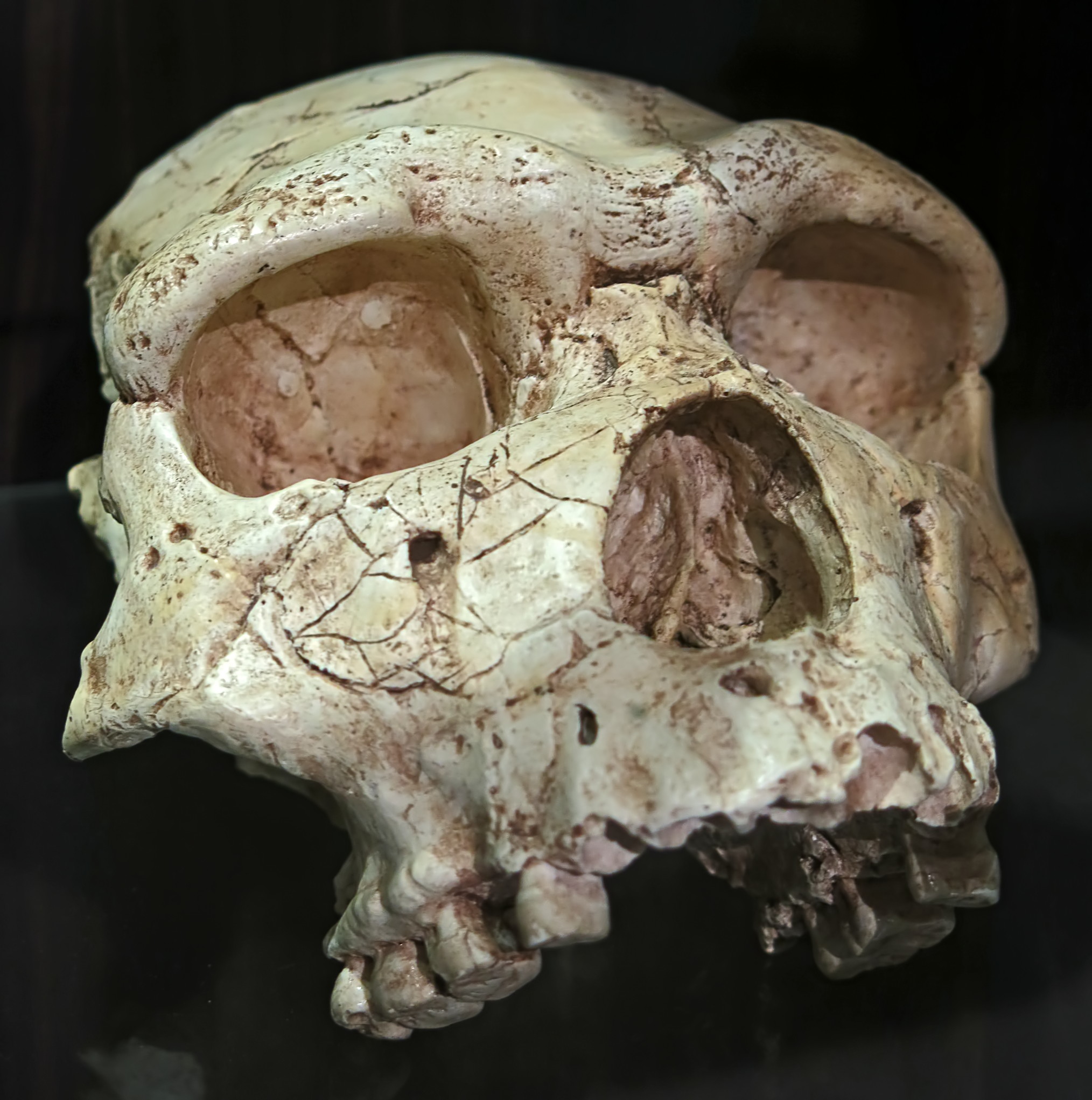

Tautavel erectus

Homo erectus

Photo: Don Hitchcock 2014
Source: Display, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye

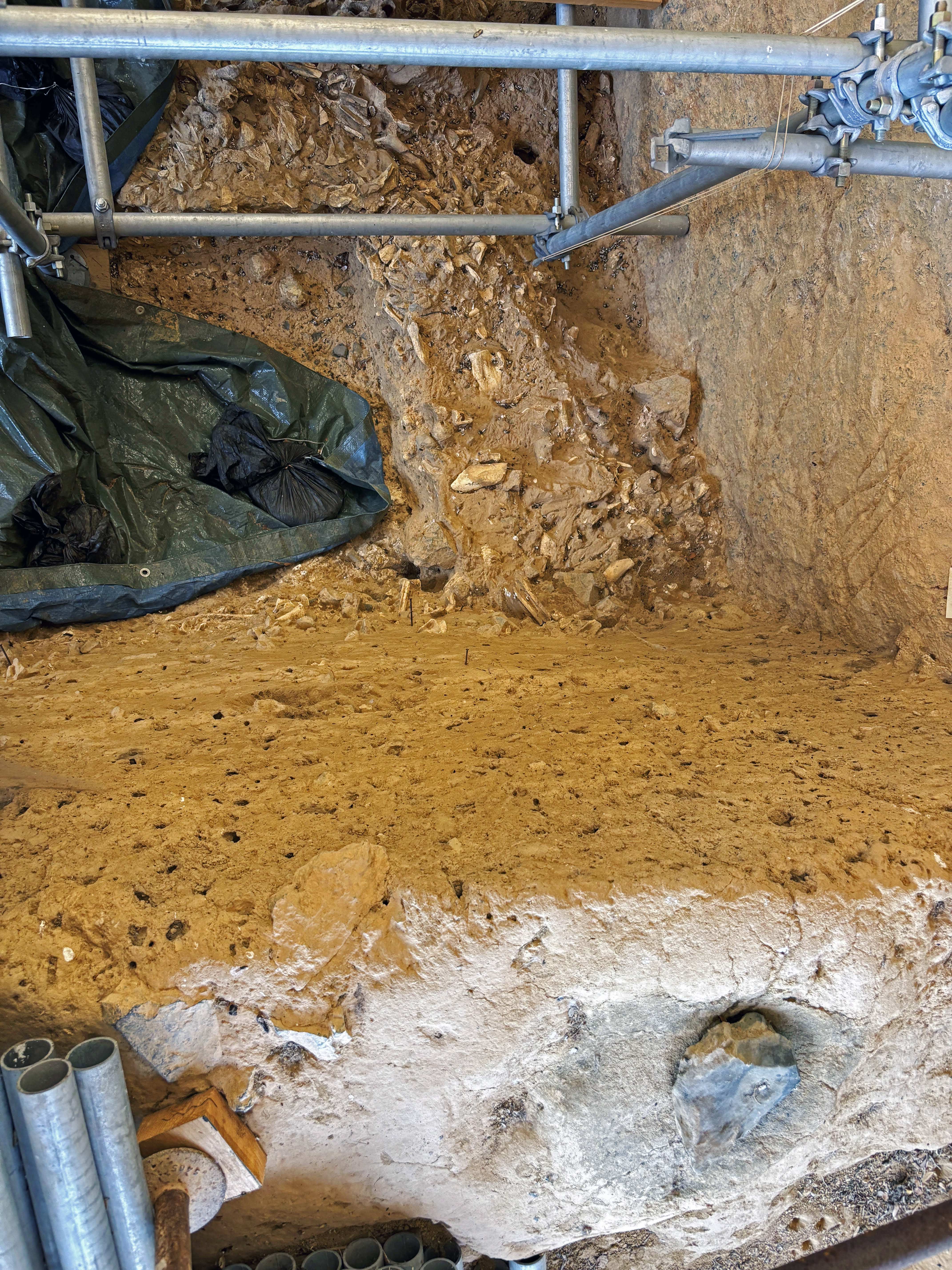

Tautavel cave floor

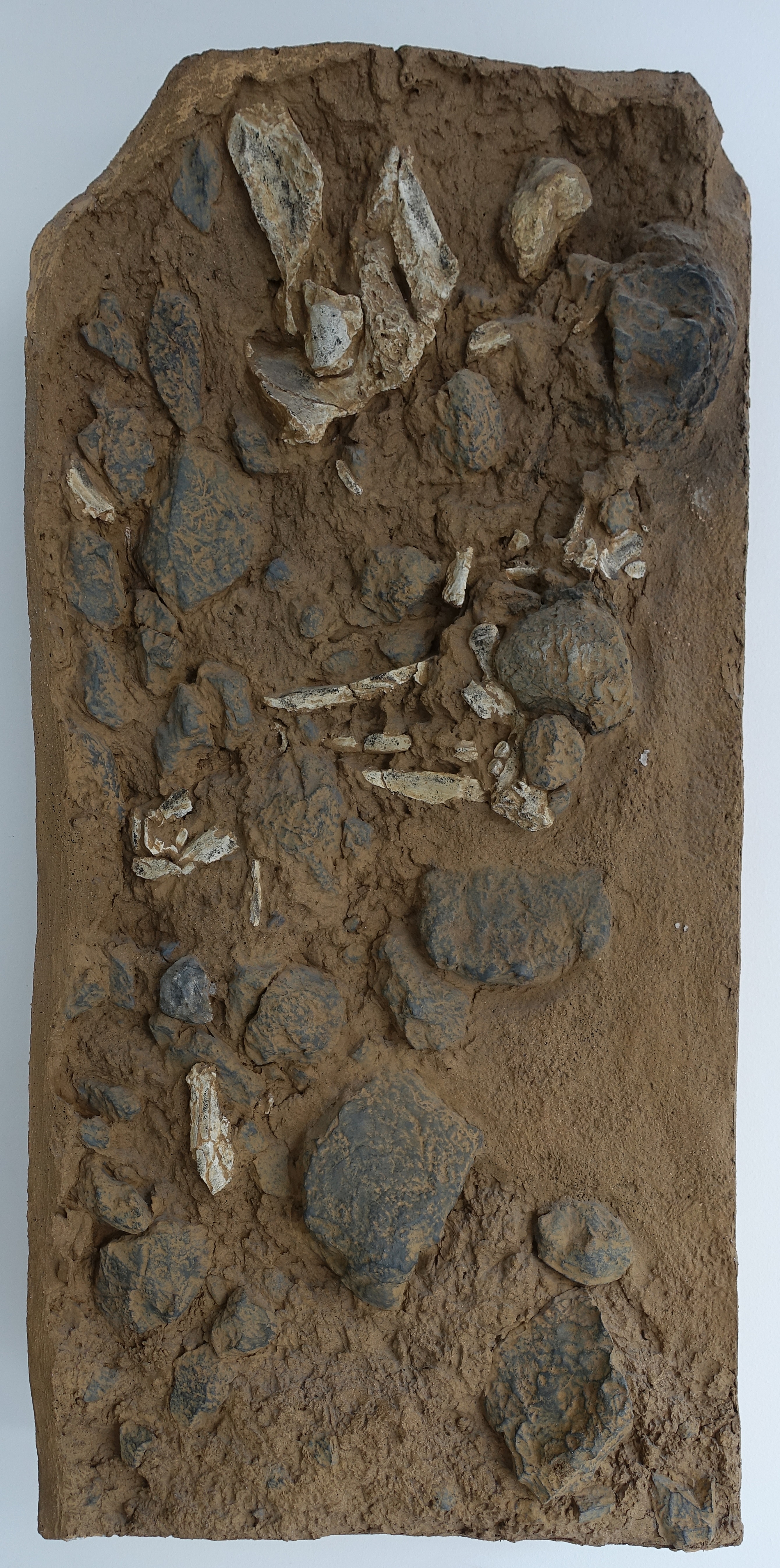

This is a recreation of part of the floor of Arago Cave, in which remains of 40 individuals were found. The cave was paved in a haphazard way, but no hearths were found.

Photo: Don Hitchcock 2018
Source and text: Facsimile, Anthropos Pavilion/Moravian Museum, Brno, Czech Republic




Tautavel erectus Tautavel erectus

Mandible of Homo erectus

Photo: Don Hitchcock 2014
Source: Display, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




Tautavel erectus Tautavel erectus

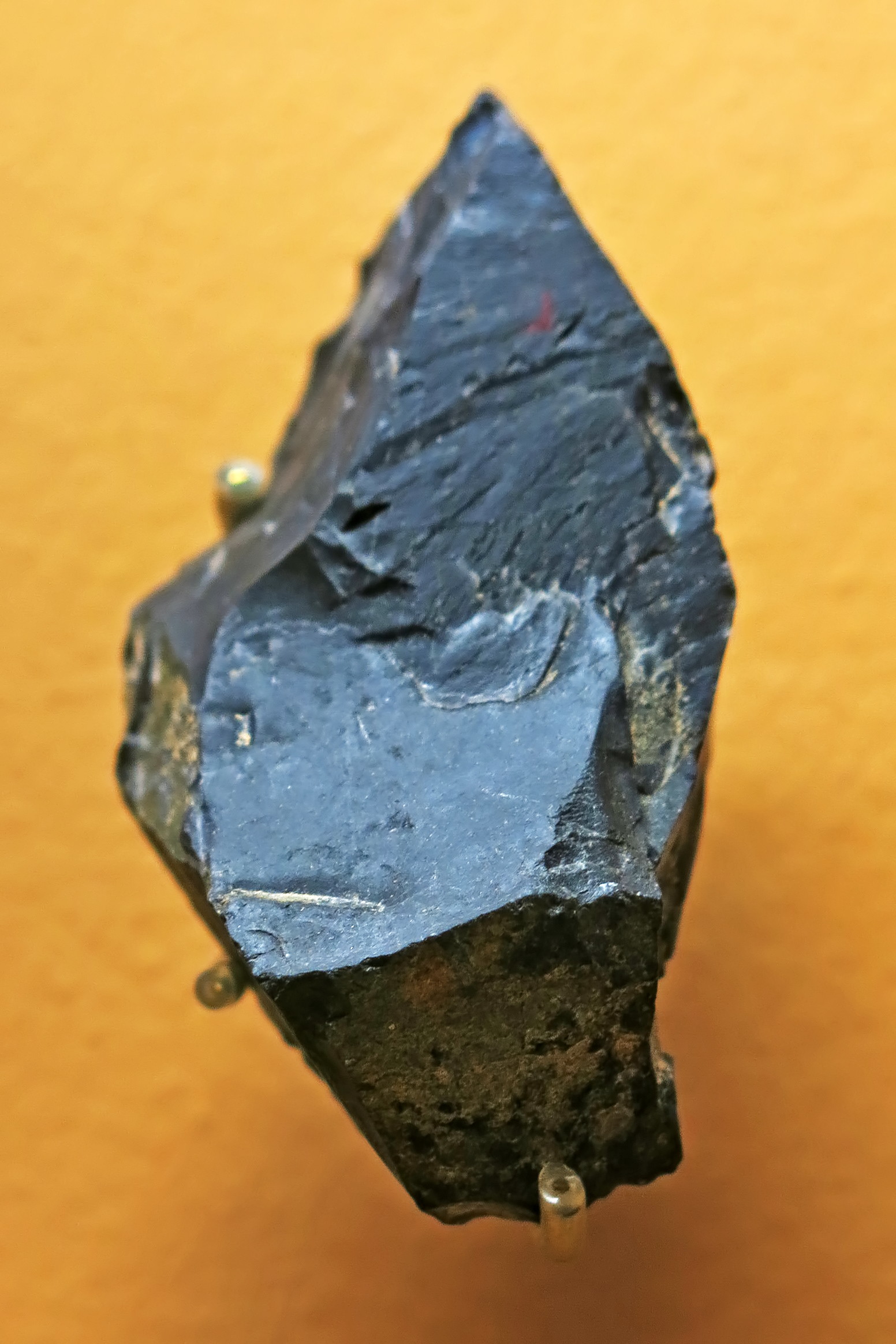

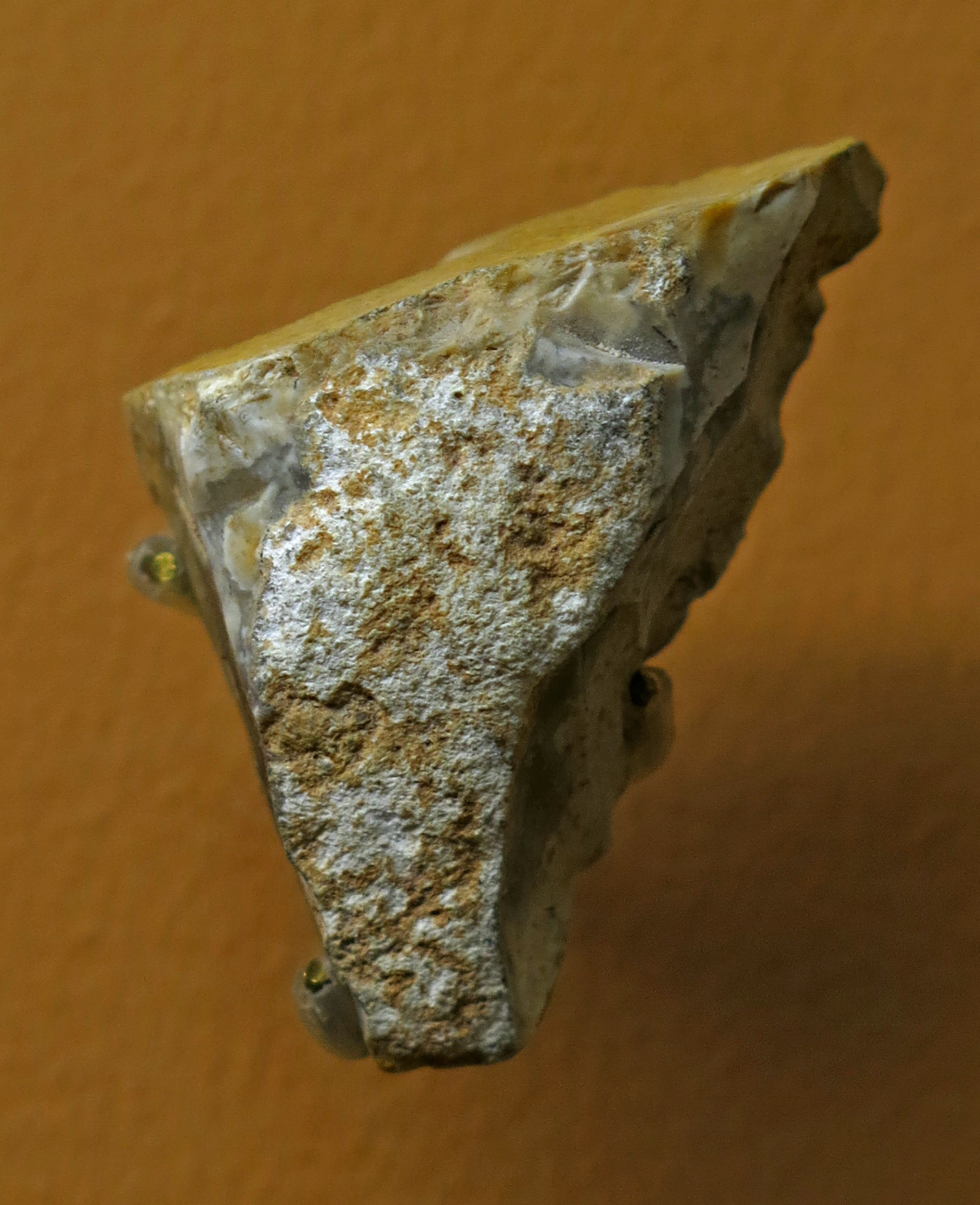

Tools used by Tautavel Man.

Left: Racloir
Right: Racloir

Photo: Don Hitchcock 2015
Source: Display, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




Tautavel erectus Tautavel erectus

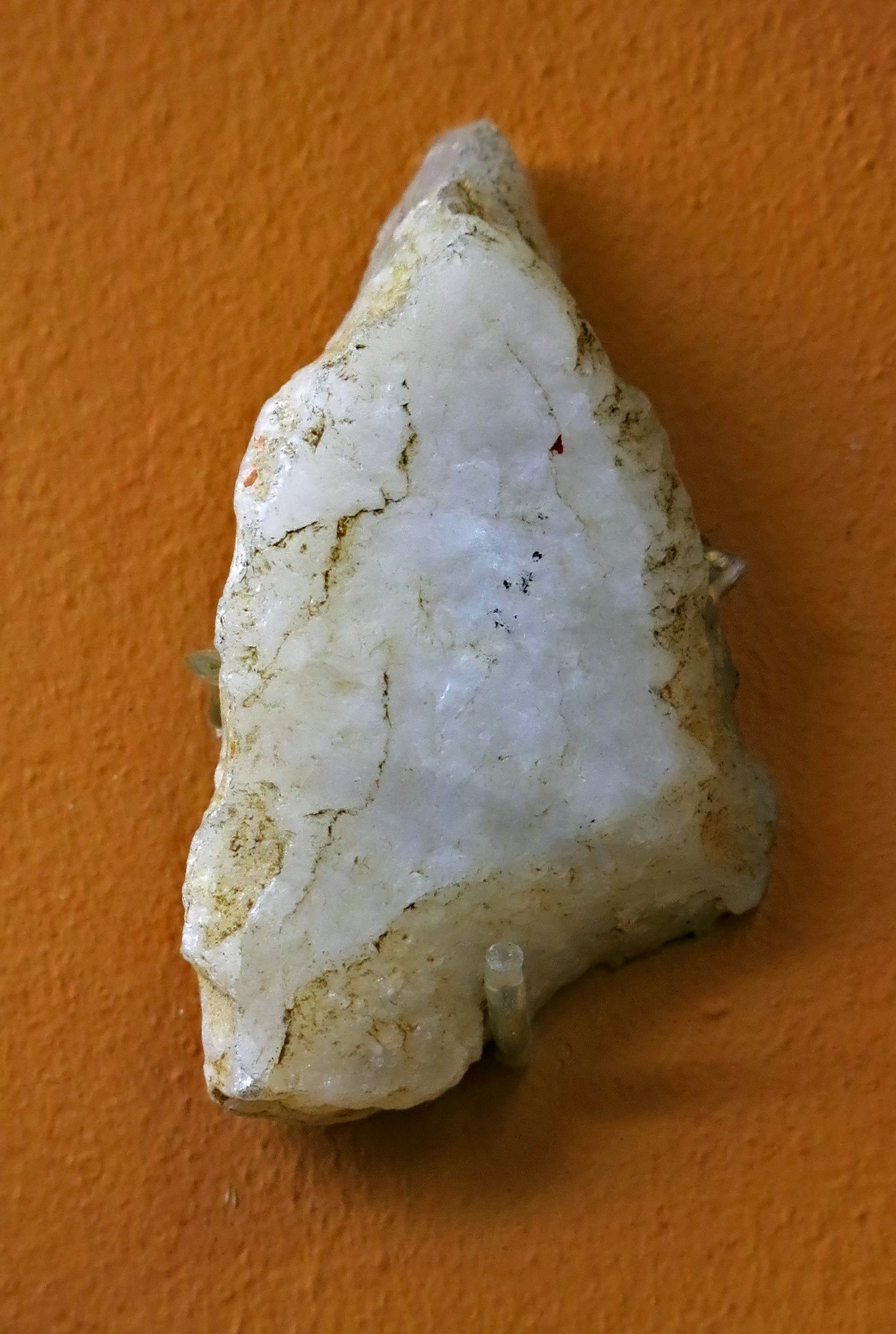

Tools used by Tautavel Man.

Left: Bec (burin)
Right: Racloir

Photo: Don Hitchcock 2015
Source: Display, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




Tautavel erectus Tautavel erectus
Tools used by Tautavel Man. Note the small size.

Left: Racloir
Right: Denticulé - toothed tool


Photo: Don Hitchcock 2014
Source: Display, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




Tautavel erectus Tautavel erectus

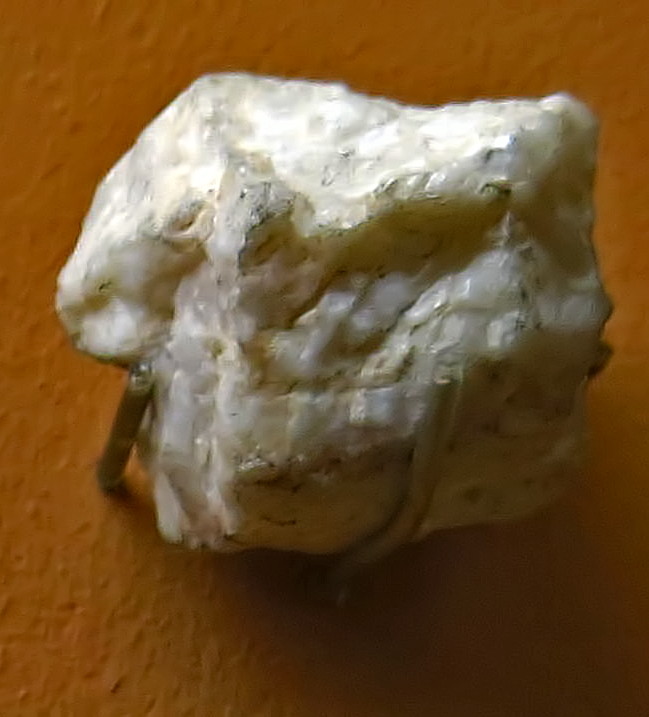

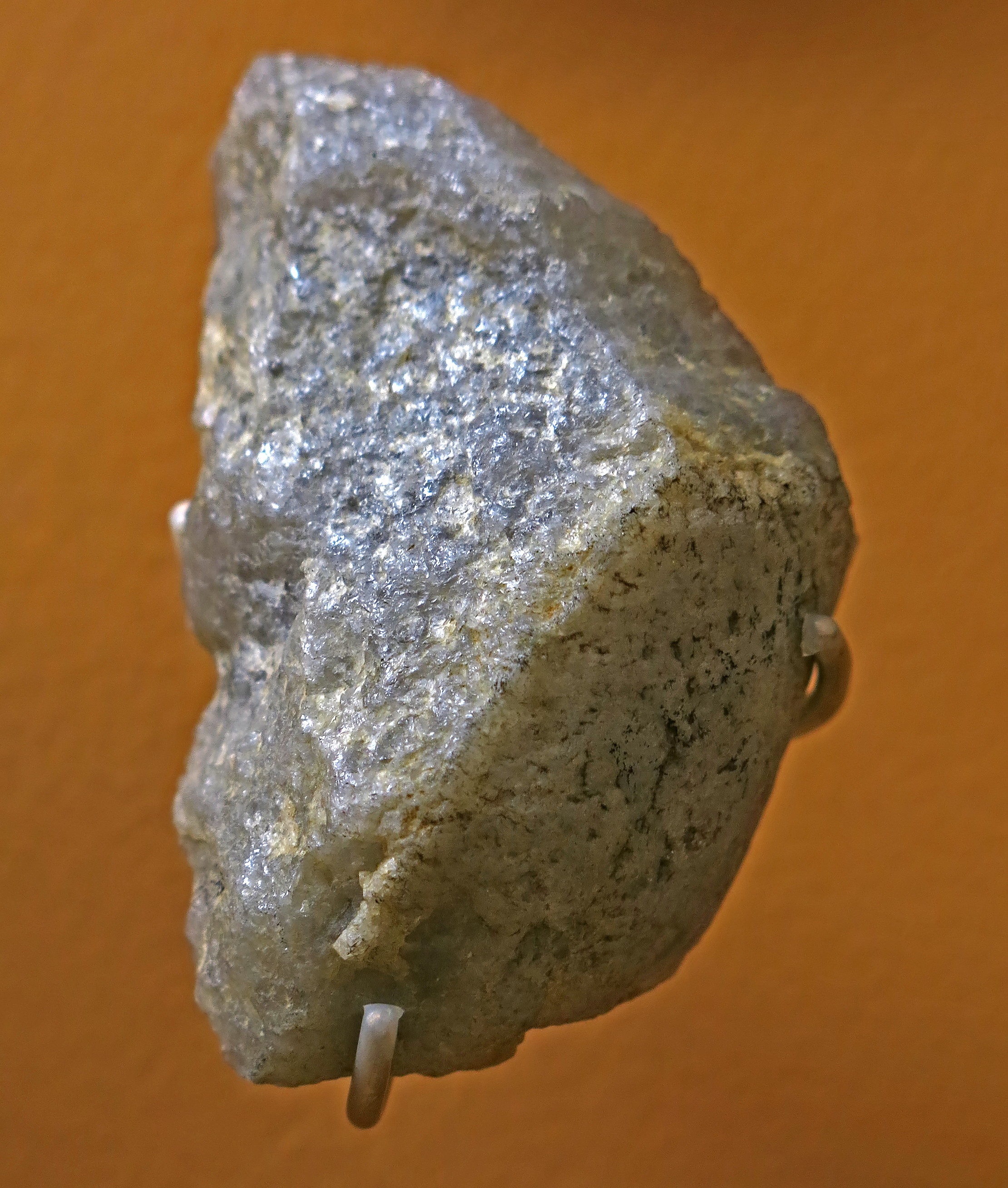

Tools used by Tautavel Man.

Left: Racloir transversal - side or transverse scraper
Right: Nucleus - core


Photo: Don Hitchcock 2014
Source: Display, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




Tautavel erectus

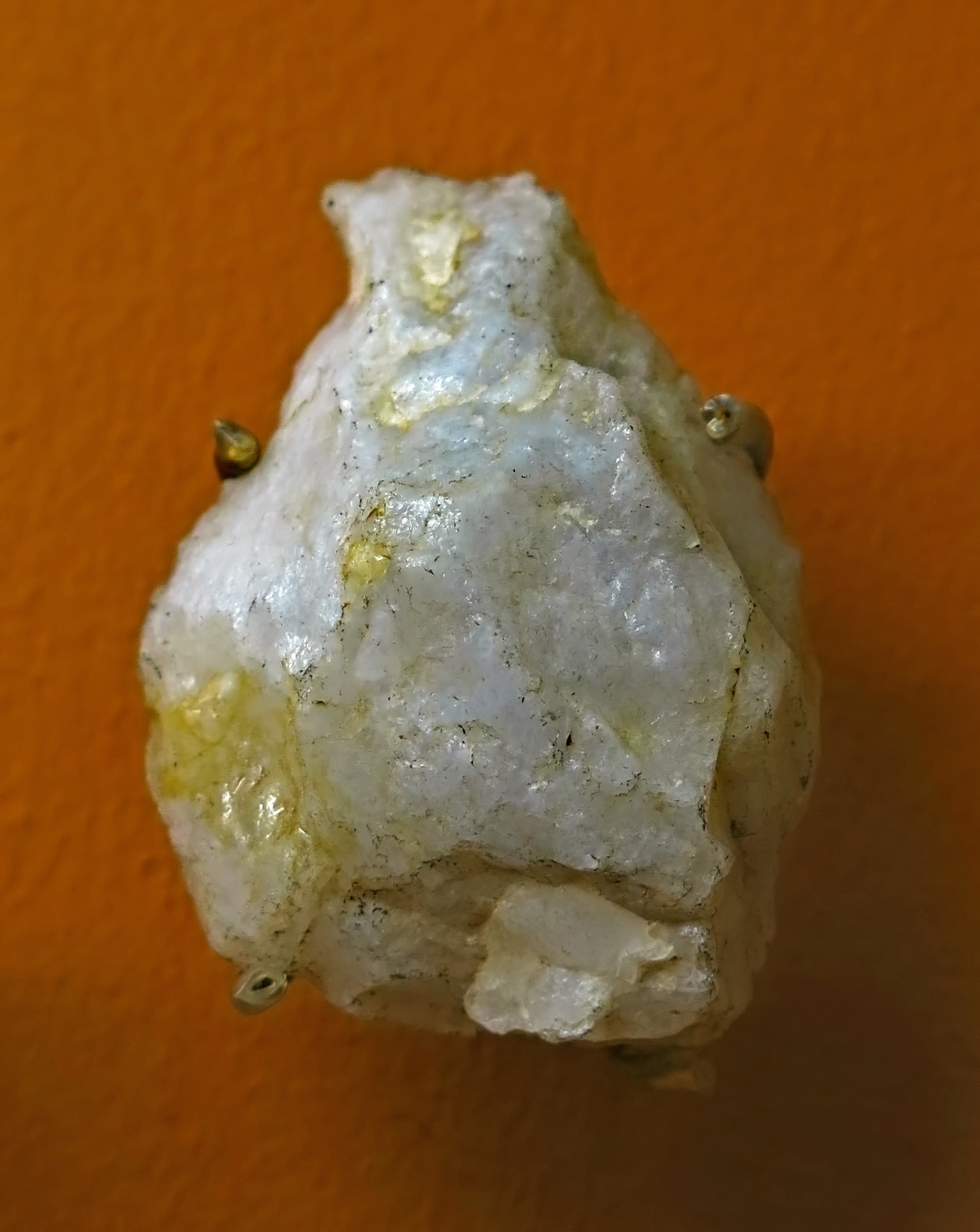

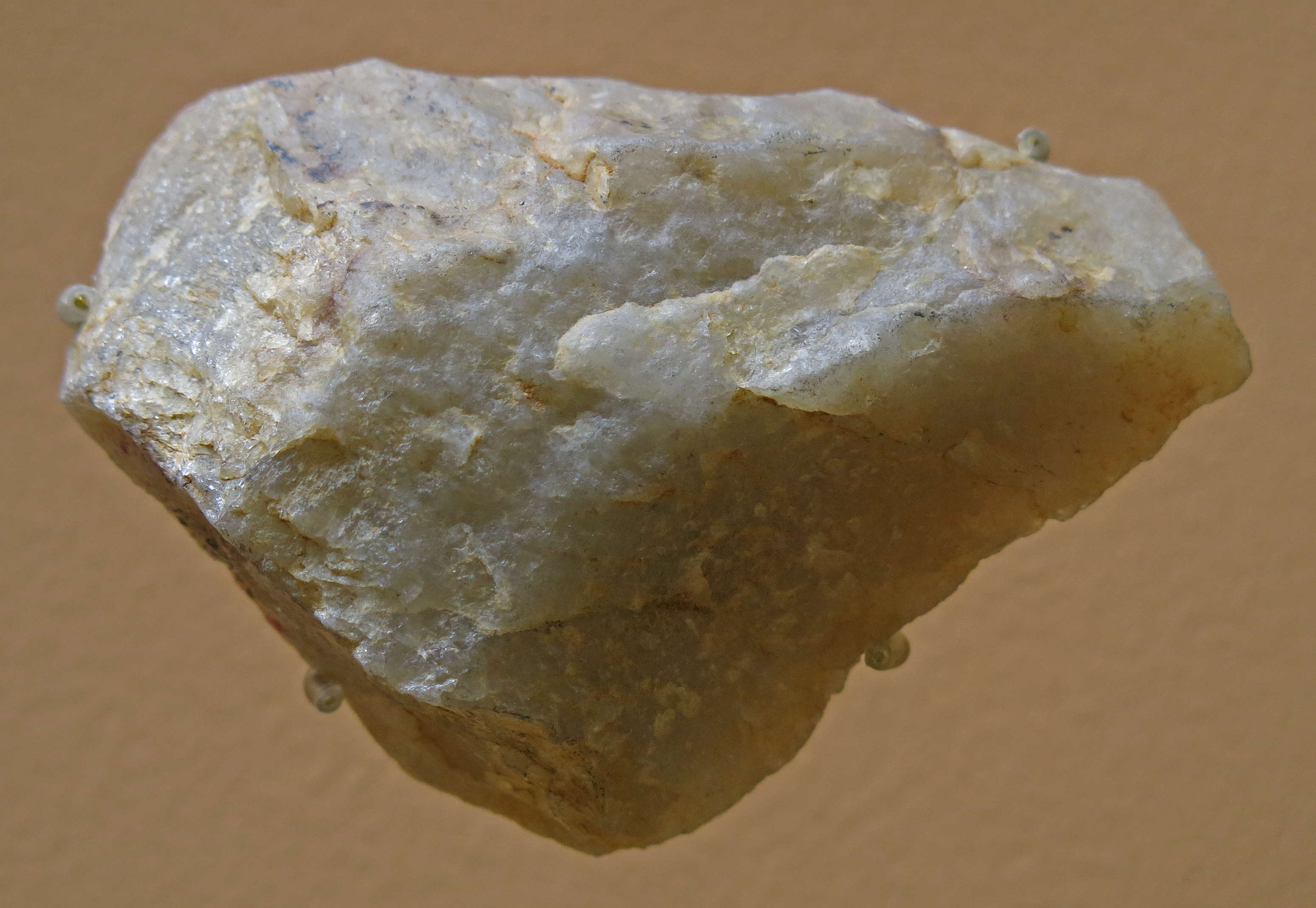

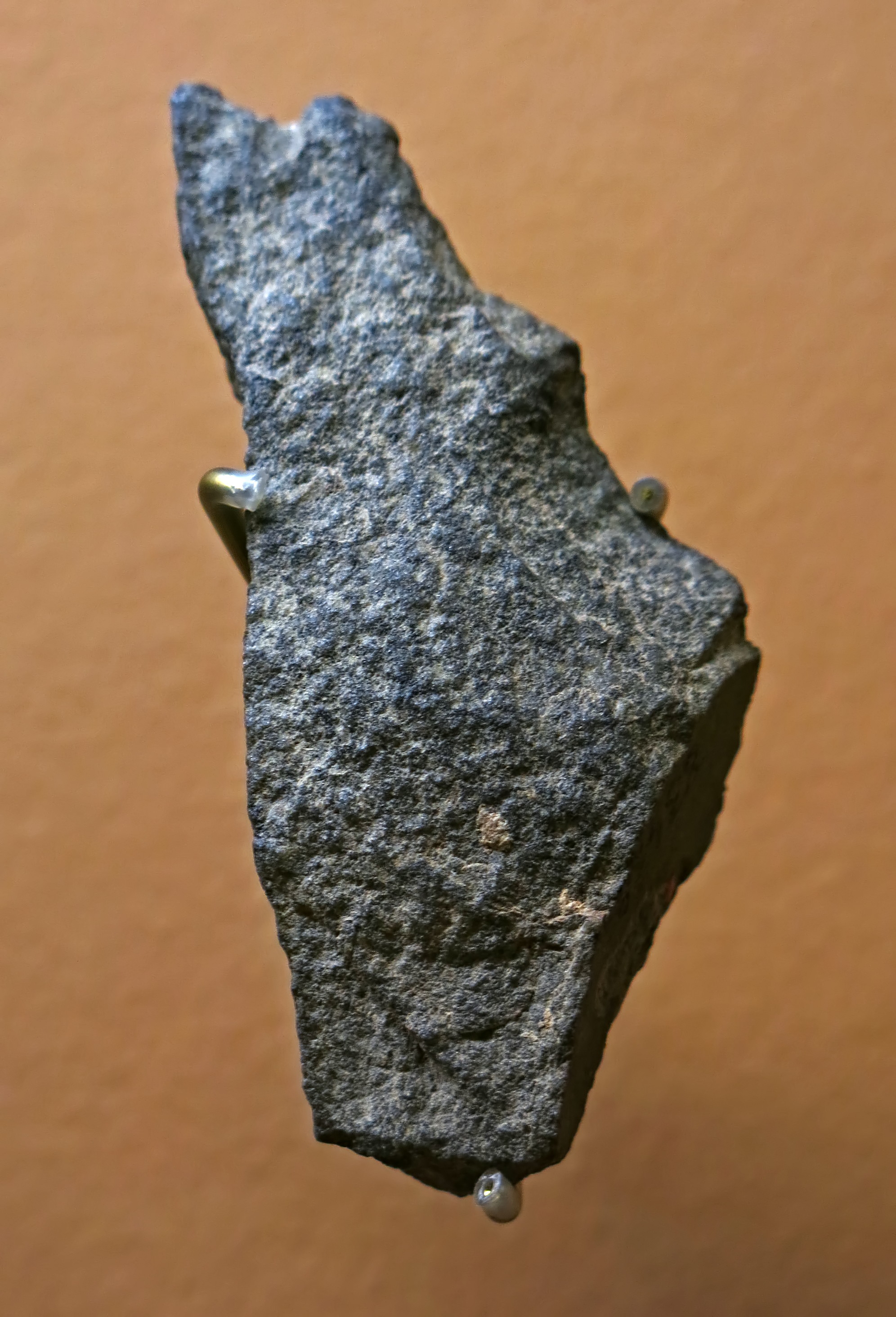

Tool used by Tautavel Man.

17: Racloir transversal - side or transverse scraper


Photo: Don Hitchcock 2014
Source: Display, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




Tautavel erectus Tautavel erectus

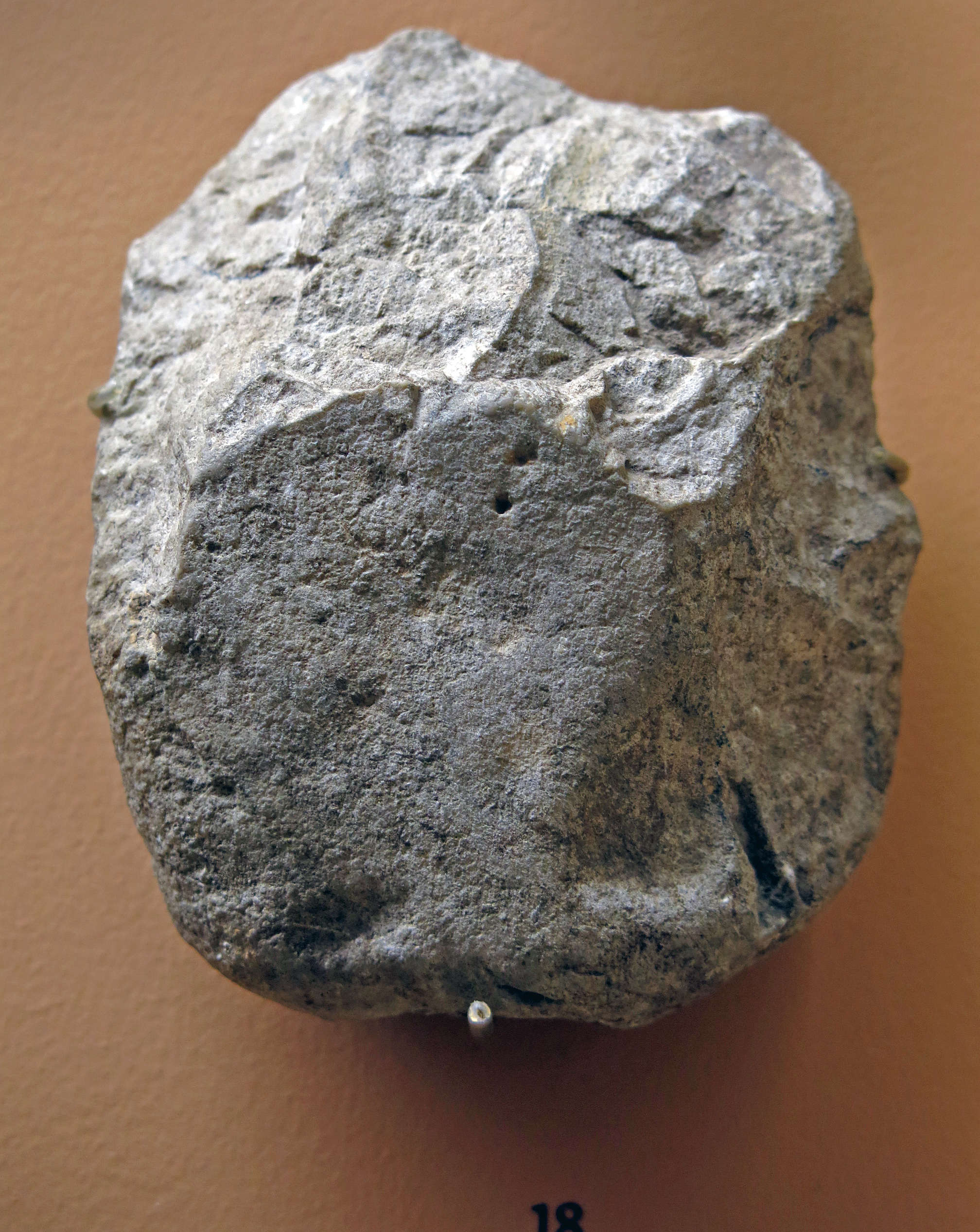

Tools used by Tautavel Man.

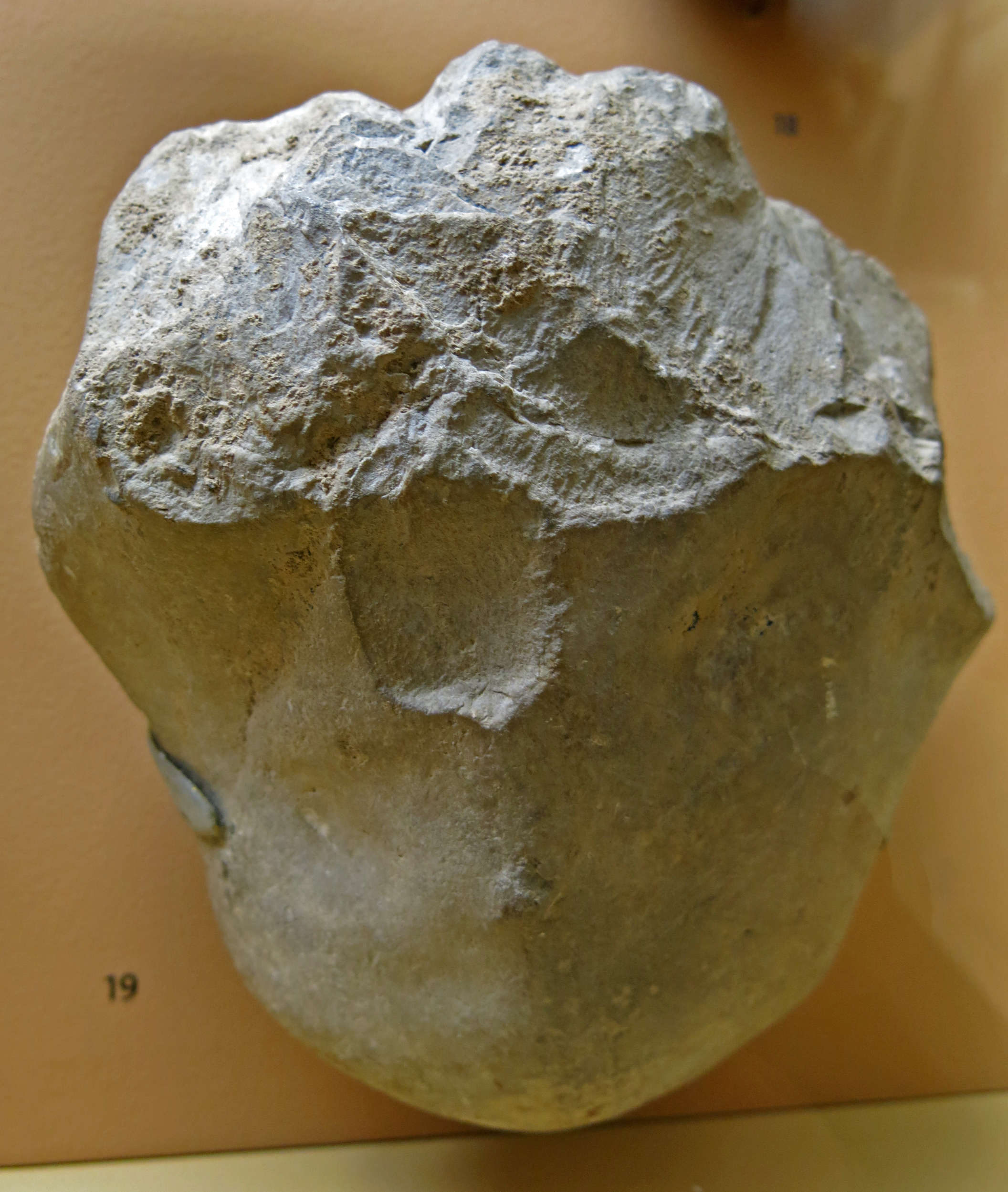

18: Chopper
19: Chopper


Photo: Don Hitchcock 2014
Source: Display, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




Arago Cave

This is the view of the valley from a seat on rocks just outside the cave shelter.

The inhabitants would have had an excellent view of animals moving through the valley.

Photo: Courtesy Jeff Marohl

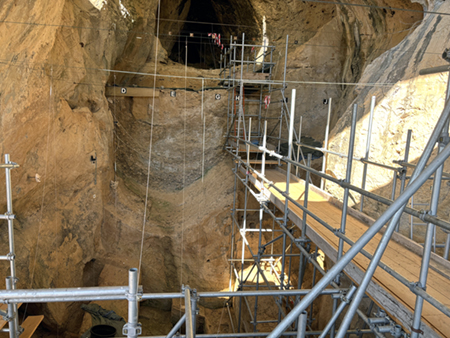

Arago Cave

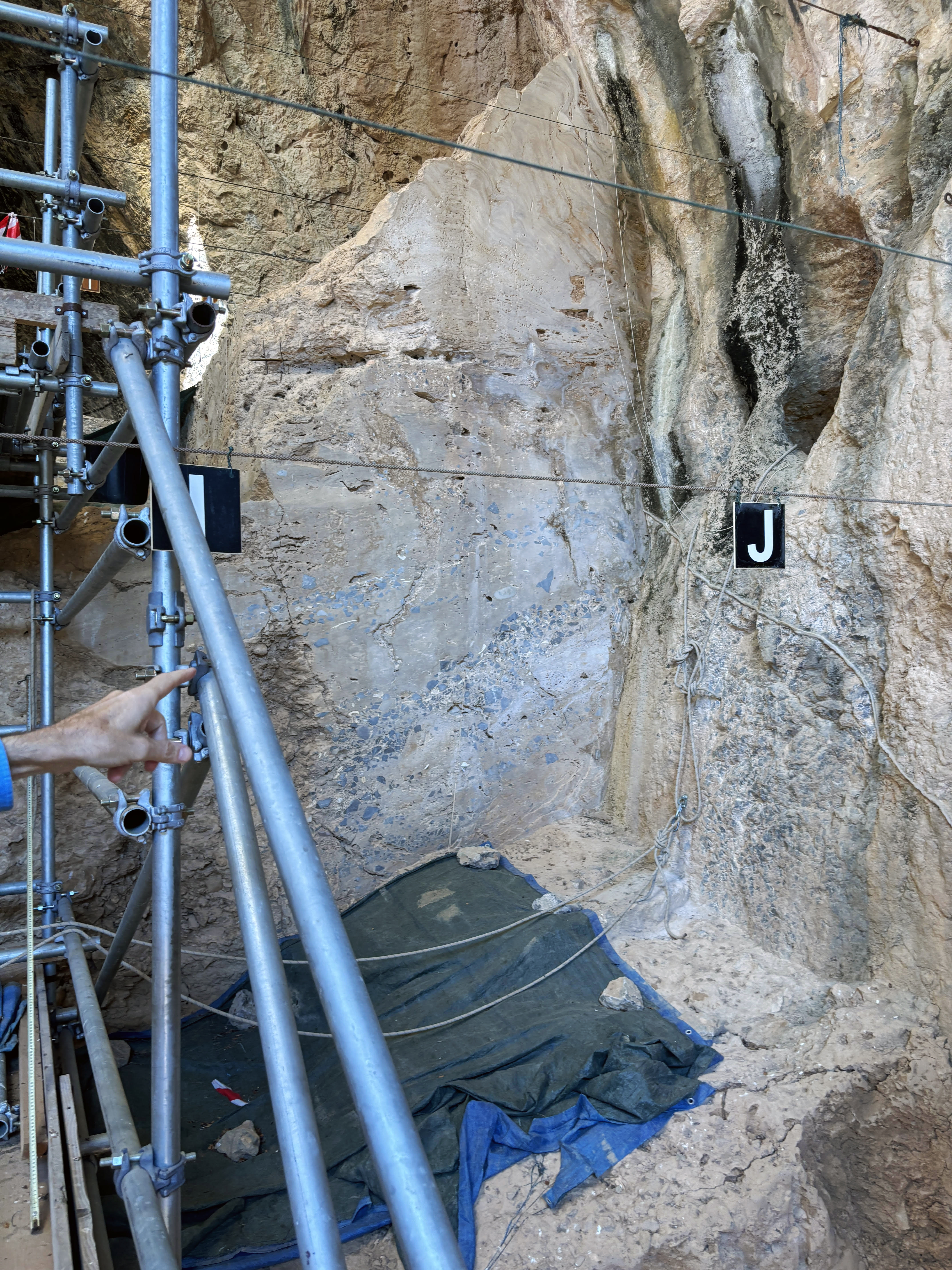

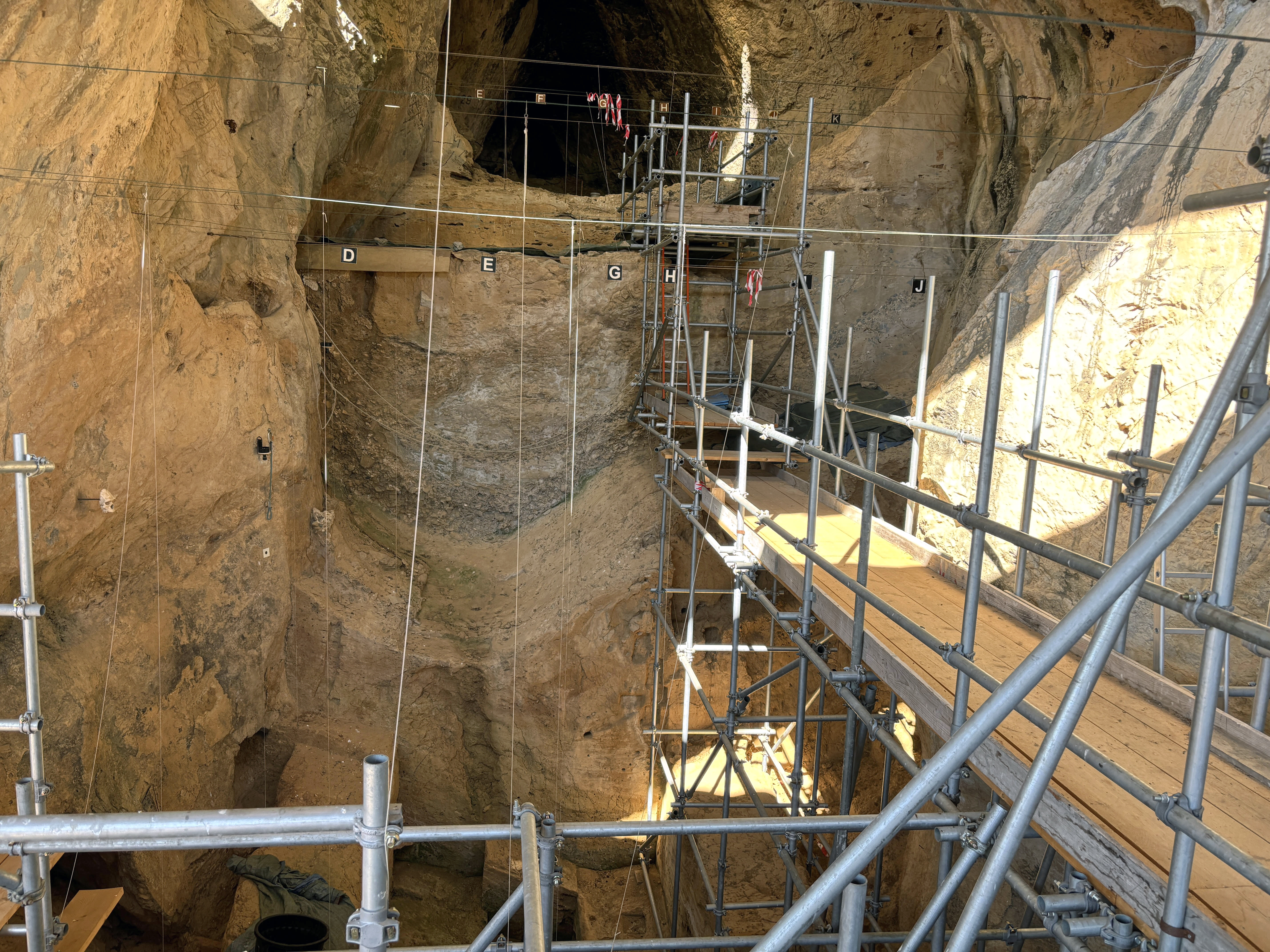

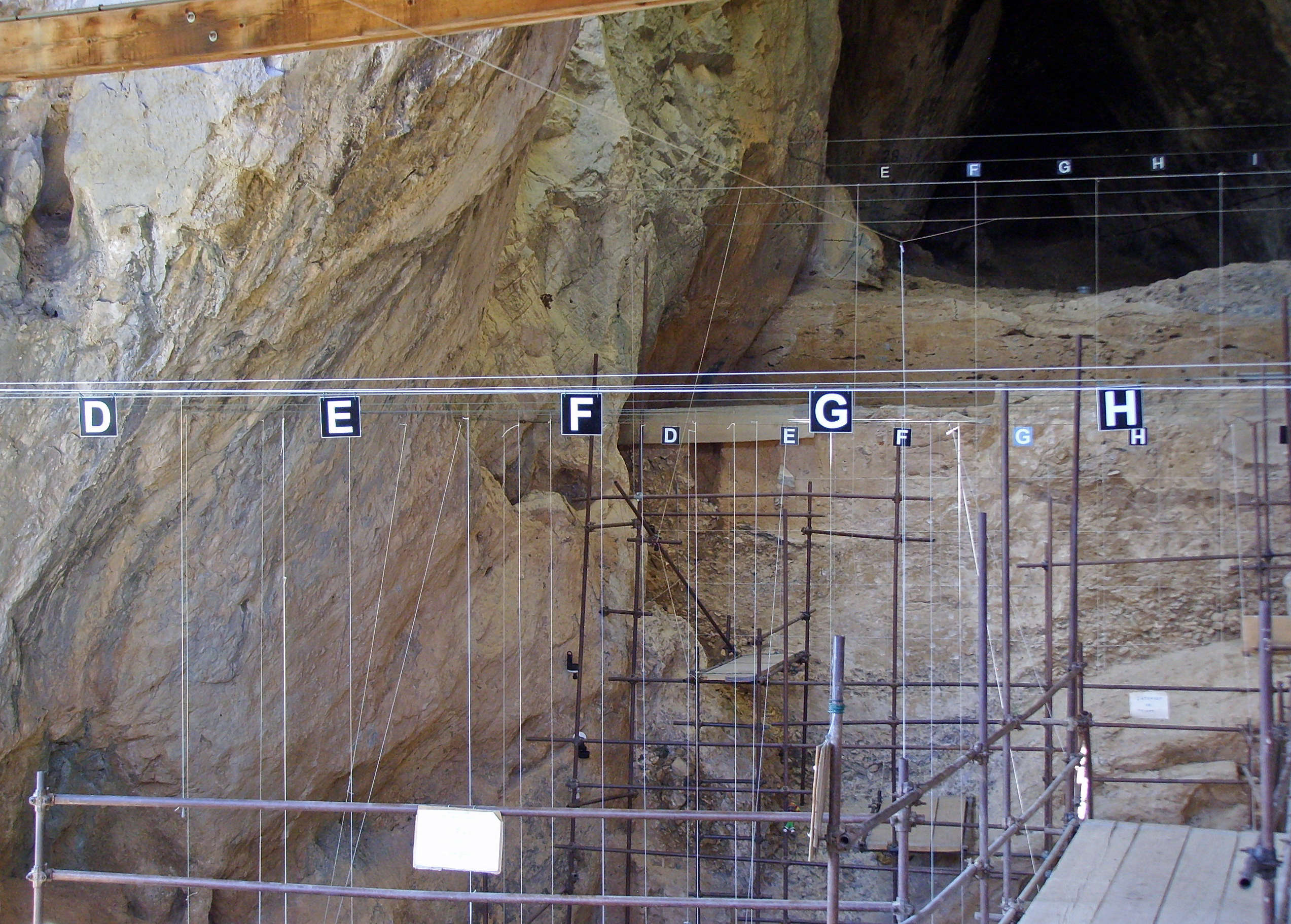

Inside the shelter.

Photo: Courtesy Jeff Marohl




erects
Tautavel Man (Homo erectus tautavelensis ), is a proposed subspecies of the hominid Homo erectus, the 450 000 years old fossil remains of whom were discovered in the Arago Cave in Tautavel, France. Excavations began in 1964, with the first notable discovery occurring in 1969.

The skeletal remains of two individual hominids has been found in the cave: a female older than forty (Arago II, July 1969), and a male aged no more than twenty (Arago XXI, July 1971, and Arago XLVII, July 1979). Recovered stone tools originate from within a 5 kilometres (3.1 mi) radius of the cave, while animal bones suggest the inhabitants could travel up to 33 kilometres (21 mi) for food.

All fossils recovered from Arago were found by Henry and Marie-Antoinette de Lumley and are now located at the Institute for Human Palaeontology in Paris. Arago II is a nearly complete mandible with six teeth from a 40-55 years old female. Arago XXI is a deformed cranial fragment featuring the most complete pre-Neanderthal face accompanied by a frontal and a sphenoid bone. Arago XLVII is a right parietal bone, the sutures of which fits perfectly with Arago XXI. The two latter have an estimated developmental age of twenty, while a uranium series dating produced a fossil age of ca 400 000 BP (this is near the maximum limit for this method and the fossil may be older.)


The male skull has a flat and receding forehead with well-developed supraorbital ridges ('eyebrows') and a large face with rectangular eye sockets. The cranial cavity had a volume of 1 150 cm3. The rest of the skeleton has been reconstructed from 75 fossil remains and casts from fossils found at other sites; an interpretation suggesting a sturdier skeleton than in modern humans and a height of 165 cm (5 ft 5 in).

Through the thousands of years from the time that Arago XXI died, changes occurred to the structure of the bone known as 'taphonomic transformations', these modifying the shape of skull. These had caused parts of the bone to become slightly bent, including the front of the skull to lose symmetry. Three-dimensional imaging using computers allowed a morphometric analysis of the skull and this was used to compare with skull dimensions of Homo sapiens sapiens and also to obtain a computer generated image of the hominids face.

Compared to H. erectus in North Africa and China, H. erectus tautavelensis is closer to early H. sapiens and thus form a morphologically distinct group together with other European Middle Pleistocene hominids found in Steinheim, Swanscombe, and Pontnewydd, because they show some of the characteristics of Neanderthals. The oldest indirect evidence of hominids in Europe are date to perhaps 1 to 2 million years ago and while Arago is certainly younger, the stalagmite floor under the cave deposits has been ambiguously dated to 700 000 years old by electron spin resonance but to 300 000 years old by thermoluminescence.

No signs of fire, ash, charcoal, burned stone, or clay is documented in the cave which seems to suggest the art of fire is a recent discovery, though traces at a 1 to 4 million years old erectus site in East Africa indicate the opposite.

Photo: Don Hitchcock 2014
Source: Display, Paléosite Saint Césaire, Musée du Gisement Archéologique de la Roche à Pierrot
Text: Wikipedia




Note that there is some disagreement about the classification of the skull Arago 21.

The Smithsonian identifies it as Homo heidelbergensis at https://humanorigins.si.edu/evidence/human-fossils/fossils/arago-21, as does the Australian Museum at https://australian.museum/learn/science/human-evolution/homo-heidelbergensis/.

However the discoverers of the bones have classified it as Homo erectus.
In 1963, French archaeologist Jean Abélanet recovered stone tools, which inspired French archaeologist Henry de Lumley to continue excavation for human remains. He found such remains in 1964, and recovered the first face (Arago 21) in 1971. He and fellow archaeologist Marie-Antoinette de Lumley (his wife) formally described the remains that same year. They (Lumley 2015) dated them to the Riss glaciation - that is, predating the European Neanderthals. They propose the classification Homo erectus tautavelensis.

The Musée du Gisement Archéologique de la Roche à Pierrot at the Paléosite Saint Césaire refers to it as Homo erectus. Wikipedia refers to it as Homo erectus tautavelensis, though it acknowledges the discussion concerning its naming. The Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye delicately steps around the whole problem by referring to the fossil as a 'Pre-Neanderthal'.

In general, so far as I can tell there are more proponents of the Homo erectus tautavelensis identification than of those using Homo heidelbergensis for Arago 21.

Homo heidelbergensis Homo heidelbergensis


Cast of Arago 21 and Arago, a skull and lower jaw discovered in Arago Caves, Tautavel, France. Excavations since 1964 have revealed a number of human fossils at Arago including this skull and jaw from different individuals. Thousands of stone tools and the bones of many types of animals have also been uncovered at this site. The Arago 21 skull is relatively complete but it was distorted either before or during fossilisation. Its features are typical of this species but its size and robust facial features suggest that it is the skull of a young male. It has been dated as being between 250 000 and 400 000 years old.

Photo and text: Carl Bento © Australian Museum, http://australianmuseum.net.au/image/Arago-Skull-Homo-heidelbergensis-anged-view/

( note that this source identifies the specimens as Homo heidelbergensis - Don )

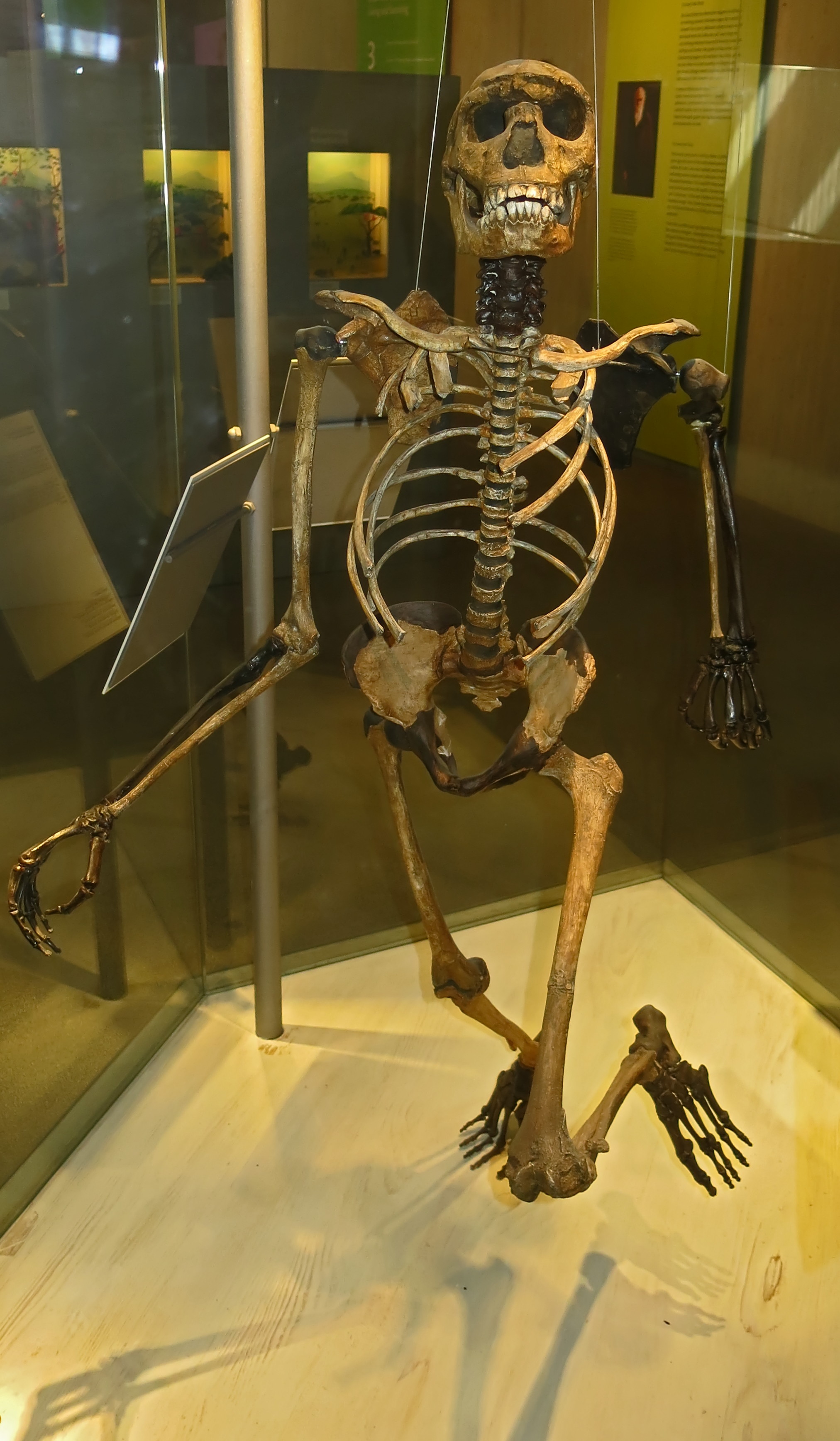

erectus skeleton

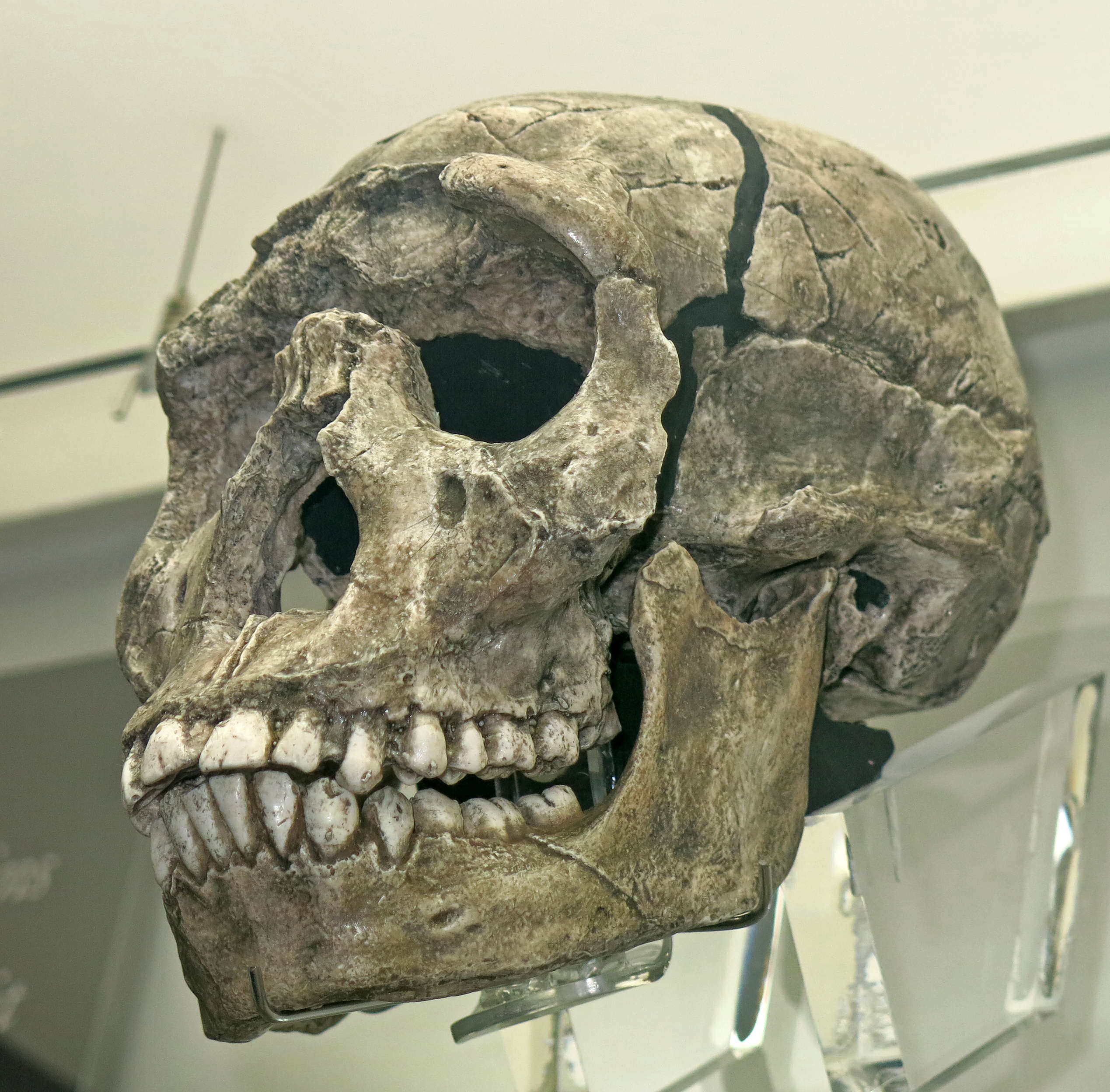

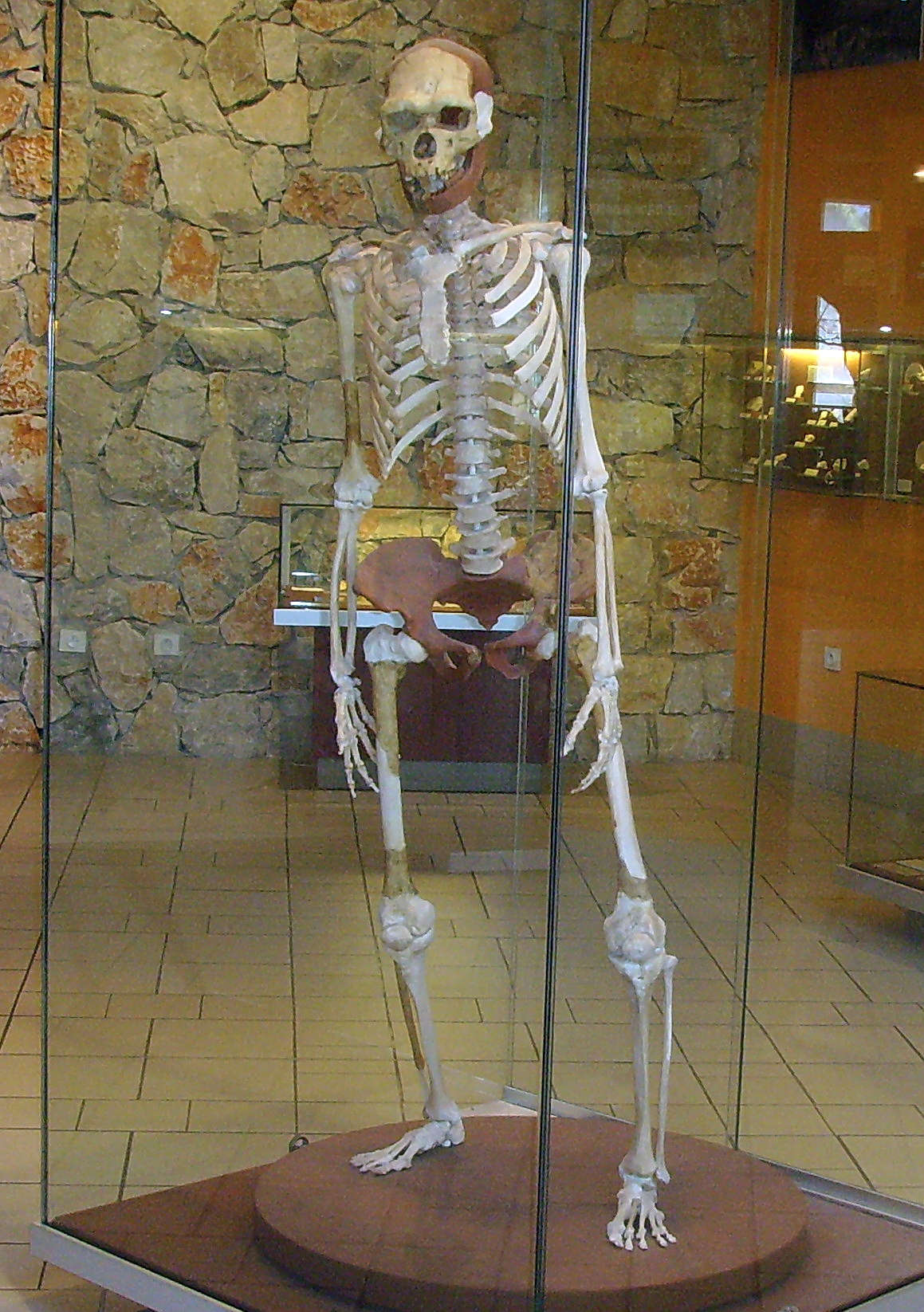

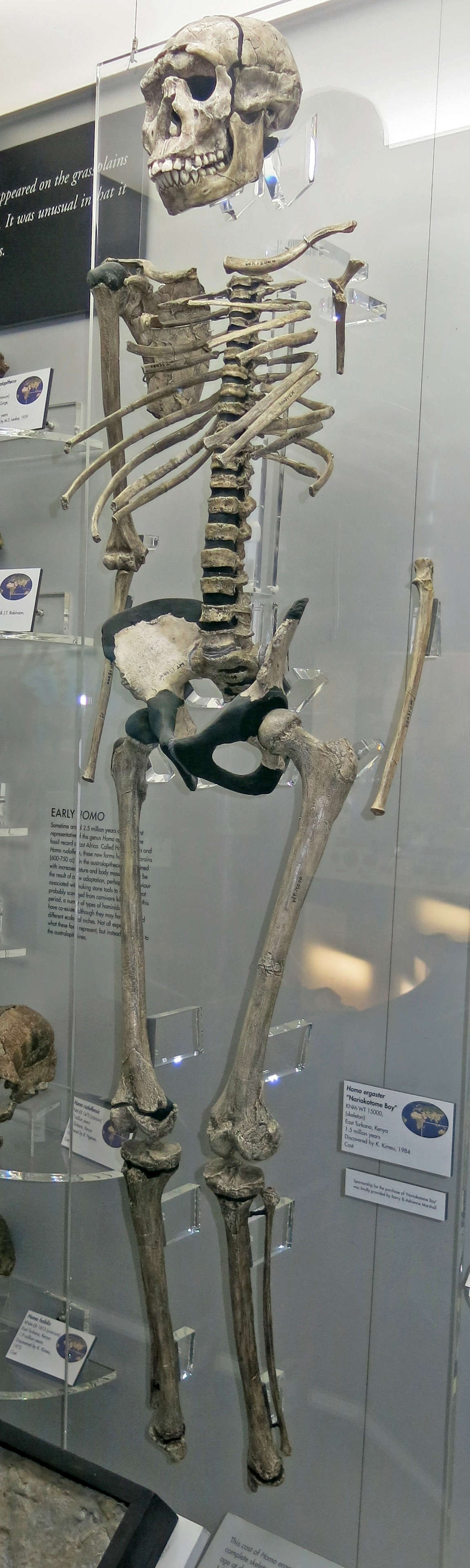

Homo erectus from Arago Cave, Tautavel, France (reconstruction, Museum Tautavel)

Photo: Gerbil
Permission: Creative Commons Attribution-Share Alike 3.0 Unported license.

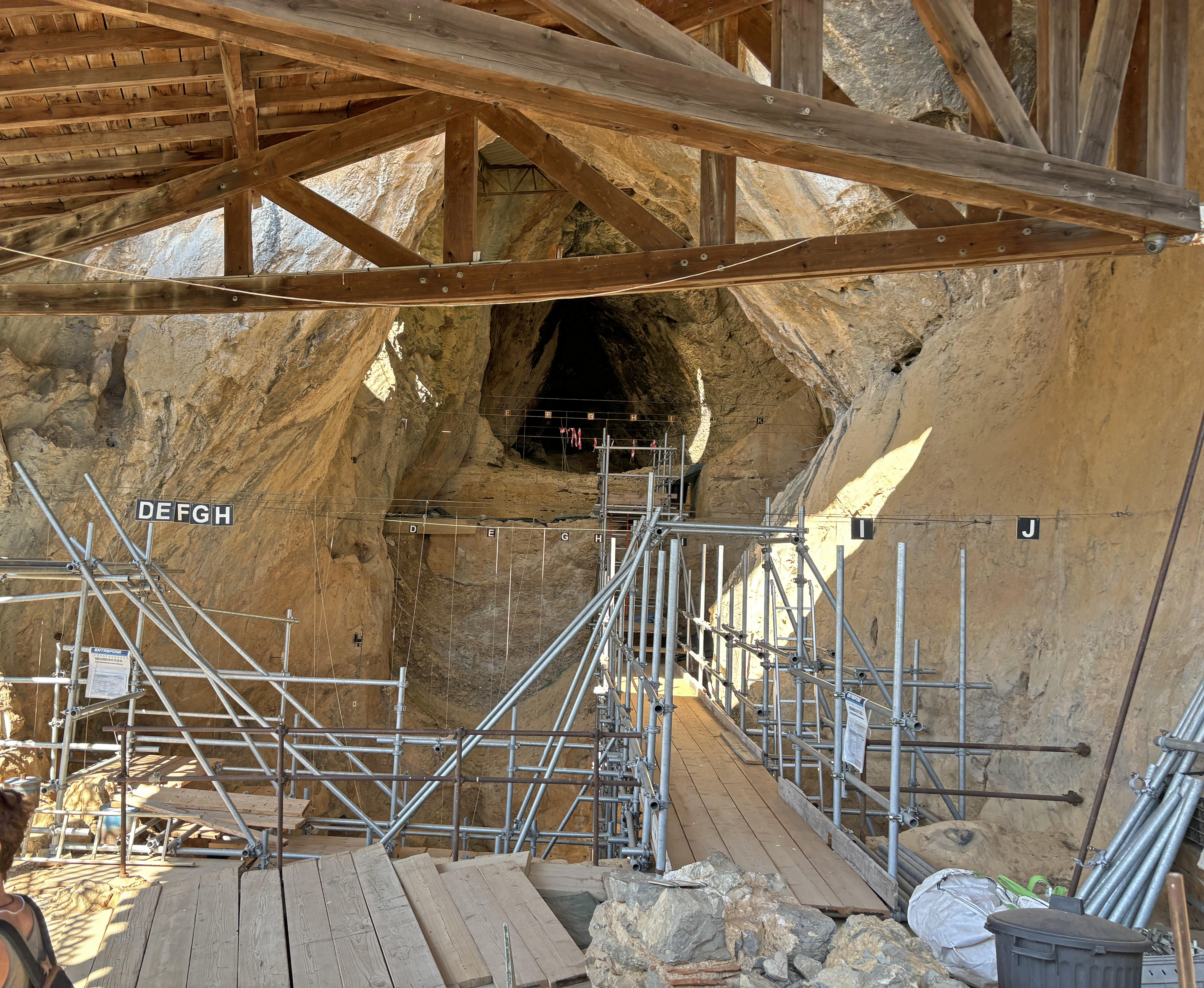

Arago Cave

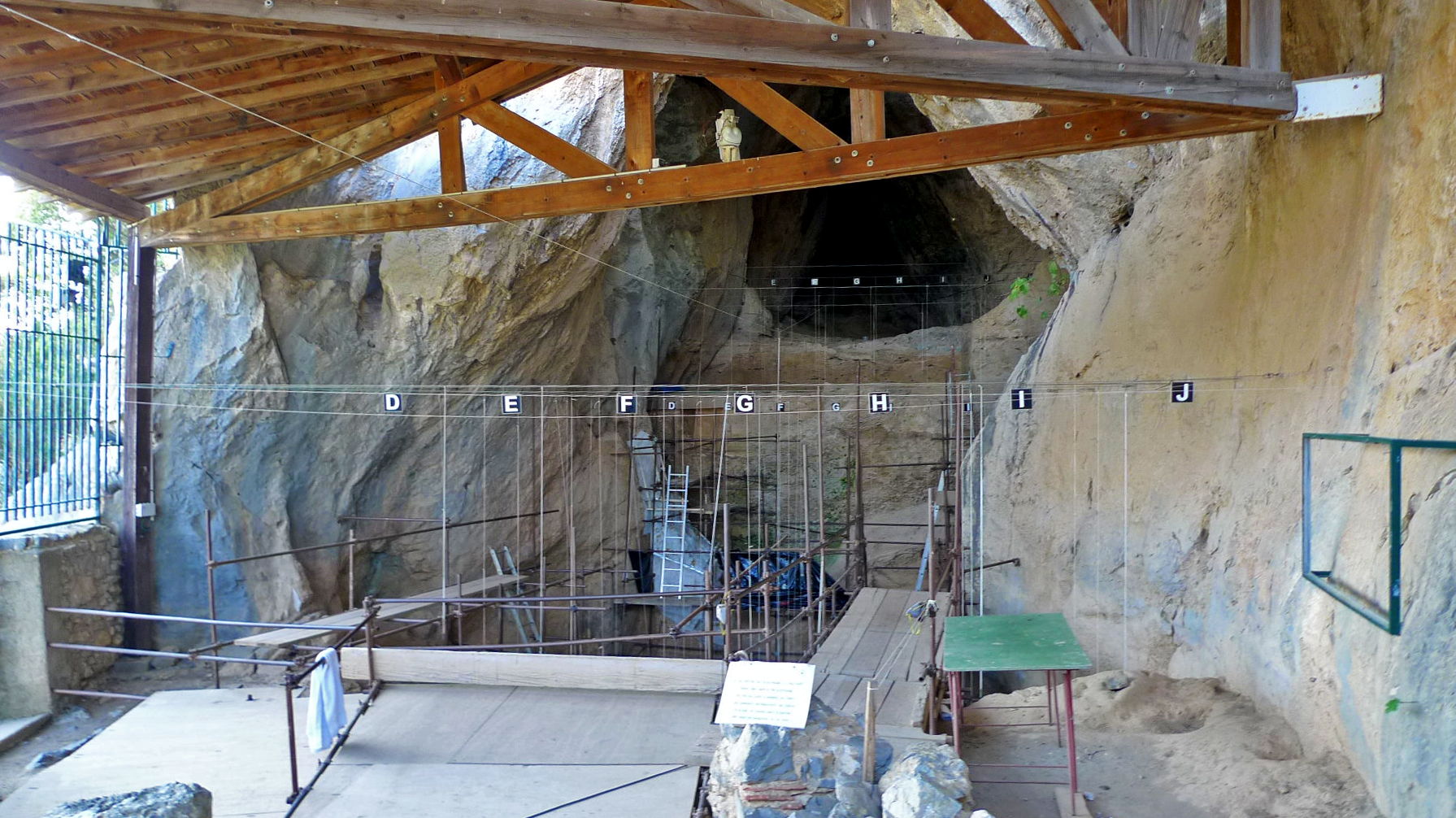

Arago Cave, near Tautavel (Perpignan region), France

September 2008

Photo: Gerbil
Permission: Creative Commons Attribution-Share Alike 3.0 Unported license.




erectus reconstruction


A reconstruction of Homo erectus, exhibited at the Westfälisches Landesmuseum, Herne, Germany (lwl-landesmuseum-herne.de).

Photo: Lillyundfreya
Permission: Creative Commons Attribution-Share Alike 2.5 Generic







Homo ergaster
Homo ergaster / erectus

KNM-ER 3733 (cranium)

East Turkana, Kenya

ca 1.8 million BP

Discovered by B. Ngeneo, 1974-5

Facsimile

Photo: Don Hitchcock 2013
Source and text: Western Australian Museum

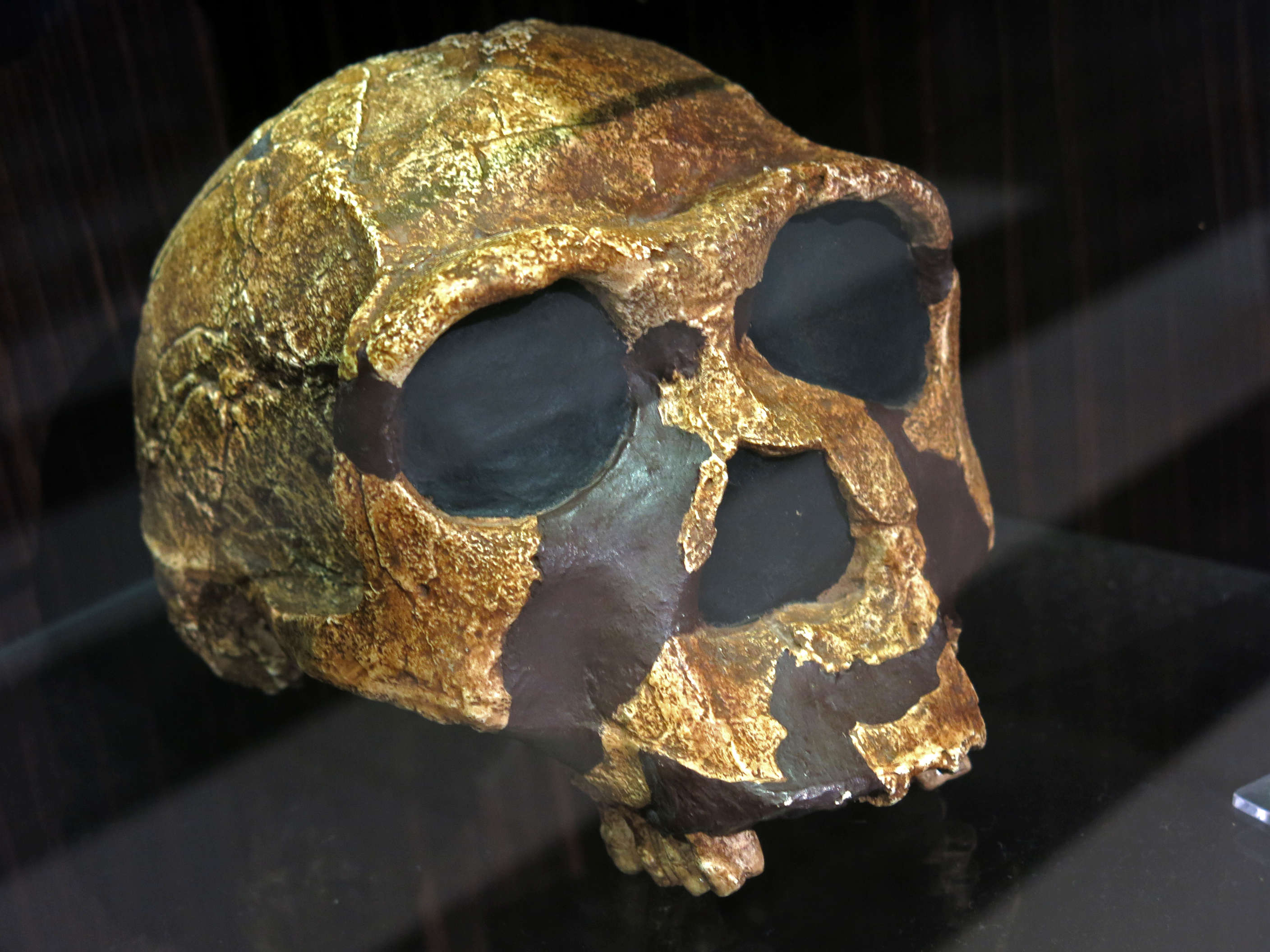

Homo ergaster
Homo ergaster, KNM ER 3733

~1 750 000 years old, Kenya.

Facsimile

Photo: Don Hitchcock 2014
Source and text: Display, Paléosite at Saint Césaire.




Homo naledi timeline


Hominin timeline.

Note that Homo floresiensis has not been placed on this timeline. van den Bergh et al. (2016) indicate that it may be a form of Homo erectus.

Photo: © National Geographic, Jason Treat, NGM staff
Source: Lee Berger, University of the Witwatersrand (WITS), John Hawks, University of Wisconsin-Madison
Proximate source: http://news.nationalgeographic.com/2017/05/homo-naledi-human-evolution-science/





Earliest Humanlike Footprints Found In Kenya



foot prints

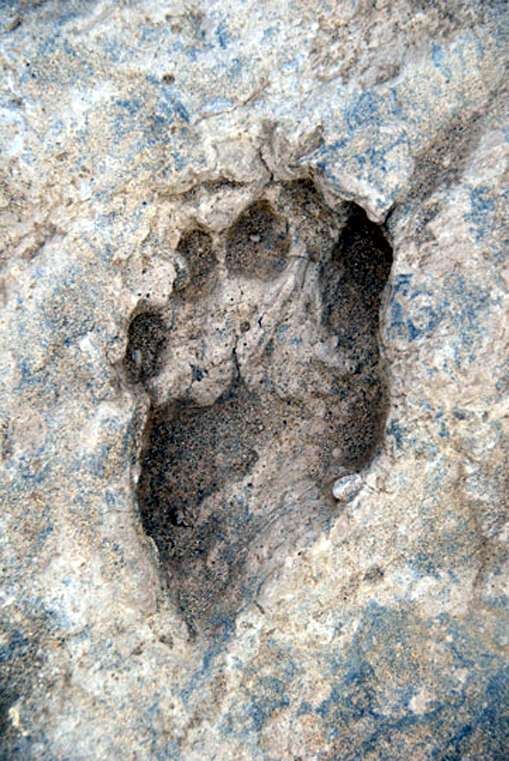

A photograph of the footprint's upper footprint surface showing good definition of the toe pads; the second toe is partially obscured by the third toe.

This fossil footprint found near Ileret, Kenya, is 1.5 million years old. These footprints are the oldest ever found of the human genus.

Photograph: Matthew Bennett/Bournemouth University, at:
http://www.npr.org/templates/story/story.php?storyId=101191786







H. erectus at dawn



H. erectus at dawn, gathering shellfish. The fire is smouldering after blazing all night.

Photograph: ©Richard Bizley FIAAA, used by kind permission.

Website: http://www.bizleyart.com/




foot prints

The footprints were probably made by Homo erectus, and they match a men's shoe size of about 9. This one looks very much like the footprint of anthropologist Brian Richmond.

Photo: Brian Richmond, http://www.npr.org/templates/story/story.php?storyId=101191786




foot prints
Laser scanning of the footprints show all the hallmarks of a modern human stride.

Photograph: Matthew Bennett/Bournemouth University, at:
http://www.npr.org/templates/story/story.php?storyId=101191786






by Christopher Joyce

Text: http://www.npr.org/templates/story/story.php?storyId=101191786

Scientists digging in a Kenyan desert have found what they believe to be the oldest humanlike footprints. Several individuals laid them down 1.5 million years ago in what was a muddy track.

The scientists discovered not just one set of footprints, but two. The second set was left about 1,000 years after the first set. "It's incredible. I've never excavated anything like this before," says team director John Harris of Rutgers University.

Reporting in this week's issue of the journal Science, the anthropologists say the creatures that made the prints were probably Homo erectus. That's believed to be a direct ancestor of modern humans, and one that appears to have been built much the way modern humans are.

"The prints match a men's shoe size of about 9, which gives you a height of about 5 feet 9 inches," says Brian Richmond of George Washington University, who was part of the excavation team. "Here, we have really compelling evidence that they were walking with a long stride, they had an arch in the foot the way we have, and the arch puts a spring in our step, which makes walking more efficient," he says.

The region is rich with animal footprints as well, including antelopes, a form of zebra and birds. During the time the prints were made, the region was probably a river valley near a lake.

The evolution of an arch in the foot indicates a spring ligament in the foot, which increases the efficiency of walking by storing some of the energy from the falling weight of the walker in each step, and then returning it up the leg on the rebound. The big toe is also aligned with the other toes, something not found in earlier ancestors and other primates. Its large size is necessary to absorb the walker's weight as the foot rolls forward and then lifts off the ground before the next step.

Harris says the area where these individuals lived was undergoing a drying period at the time the prints were made. Trees and water might have been growing scarce, so Homo erectus would have had to walk farther for water and food.

Dan Lieberman, an anthropologist at Harvard University, says the footprints confirm that the evolution of the foot was crucial to becoming human. For one thing, it allowed people to run.

"Imagine you are a Homo erectus and you are hungry," he says. "And you want to kill something for dinner. The weapons available to you are incredibly primitive, so one thing early hominids might have included in their repertoire of hunting strategies was to run animals in the heat."

Eventually, he says, the prey would collapse and could then be killed.

The scientific team will return to the site next summer. They say the first track ends at a small hill, and they expect to find more prints underneath the hill.




Walking tall: oldest footprints show a distinctly modern gait



Text: http://www.smh.com.au/

February 28, 2009 - 10:07AM

foot prints
What may be the oldest human footprints in the world have been discovered in Africa.

The 1.5 million-year-old prints reveal that our ancient ancestors walked like us and had modern-looking feet.

One set of seven footprints shows an individual about 175 centimetres tall standing with legs astride, before moving slowly across what would have been a muddy, slippery surface.

The rare find was made near Ileret in Kenya by a team co-led by John Harris of Rutgers University in New Jersey.

Photo: http://www.smh.com.au/world/science/walking-tall-oldest-footprints-show-a-distinctly-modern-gait-20090227-8jmh.html




Professor Harris said the size of the fossil footprints indicated they were made by extinct humans, early Homo erectus, who inhabited the region. "Homo erectus was the precursor of our own species, Homo sapiens. That's the exciting part," Professor Harris said.

The prints show that, like us, they had arched feet, big toes pointing forward in line with the rest, and they transferred their weight from heel to ball to big toe as they walked.

Four sets of well-preserved adult footprints, and a small, single impression, probably made by a child, were found alongside those of other creatures, including antelopes. "This trail of footprints provides us with a unique snapshot in time of the animals that were living on this landscape 1.5 million years ago," said Professor Harris, whose study is published in the journal Science.

The only older known footprints were discovered 30 years ago by Mary Leakey at Laetoli in Tanzania. But these 3.7 million-year-old impressions were made by a less advanced hominid, Australopithecus afarensis. Although it walked upright, it had a more ape-like big toe, that stuck out at an angle, and a shallower arch, Professor Harris said.

The British researchers, Robin Crompton and Todd Pataky, of the University of Liverpool, said the human foot was one of our most distinctive adaptations. The 26 bones held together by ligaments and tendons and protected by fatty pads and thick skin had allowed modern humans to travel long distances, by acting as both shock absorbers and stiff levers to push off the ground.

The Kenyan footprints were an important find because they were the "oldest attributable to our own genus, Homo," they wrote in the journal. "The finding heralds an exciting time for studies of the evolution of human gait."

In 2003, 345 000 year old footprints found in southern Italy were described by researchers. Known as the "devils' trails", they were made by extinct early humans in Europe.

Two years later, in NSW, it was announced that hundreds of 22,000-year-old footprints - the oldest in Australia and the largest collection of its kind in the world - had been found in Mungo National Park.




The Shoe Fits! 1.5 Million-Year-Old Human Footprints Found



By Jeremy Hsu, Staff Writer

posted: 26 February 2009 02:07 pm ET

foot prints

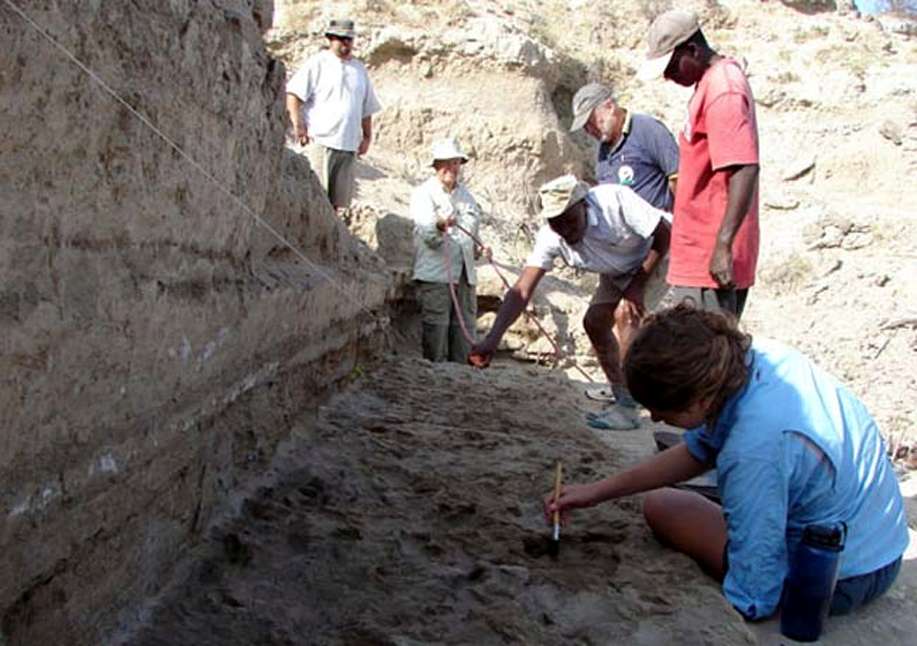

In the foreground, Christine Galvagna, a Rutgers undergraduate at the time, meticulously cleans a trail of hominid footprints as Professor Harris (dark blue shirt) looks on.

Photo: http://www.livescience.com/history/090226-ancient-modern-feet.html, David Braun





foot prints

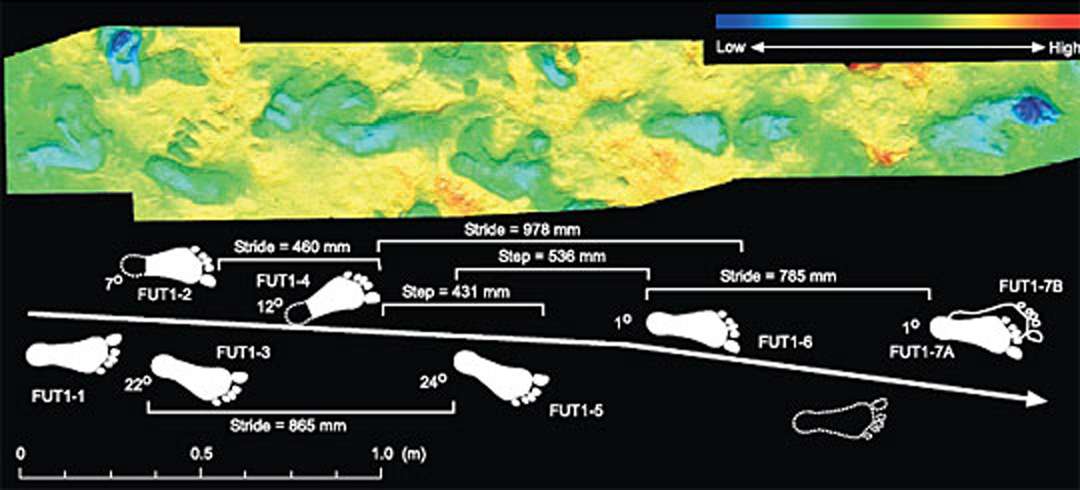

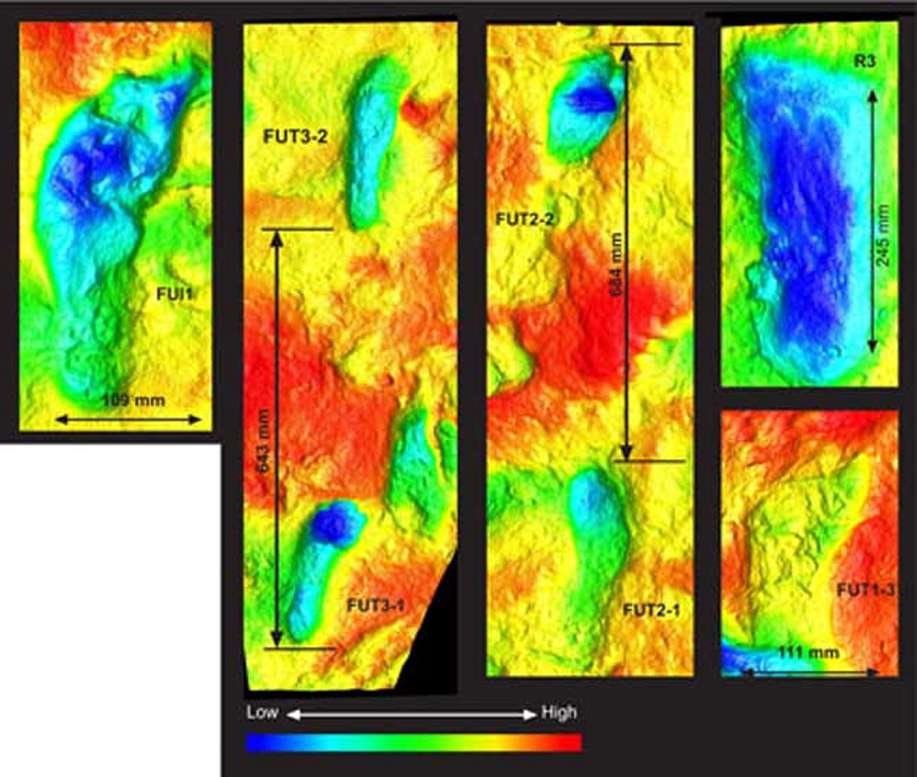

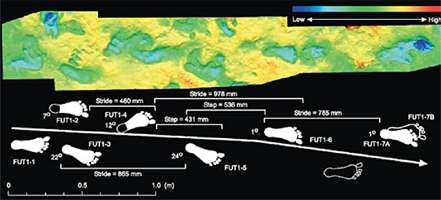

Optical laser scan images for a series of footprints showing dimensions and depth.

Photo: http://www.livescience.com/history/090226-ancient-modern-feet.html, Matthew Bennett/Bournemouth University




Early humans had feet like ours and left lasting impressions in the form of 1.5 million-year-old footprints, some of which were made by feet that could wear a size 9 men's shoe.

The findings at a Northern Kenya site represent the oldest evidence of modern-human foot anatomy. They also help tell an ancestral story of humans who had fully transitioned from tree-dwellers to land walkers.

"In a sense, it's like putting flesh on the bones," said John Harris, an anthropologist with the Koobi Fora Field School of Rutgers University. "The prints are so well preserved ."

Harris and other colleagues report in the Feb. 27 issue of the journal Science on finding several footprint trails within two sedimentary rock layers. An upper sedimentary layer included two trails of two prints each, one group of seven prints, and a variety of isolated prints. The lower layer had a trail of two prints and a single isolated print likely from a smaller, juvenile human.

The researchers identified the footprints as probably belonging to a member of Homo ergaster, an early form of Homo erectus. Such prints include modern foot features such as a rounded heel, a human-like arch and a big toe that sits parallel to other toes.

By contrast, apes have more curved fingers and toes made for grasping tree branches. The earliest human ancestors, such as Australopithecus afarensis, still possessed many ape-like features more than 2 million years ago — the well-known "Lucy" specimen represents one such example.

These latest footprints at Ileret, Kenya, appear intriguingly close by to another early human site. Researchers in 1984 found a nearly complete Homo erectus skeleton, dubbed the "Turkana Boy" specimen, just across the waters of Lake Turkana.

Turkana Boy's delicate foot bones were not well preserved. But the new footprints could represent the shoe that fits the wearer, so to speak.

"Many people have predicted this, but now we have the solid evidence for modern foot anatomy," Harris told LiveScience. "It's like a giant jigsaw puzzle, and those footprints complement the skeleton from the other end of the lake."

Modern feet mark just one of several dramatic shifts in early humans, specifically regarding the appearance of Homo erectus around 2 million years ago. Homo erectus is the first hominid to have the same body proportions as modern Homo sapiens.

"We're seeing a very different hominid at this stage," Harris said, pointing to both an increase in size and change in stride during the relatively short time between Australopithecus (the first in this genus lived about 4 million years ago and the last died out between 3 million and 2 million years ago) and Homo erectus. The latter hominids would have been able to travel more quickly and efficiently over larger areas.

This matches a pattern of more widely-distributed sites containing artifacts such as tools from 1.5 million to 1 million years ago, which may also point to wider-ranging early humans.

Climate changing and shifting physical landscapes would have also forced the likes of Homo erectus to wander farther in search of food, Harris said. But increased walking and running abilities may have allowed them to start seriously hunting big game

"You might even think in terms of dietary quality here, because maybe they're incorporating more meat into their diet," Harris said. "They would have competed with quite a large carnivore guild; lions, leopards, and all the cats that eat meat."

The Homo erectus footprints now lead further into the past of human evolution, as researchers may shift their focus to earlier examples of physical changes in human ancestor species.

"It's going to bring up controversy again about the Laetoli prints," Harris noted, referring to footprints preserved in volcanic ash roughly 3.6 million years ago in Tanzania. Anthropologists continue to debate whether these older footprints from an earlier "Lucy" type hominid show that Australopithecus walked about easily or awkwardly on two legs.

Other findings may yet be revealed with the latest footprints at the Ileret site. The prehistoric landscape near various water sources was likely a muddy surface that preserved a whole range of animal tracks, Harris hinted — perhaps fodder for additional studies in the future.




From New Scientist, 7 March 2009, issue 2698

Fossil footprints reveal our modern walk in the making


©04 March 2009 Robert Adler

foot prints
Footprints laid down near Lake Turkana in north-west Kenya 1.5 million years ago were made by human ancestors with essentially modern foot anatomy and gait.

They are the second oldest hominin footprints known, after the 3.7-million-year-old Laetoli prints found by anthropologist Mary Leakey in Tanzania in 1978, which are more ape-like and are suspected to be from a species of Australopithecus.

More importantly, they are the oldest made by human ancestors; probably early Homo erectus, who was thought to share our stature, foot anatomy and springy, efficient stride. Because fossilised foot bones are fragile, and thus scarce, researchers have not previously been able to verify their inferences about the foot anatomy or gait of H. erectus.




"Between 1.8 and 1.5 million years ago, H. erectus evolved rapidly, [becoming] very different to anything that came before," says Matthew Bennett of Bournemouth University, UK, who was part of the team. Those differences included shorter arms, longer legs and - the footprints show - a modern foot and an energy-saving bounce from the arch and big toe. Like modern apes, earlier human ancestors had short legs and strides, and a flat-footed, less efficient gait.

The evolved stride matters, says Bennett, because the increasing mobility of H. erectus opened up a wider range of habitats to occupy and exploit.

Bennett and his colleagues unearthed two layers of footprints at Koobi Fora, an archaeological site near the town of Ileret in Kenya. The lower layer includes two trails, each with two footsteps, and an isolated footprint; the upper layer had three trails, one with seven steps. The prints are sandwiched between layered deposits of volcanic ash whose age is well known and indicates that both sets of prints were made between 1.53 and 1.51 million years ago.

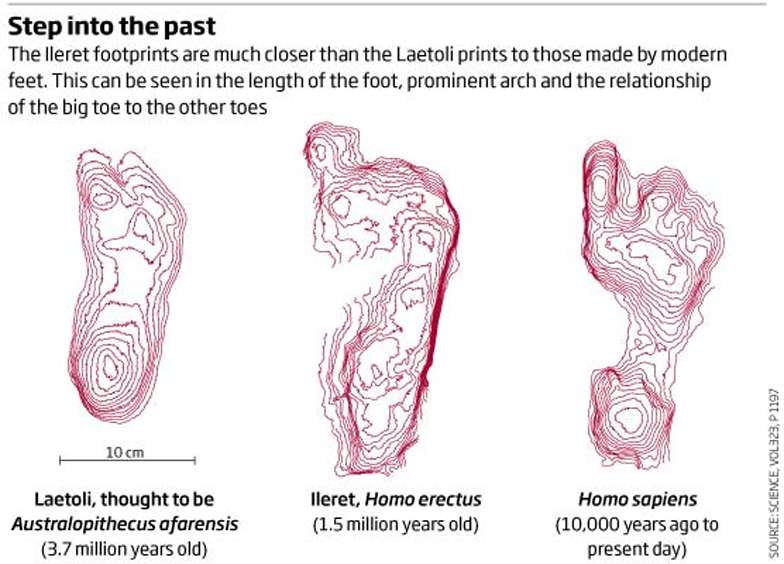

"We see characteristic human prints, with a clear heel, an imprint on the outside of the foot, and then a really deep impression underneath the ball of the foot," says co-author Brian Richmond, a palaeoanthropologist at George Washington University in Washington DC. "Whereas the Laetoli prints have debatable evidence of these modern characteristics, the prints from Kenya are compelling."

On several key features, including length, a pronounced arch, and the position of the big toe in relation to the others, the Ileret prints are much more modern than those from Laetoli. Crucially, they reveal a modern stride in which weight shifts from the heel to the ball of the foot and then to the big toe, providing a platform to push off from.

For team member Jack Harris of Rutgers University in New Brunswick, New Jersey, the footprints confirm what researchers have been piecing together about how H. erectus evolved. "They had the anatomy to range over longer distances and move into more diverse habitats," he says.


A Female Homo erectus Pelvis from Gona, Ethiopia

Scott W. Simpson, Jay Quade, Naomi E. Levin, Robert Butler, Guillaume Dupont-Nivet, Melanie Everett, Sileshi Semaw

Science 14 November 2008:
Vol. 322. no. 5904, pp. 1089 - 1092
DOI: 10.1126/science.1163592

Abstract:
Analyses of the KNM-WT 15000 Homo erectus juvenile male partial skeleton from Kenya concluded that this species had a tall thin body shape due to specialized locomotor and climatic adaptations. Moreover, it was concluded that H. erectus pelves were obstetrically restricted to birthing a small-brained altricial neonate. Here we describe a nearly complete early Pleistocene adult female H. erectus pelvis from the Busidima Formation of Gona, Afar, Ethiopia. This obstetrically capacious pelvis demonstrates that pelvic shape in H. erectus was evolving in response to increasing fetal brain size. This pelvis indicates that neither adaptations to tropical environments nor endurance running were primary selective factors in determining pelvis morphology in H. erectus during the early Pleistocene.


Homo erectus birth canal

Homo erectus infants may have been born bigger than previously thought

From:
http://news.bbc.co.uk/2/hi/science/nature/7721999.stm

Friday, 14 November 2008

female erectus pelvis

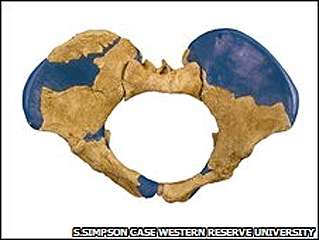

A reconstruction of the 1.2 million-year-old pelvis discovered in 2001 in the Gona Study Area at Afar, Ethiopia, that has led researchers to speculate early man was better equipped than first thought to produce larger-brained babies. The actual fossils remain in Ethiopia.

Image: http://www.eurekalert.org/pub_releases/2008-11/iu-ppo111108.php

Credit: Scott W. Simpson, Case Western Reserve University
Usage Restrictions: None

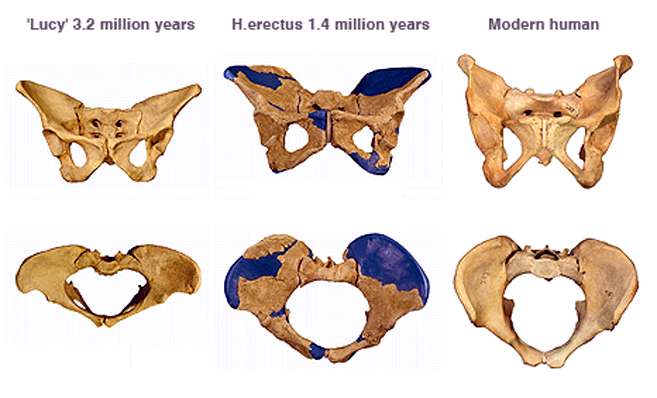

A new Homo erectus fossil suggests that females had large, wide pelvises in order to deliver large-brained babies. Being born with a larger brain meant our ancestor became independent far more quickly than modern human infants. The new finding, published in Science magazine, conflicts with earlier ideas that suggest they had a tall, thin body shape adapted for running. Homo erectus is thought to be the first human-like creature to move out of Africa to colonise the world. The now extinct hominid species may also have been the first to control fire.

Wide hips

The near-complete 1.4 million-year-old female pelvis was found near Gona in northern Ethiopia. As it was pieced together, the archaeologists were struck by the unusual width of the pelvis. Scott Simpson, a palaeontologist from Case Western Reserve University in Cleveland, Ohio, US, was one of those who made the discovery. 'Proportionally her hips are wider than those of modern humans,' he says. A comparison of modern human and earlier pelvises (S.Simpson Case Western Reserve University) Pelvis size indicates how large the newborn's head could be. Earlier hominids such as the three-million-year-old Australopithicus afarensis, made famous by the "Lucy" skeleton found in 1974, have a much narrower pelvic opening. In comparison, more recent hominids found in China, Israel and Spain have wider pelvises. The researchers say the wider pelvis meant H. erectus could have given birth to babies that were 30% bigger than previously thought. Having a larger brain size meant the young hominid was dependent on its mother for less time than a modern human baby, a useful survival adaptation in the African savannah where they lived.

Many behaviours we consider unique to humans were present in homo erectus Dr Scott Simpson, Case Western Reserve University Cleveland, Ohio

Out of Africa

The researchers say the erectus brain probably grew quickly before birth; but after birth, growth-rate then slowed to somewhere between that of modern humans and chimpanzees. But Dr Simpson points out that Homo erectus was much more like a human than a chimp. 'Homo erectus was the first hominid species that left Africa; they were technologically sophisticated with stone tools; they hunted animals. Many behaviours we consider unique to [modern] humans were present in Homo erectus.'


The 'hole' story

From: http://www.eurekalert.org/pub_releases/2008-11/nsf-ts111408.php

Friday, 14 November 2008

Pelvis dated to 1.2 million years ago shows our ancestors were born with bigger heads

Gona Pelvis
A recently discovered female pelvis is changing minds about the head size of an ancient human ancestor, Homo erectus, and consequently revising notions about how smart they may have been. Found in Gona, Ethiopia, not far from the site that yielded the 3.2 million year old remains of the famed Australopithecus afarensis 'Lucy', the pelvis indicates that Homo erectus, which lived in Africa roughly 2 million years ago, had a larger birth canal than originally suspected and could have given birth to babies with bigger brains.

Before the female pelvis was found, evidence from the pelvis of a juvenile male led researchers to project that the cranial circumference and capacity of newborn Homo erectus babies was 30 percent smaller than more recent projections based on the newly discovered pelvis.

Photo: http://news.bbc.co.uk/2/hi/science/nature/7721999.stm




Sileshi Semaw, a palaeoanthropologist at the Stone Age Institute and Indiana University-Bloomington, and his colleagues assert that the head of a baby born from this Homo erectus could have been 318 millimetres in circumference. This is at the lower end of the spectrum of modern day human beings whose cranial circumferences at birth typically range from 320-370 millimetres.

Source: Zina Deretsky, NSF, NSF-PR 08-203


Prehistoric pelvis offers clues to human development



From: http://www.eurekalert.org/pub_releases/2008-11/iu-ppo111108.php

Thursday, 13 November 2008

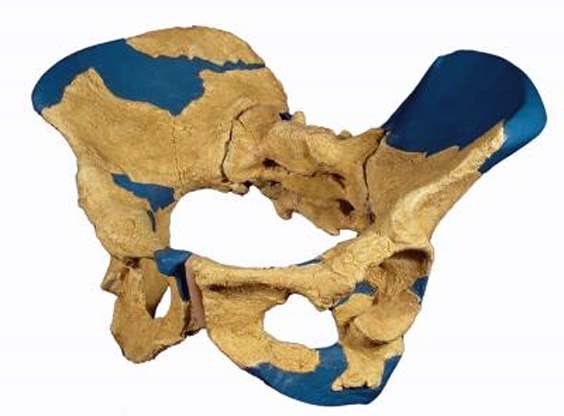

Gona Pelvis


A reconstruction of the 1.2 million-year-old pelvis discovered in 2001 in the Gona Study Area at Afar, Ethiopia.

This discovery of the most intact female pelvis of Homo erectus found so far may cause scientists to reevaluate how early humans evolved to successfully birth larger-brained babies. 'This is the most complete female Homo erectuspelvis ever found from this time period,' said Indiana University Bloomington paleoanthropologist Sileshi Semaw. 'This discovery gives us more accurate information about the Homo erectus female pelvic inlet and therefore the size of their newborns.'

Photo: http://news.bbc.co.uk/2/hi/science/nature/7721999.stm




A reconstruction of the 1.2 million-year-old pelvis discovered in 2001 in the Gona Study Area at Afar, Ethiopia, that has led researchers to speculate early man was better equipped than first thought to produce larger-brained babies. The actual fossils remain in Ethiopia. The discovery will be published in Science this week (14th November, 2008) by Semaw, leader of the Gona Project in Ethiopia, where the fossil pelvis was discovered with a group of six other scientists that includes IU Department of Geosciences graduate student Melanie Everett.

Reconstructing pelvis bone fragments from the 1.2 million-year-old adult female, Semaw and his co-workers determined the early ancestor's birth canal was more than 30 percent larger than earlier estimates based on a 1.5-million-year-old juvenile male pelvis found in Kenya. The new female fragments were discovered in the Gona Study Area in Afar, Ethiopia, in 2001 and excavation was completed in 2003.

Scientists also were intrigued by other unique attributes of the specimen, such as its shorter stature and broader body shape more likely seen in hominids adapted to temperate climates, rather than the tall and narrow body believed to have been efficient for endurance running. Early humans became taller and narrower over time, scientists believe, partly due to long distance running and to help them maintain a constant body temperature. One consequence, however, is that a narrower pelvis would have been less accommodating to producing larger-brained offspring.

But rather than a tall, narrow hominid with the expected slight pelvic region, Semaw and the Gona researchers found evidence of a hominid ready to produce offspring with a much larger brain size.

'The female Homo erectus pelvic anatomy is basically unknown,' Semaw said. 'And as far as the fossil pelvis of ancestral hominids goes, all we've had is Lucy (dated at 3.2 million years and also found in Ethiopia), and she is very much farther back in time from modern humans.'

Scientists studying early man predominantly find fragments of craniums and dental remains, while fossil bones from the neck down are rarely discovered. Even more difficult to verify are Homo erectus fossil bones that can be identified as those belonging to a female. Scientists had thought early adult Homo erectus females, because of the assumed small birth canal, would produce offspring with only a limited neonatal brain size. These young would have then experienced rapid brain growth while still developmentally immature, leading researchers to envision a scenario of maternal involvement and child-rearing on par with that of modern humans. But those theories had been based upon extrapolations from the existing male skeleton from Kenya.

'This find will give us far more accurate information,' Semaw said. Semaw is also a research scientist at the Stone Age Institute, a research center near Bloomington dedicated to the study of early human evolution and culture. It is affiliated with Indiana University's CRAFT, the Center for Research into the Anthropological Foundations of Technology.

Gona has turned out to be a productive dig site for Semaw. In 1997 Semaw and colleagues reported the oldest known stone tools used by ancestral humans. Then in 2004 he coauthored a paper summarising Gona's geological properties and the site's cornucopia of hominid fossils spanning several million years. At the time, Science gave the article an 'Editor's Choice' recognition. In 2005 he and colleagues published an article in Nature announcing the discovery of Ardipithecus ramidus, one of the earliest ancestral hominids, dating between 4.3 and 4.5 million years ago.






http://www.stoneageinstitute.org/c_news.shtml

Press Release on a New Hominid Cranium from Gona, Afar, Ethiopia

Prepared by the Gona Palaeoanthropological Research Project

Stone Age Institute and CRAFT Research Center at Indiana University, March 21, 2006

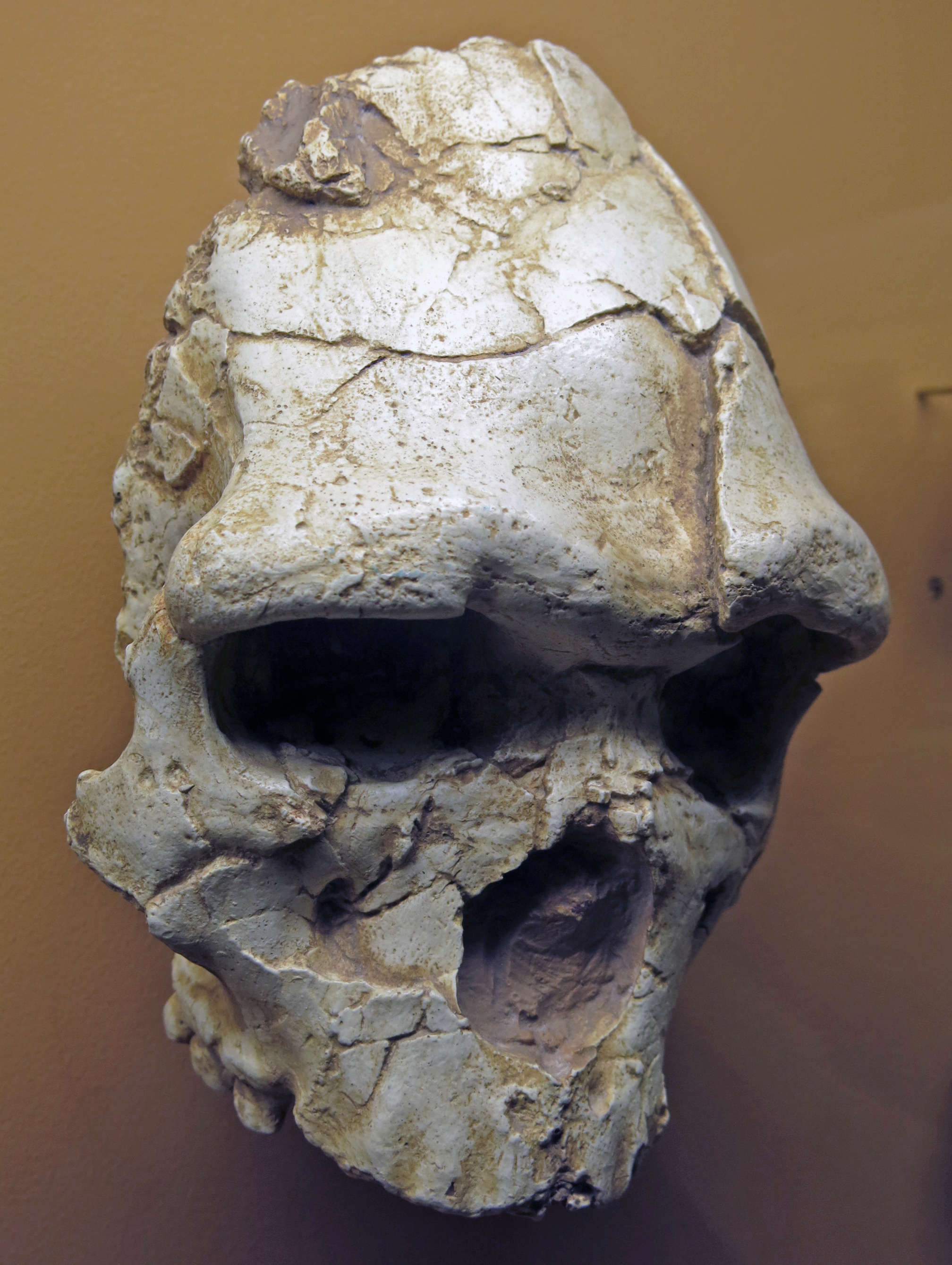

Gona Skull

The new hominid skull held by Gona project member Asahmed Humet, who discovered the fossil on February 16, 2006

Credit: Sileshi Semaw/Stone Age Institute

Photo: http://www.stoneageinstitute.org/c_news.shtml




Scientists conducting palaeoanthropological field research at Gona, in the Afar Administrative State of Ethiopia have discovered a significantly complete cranium of a human ancestor estimated to be Middle Pleistocene in age. The new hominid was discovered at Gawis (pronounced 'gow-wees'), in the Gona Paleoanthropological Research Project study area of Ethiopia. The discovery was reported by Sileshi Semaw, Director of the Gona Project, who is based at the Stone Age Institute and Indiana University's CRAFT Research Center, USA.

The new cranium from Gawis appears to be intermediate between the earlier Homo erectus and later Homo sapiens and may be sampling a single lineage. At the discovery site and nearby areas, significant archaeological collections of Late Acheulean stone tool-making tradition and numerous fossil animals were found, opening a window into an intriguing and important period in the development of modern humans. The southwest portion of the project area near the Gawis River contains the youngest part of the archive which is estimated to the Middle Pleistocene. Most of the sediments containing the cranium are sands and silts, not datable by standard geologic methods. However, the region contains many active and recently active volcanoes that erupted periodically, blanketing the local landscape with thin, gray-colored layers of volcanic ash. These volcanic ash layers hold the key to dating the Gawis cranium and associated stone tools. Some ash layers in the Gona project area can be directly dated by the 40Ar/39Ar method, and others, by virtue of their distinctive chemical composition, can be matched to correlative dated layers outside the Gona area providing the opportunity to make this one of the best-dated human ancestors notes Jay Quade, Gona project geologist.

The Discovery of the Gawis Cranium and its Significance

The cranium was found by Asahmed Humet (project member) on February 16, 2006 while he and project scientists were conducting archaeological and geological reconnaissance survey in the Gawis river drainage basin in the Afar Regional Administration of Ethiopia. The cranium was found in a small gully at the base of a steep slope of soft sediments from which it had recently eroded. The specimen includes the braincase, upper face, and upper jaw. Several surface exposed stone tools were found at the hominid site. Additional contemporary stone tools excavated from the same stratigraphic level near the hominid site include Late Acheulian artifacts. A diversity of fossil animals including pigs (two types), zebras, elephants, multiple types of antelopes, small carnivores including cats, and numerous rodents were found at the same stratigraphic level as the Gawis cranium.

Semaw says that "I am thrilled to have a complete cranium discovered from Gona that can provide key information for understanding the variation that existed during the Middle Pleistocene" Scott Simpson, the project paleontologist added that "a good fossil provides anatomical evidence that allows us to refine our understanding of evolution. A great fossil forces us to reexamine our views of human origins. I believe the Gawis cranium is a great fossil."

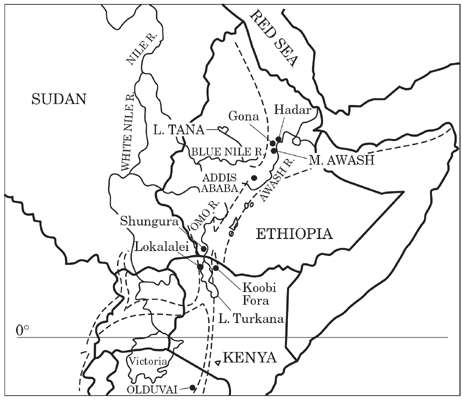

Gona Maps

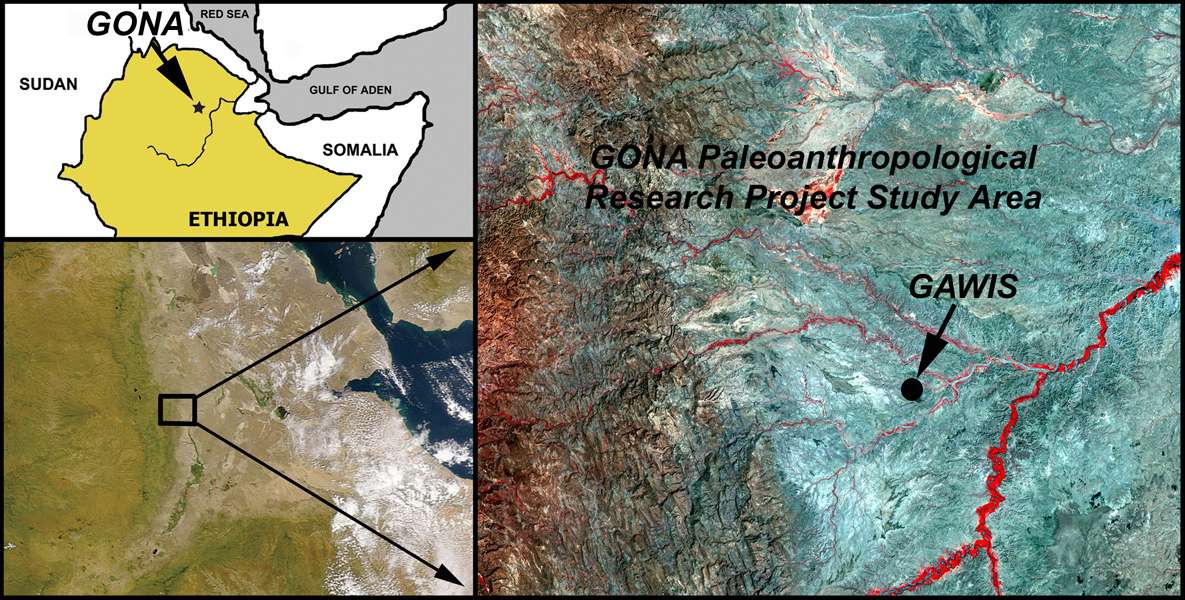

Map of the fossil discovery site at Gona, Ethiopia

The Gawis cranium comes from a time of transition to modern humans from African Homo erectus that is poorly known. The fossil record from Africa for this period is sparse and most of the specimens are poorly dated. The few fossil crania that are known from the Middle Pleistocene of Africa present a narrow view of the range of potential anatomical variation during this period. The Gawis cranium provides us with the opportunity to look at the face of one of our ancestors. Additionally, this fossil links us with the past by showing a face that is recognizably different and more primitive than ours. The face and cranium of this remarkable fossil are recognizably different from that of modern humans but it bears unmistakable anatomical evidence that it belongs to our ancestry. The form of the face and the brain are among the best means for exploring the evolutionary path of humans and the Gawis cranium preserves both areas. Work is in progress by the Gona team to determine the age of the cranium and associated archaeology, and to understand its evolutionary relationships with others known during the Pleistocene. Semaw concluded by saying that "I am happy that the Gona project succeeded to make a new hominid discovery from this least known time period in human evolution. Gona is a wonderful site and Ethiopian palaeoanthropology has a lot more to offer to the world. We will keep our heads up and continue our work, and I am optimistic that we will be rewarded with more thrilling discoveries for years to come."

Map Credit: Scott Simpson

Photo: http://www.stoneageinstitute.org/c_news.shtml




Previous Discoveries by the Gona Paleoanthropological Research Project The Gona project area has sediments that span the last 5.6 million years - a period that has witnessed many evolutionary and technological changes in human history and Gona has already provided evidence that allow a better understanding of those changes. The Gona archaeological sites are known for the discovery of the oldest excavated stone tools in the world dated to 2.6 million years ago. Early in 2005, members of the Gona Project announced the discovery of hominids assigned to Ardipithecus ramidus, among the earliest hominid genus in Africa dated between 4.5-4.3 million years ago.

http://www.stoneageinstitute.org/c_news.shtml




The Gona Palaeoanthropological Research Project (GPRP) study area



Much of the material (unless otherwise attributed) in this section is from:

The World's Oldest Stone Artefacts from Gona, Ethiopia: Their Implications for Understanding Stone Technology and Patterns of Human Evolution Between 2·6–1·5 Million Years Ago

Sileshi Semaw


CRAFT Research Center, Indiana University, 419 N. Indiana, Bloomington, IN 47405, U.S.A.

Journal of Archaeological Science (2000) 27, 1197–1214
doi:10.1006/jasc.1999.0592

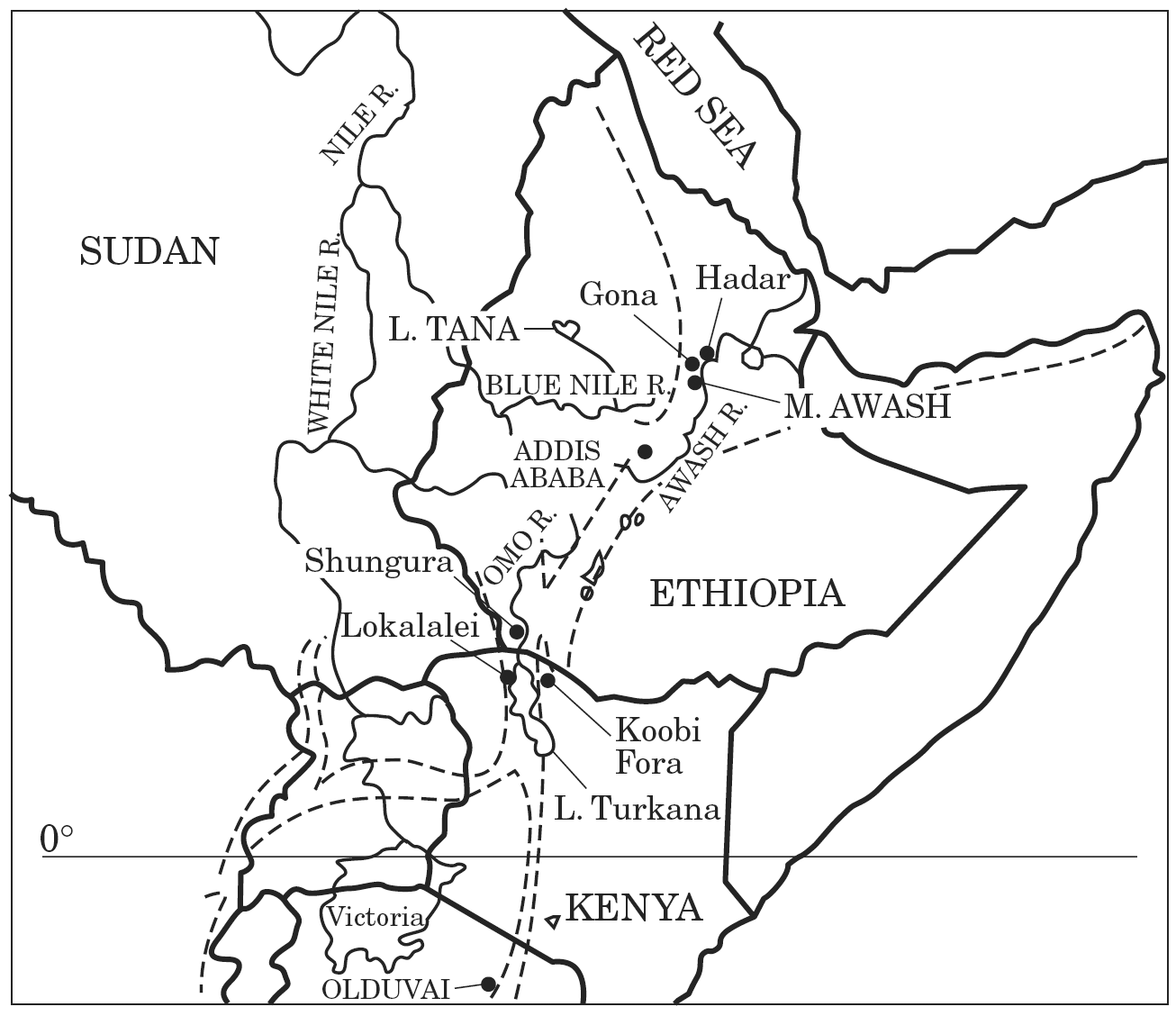

Gona Map

The Gona Palaeoanthropological Research Project (GPRP) study area is located in the west-central Afar region of Ethiopia and it encompasses more than 500 km2 area with artefact- and fossil-rich Plio-Pleistocene sediments (Figure 1).




Gona Photo

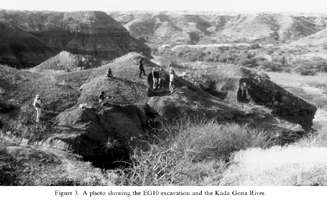

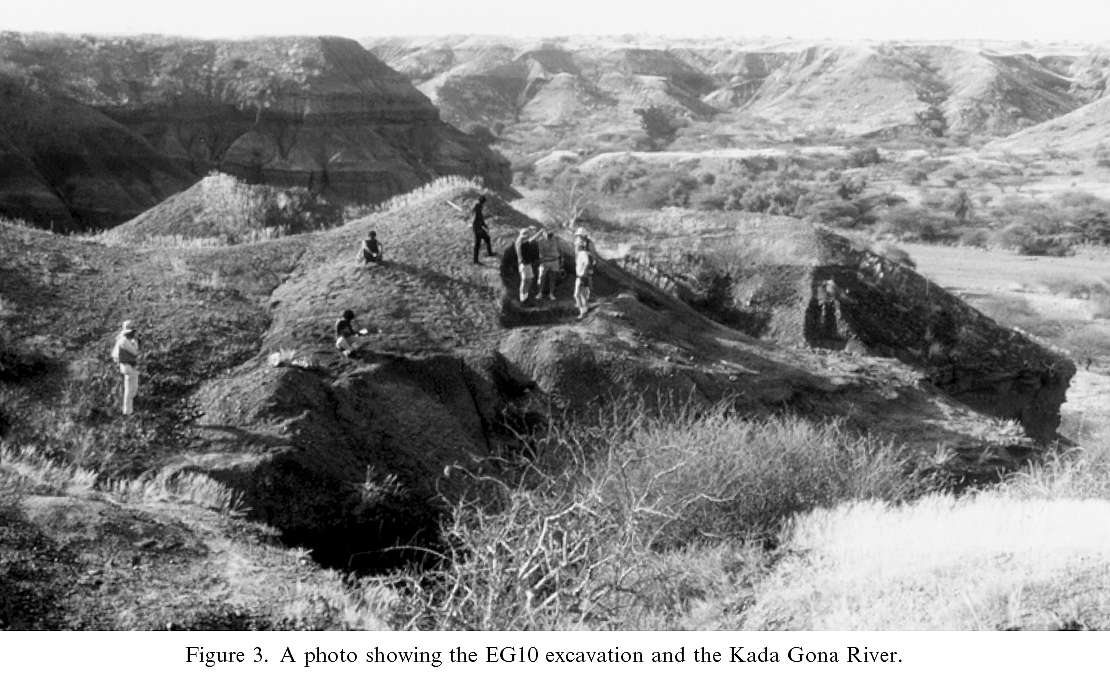

Photo: The EG10 excavation and the Kada Gona River

The study area is bounded to the east by the Hadar study area, to the north by the Mile-Bati Road, to the south by the Asbole River and to the west by the Western Ethiopian Escarpment. The major rivers within the study area, including the Kada Gona, the Ounda Gona, the Busidima and the Asbole, and associated small feeding streams, drain the surrounding areas flowing seasonally into the Awash River.

Source: Journal of Archaeological Science (2000) 27, 1197–1214
doi:10.1006/jasc.1999.0592

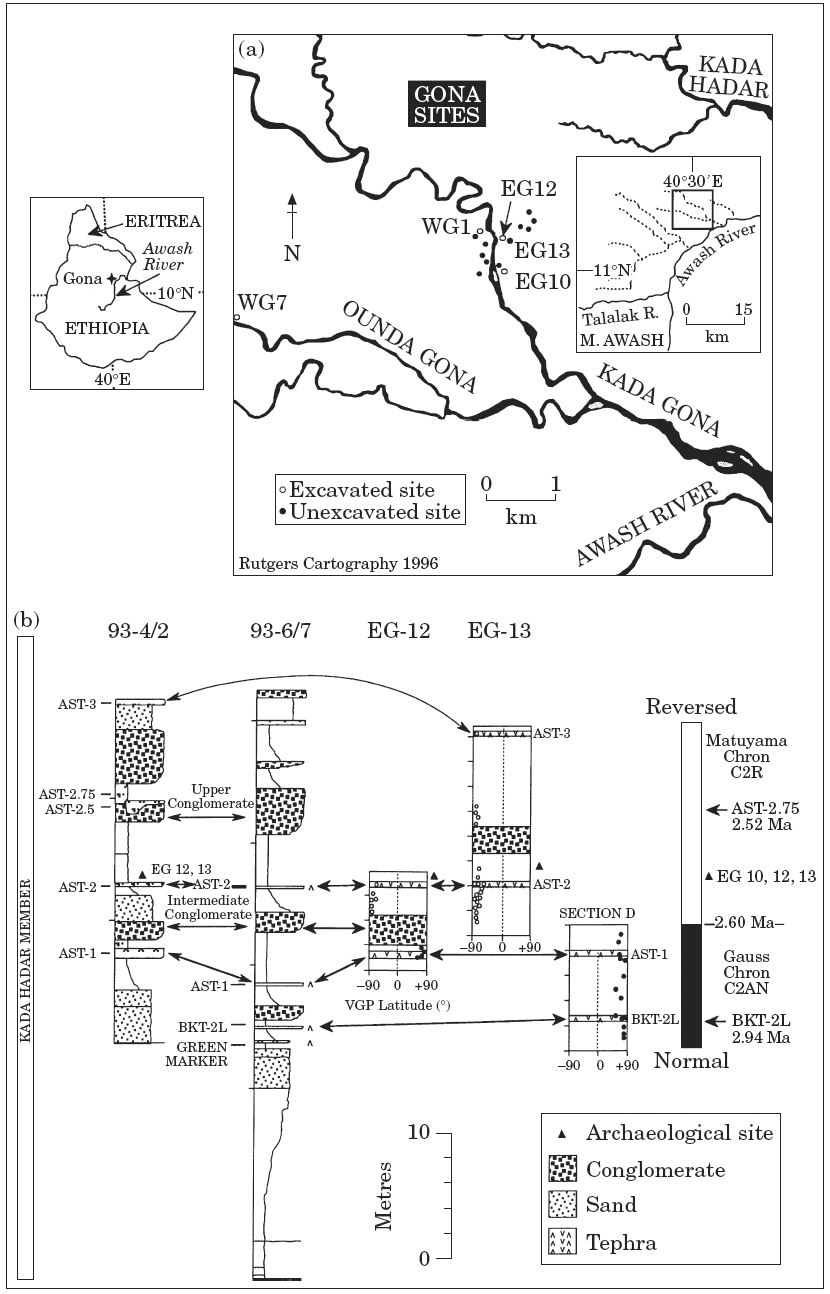

Gona Map

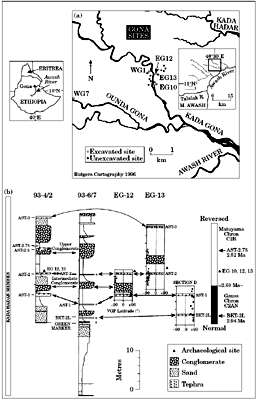

(a) A map showing the excavated and surface-sampled Kada Gona localities. The excavated localities are shown with open circles.

(b) Stratigraphy of the Kada Gona sites. Lithostratigraphy and markers from East Gona. The composite sections (93–4/2 and 93–6/7) are correlated with the magnetostratigraphy of EG12 and EG13. Stratigraphic markers are indicated next to the columns and correlations shown with solid lines.

Normal polarity is indicated by filled circles, and reversed polarity by open circles. Absolute dates are provided with units of the magnetic polarity timescale (MPTS) on the right (Figure after Semaw et al., 1997).

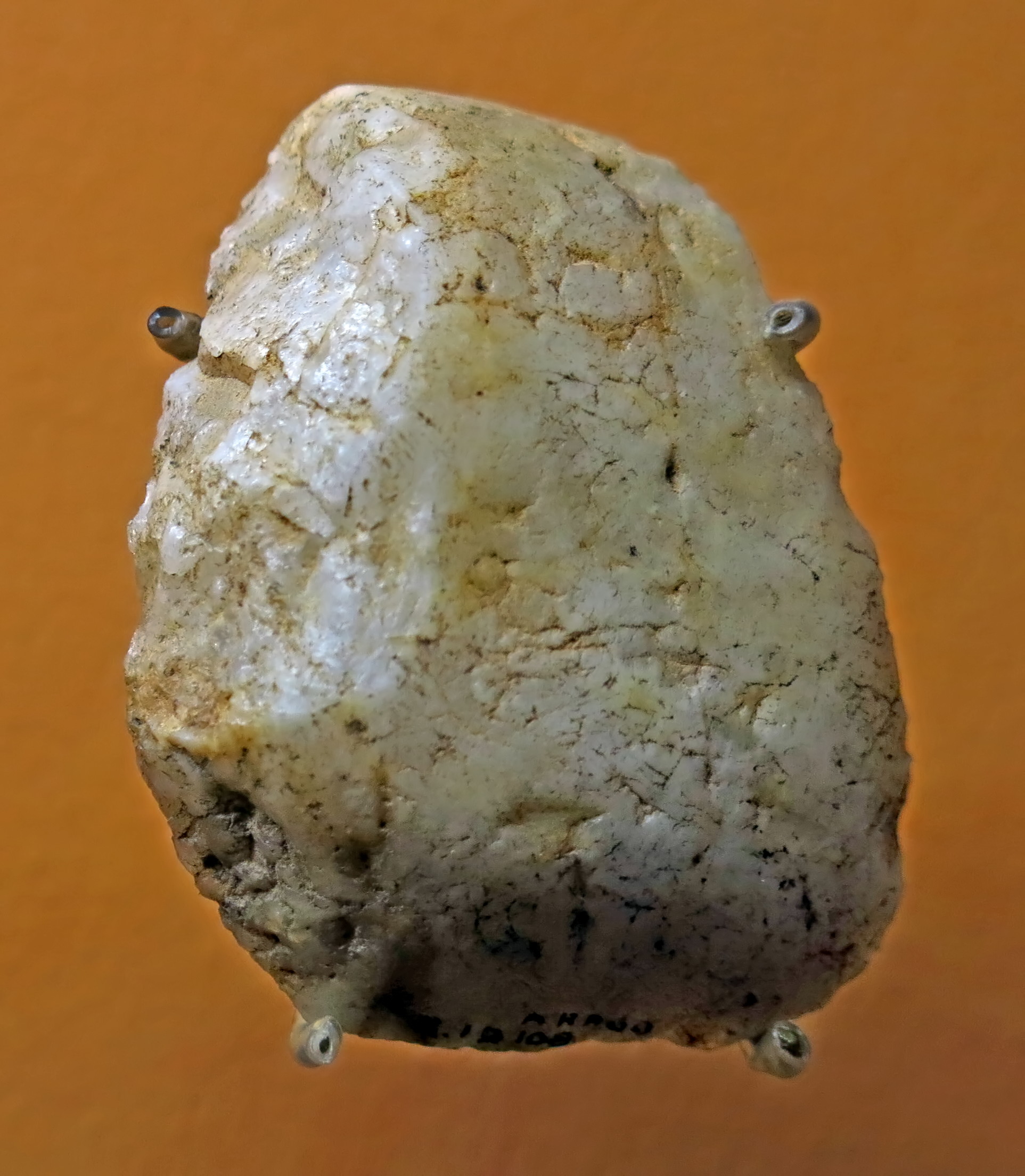

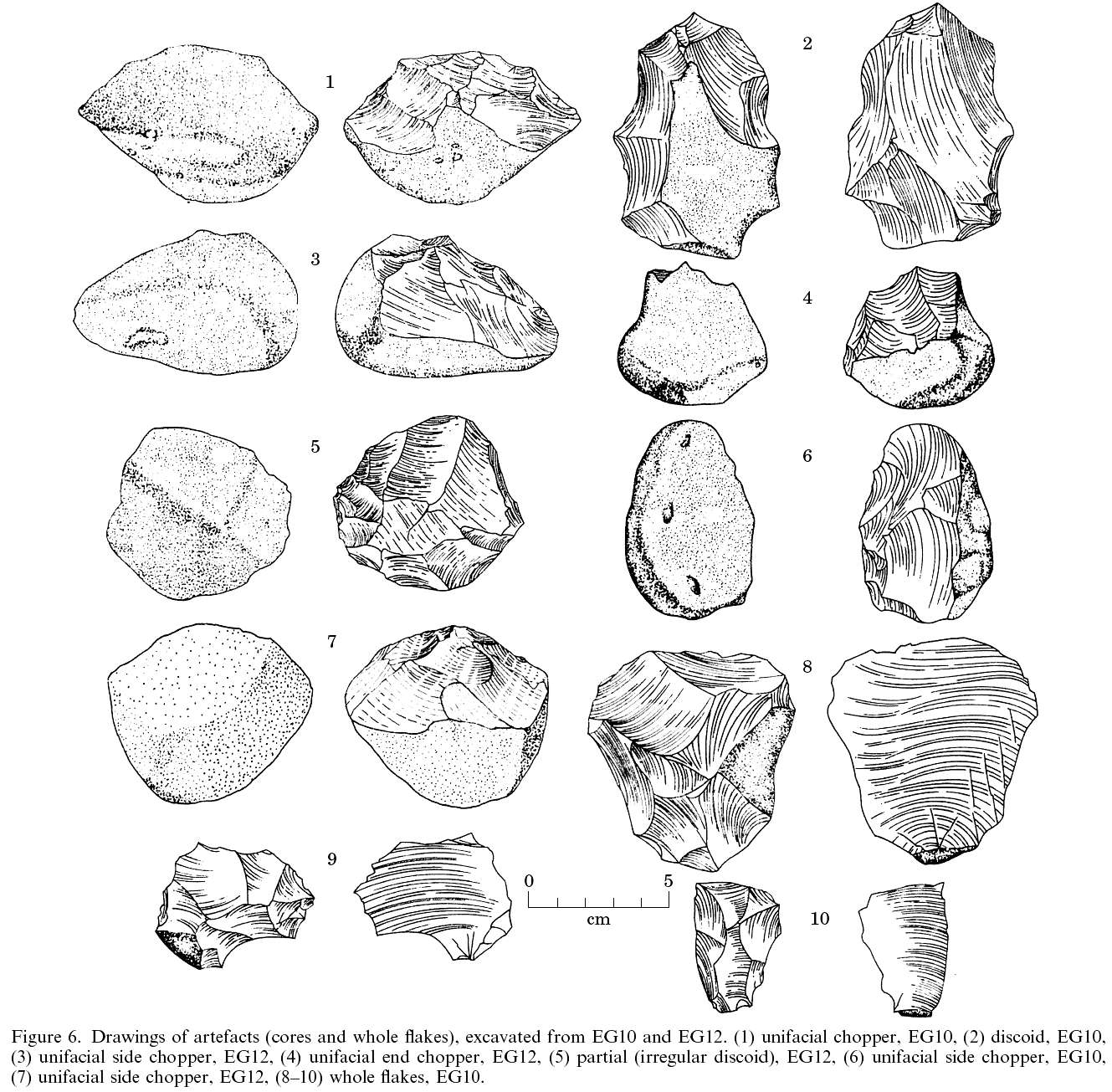

Gona Tools

A wealth of stone artefacts and fossil fauna are currently being exposed by these drainages. More than 40 m of sediments are exposed along the Kada Gona drainage, with at least two artefact bearing horizons documented in the time interval between 2·6–2·0 Ma. The deposits contain clays and silts, tuffaceous marker horizons and cobble conglomerates, which are prominent in the sections exposed within the Kada Gona and surrounding drainages. Erosion is rapid at Gona because of the high relief badlands topography, and artefacts and fauna are exposed by torrential rains and rapidly washed into modern drainages.

Source: Journal of Archaeological Science (2000) 27, 1197–1214
doi:10.1006/jasc.1999.0592





Brute of Dragon Bone Hill

New Scientist vol 182 issue 2443 - 17 April 2004, page 32

Far from being civilised, was Peking Man at heart a simple creature, shunning the cold and with only tenuous control over fire? A reconstruction by Noel T. Boaz and Russell L. Ciochon is forcing us to rethink the lifestyle of our famous ancestor

Beijing man - Homo Erectus
Photo: Giovanni Caselli in the excellent book "The Evolution of Early Man", 1976. Text by Bernard Wood, Illustrations by Giovanni Caselli

Anyone trying to imagine what life was like for our almost human ancestor, Homo erectus , will sooner or later be drawn to Dragon Bone Hill. The site, which lies 40 kilometres south-west of Beijing, was home to Peking Man. Here the fossilised bones of some fifty individuals have been found with the remains of thousands of other animals from many species. The picture researchers have built up is one of cave dwelling hominids who skillfully bagged an assortment of game, butchered it at home with simple stone tools, then cooked the meat over fires before eating it. They were reputedly the first people to master fire, using it for light and warmth in their ice age homes and to scare off predators, as well as for cooking.




This is a compelling reconstruction of the first hominid to possess many traits we consider to be human, and one of the most revered and tenaciously held hypotheses in palaeoanthropology. There is just one problem - our own research at Dragon Bone Hill has convinced us it is wrong.


After a decade investigating Peking Man, with colleagues Qinqi Xu and Jinyi Liu from the International Zhoukoudian Research Center in Beijing, we have concluded that these individuals were neither cave dwellers, nor hunters, but scavengers. In fact, they were much more akin to early African species of small-brained Homo than to our more recent ancestors or to the Neanderthals. Peking Man's forebears undoubtedly had what it took to migrate out of Africa and across Asia. Nonetheless, H. erectus was still in essence a tropical animal, shunning the cold and with a tenuous grasp on fire that probably terrified them almost as much as the other animals with whom they competed for food.




Dragon Bone Hill
Dragon Bone Hill, or Longgushan, near the town of Zhoukoudian is a unique place, and now one of the UN's World Heritage sites. No other cave, with the possible exception of the recently discovered Atapuerca Cave in Spain, has yielded as many fossils of human ancestors. Palaeoanthropologists have wondered for decades why other sites like Zhoukoudian have not been discovered in the Far East. The answer seems to be that Dragon Bone Hill is a fortuitous accident: formed initially by river flow, the cave was then gradually uplifted by fault movements, while layers of sediment covered the bones within, protecting them from erosion. Its position, where the Western Hills, the Zhoukou river and the North China Plain meet, may also have made the site unusually popular with migrating ungulates and carnivores and hominids looking for shelter and water.

Photo: New Scientist 17th April 2004, ©Corbis




choukoutien

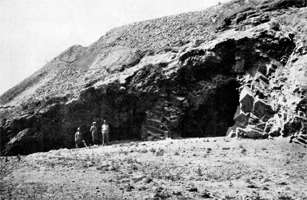

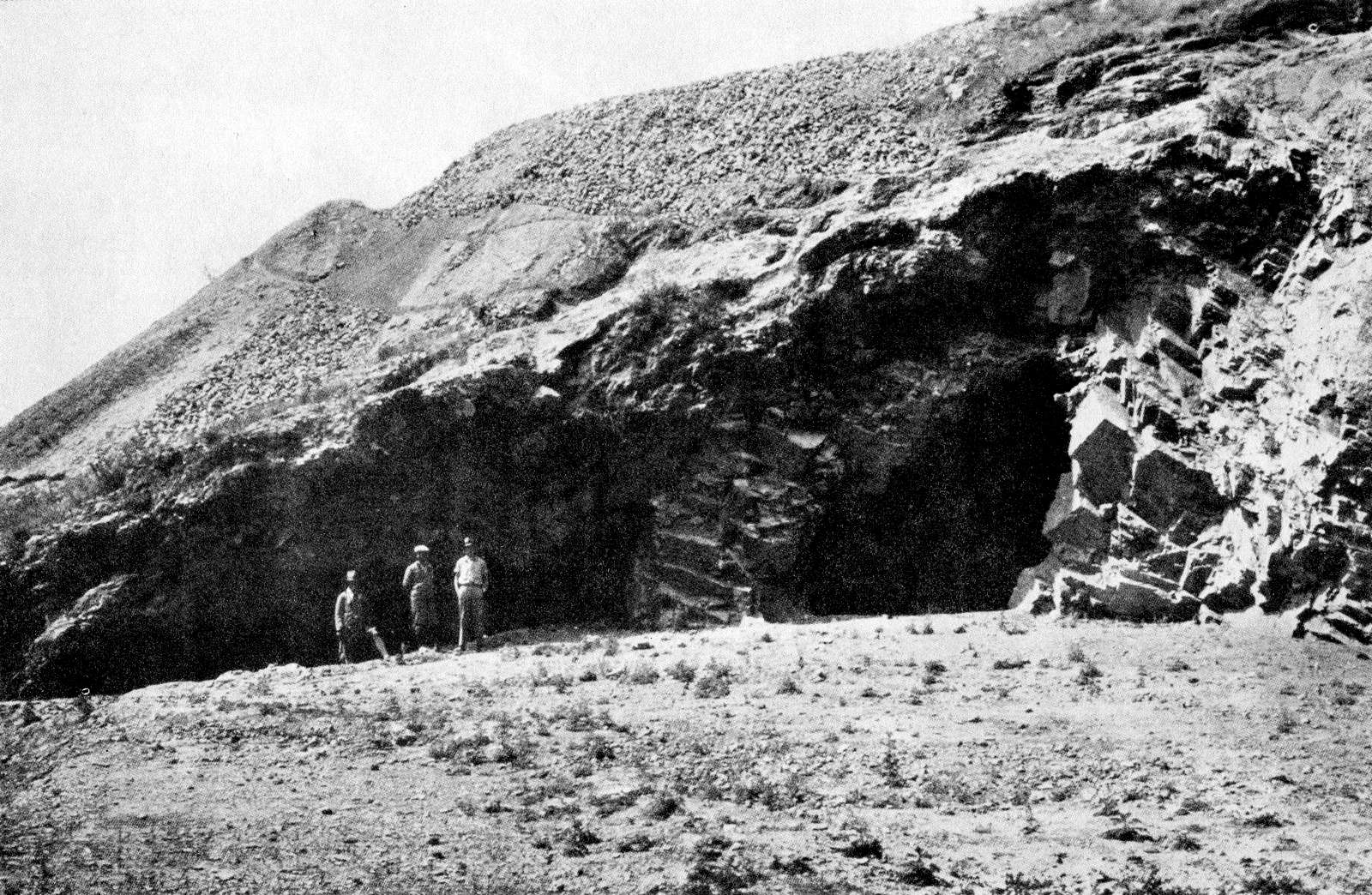

Entrance to the cave shelter of Chou-Kou-Tien, the home of generations of Pekin Man.

Chou-Kou-Tien, one hundred kilometres south of Peking, is in a gorge at the edge of the high Mongolian plain; through this gorge a stream flows down to the plain. In the Silurian chalk hills, forming an anti-clinal, a large rock shelter was produced by many recurring falls of rock, and successive generations of Peking Man, a human type closely related to the Pithecanthropus of Java, lived there for many thousands of years.

Photo: Carnegie Institute of Washington, in Breuil (1979)

Text: Breuil (1979)




skull


Facsimile of the Peking Man skull.

Photo: © Yan Li / CC BY-SA 3.0 ( CC BY-SA ) Text and source: http://www.spektrum.de/news/der-vergessene-kontinent/1420644




skull

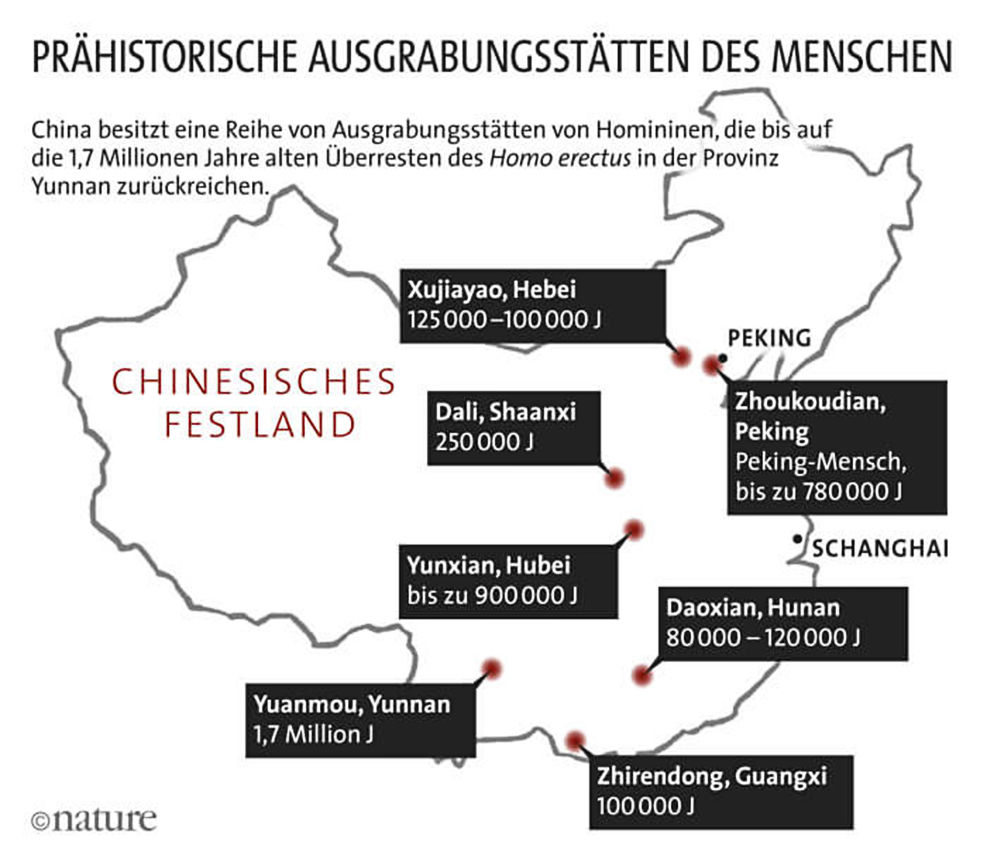

Map of Homo erectus sites in China.

Photo: © Nature; Qiu, J .: How China is rewriting the book on human origins. In: Nature 535, 22-25, 2016; dt processing. Scientific American
Text and source: http://www.spektrum.de/news/der-vergessene-kontinent/1420644

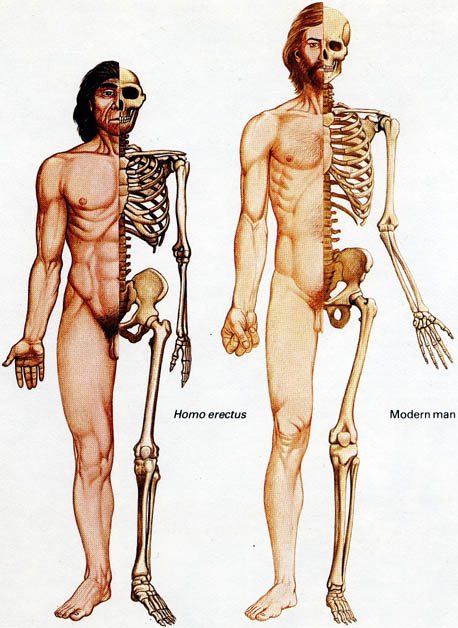

A comparison of Homo erectus and Homo sapiens
Photo: Giovanni Caselli in the excellent book "The Evolution of Early Man", 1976. Text by Bernard Wood, Illustrations by Giovanni Caselli

From the start, however, the hominids stole the show. Peking Man became an international celebrity in the late 1920s following the publication in Nature of a paper by Davidson Black, then professor of anatomy at Peking Union Medical College, describing two teeth discovered in the first quarrying operations at the site. Writing about another fossil tooth discovered shortly afterwards, Black coined a new genus and species name, Sinanthropus pekinensis or "Chinese man from Beijing" for its owner. Black predicted that the hominid would look like Piltdown Man, the fossil idol of the day. But when the first skull was unearthed in December 1929, it shocked everyone. The heavy brow ridges, thick-boned skull, and low, squat profile of the head were reminiscent of Java Man, a species discovered by legendary anthropologist Eugene Dubois in the 1890s who named it Pithecanthropus erectus . Piltdown of course was a fraudulent chimera, combining an artificially stained modern human skull and a broken orang-utan mandible with filed teeth. Today Peking Man and Java Man are both classified as H. erectus .




Black and other early researchers had little to go on when trying to estimate the age of their hominid. By comparing other fossilised bones from the site with similar animal remains from previously dated excavations they described the cave as broadly "middle Pleistocene". In recent years two new geochronological techniques have helped pin down its age. Palaeomagnetism can accurately date particular sedimentary layers that have been deposited at times when the Earth has undergone periodic reversals of the geomagnetic poles. There are 17 sedimentary layers at Zhoukoudian and layer 14 coincides with one such reversal 780,000 years ago dubbed the Brunhes-Matuyama boundary. This finding, together with results from a new dating technique called uranium-series isotope dating, which measures radioactive decay in calcium carbonate deposits such as flowstone, indicates that Homo erectus occupied the cave intermittently from 670,000 to 410,000 years ago.


This makes Zhoukoudian a relatively late settlement for H. erectus in Asia. We know the species migrated out of Africa 1.9 to 2 million years ago, reaching Java at least 1.8 million years ago, according to recent re-dating of the most ancient remains there. This first great hominid expansion at the beginning of the Pleistocene marks a turning point in human evolution.

Climatic fluctuations during the Pleistocene, which may have been a spur for the move out of Africa (during times when Eurasia was warm and moist), could also have curtailed movement into northern parts of Asia when climate was colder. Levels of heavy oxygen-18 isotopes fall in sediments laid down during cold periods because they accumulate in glacier ice, leaving the lighter oxygen-16 isotopes temporarily more abundant in the environment. Variations in the ratios of oxygen-18 to oxygen-16 in rocks across China record fluctuations in the Pleistocene climate. Analysis of the sedimentary layers from Zhoukoudian suggests that hominids lived near the cave only when temperatures were balmy. We suspect this is no accident but indicates that these hominids were adapted to tropical climes and migrated south during the frigid periods of the Pleistocene.


But why would Homo erectus need to leave Dragon Bone Hill when the cold weather set in? If they had fire and lived in a relatively cosy cave, could they not have hunkered down and stayed where they were during the glacial winter, just as the Neanderthals did later in Europe? Perhaps all was not what it seemed at Zhoukoudian.


Was the cave actually a hominid dwelling at all, we wondered? If so, you would expect the hominid fossils to be the most complete at the site and the most numerous. But that honour falls to a giant, lion-sized hyena, Pachycrocuta brevirostris . The remains of lions, sabretooths and wolves are also abundant, but hominid bones are fragmentary. And our detailed study of the fossilised remains of H. erectus , ungulates and other prey species shows a close similarity with modern bones gnawed by hyenas. So it looks as if the big carnivores, especially hyenas, were the number one residents. Hominids probably lived in more exposed places nearby, although stone tools discovered in the cave, cut-marks on bones and burnt horse skull bones indicate that they did occasionally visit of their own accord.


And what about the idea that Peking Man had mastered fire? Geologist Paul Goldberg's team at Boston University has found that what earlier researchers took to be charring on hominid remains are in fact microscopic layers of detritus, probably from decaying organic matter. The bones in question were found in a tightly circumscribed area of the cave, which has led us to believe that they are the remains of hominids cached in a stagnant pool by hyenas that apparently never came back to claim their prize.


Even the discovery of ash at Dragon Bone Hill cave is not conclusive proof that Peking Man regularly used fire. When geochemist Steve Weiner of the Weizmann Institute of Science, Israel, compared it with ash from Neanderthal caves, he found a crucial difference - no silica. Silica, which occurs in wood in structures known as phytoliths, survives burning. While the Neanderthals were obviously burning wood, the fires at Zhoukoudian seem to have been fuelled by dried guano, deposited on the cave floor by bats and owls that lived there. So, it looks as though Peking Man's grip on fire was tenuous - more like that of his ancestors in Africa, where patches of baked clay indicated single fires dating back 1.7 million years. Ephemeral fires may have allowed Homo erectus to drive hyenas and other large carnivores from their kills, but this is far from the cosy hearth-side existence suggested in the traditional picture of life at Dragon Bone Hill.


Our re-analysis shatters the myth of a heroic early nimrod pitted against wild beasts and the elements, occasionally cannibalistic, managing to establish a cave home with primitive tools. Instead, it depicts a hungry scavenger skulking off to the cave, fire and sharp stones in hand, to steal away the half-chewed haunches of big carnivore kills, some of which by chance happen to be remains of its fellow hominids.

Further support for this idea comes from new research on the molecular evolution of tapeworms, by Eric Hoberg from the US Department of Agriculture, Maryland. According to Hoberg, the three species of tapeworms that infest humans are most closely related to species found in hyenas, large cats and dogs. Human tapeworms diverged from these relatives 780 000 to 1.7 million years ago. This suggests there must have been very close ecological relationships between hominids and their carnivorous contemporaries - much closer than would have arisen had they occasionally shared the same prey species. We take this as further evidence early humans habitually ingested meat scavenged from large carnivores.


Then there is the archaeological record. It speaks of the strangely static cultural life of H. erectus . Modern human culture changes so rapidly that almost anything we manufacture can be pinpointed to within a few years. Not so Homo erectus culture, where things stayed the same for a million years in sites ranging across Africa and Eurasia. We believe this indicates these hominids were incapable of speaking as we do, a conclusion supported by the small size of the H. erectus brain, which at 750 to 1250 cubic centimetres, is just three-quarters the size of the modern human brain. It is only with the evolution of complex language that our ancestors would have been capable of the sorts of behaviours we think of as uniquely human.


beijing man

Beijing man - Homo Erectus
Photo: New Scientist 17th April 2004, ©1996 David L. Brill

But perhaps the biggest give-away that Peking Man was far less like us than has previously been suggested comes from the fossils themselves. The most distinctive anatomical difference between Homo erectus and other hominids is the skull. The massively thick bony wall surrounding the brain - which has been likened to a tortoise carapace and a cycling helmet - has defied an adequate explanation, until now. Increasing brain size would have necessitated a larger skull, but not a thicker one. And the notion that a thick skull might have been required to support chewing muscles makes little sense since Homo erectus has smaller teeth than earlier hominids. Searching for a plausible evolutionary explanation, we looked to other species and were struck by a similarity between a variety of thick-skulled animals, from the Cretaceous dinosaur Pachycephalosaurus to bighorn sheep. All these seem to have evolved thick bone for the same purpose - protection. Could this also explain the skull of H. erectus , we wondered? And if so, from what did these hominids need protection?




The answer, we believe, can be found on a number of skulls from Dragon Bone Hill. They show signs of trauma, and in particular the sorts of depression fractures that come from a sharp blow to the head. Our re-analysis of these fractures, originally identified by anatomist Franz Weidenreich on Zhoukoudian fossils in Beijing in the 1930s, have convinced us that, like some modern human populations, Homo erectus regularly resorted to head-bashing to settle disputes.


This explanation is bound to disturb many people who want to believe that humanity has a basic adaptation for cooperation and sociality, but it makes more sense of the evidence than any other. Besides, we are not questioning fundamental human qualities, merely pointing out that the evolution of human behaviour may have been more complex than it initially seemed. If our work at Dragon Bone Hill has taught us anything, it is that even the most fervently held stories of human evolution sometimes need rewriting. H. erectus still has much to teach us about the evolution of human behaviour, and our work continues.


Them and us

The first Homo erectus started out in Africa about 2 million years ago, and spread to Eurasia shortly after that. So what happened to their descendants? There are two hotly contested theories. But our studies of Homo erectus have convinced us there is a third way.

Diagram showing development of hominids
Photo: New Scientist 17th April 2004

These days, most palaeoanthropologists support the Out-of-Africa theory, which proposes that groups of hominids, or perhaps waves of immigrants, moved into Eurasia at discrete times, displacing resident populations and driving them to extinction. Our reading of the fossil record, so far as it goes, tends to agree with this scenario. So too does most mitochondrial DNA research. Mitochondrial genes from all human populations have been traced back to a common ancestral genotype with roots in Africa 100 000 to 200 000 years ago. But these findings have been widely taken to indicate total genetic replacement of pre-existing Eurasian hominid populations by Homo sapiens migrating out of Africa, a conclusion that we find unlikely. MtDNA is a rapidly evolving molecule and probably cannot measure evolutionary relatedness much beyond the level of the subspecies. Additionally, the studies refer to gene lineages, not necessarily lineages of organisms, and they cannot show that specific mtDNA genes were associated together in one woman who was ur-mother to us all. Nevertheless, this line of research has added a shadowy heroine to the narrative epic of human evolution: Mitochondrial Eve.




A less mainstream but equally tenaciously held view comes from the so-called multiregionalists. They maintain that resident Eurasian hominids were not all driven to extinction by the later waves of African incomers. Multiregionalists point to the anatomy of fossils to support interbreeding and genetic continuity from one time period to another within regions. But we believe the fossil record is too incomplete to support these claims. Instead, we argue, the evidence suggests relatively rapid regional evolutionary change at times, which is consistent with mass population movements. Nevertheless, multiregionalism is underpinned by sound population genetics and, we believe, is more reflective of the evolution of whole organisms than the abstract evolving gene lineages of the Eve theorists.


Our own theory starts from hominid ecology and population structure. H. erectus was a widespread species evolving in parallel with its large mammalian carnivorous contemporaries in many aspects of its adaptation, such as meaty diet and large home range. We know that during the Pleistocene, these carnivores - lions, bears, hyenas and dogs - dispersed throughout Eurasia as single widespread species. H. erectus may well have done the same. If so, groups within the species would have been territorial, but also interbred freely with neighbouring groups, spreading genes rapidly throughout the range. There would have been regional clusters of more closely related populations - subspecies, races or varieties - connected to adjacent populations by gene bridges called "clines".


Our "clinal replacement" model holds that H. erectus , with its carnivore-like adaptations, evolved across a broad front - genes rippling though clines as individuals found mates in neighbouring groups. Occasionally, a bigger immigrant wave might sweep over a region, replacing more than the average number of genes. But, it would not totally replace the original gene pool. Even in rare cases where immigrants displaced whole populations, some of the pre-existing genes would still remain in the region because the invaders would have shared genes with the population they replaced through their common ancestors. Ripples and waves of change could flow in different directions at different times, impelled by such vagaries as changing climate and inter-species competition.


Clinal replacement fits fossil and genetic evidence. It accounts for the broad, species-level continuity in anatomical change from H. erectus to more modern Homo, and can also explain discontinuities associated with a finer analysis of the fossils. Our theory provides a more plausible explanation of the population dynamics of evolving Pleistocene populations than does the total replacement notion central to Out of Africa. Yet, unlike multiregionalism, it can explain regional extinctions in human evolution and discontinuities in the Pleistocene fossil record.


Noel T. Boaz
Noel T. Boaz is professor of anatomy at Ross University School of Medicine, New Jersey

Russell L. Ciochon
Russell L. Ciochon is professor of anthropology at the University of Iowa. Their book, Dragon Bone Hill, an Ice-Age Saga of Homo Erectus is published this month in the UK by Oxford University Press



Beijing man - Homo Erectus
Photo: Lissner - Man, Myth and Magic





Beijing man tools

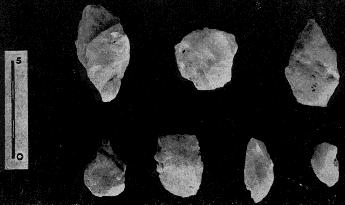

Beijing Man tools
Photo: Lissner - Man, Myth and Magic


References

  1. Boaz, N., Ciochon R., 2004: Dragon Bone Hill: An Ice-Age Saga of Homo Erectus, Oxford University Press, 2004 - Science - 232 pages
  2. Breuil, H., 1979: Beyond the Bounds of History, Scenes from the Old Stone Age, Gawthorn, 1979, reprinted from the edition of 1949, London.
  3. Brown, F., Harris, J., Leakey R., Walker A., 1985: Early Homo erectus skeleton from west Lake Turkana, Kenya, Nature, Col 316 29 August 1985
  4. Dean, M., Smith, B., 2009: The First Humans – Origin and Early Evolution of the Genus Homo Vertebrate Paleobiology and Paleoanthropology, Springer Netherlands
  5. Groucutt, H., et al., 2021: Multiple hominin dispersals into Southwest Asia over the past 400 000 years, https://doi.org/10.1038/s41586-021-03863-y September 2021
  6. Herries, A. et al., 2020: Contemporaneity of Australopithecus, Paranthropus, and early Homo erectus in South Africa, Science, 03 Apr 2020: Vol. 368, Issue 6486, eaaw7293 DOI: 10.1126/science.aaw7293, Springer Netherlands
  7. van den Bergh G. et al., 2016: Homo floresiensis-like fossils from the early Middle Pleistocene of Flores, Nature, 534 (7606): 245–248. doi:10.1038/nature17999. PMID 27279221.





Back to Don's Maps


walls of china Back to Archaeological Sites
