La Gravette, the type site for the Gravettian


The Gravettian toolmaking culture is named after the type site of La Gravette in the Dordogne region of France where its characteristic tools were first found and studied. It dates from between 28 000 and 22 000 years ago. Artistic achievements of the Gravettian cultural stage include the hundreds of Venus figurines, which are widely distributed in Europe.

The Gravettian succeeded the Aurignacian. It is archaeologically the last European culture many consider unified, and had mostly disappeared by circa 22 000 BP, close to the Last Glacial Maximum of around 20 000 BP. In Spain and France, it was succeeded by the Solutrean, but it developed into or continued as the Epigravettian in Italy, the Balkans, Ukraine and Russia.




La Gravette Couze

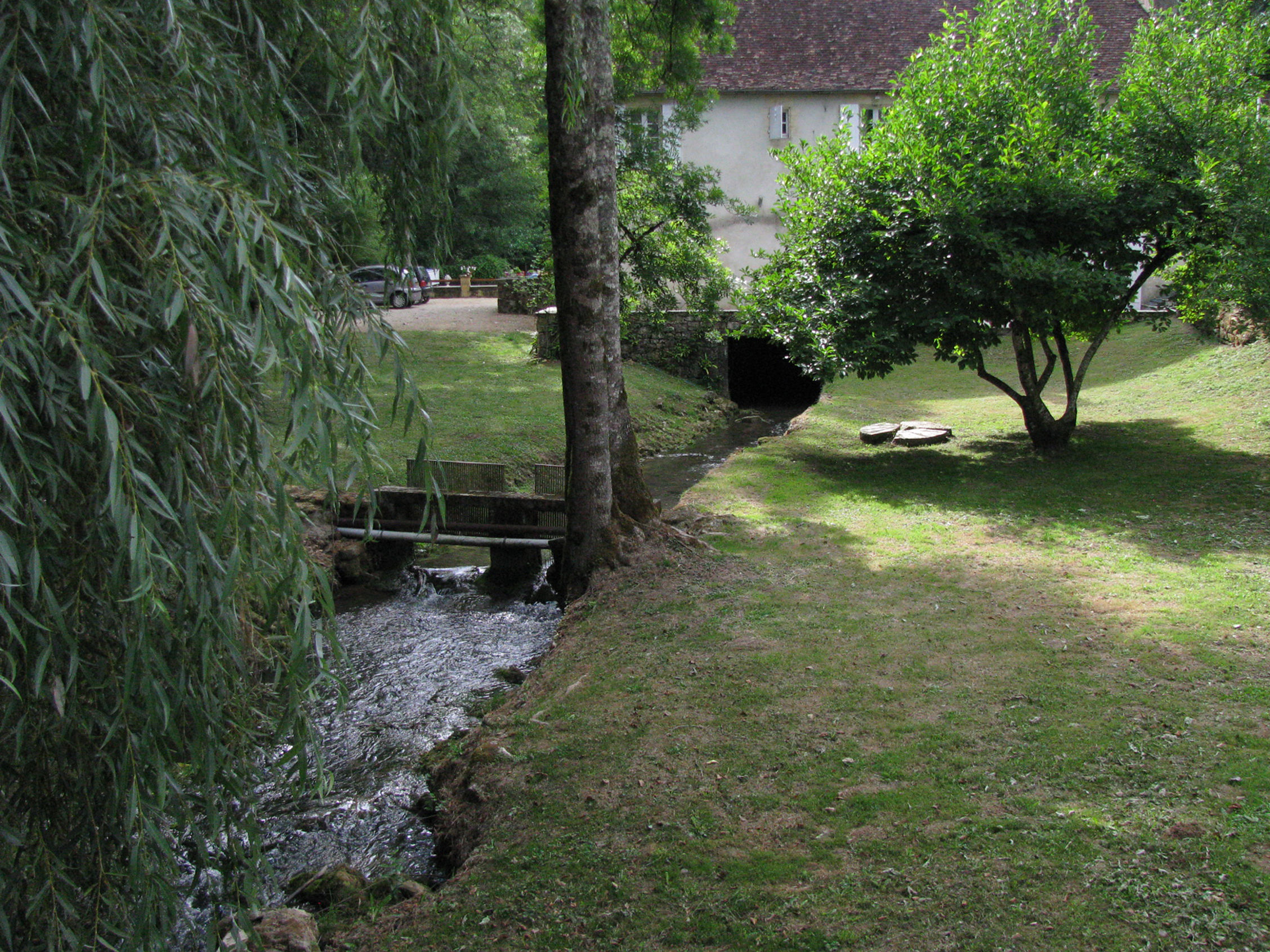

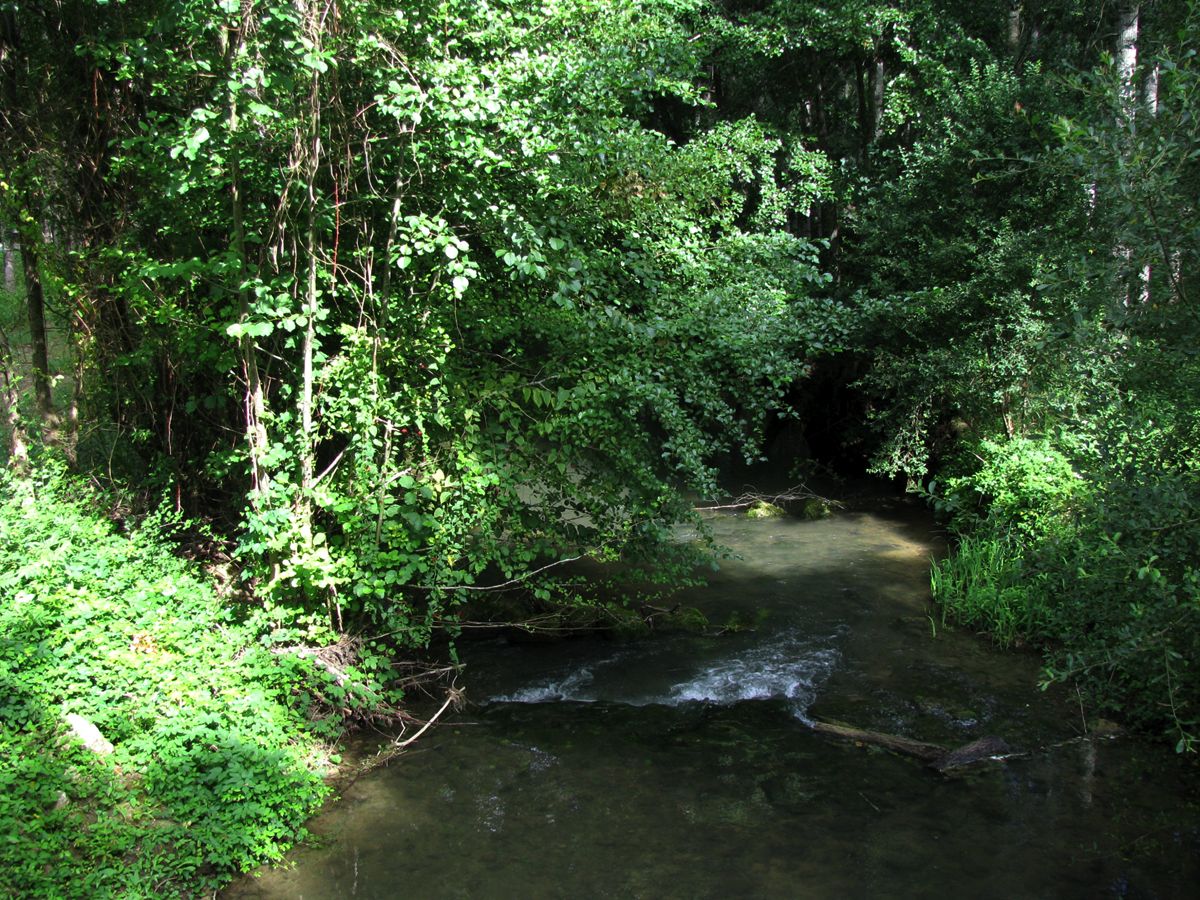

The site of La Gravette is in the valley of the Couze River, a pretty little stream.
Photo: Don Hitchcock 2008

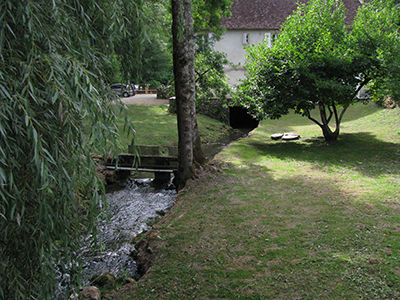

La Gravette Couze

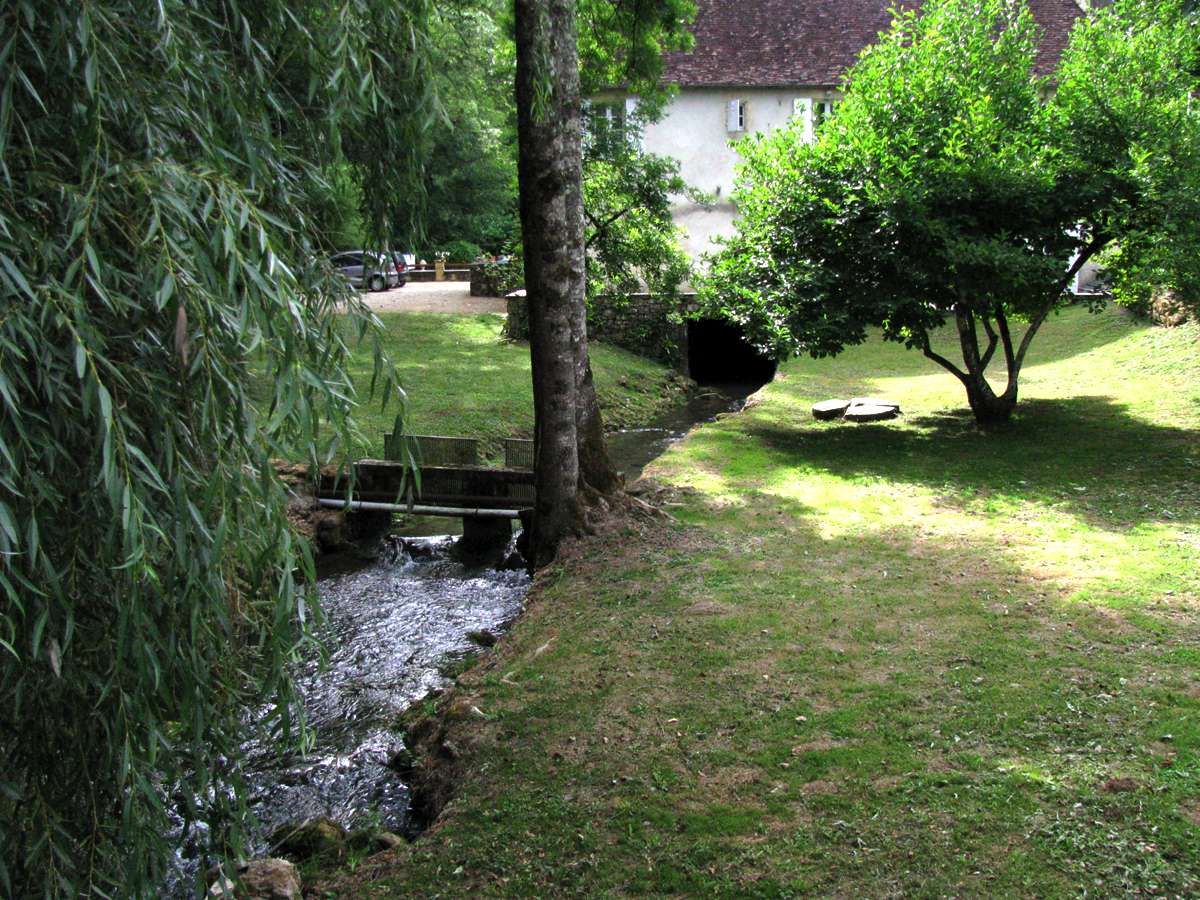

The Couze passes through the little village of La Gravette. This house straddles the stream. It is not often that you find a river running underneath a house!

Photo: Don Hitchcock 2008

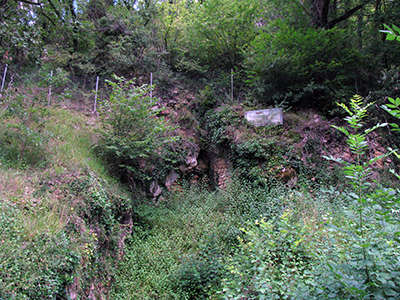

La Gravette La Gravette


La Gravette

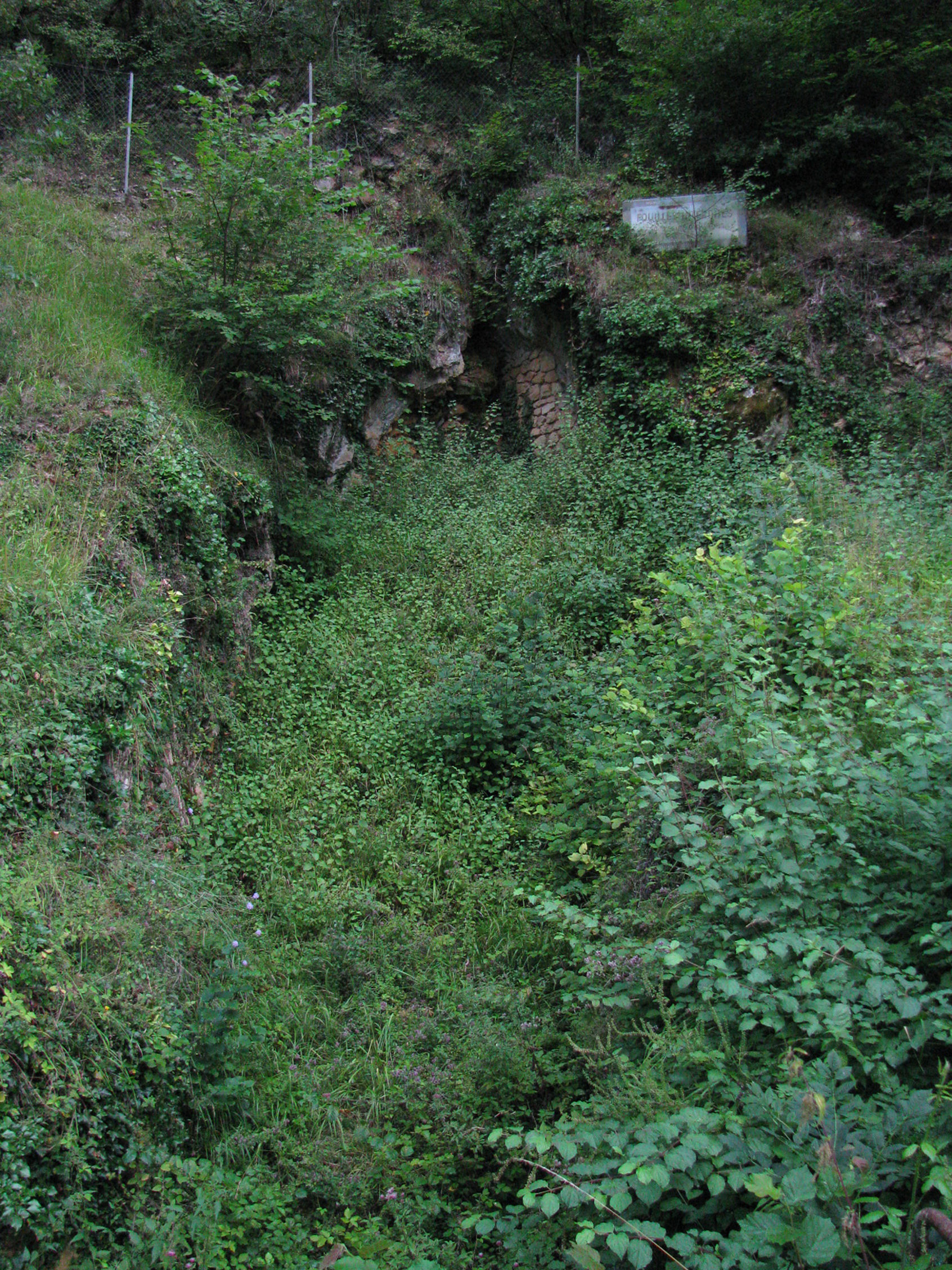

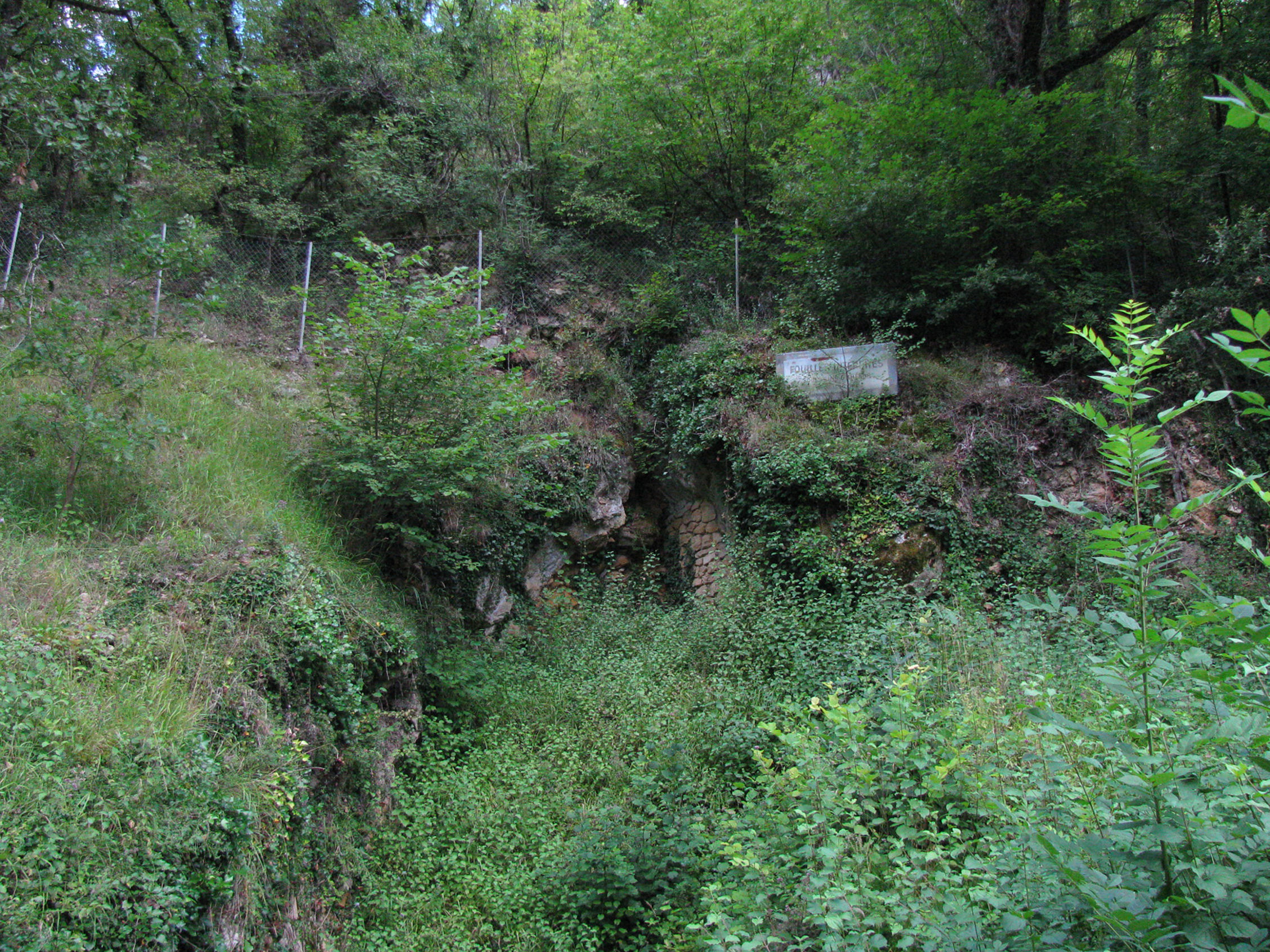

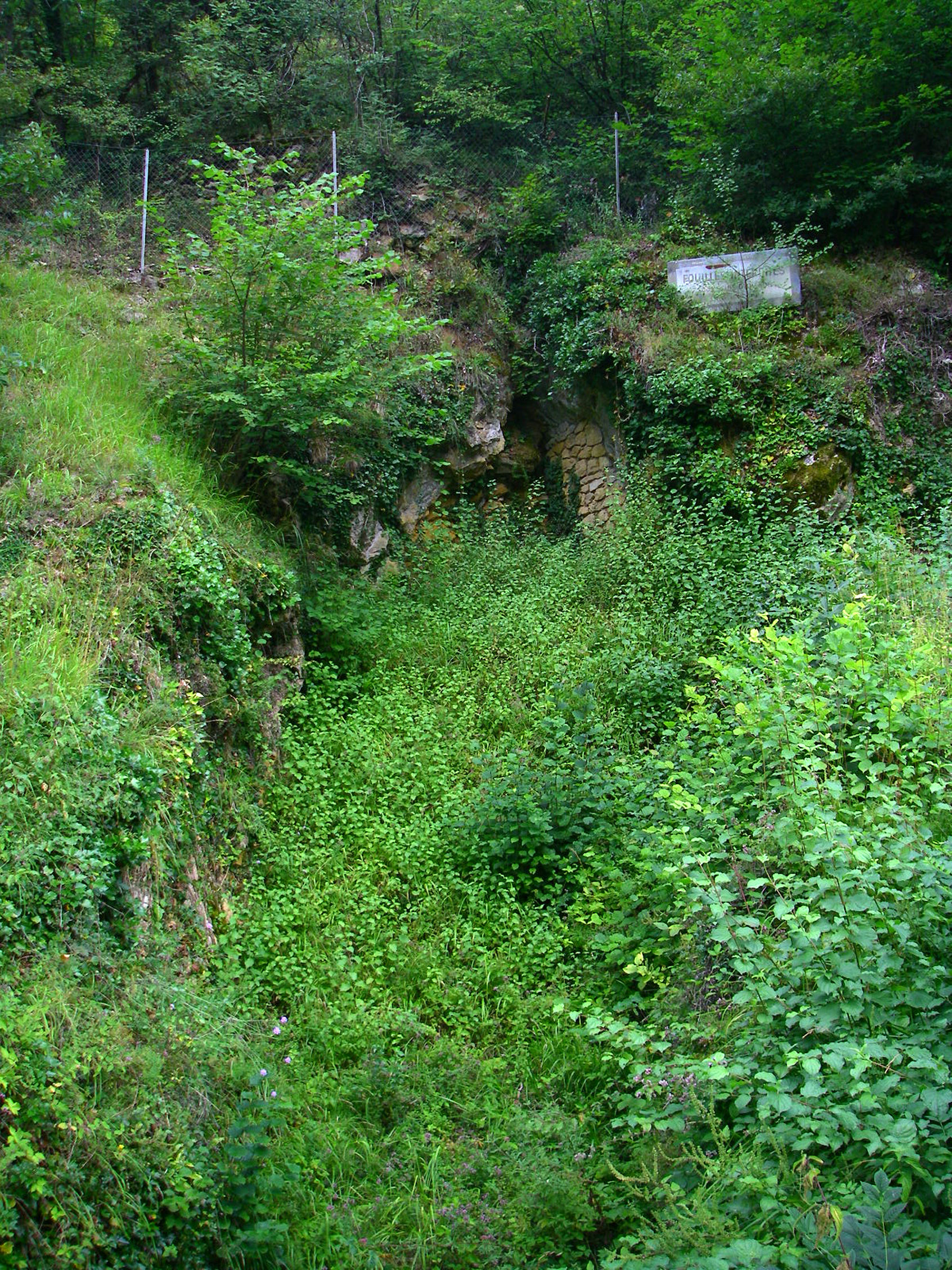

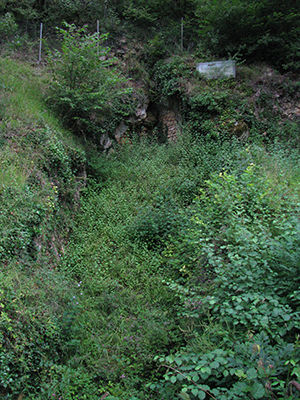

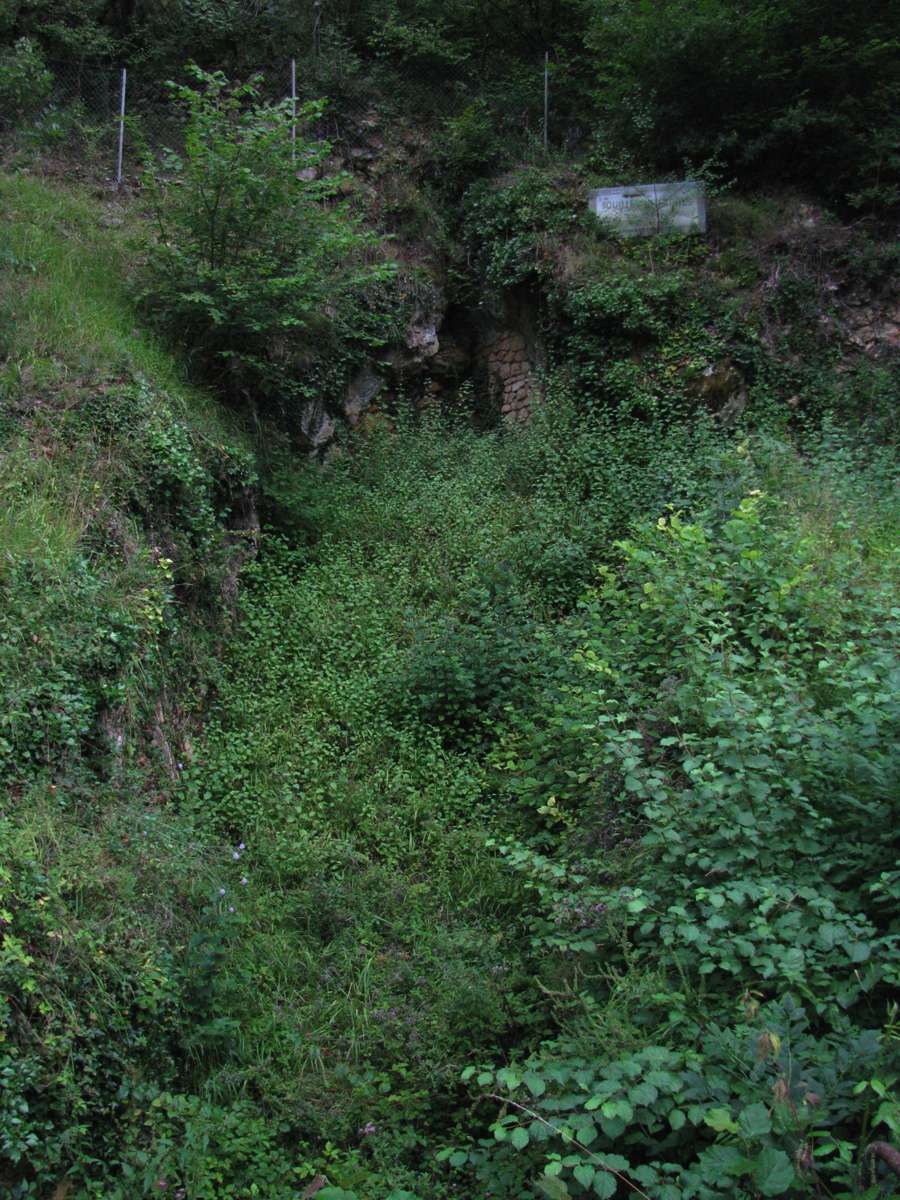

The gisement, or archeological site of La Gravette is not easy to find, and has no identification as to its significance as the type site for the Gravettian culture.

The site is quite overgrown. It has not been touched for fifty years because of a condition of its donation to the state.

Photo: Don Hitchcock 2008

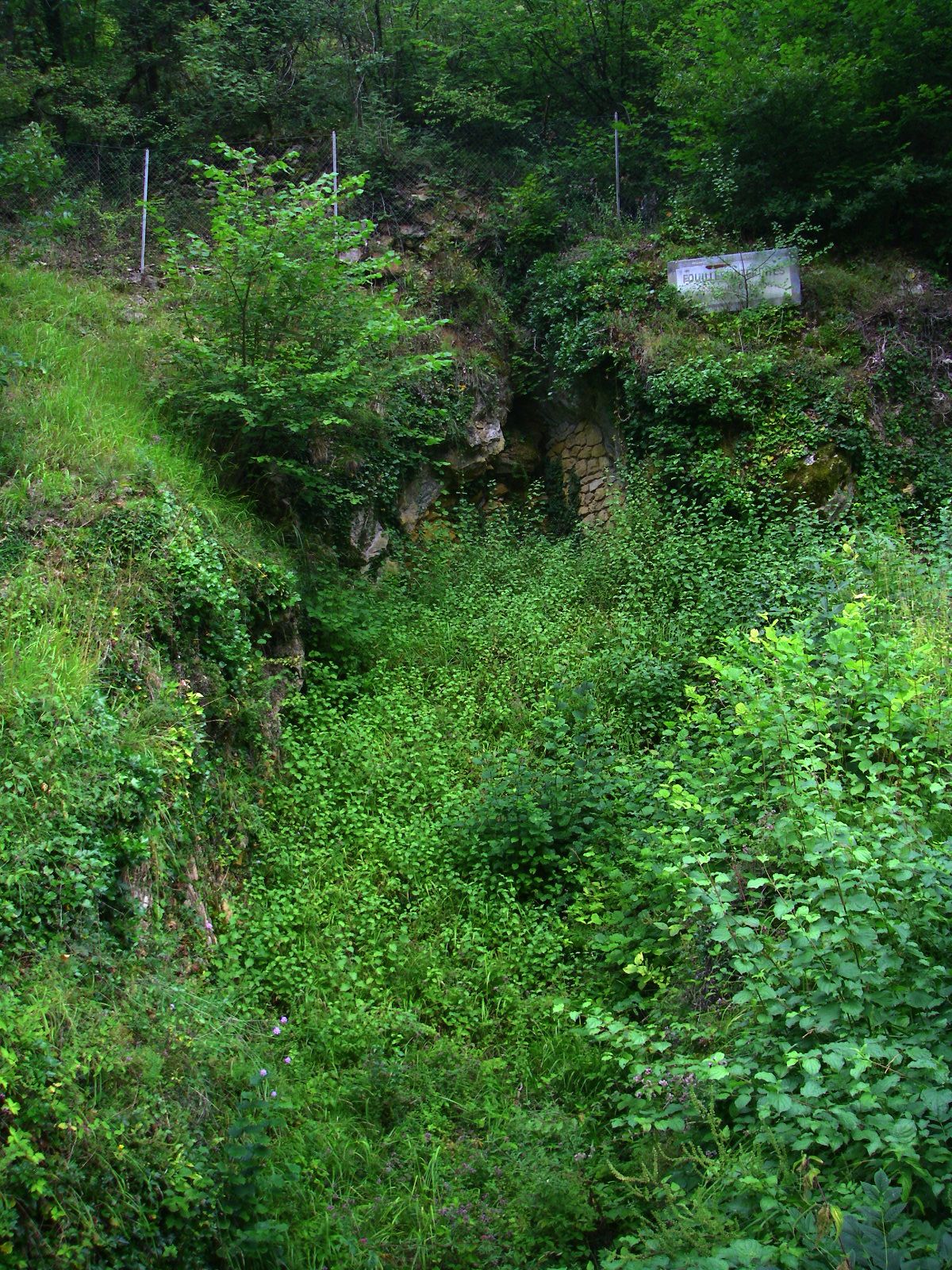

La Gravette

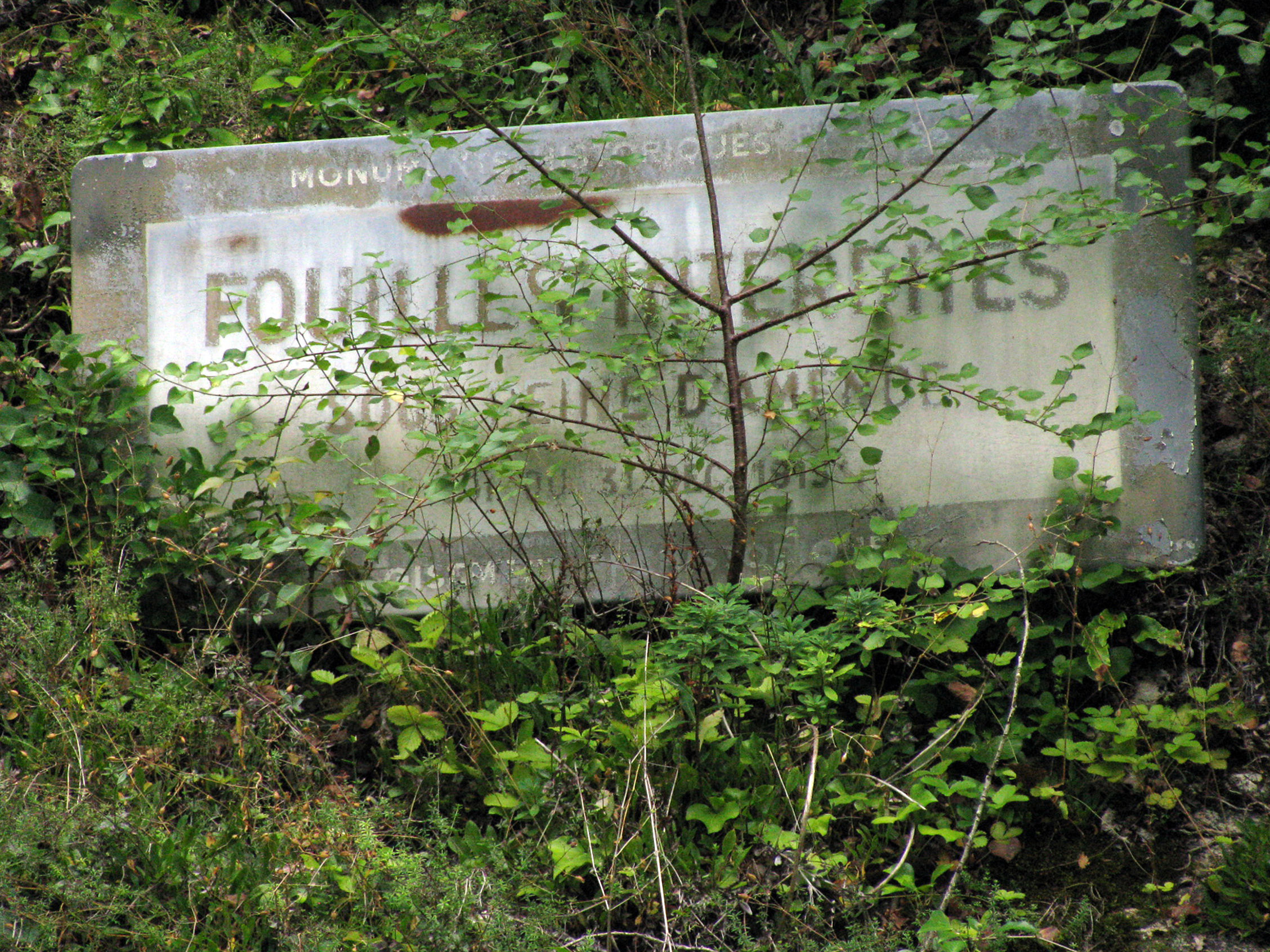

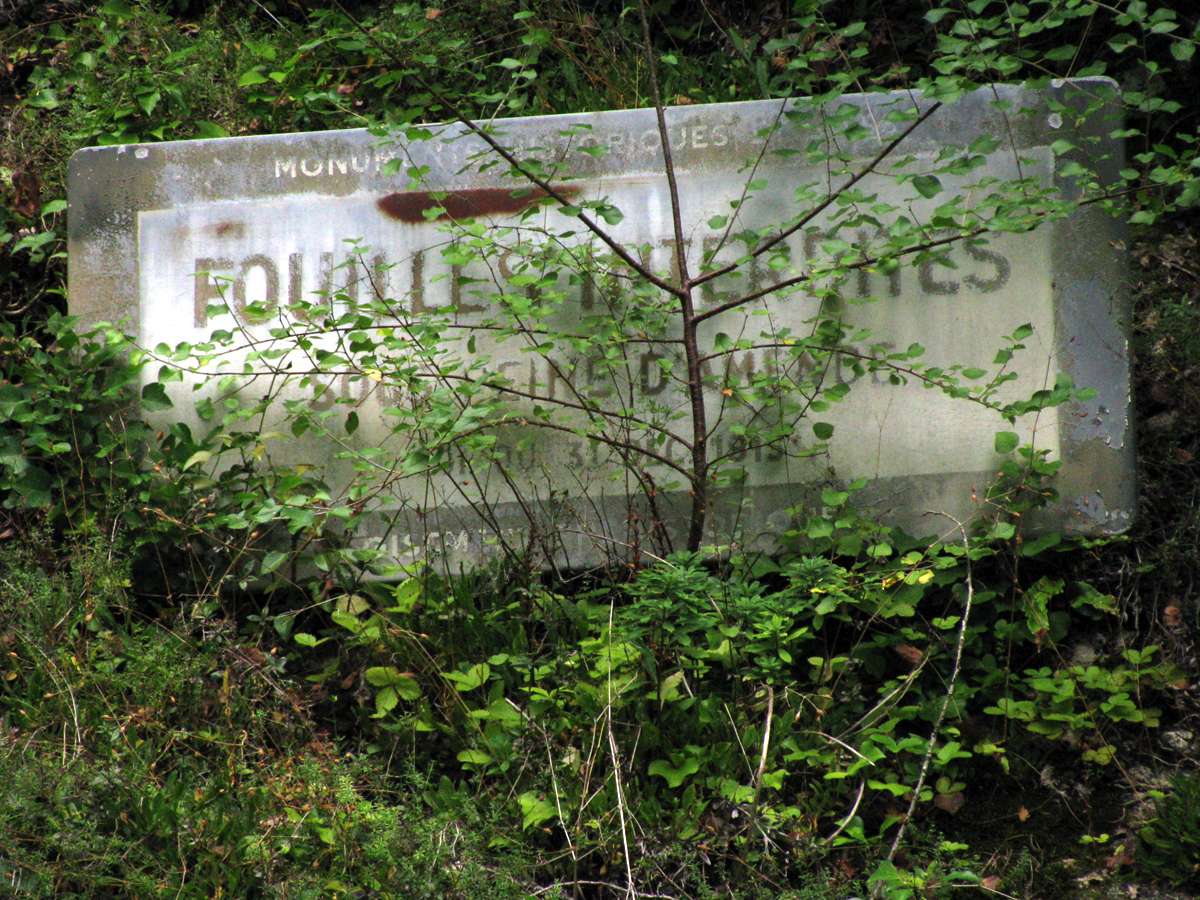

It is an historical monument, protected by French law.

Photo: Don Hitchcock 2008




La Gravette

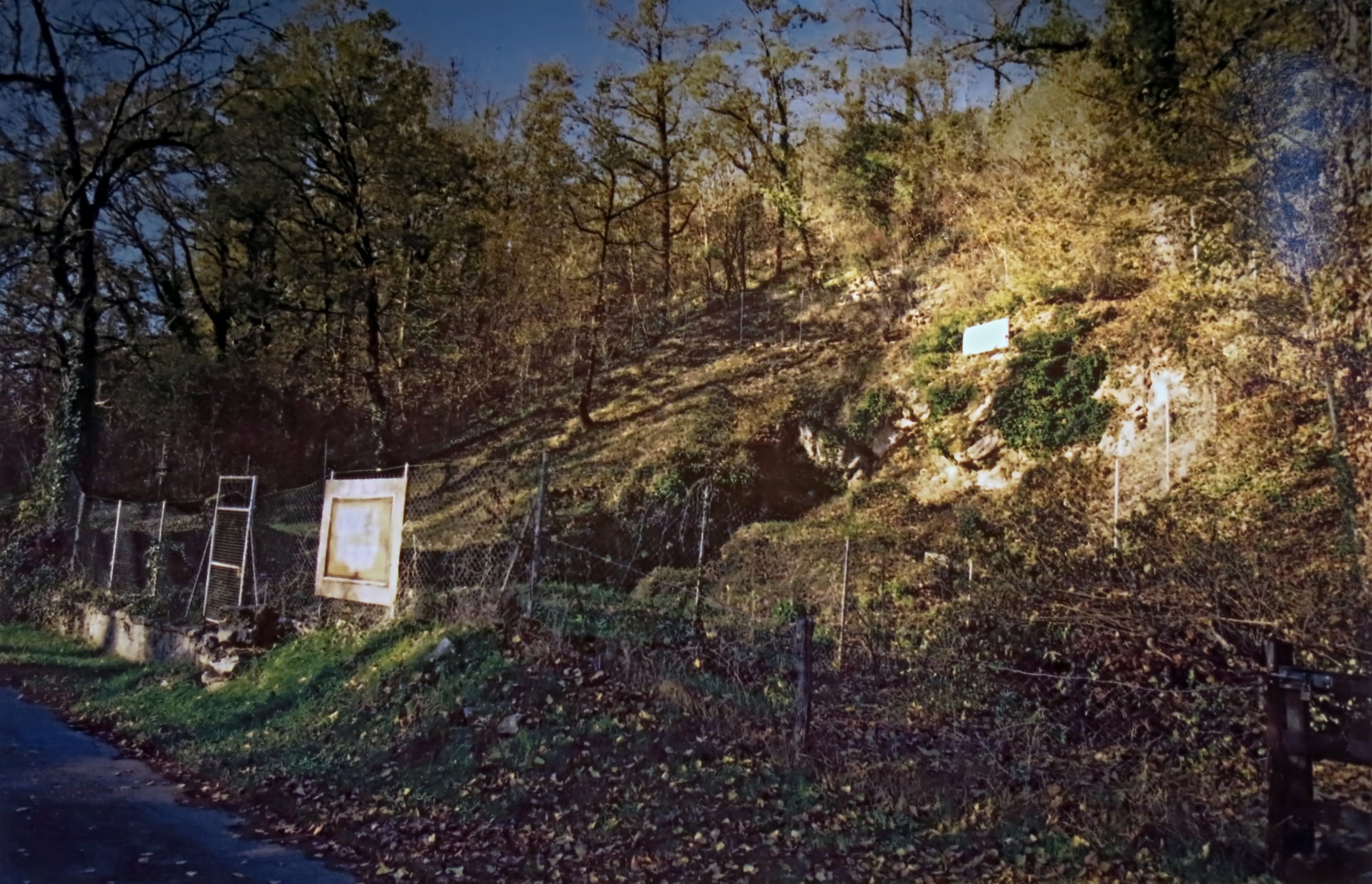

The site of la Gravette.

Photo: Guy Marchesseau MdP
Rephotography: Don Hitchcock 2014
Source: Display, Musée d’art et d’archéologie du Périgord, Périgueux

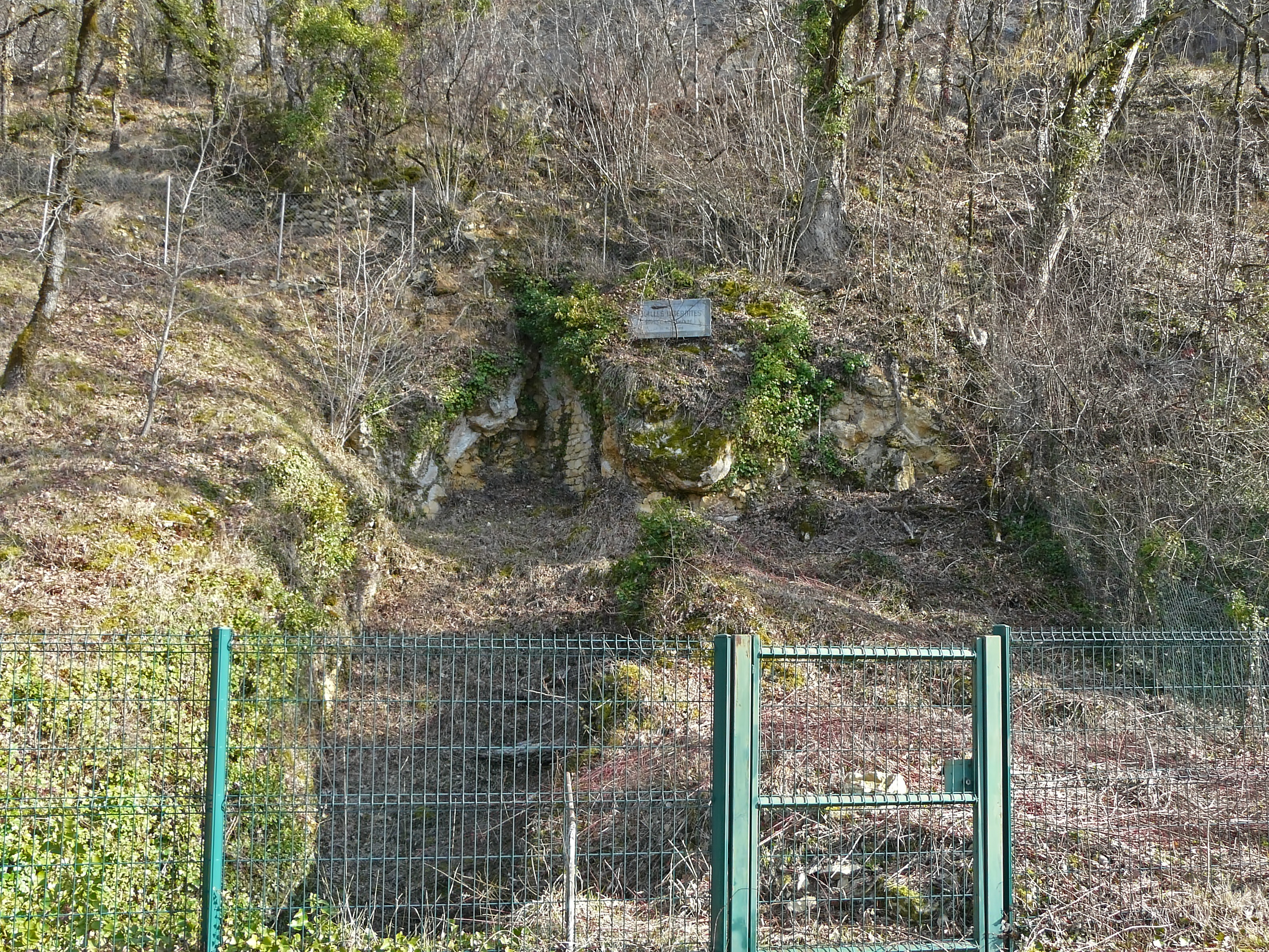

La Gravette


The site of la Gravette, 8 March 2015.

( It is good to see that the gisement has now been cleared of excess undergrowth. It is to be hoped that the site can now be reinvestigated using modern methods - Don )

Photo: Père Igor
Permission: Creative Commons Attribution-Share Alike 4.0 International license.
Proximate source: Wikipedia










map of sites in southern France

Map of sites in the south of France, including La Gravette, showing ice age coastlines.

Note - Use this pdf file if you wish to print this map on a single sheet of paper.

Photo: Don Hitchcock version 2012/05/26

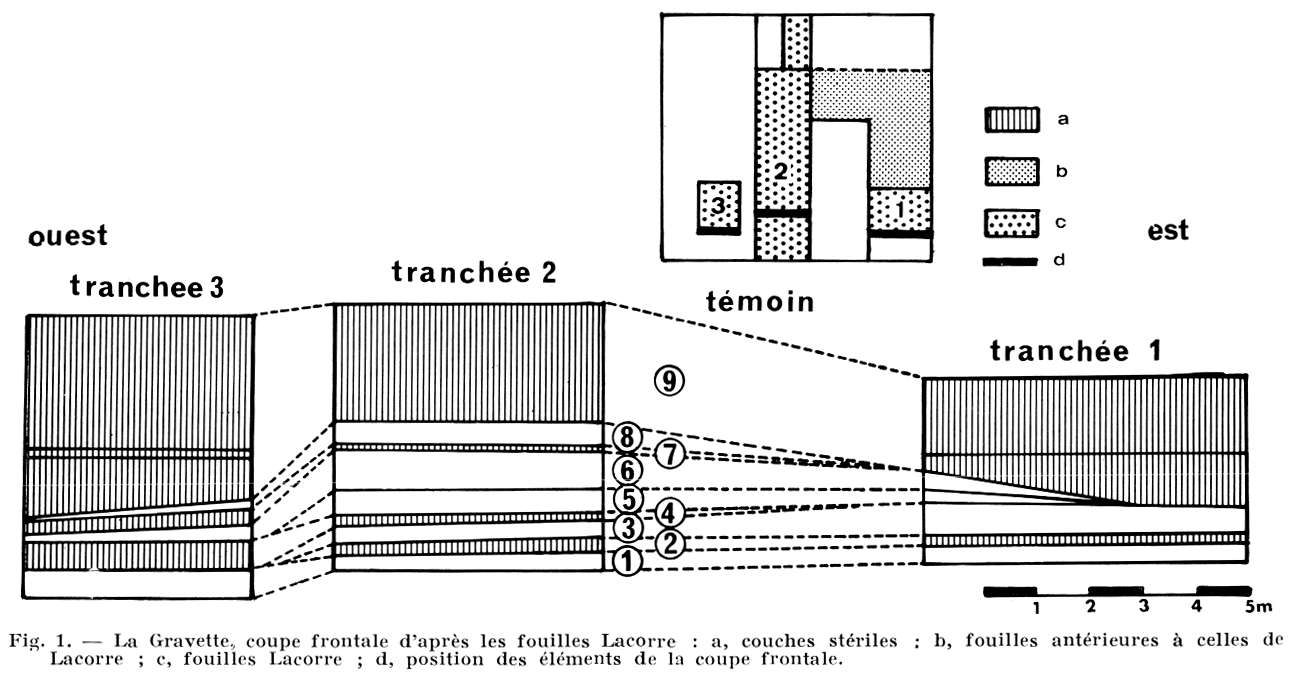

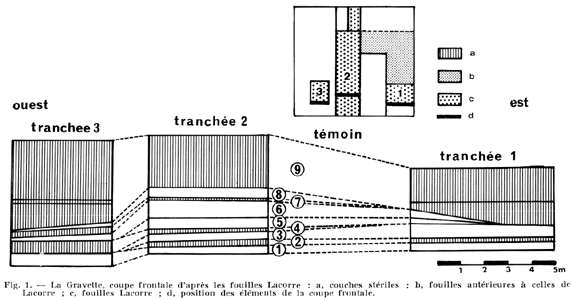

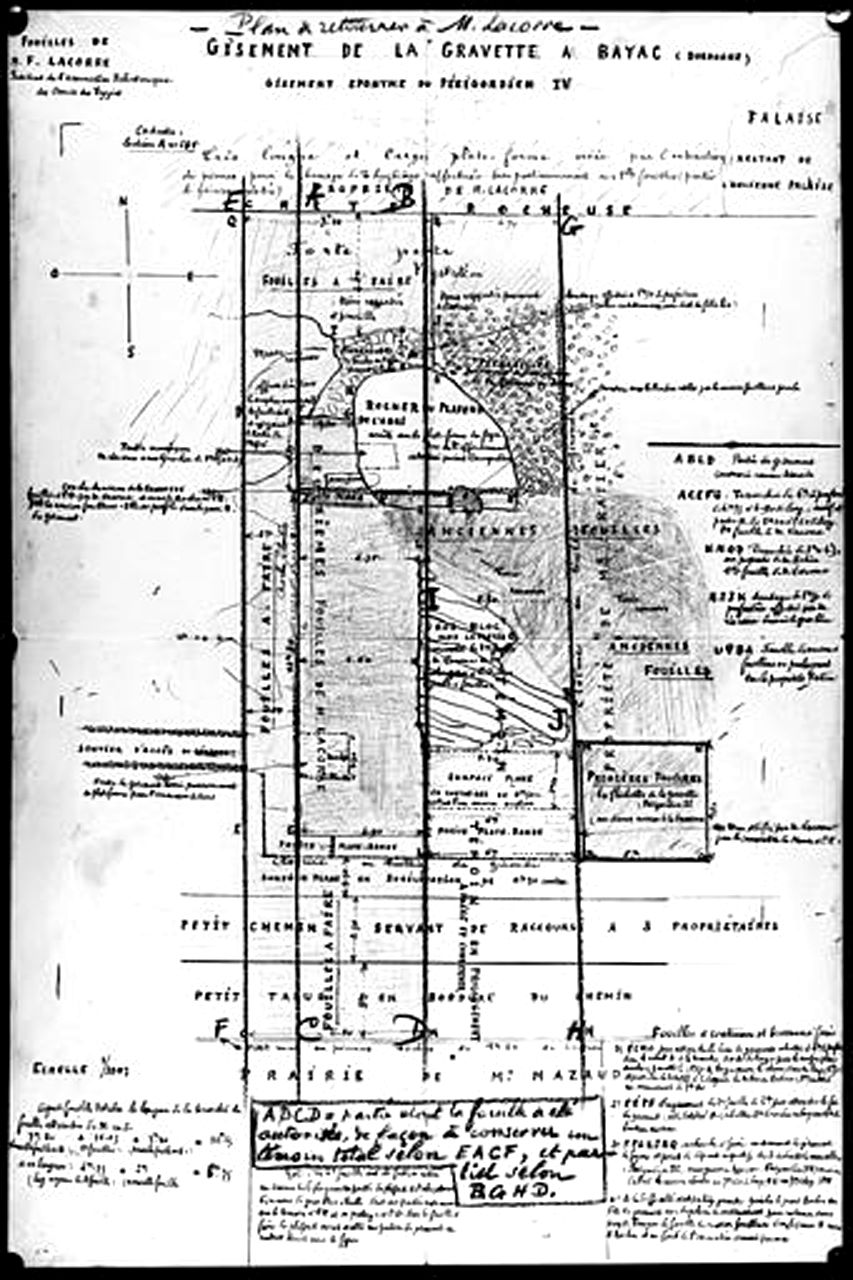

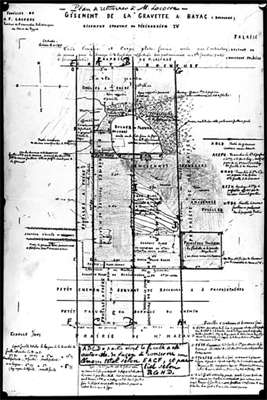

La Gravette plan gisement

This is the plan of the gisement by Lacorre. It would be good to get a higher quality image of this important document.

Lacorre wrote a book on the archeological site of La Gravette:
Lacorre F, 1960 - La Gravette, le Gravettien et le Bayacien, Laval, 1960, 369 pp., 26 fig, 78 planches

Photo: http://www.culture.gouv.fr/public/mistral/memoire_fr?ACTION=CHERCHER&FIELD_1=REF&VALUE_1=AP53N00850
Photo Credit: Ministère de la Culture (France), Médiathèque de l'architecture et du patrimoine (archives photographiques) diffusion RMN




La Gravette drawing La Gravette drawing

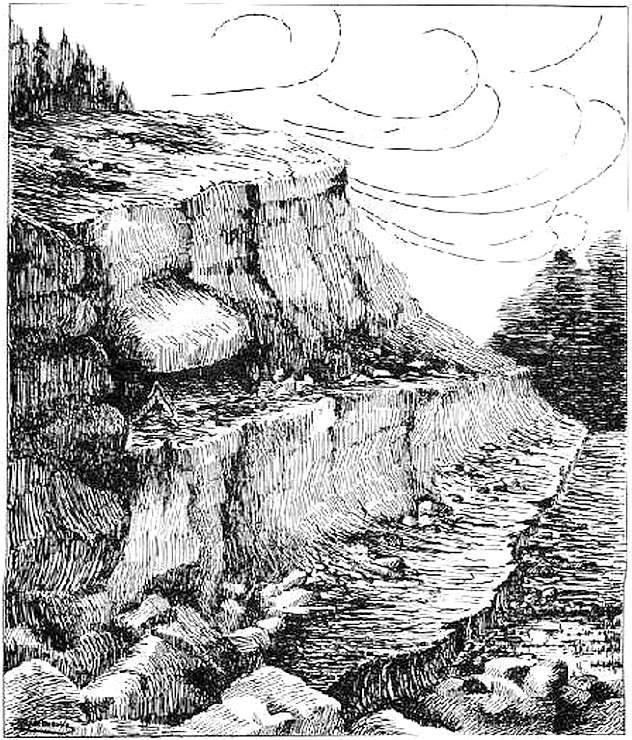

Cover, and a drawing of the original gisement of La Gravette. From La Gravette, le Gravettien et le Bayacien, by Fernand Lacorre.

Photo: http://www.le-livre.com/fiche-RO40147444.html




La Gravette
Gravettien of l'abri de la Gravette à Bayac, Dordogne

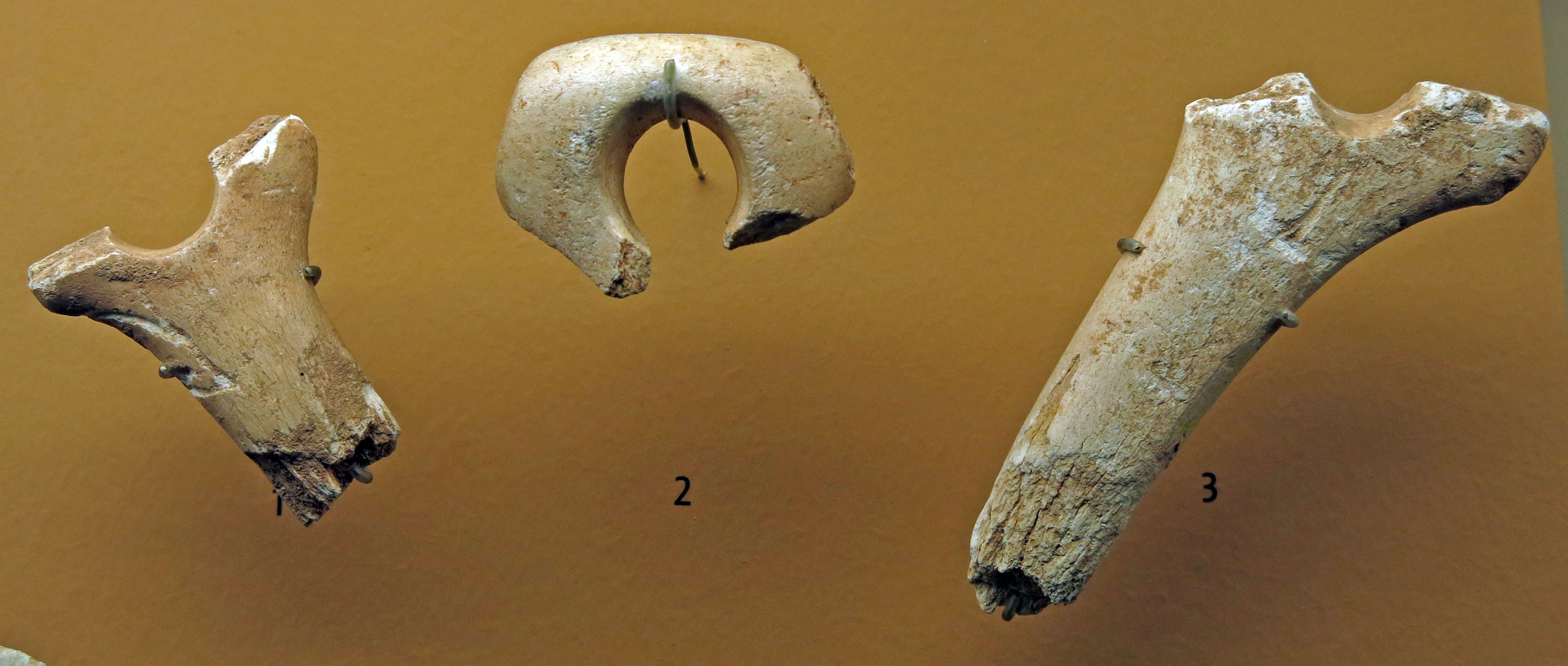

Bâtons percés, pierced batons, spear straighteners.

Photo: Don Hitchcock 2014
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




La Gravette La Gravette
Gravettien of l'abri de la Gravette à Bayac, Dordogne

Grattoirs, scrapers.

Photo: Don Hitchcock 2015, 2018
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




La Gravette La Gravette
Gravettien of l'abri de la Gravette à Bayac, Dordogne

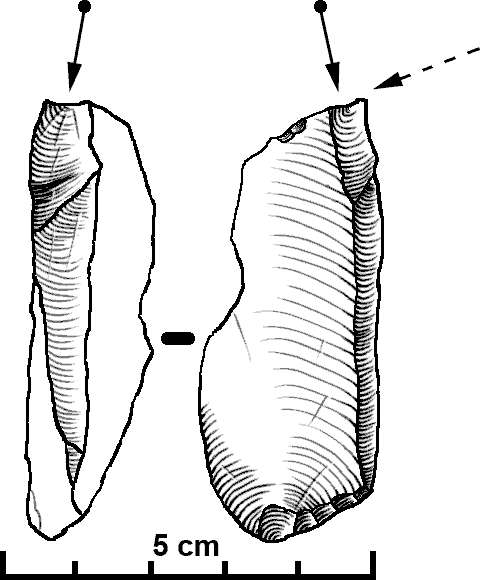

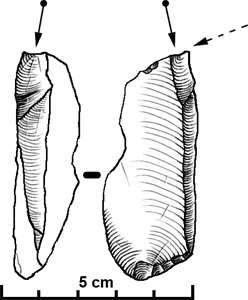

Burins.

( note that the burin on the right is very long, and appears to have had an even longer burin spall than now exists when originally made. A notch has been placed on the right hand edge of this burin - Don )

Photo: Don Hitchcock 2015
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye

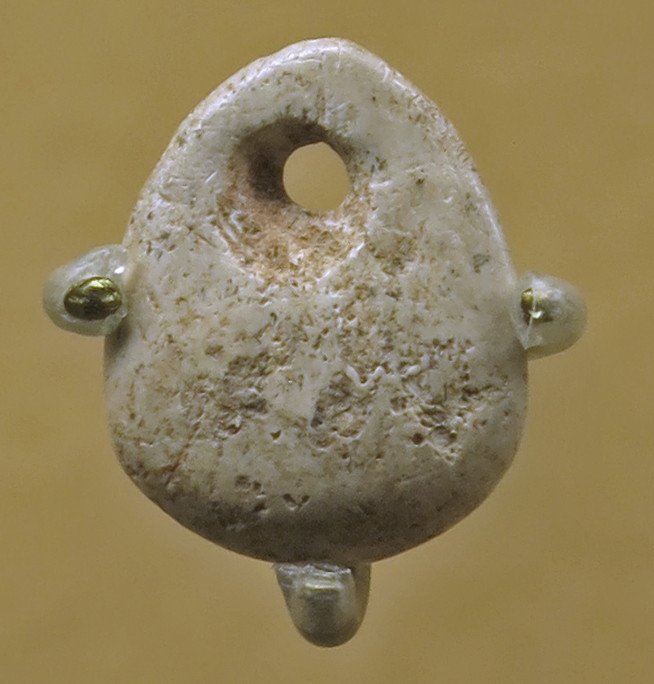

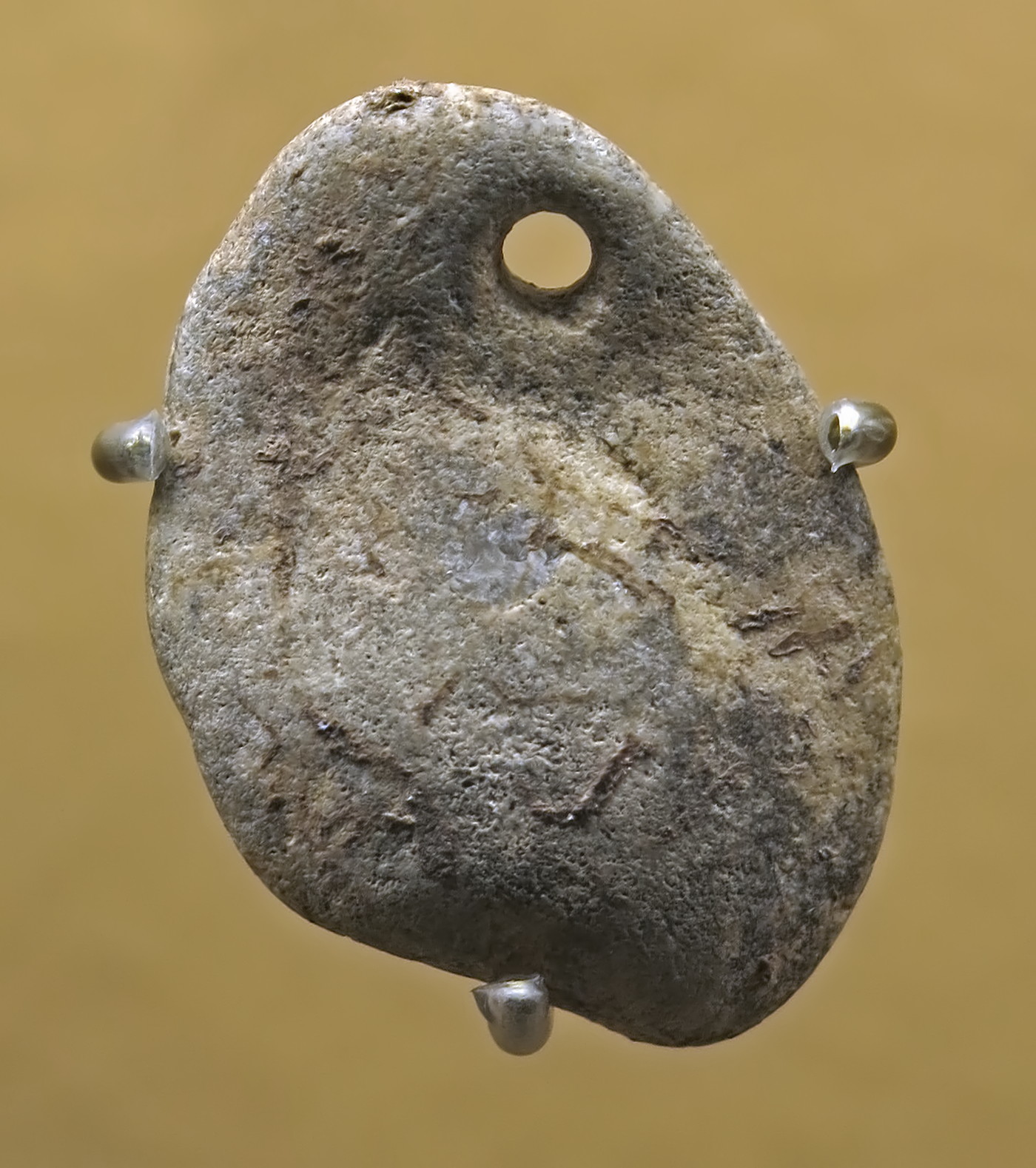

La Gravette La Gravette
Gravettien of l'abri de la Gravette à Bayac, Dordogne

Beads, pendants.

Photo: Don Hitchcock 2015
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




La Gravette La Gravette La Gravette
Gravettien of l'abri de la Gravette à Bayac, Dordogne

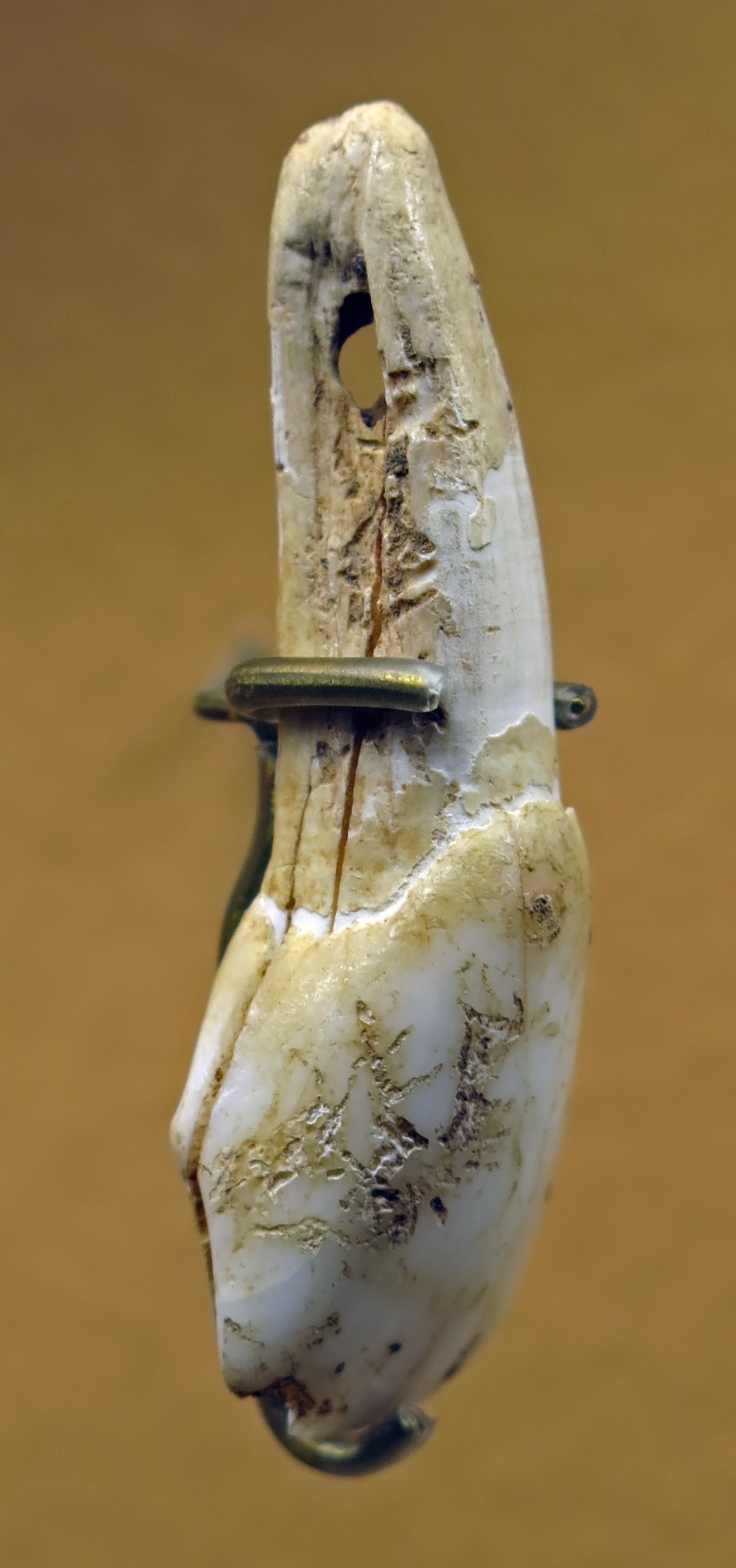

(left): Pierced tooth pendant.

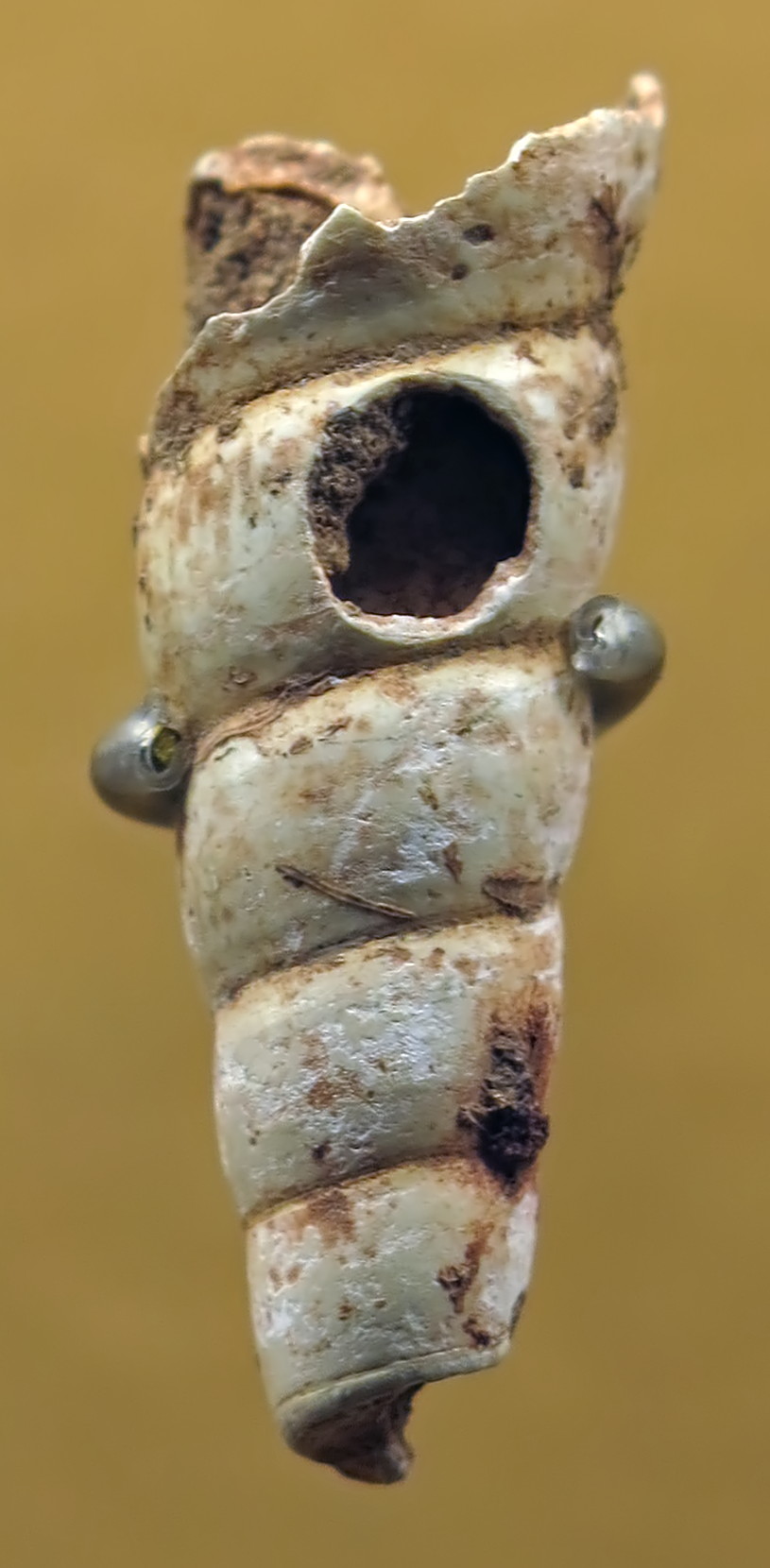

(centre): Pierced shell, possibly a turret shell, as a pendant.

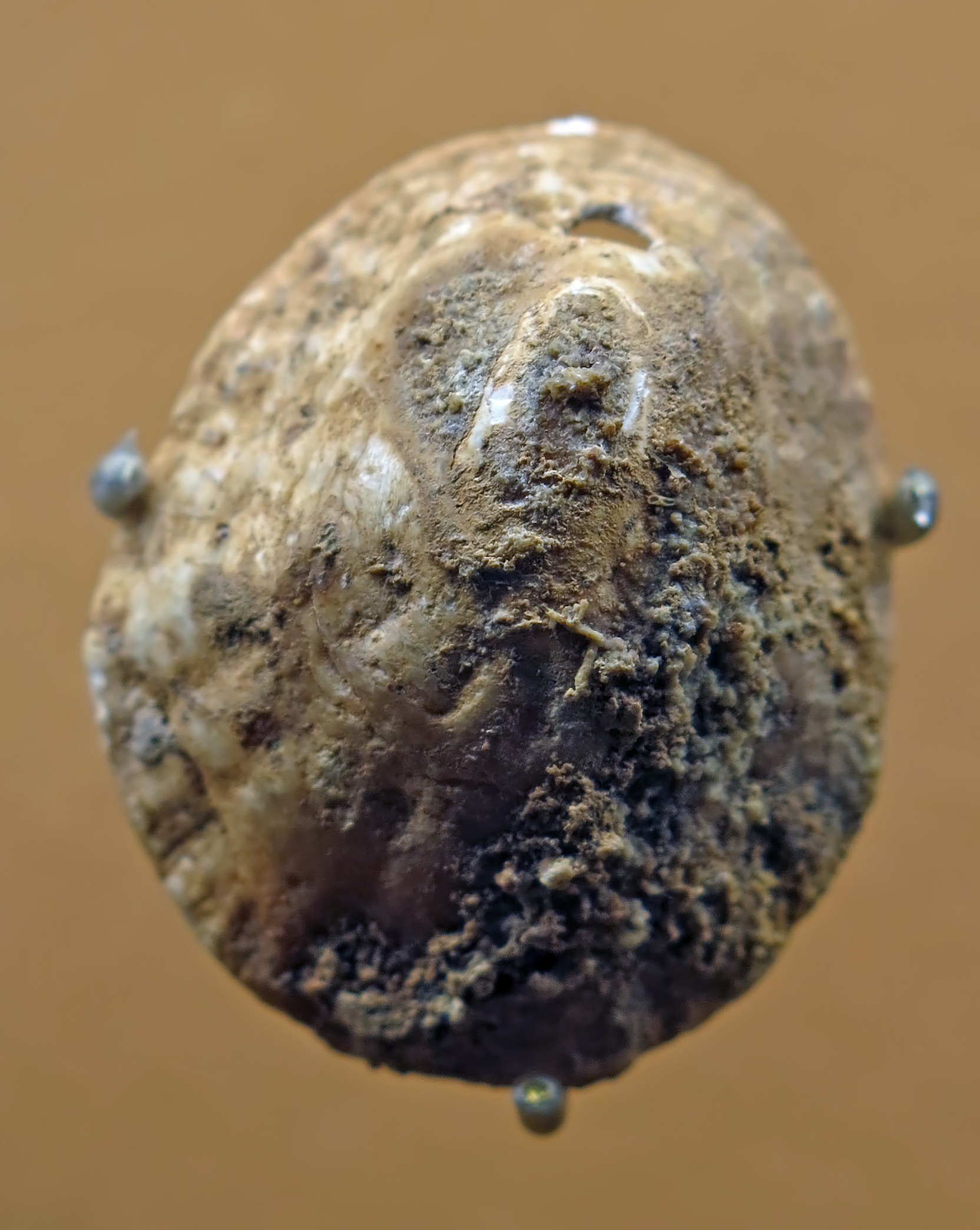

(right): Pierced limpet shell used as a pendant.

Photo: Don Hitchcock 2015
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye

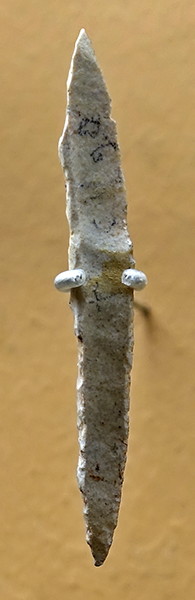

La Gravette La Gravette La Gravette
Gravettien of l'abri de la Gravette à Bayac, Dordogne

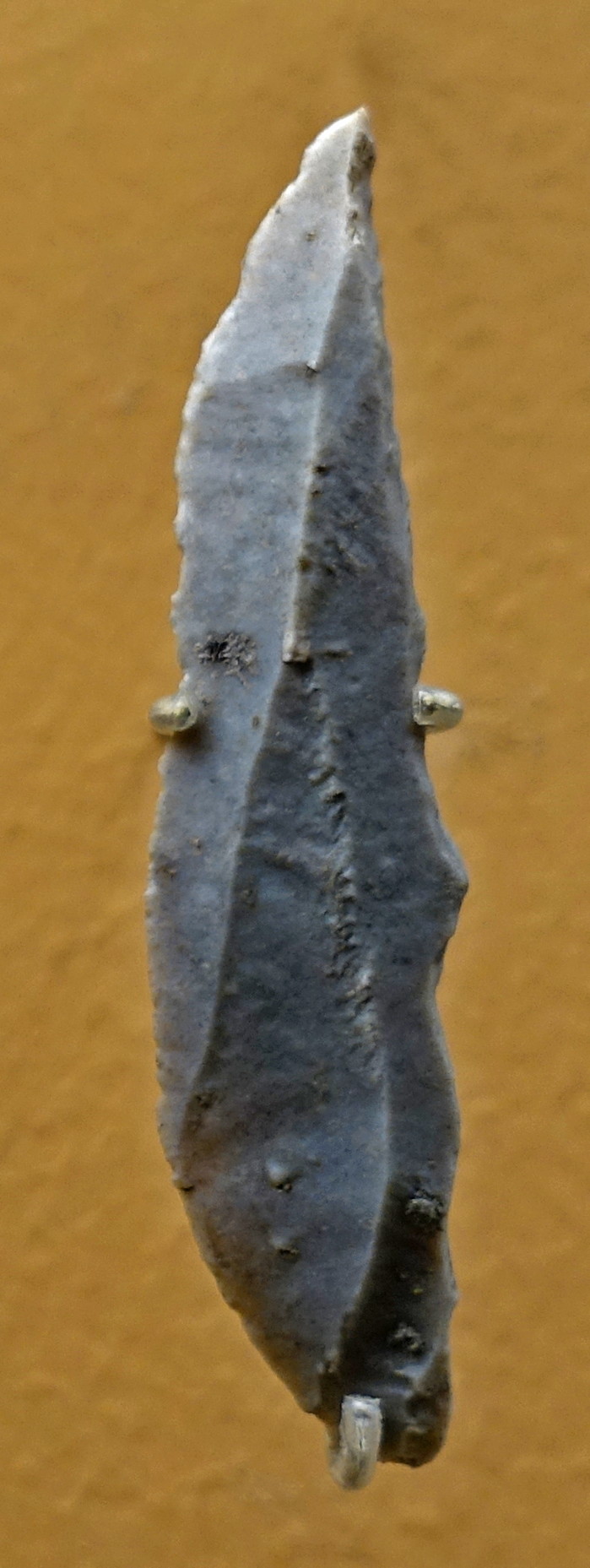

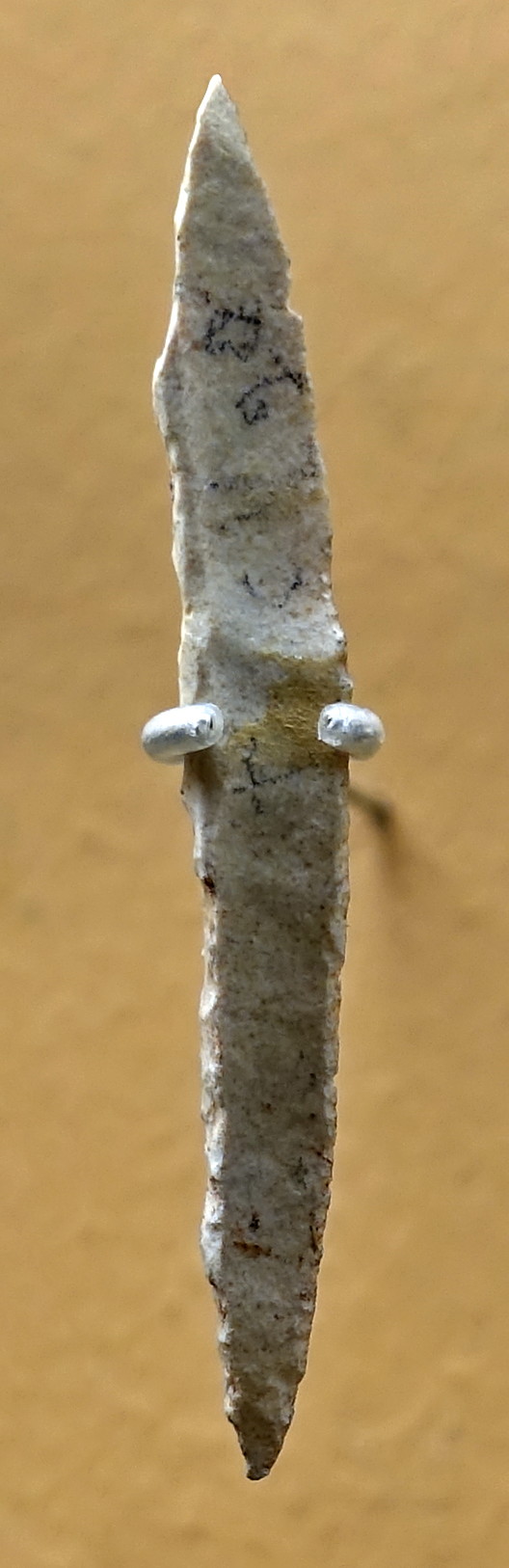

Gravettian points.

Photo: Don Hitchcock 2015
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




La Gravette La Gravette La Gravette
Gravettien of l'abri de la Gravette à Bayac, Dordogne

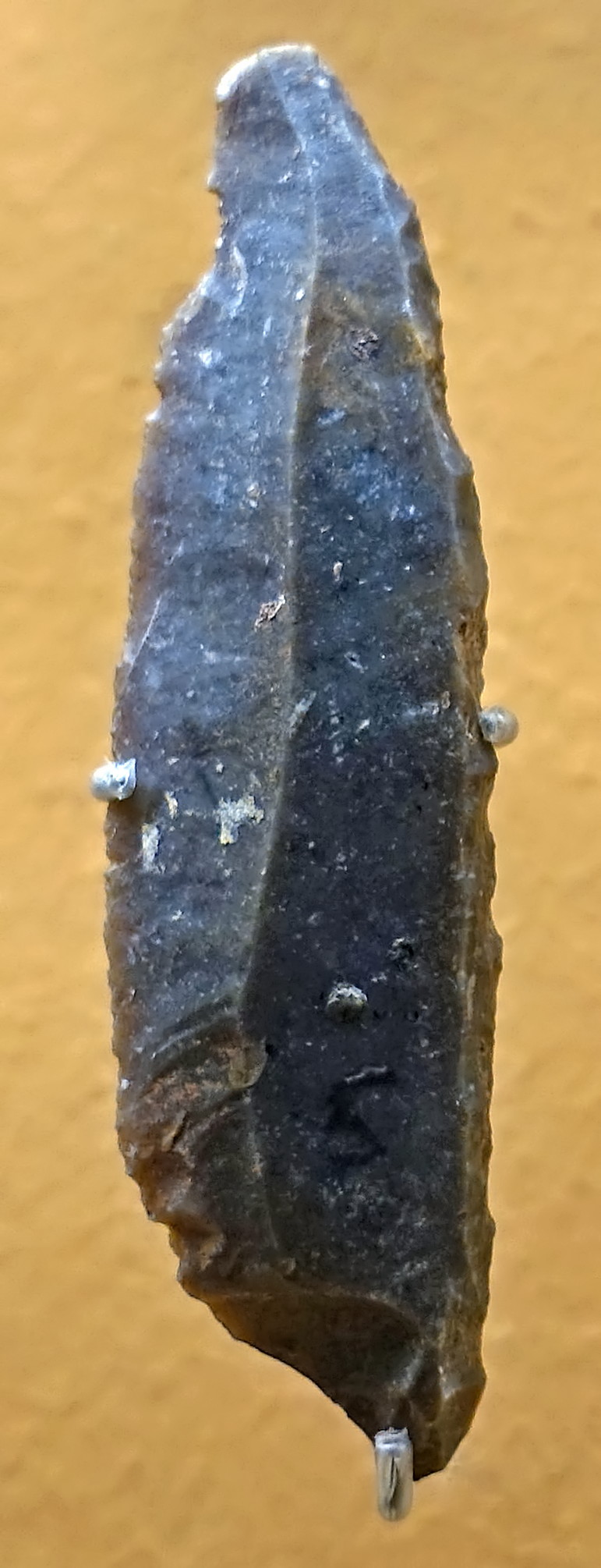

Gravettian points.

Photo: Don Hitchcock 2018
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




La Gravette La Gravette La Gravette La Gravette
Gravettien of l'abri de la Gravette à Bayac, Dordogne

Gravettian points.

Photo: Don Hitchcock 2015, 2018
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




La Gravette La Gravette
Bayacien of l'abri de la Gravette à Bayac, Dordogne

Note that the 'Bayacien' underlies the Gravettian but is closely associated with it.

Grattoirs, scrapers.

Photo: Don Hitchcock 2015
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




La Gravette La Gravette
Bayacien of l'abri de la Gravette à Bayac, Dordogne

Note that the 'Bayacien' underlies the Gravettian but is closely associated with it.

(left): Grattoir, scraper.

(right): Burin

Photo: Don Hitchcock 2015
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




La Gravette La Gravette La Gravette
Bayacien of l'abri de la Gravette à Bayac, Dordogne

Note that the 'Bayacien' underlies the Gravettian but is closely associated with it.

From left: Burin de Noailles, fléchettes.

Photo: Don Hitchcock 2018, 2015, 2015
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




La Gravette La Gravette La Gravette
Bayacien of l'abri de la Gravette à Bayac, Dordogne

Note that the 'Bayacien' underlies the Gravettian but is closely associated with it.

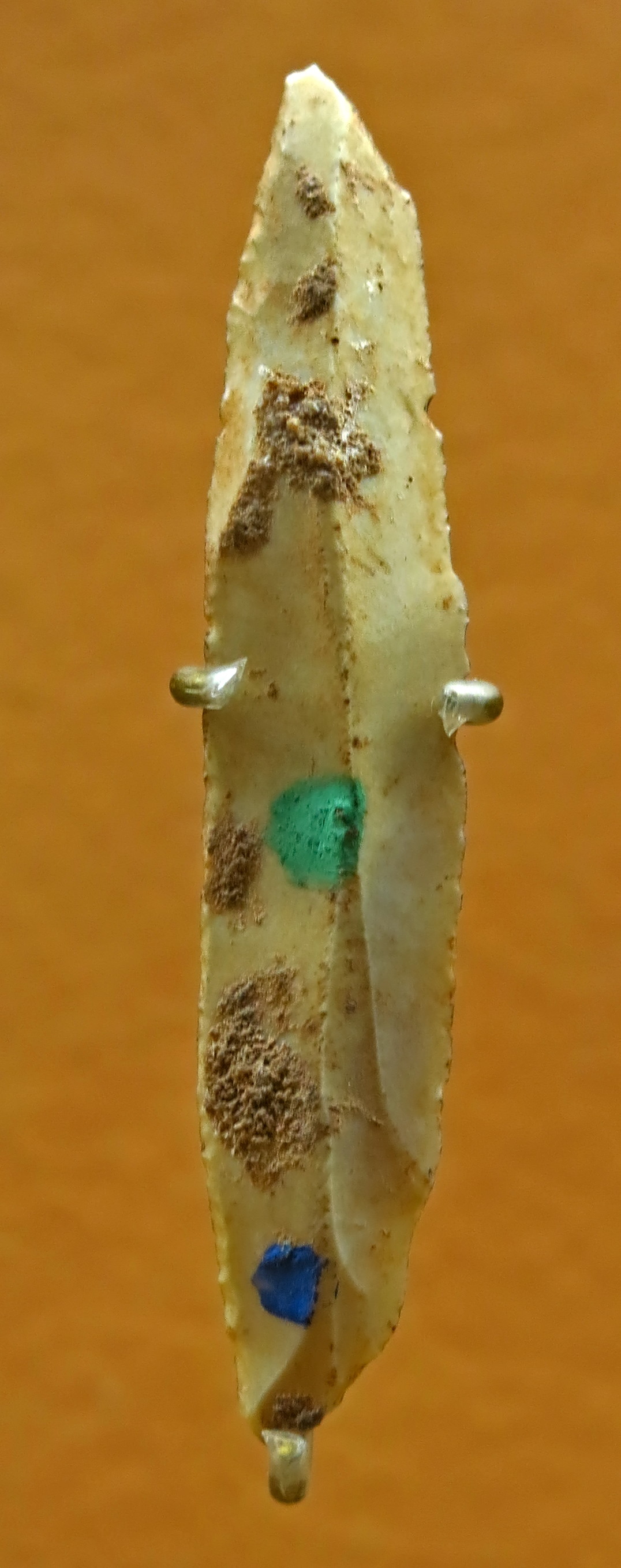

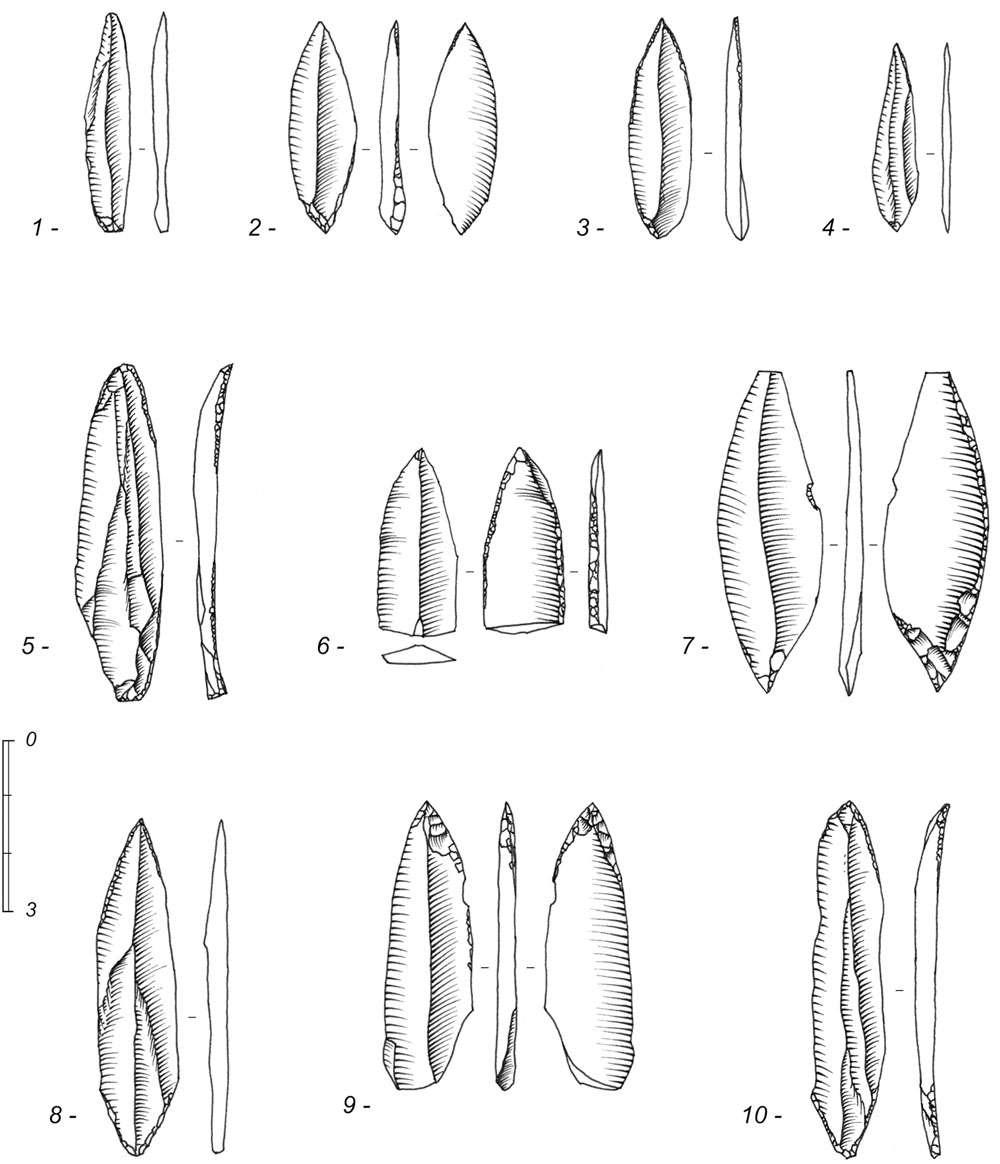

Fléchettes.

Photo: Don Hitchcock 2015
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




La Gravette
Aurignacien of l'abri de la Gravette à Bayac, Dordogne

left: Lame retouchée, retouched blade.

centre left: Grattoir caréné, keeled scraper.

centre right and right: Grattoir, scraper.

Photo: Don Hitchcock 2014
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye




La Gravette
Aurignacien of l'abri de la Gravette à Bayac, Dordogne

left: Burin.

centre left, centre right, right: Burin busqué, beaked burin.

Photo: Don Hitchcock 2014
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye

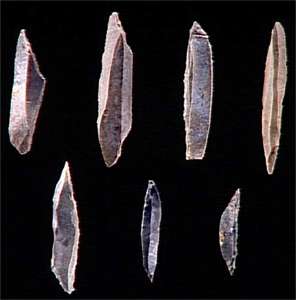

La Gravette points

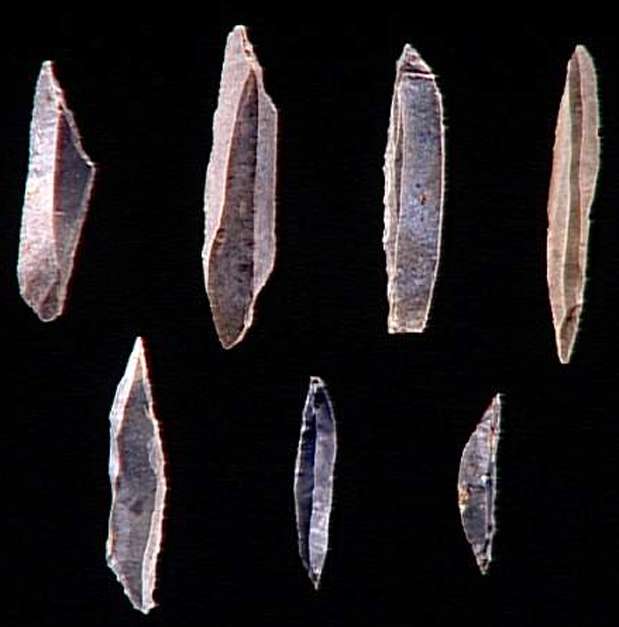

La Gravette Points

Cote cliché :96-022855
N° d’inventaire: MAN82094;82455;81760;81790;82108;81812;81997
Fonds: Antiquités nationales
Titre: Planches de sept pointes de la gravette
Description : 27000-20000 av JC
Crédit photographique: (C) RMN / Jean-Gilles Berizzi
Période: gravettien
Technique/Matière: silex
Lieu de découverte: La Gravette (site) (origine)
Localisation: Saint-Germain-en-Laye, musée d'archéologie nationale
Photo: http://www.photo.rmn.fr/cf/htm/CPicZ.aspx?E=2C6NU0HDAFRX




La Gravette points

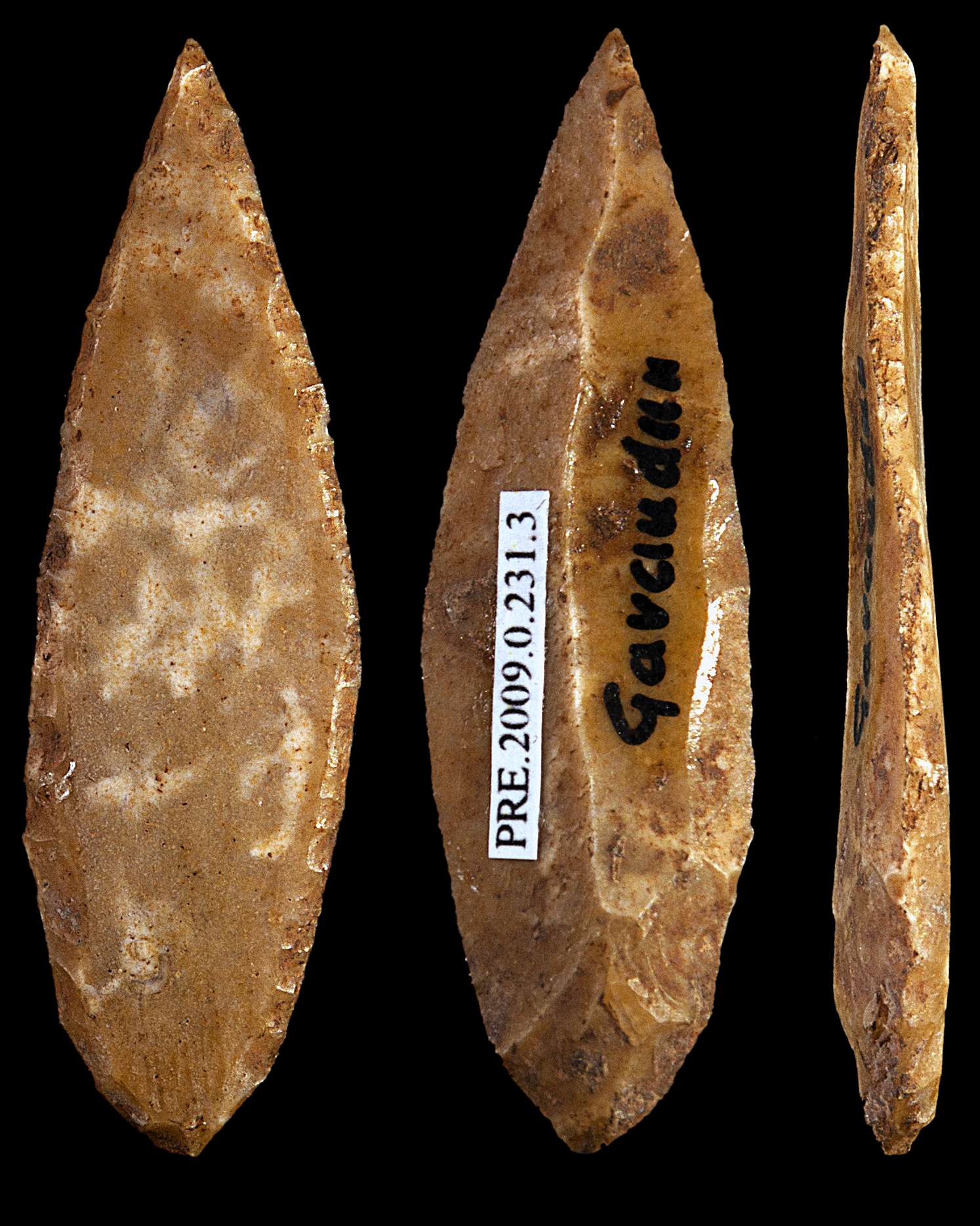

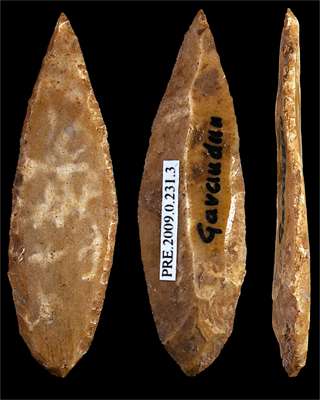

La Gravette Point from Gavaudun (near Fumel) Lot-et Garonne, France. Collection and excavations by Henri Breuil, 1908

Different views of the same specimen.

Fléchette - Différentes vues du même spécimen
Date: entre 27 000 et 25 000 avant le présent (Gravettien ancien)
Technique/matériaux: silex
Dimensions: 43 × 13 × 5 mm
Source: Muséum de Toulouse
Numéro d'inventaire: MHNT.PRE.2009.0.231.3
Lieu de découverte: Gavaudun (près Fumel) Lot-et-Garonne, France. Collection et Fouilles Henri Breuil 1908
Photo: Didier Descouens, 21 novembre 2010
Autorisation: Ce fichier est disponible selon les termes de la licence Creative Commons Paternité – Partage des conditions initiales à l’identique 3.0 Unported




roberts pointroberts point
Font-Robert points.

Photo: Don Hitchcock 2015, 2018
Provenance: Unknown
Source: Musée d’art et d’archéologie du Périgord, Périgueux



IMG_6948no10pointsrobertsm
Pointes de la Font-Robert, Font-Robert points, Les Bertranoux, Creysse (24).

Font-Robert points are tanged points with a leaf‐shaped blade, flat on one side, and convex on the other. They are worked on one face only.

Period: Gravettian

Flint, Inv. no. 60.351.1, 61.3.22, 61.3.28

Photo: Don Hitchcock 2015
Source: Original, Musée d'Aquitaine à Bordeaux




scraper



A very fine quality scraper from la Gravette.

Photo: Don Hitchcock 2014
Source: Musée d’art et d’archéologie du Périgord, Périgueux



flechette


Flint fléchette from La Gravette.

Dimensions: length 60 mm, width 11 mm, depth 3 mm.

Catalog: MAN77325 ( note that this is the same catalog number as the fléchette below - Don )
Photo: Don Hitchcock 2015
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye
Text: https://www.photo.rmn.fr/



flechette


Flint fléchette from La Gravette.

Dimensions: length 59 mm, width 4 mm, depth 1 mm.

Catalog: MAN77325
Photo: Don Hitchcock 2015
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye
Text: https://www.photo.rmn.fr/



flechette flechette


Gravettian shouldered points, pointes à cran.


(left): Shouldered point from La Gravette.

Dimensions: 50 mm long, 12 mm wide, 3 mm thick, Catalog MAN82126

Photo: Don Hitchcock 2015, 2018
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye
Text: https://www.photo.rmn.fr/



points

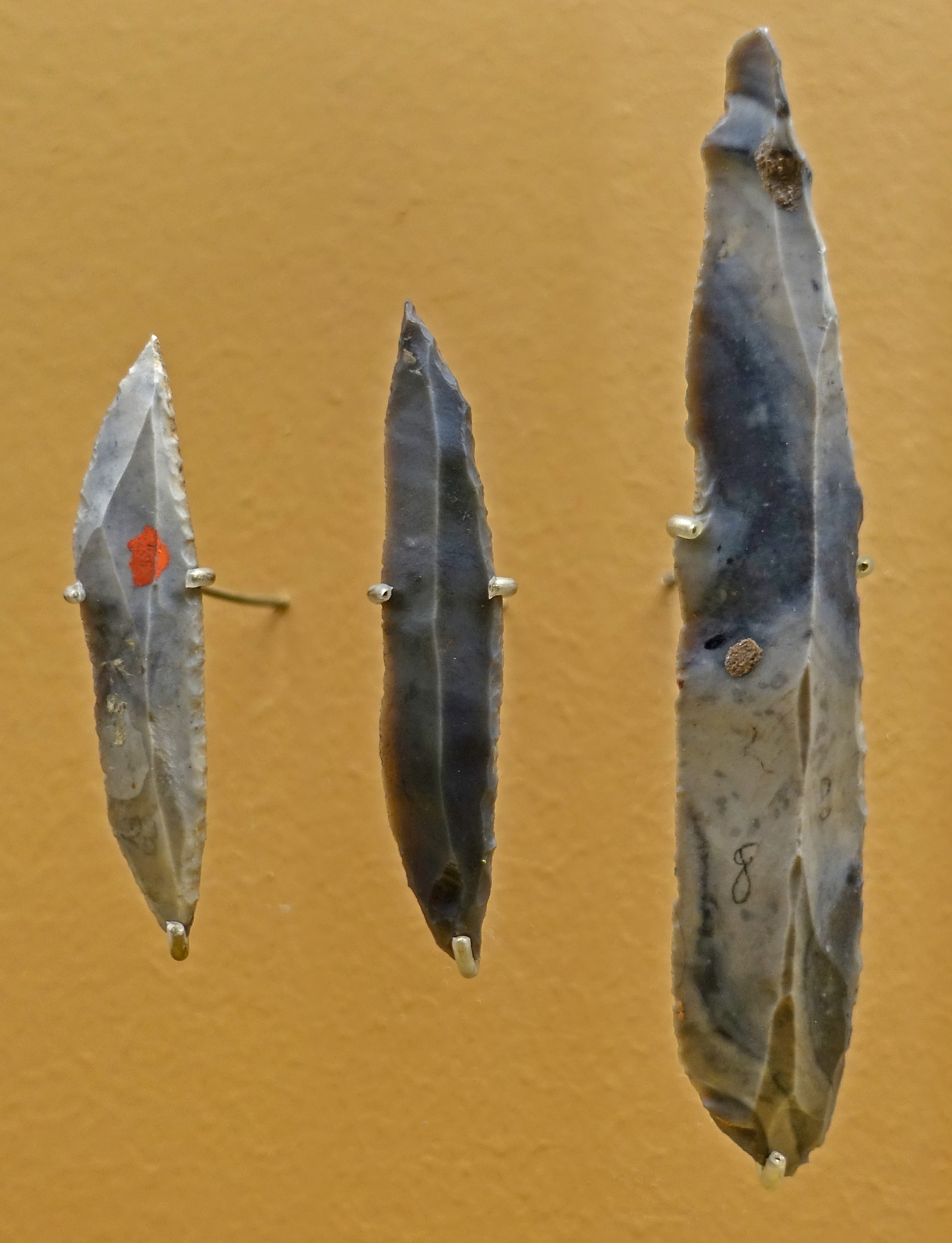

Points from La Gravette.

(left): Dimensions: length 59 mm, width 12 mm, thickness 5 mm, Catalog MAN81994.

(centre): Dimensions: length 64 mm, width 12 mm, thickness 5 mm, Catalog MAN81812.

(right): Dimensions: length 107 mm, width 20 mm, thickness 8 mm, Catalog MAN81781.


Photo: Don Hitchcock 2018
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye
Text: https://www.photo.rmn.fr/









Plates

scraper scraper

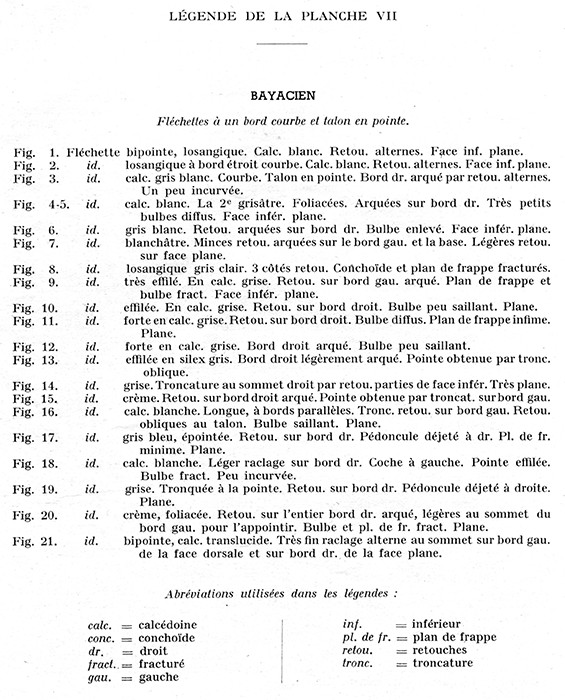

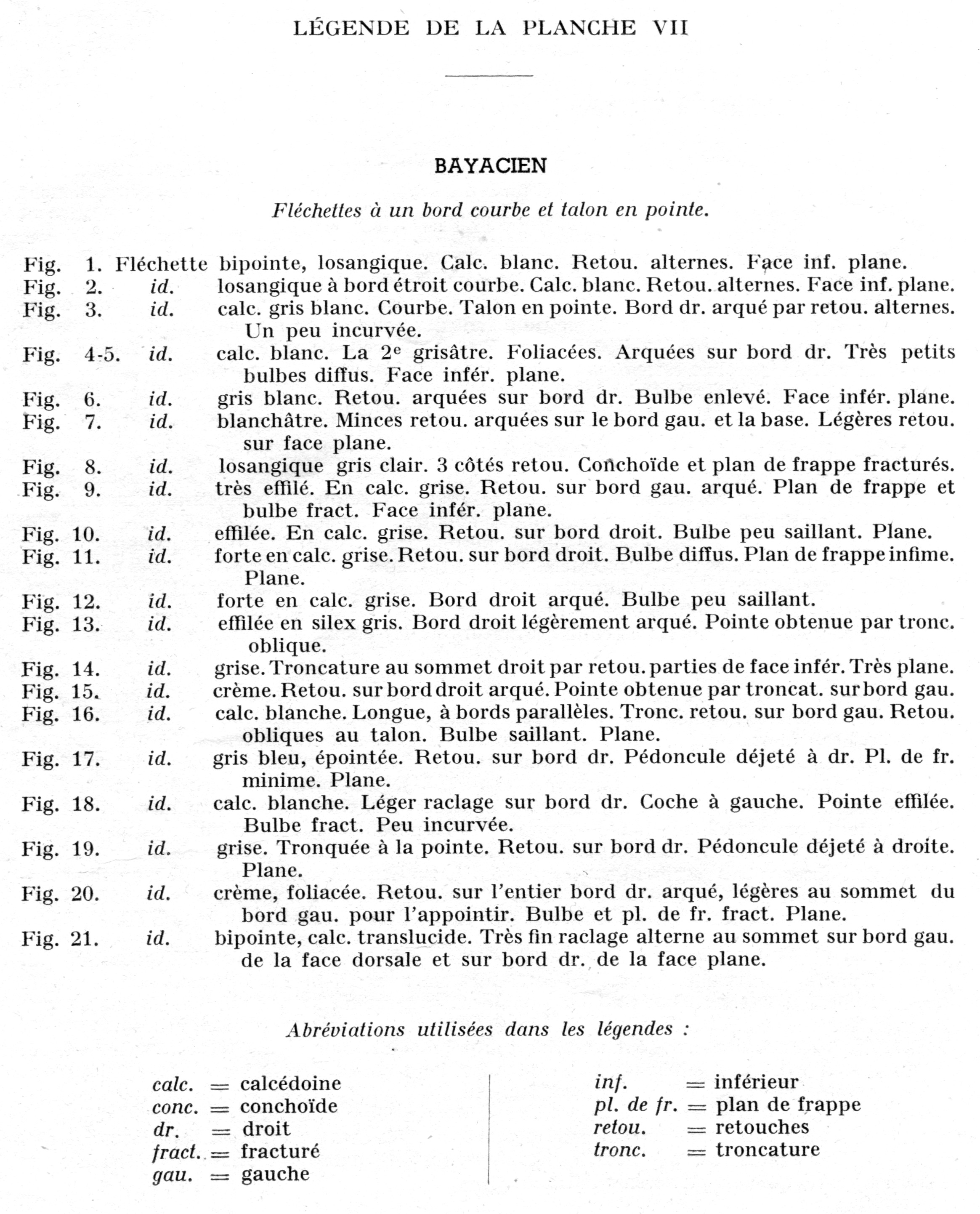

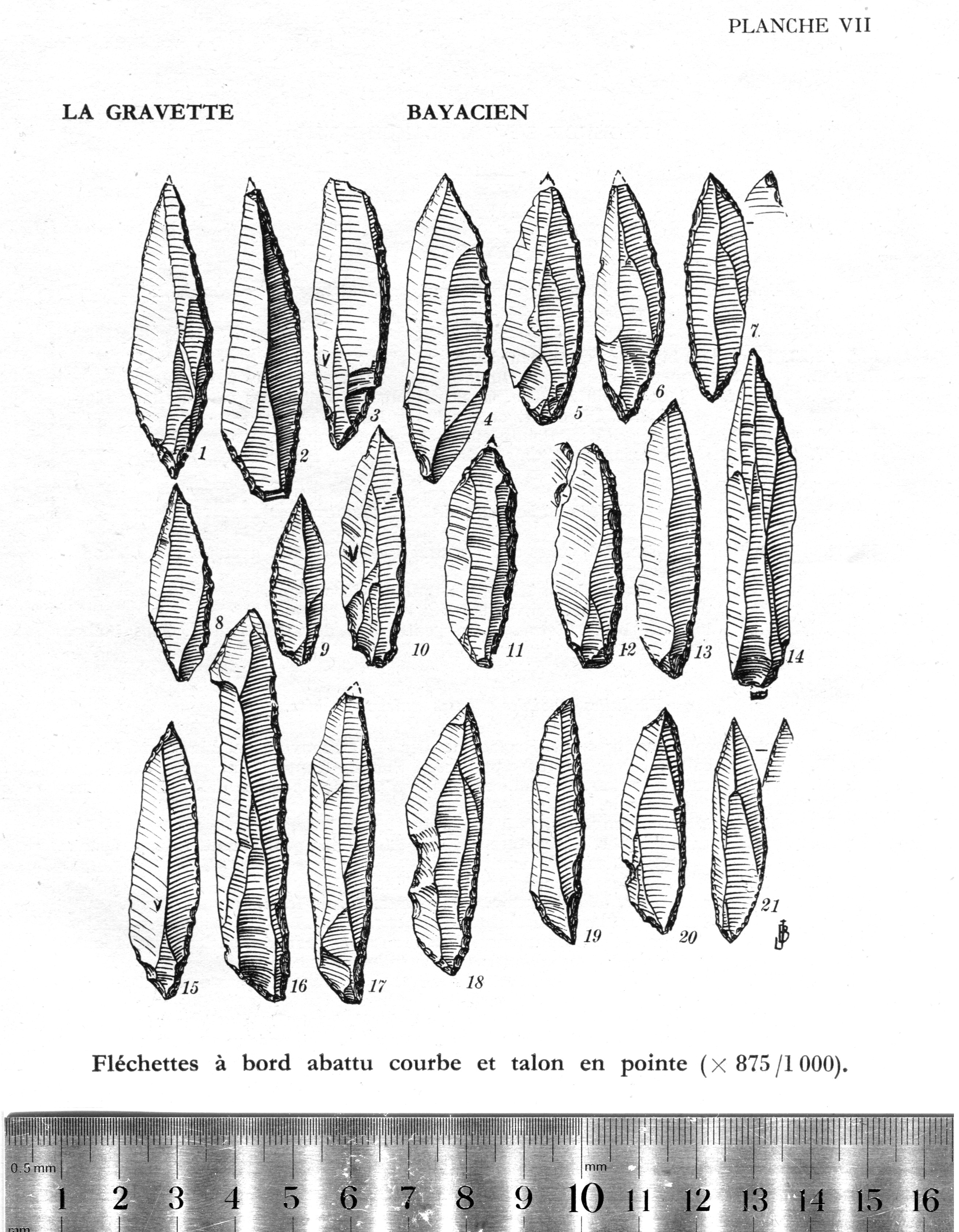

Plate VII.

Photo and text: Lacorre (1960)







tools

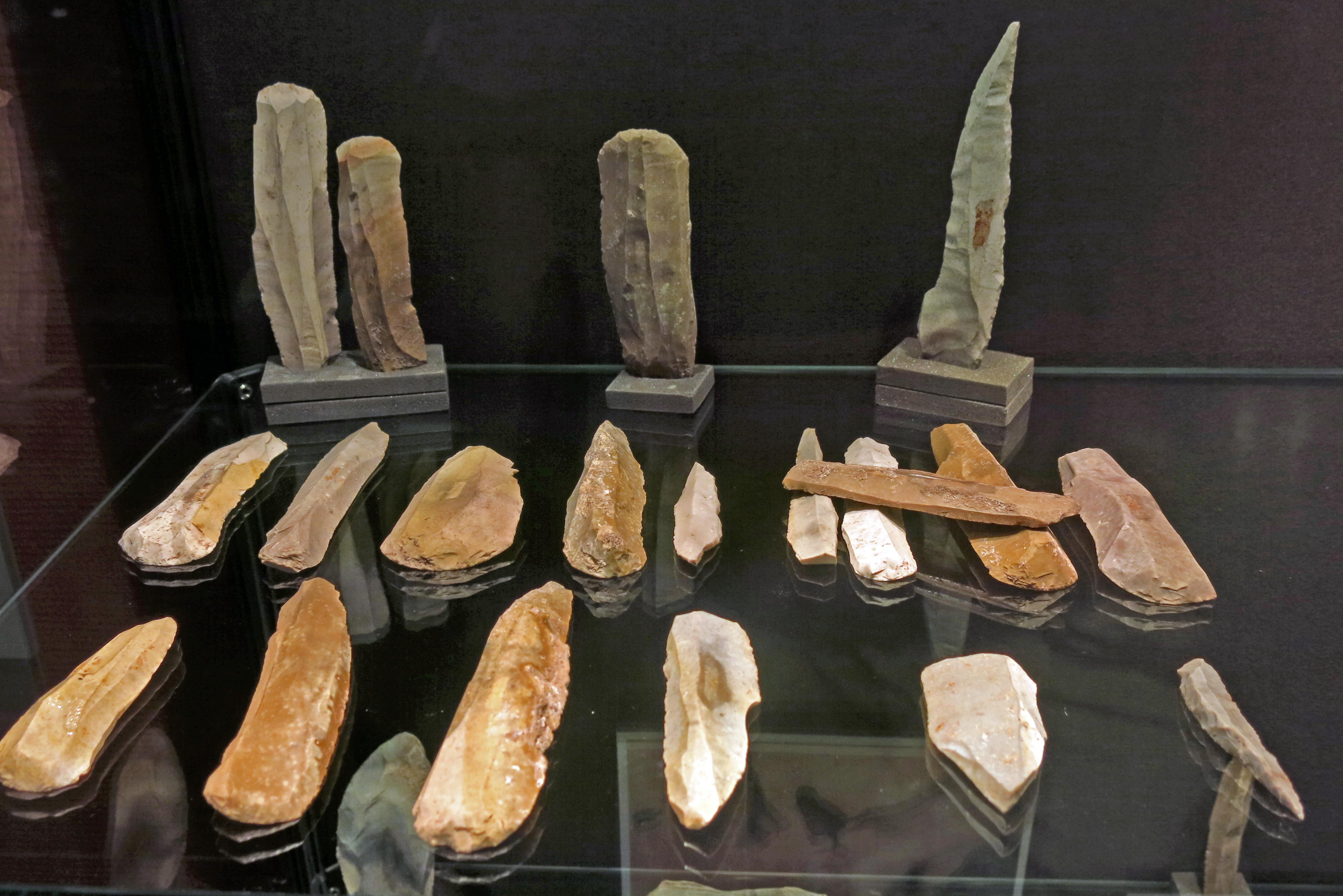

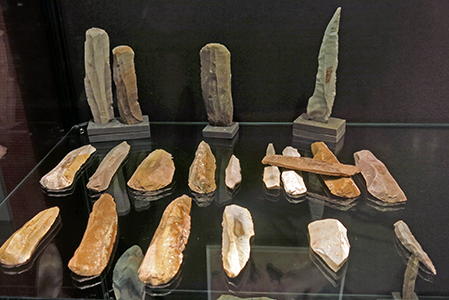

A selection of tools from la Gravette, including scrapers and burins.

Photo: Don Hitchcock 2014
Source: Musée d’art et d’archéologie du Périgord, Périgueux



IMG_6939no1see6872textsm IMG_6940no1flintsee6872textsm


Grattoirs, La Gravette, Bayac (24).

Period: Gravettian

Flint, Inv. no. 60.455.1, 61.3.27

Photo: Don Hitchcock 2015
Source: Original, Musée d'Aquitaine à Bordeaux




tools


Burins, scrapers, and Gravette points.

Photo: Don Hitchcock 2014
Source: Musée d’art et d’archéologie du Périgord, Périgueux




burin from la gravette
Burin, La Gravette, Bayac (24)

Catalog: 60.455.9
Photo: Don Hitchcock 2015
Source: Original, Musée d'Aquitaine à Bordeaux




IMG_6947no8longbladessm


Pointes de la Gravette, Gravette points, La Gravette, Bayac (24) and Laussel, Marquay (24).

Period: Gravettian

Flint, Inv. no. 16,23, 60.1057.1, 61.3.23

Photo: Don Hitchcock 2015
Source: Original, Musée d'Aquitaine à Bordeaux




IMG_6942no3lausselsee6872textsm


Perçoir, drill, Laussel, Marquay (24).

( This is a very specialised, large drill, possibly used to create the hole in a bâton percé. Most are much smaller, obviously used for creating tiny holes in shell or ivory - Don )

Period: Gravettian

Flint, Inv. no. 61.3.24

Photo: Don Hitchcock 2015
Source: Original, Musée d'Aquitaine à Bordeaux




IMG_6945no6awlinbonesm


Poinçon, awl, Laussel, Marquay (24).

Period: Gravettian

Bone, Inv. no. 61.3.216

Photo: Don Hitchcock 2015
Source: Original, Musée d'Aquitaine à Bordeaux




img_6944_6943_lissoirheadshapeslausselsee6872textbsm


Lissoir, Laussel, Marquay (24).

( The slender, curved implements called lissoirs were shaped from (often) deer ribs and used to work animal hides to make them softer, tougher and more waterproof. The tools exploit particular features of bone, such as its toughness and flexibility. Lissoirs could not be made from a hard and brittle material like stone, because it would damage the leather and risk snapping in the user's hand. But made from bone, the tool would flex as it was pressed onto a hide.

The three almost circular marks on the lissoir are probably from the original identification labels, removed after the three parts of the tool were glued together. The lissoir was broken in antiquity, since the ends have been eroded by soil biota - Don
)

Period: Gravettian

Bone, Inv. no. 61.3.184

Photo: Don Hitchcock 2015
Source: Original, Musée d'Aquitaine à Bordeaux




IMG_6946sagaiesm


Saggaies, spear points, Laussel, Marquay (24).

Period: Gravettian

Bone, Inv. no. 61.3.212, 61.3.218, 61.3.219

Photo: Don Hitchcock 2015
Source: Original, Musée d'Aquitaine à Bordeaux

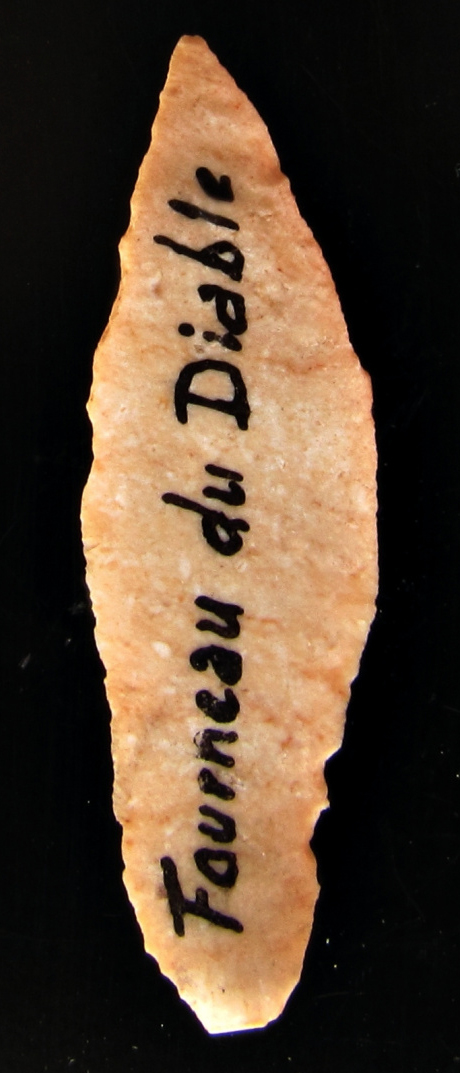

flechettefourneaududiablesm flechettefourneaududiablesm

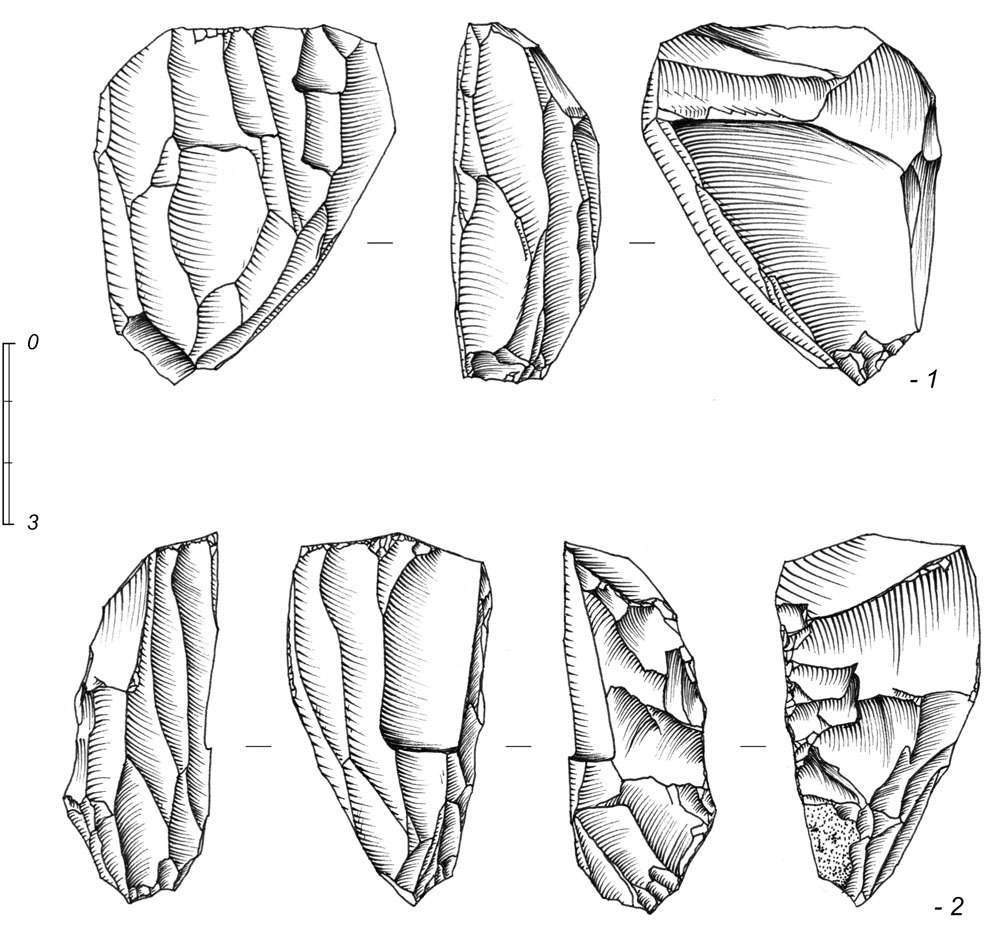

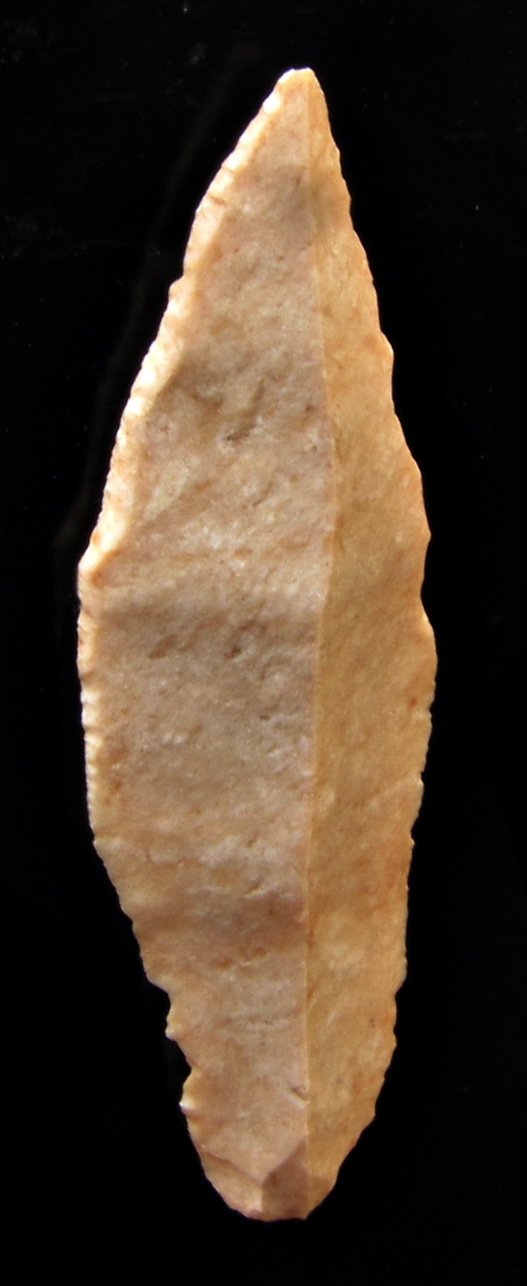

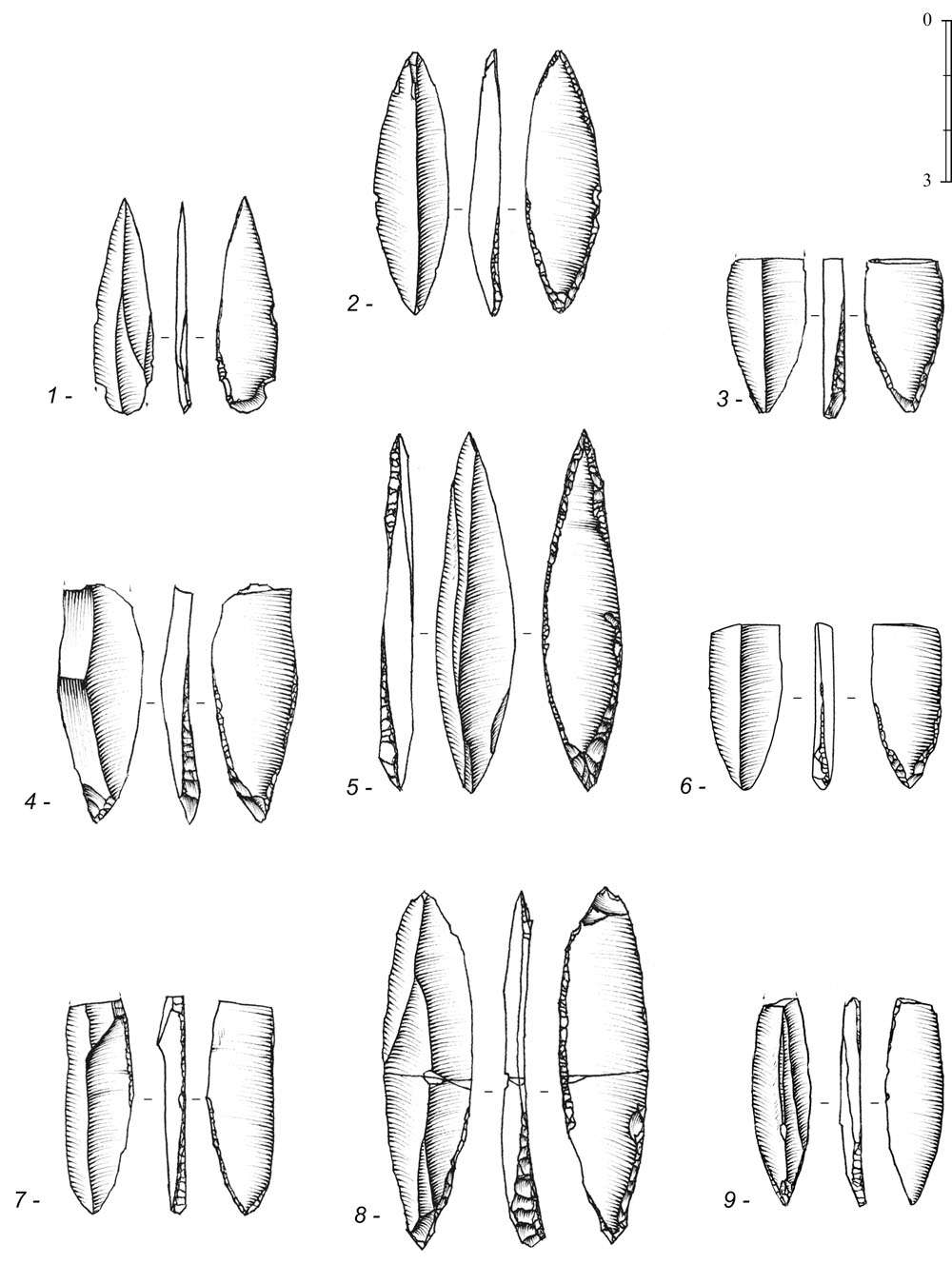

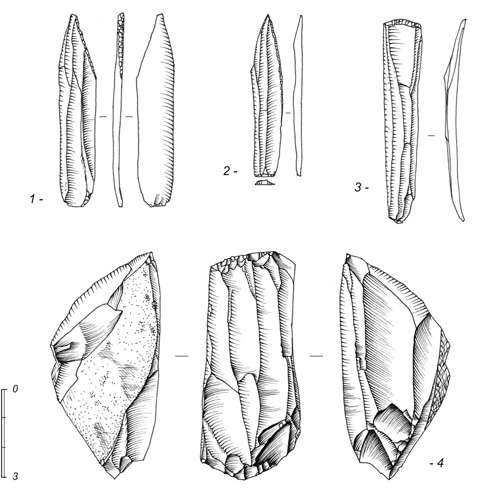

From the excellent Aggsbach's Paleolithic Blog, these photos and text:

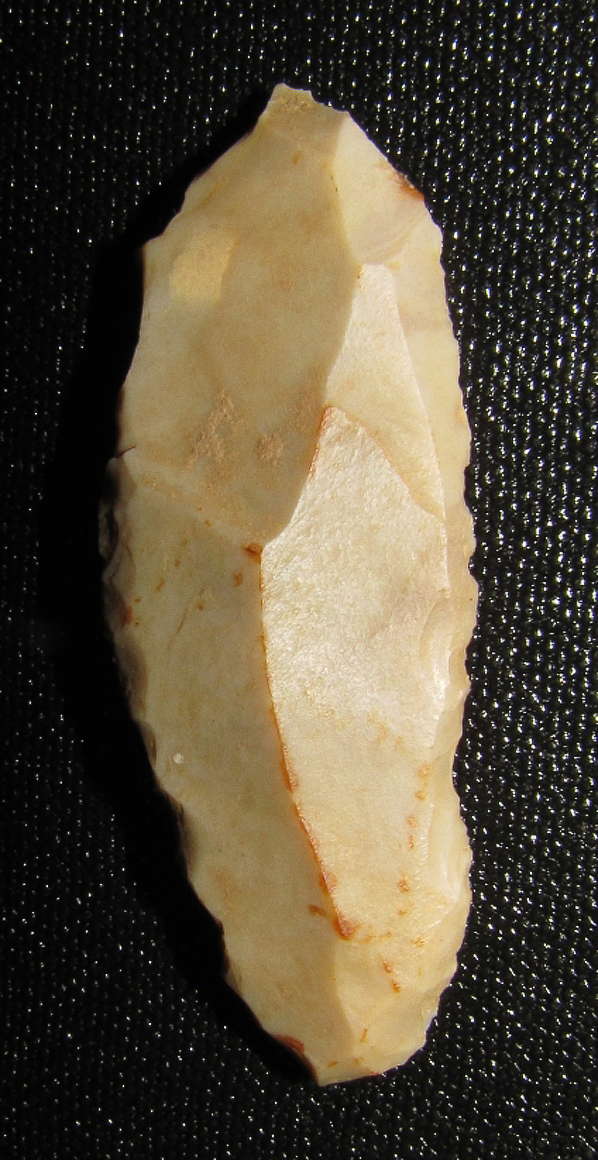

The artefact of this post is a typical Upper Palaeolithic Flechette (40 x 16 x 1,5 mm) from the Gravettian layers of the Fourneau du Diable site.

At La Gravette, Flechettes, made by a specific Chaîne opératoire, were present within a first early Gravettian level, called Bayacian. Here Flechettes were reported to be the only projectiles- an unique anomaly in the structure of the Gravettian. This level is quite different from the two following strata of a rich early Gravettian with Gravette points of all sizes, without Flechettes. The regularity of the Flechettes implies the application of a highly sophisticated operating procedure and a standardisation of the production processes.

Photo and text: https://aggsbach.fossilserver.de/ 2022-04-25 15:57:12, ID: 2325




Fléchettes



Fléchettes from la Gravette.

Catalog: 60.455.34, 60.455.35, 60.455.36
Photo: Don Hitchcock 2015
Source: Original, Musée d'Aquitaine à Bordeaux




Gravettian tools Gravettian tools
(left): Gravettian spear point in reindeer antler from la grotte d'Isturitz.

Dimensions: length 106 mm, width 10 mm.

Catalog: MAN75255F1


(right): Gravettian spear point in reindeer antler from la grotte d'Isturitz.

Dimensions: length 86 mm, width 11 mm, thickness 5 mm.

Catalog: MAN83889
Photo: Don Hitchcock 2015, 2018
Source: Original, Musée d'Archeologie Nationale et Domaine, St-Germain-en-Laye
Text: https://www.photo.rmn.fr



microgravettes
Gravettian age microgravettes from la Gravette.

These microliths are slightly larger than the geometric microliths that followed, and were made from the flakes of flint obtained ad hoc from a small nucleus or from a depleted nucleus of flint.

Photo: Don Hitchcock 2015
Text: Adapted from Wikipedia
Catalog: 60.455.31 to 60.455.33, 61.3.185, 61.3.192
Source: Original, Musée d'Aquitaine à Bordeaux




Flechette distribution in France

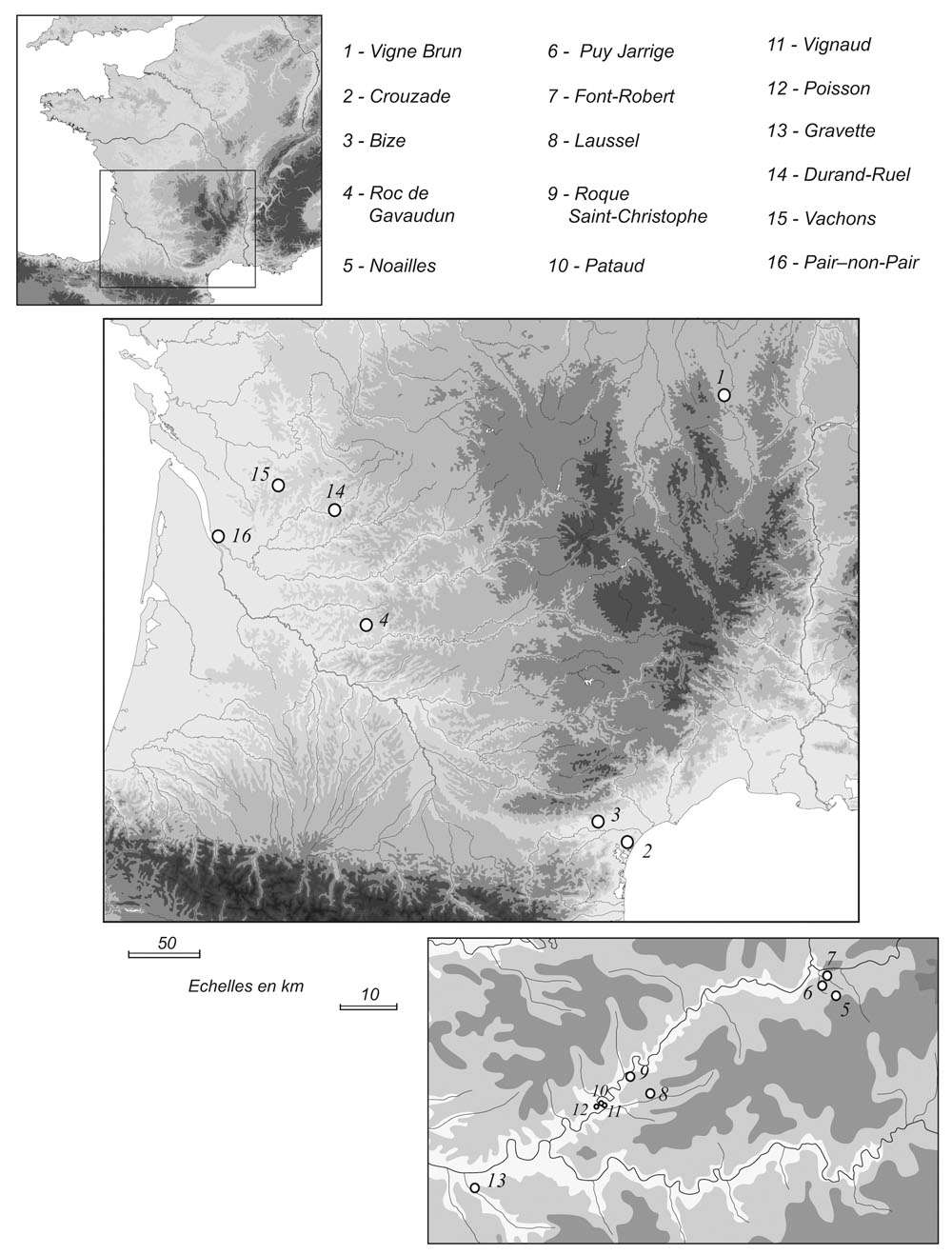

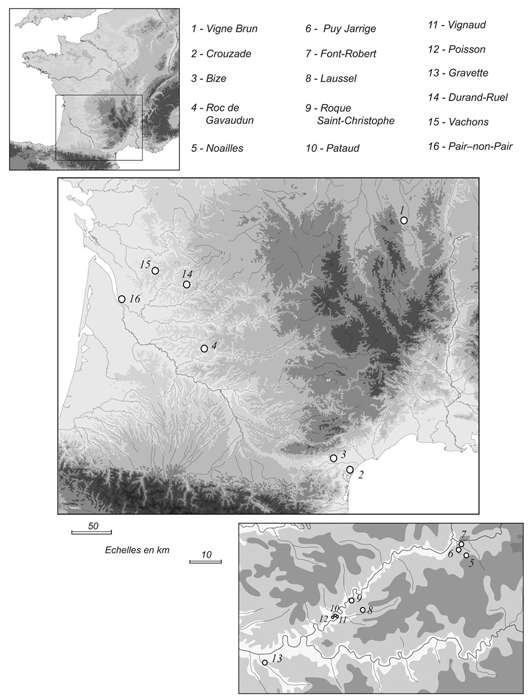

Geographic distribution of fléchette sites.

Photo: Pesesse (2008)




gisements, fouilleurs  in France

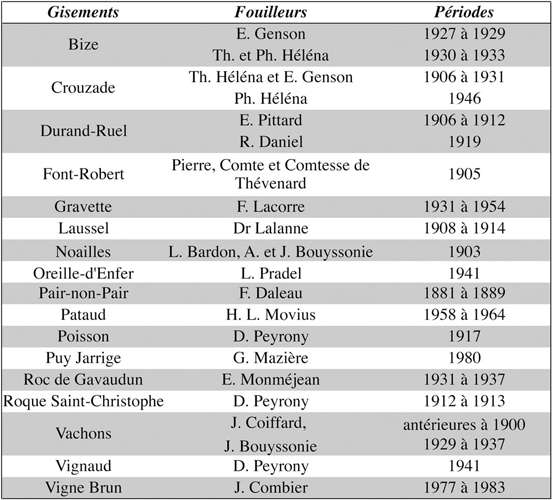

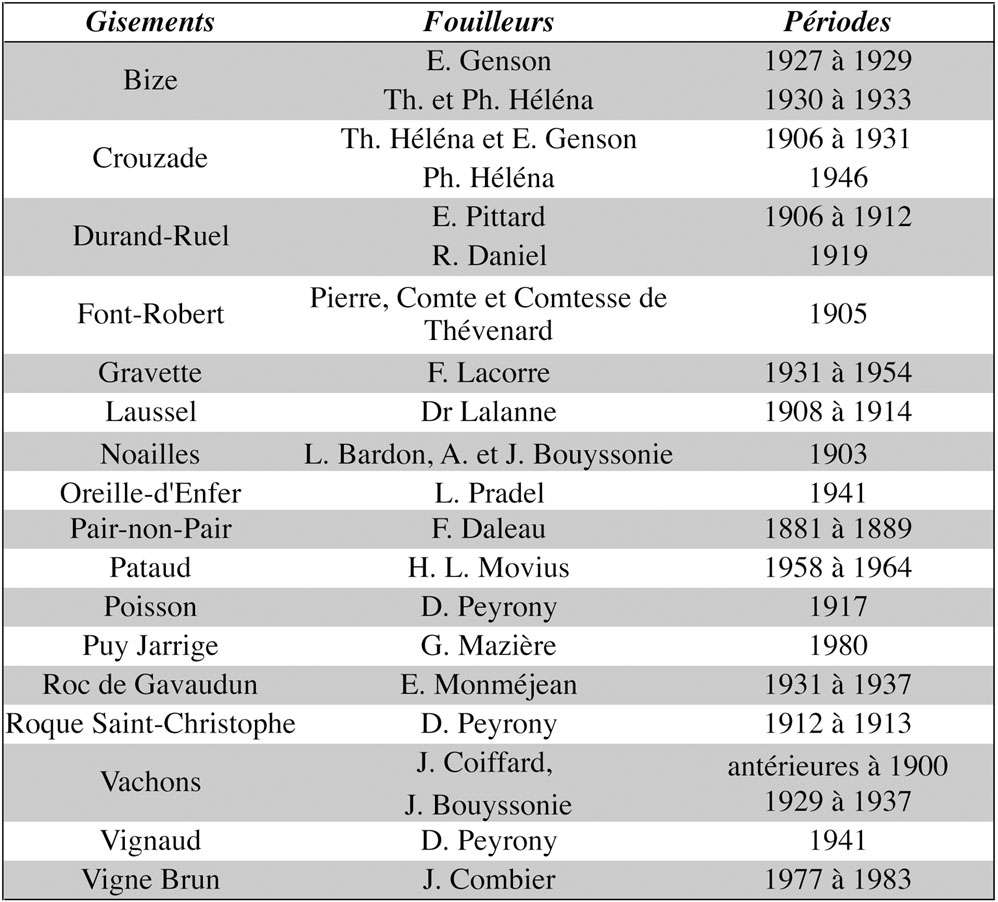

Researchers and dates of excavation of fléchette sites.

Photo: Pesesse (2008)




fléchettes









Fléchettes, bayacian level of La Gravette.

Photo: Pesesse (2008)




fléchettes









Fléchette cores, bayacian level of La Gravette.

Photo: Pesesse (2008)




fléchettes

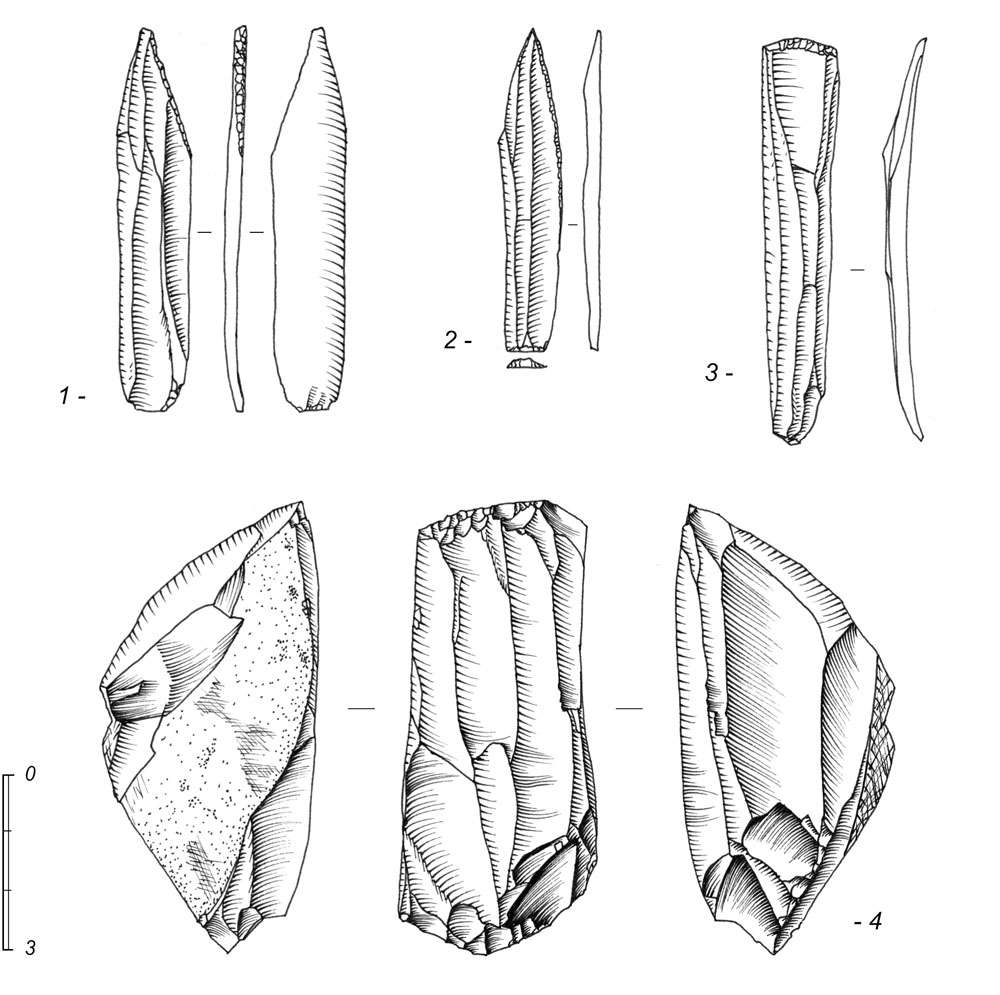

Tools and core resulting from the fléchette chain of operations, bayacian level of La Gravette.

Photo: Pesesse (2008)




fléchettes









For comparison, these are fléchettes from another Gravettian site, La Vigne Brun, located in the upper reaches of the Loire river valley, hundreds of kilometres from La Gravette. See the map above.

Pesesse (2008) writes:

These techniques allow data to be considered in an original way from the early stages of Gravettian . They reveal that the Bayacien is indeed a separate entity and rightfully unique within the Gravettian sphere. Recognizing the originality of the Bayacien raises many implications for the associated paleohistoric and changes our understanding of the passage of the Aurignacian to the Gravettian. The major restructuring of technical systems between the Aurignacian and the Gravettian can be seen as a reflection of the profound changes affecting these tools of the Upper Paleolithic.

Photo and text: Pesesse (2008)






From: Dibble et al (1995)

La Gravette (Bayac).
This site was discovered by Mgr. Chastaing in the spring of 1880. Shortly thereafter, Tababou and Costes excavated there and sold the collections to the Musée de Bordeaux, the Musée de Périgueux, and to some Americans. Some pieces were even sold by Chastaing to the Musée de Latran in Rome. Afterward, the excavations were renewed by Landesque, and then by Féaux, Hardy, Delugin, Testut. On July 14, 1930, Lacorre and M. Neuville opened a trench (Lacorre 1931, 1933, 1960) and later excavations were carried out between 1950 and 1954. The site was donated to the Musée des Antiquités Nationales in 1958. It contains a sequence of Aurignacian and Gravettian as well as a level with darts that has been called the Bayacian (Lacorre 1960; Delporte 1972).

(page 4 of the above) On July 14, 1930, Lacorre and Neuville opened a trench at the site of La Gravette, though the site was not seriously excavated until much later (1940 - 1954)





(Note: I present below this abridged and translated version of the very important paper by Delporte (1972) in an effort to make its important conclusions better known. The site of la Gravette has very scant information about it available on the internet, which is a lamentable state of affairs for the type site of the Gravettian.

The 50 year moratorium should be up by now (2011), to allow digging in the gisement to recommence. It is to be hoped that plans are now well in place for this to happen. When I was there in August 2008, there was no sign whatsoever of any activity of this sort. - Don
)




The Aurignacian and "Bayacien" of La Gravette: Implementation and statistical problems.

Delporte (1972)

Adapted, abridged and translated from the French by Don Hitchcock


The eponymous deposit of la Gravette is located in the valley of the Couze in the commune Bayac (Dordogne). Discovered in 1880 by Chastaing it was studied by many researchers who dispersed much of the Paleolithic material found amongst different French and foreign museums and collections.

The site was then purchased by F. Lacorre who continued excavations between 1930 and 1954, although Lacorre's enterprise has some unusual aspects which it is not our place to judge (we speak of the theft of part of the collection, and sales more or less clandestine, etc) we must recognise that it has, at the end, resulted in a positive outcome, reflected in the publication of a major monograph (Lacorre, 1960), whose scientific value has been discussed, but that is no less precious, if only because it is exceptionally illustrated by almost 80 photographic plates due to its excellent designer, Canon J. Bouyssonie, and has also prompted the donation, made in 1958 at the Museum of National Antiquities, of the major part of the items collected during the excavations, and the gisement itself, provided, however, there will be no excavations for a period of 50 years.

The archeological site (gisement) of la Gravette is of considerable importance for the understanding of the French Upper Paleolithic. In fact, we should remember, it is the eponymous Gravettian site, that is to say, in the strict sense of the Périgordien IV of D. Peyrony. It is an industry that is currently known only from relatively unimportant archaeological deposits.

The publication of Lacorre (Lacorre, 1960) provides some indications of this understanding, especially as regards the presence of a notch tip on some tools in the most recent Gravettian layer. It seems however not possible at present to resume the study of this material; in effect, the study of the Gravettian will be substantially renewed only by the comprehensive publication of recent excavations by H.-L. Movius at the abri Pataud (les Eyzies, Dordogne), and only then will the la Gravette series be able to be reconsidered.

But the gisement of la Gravette is also the eponymous site of another industry, quite original, which Lacorre called le Bayacien, characterised by the presence of many leaf shaped points exhibiting a marginal retouch called flechettes Lacorre which have not been found, in a form similar to that of la Gravette, in any other gisement.

La Gravette points

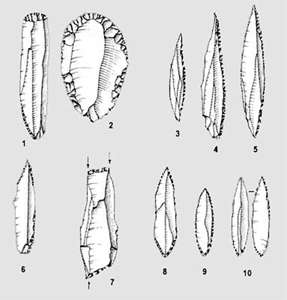

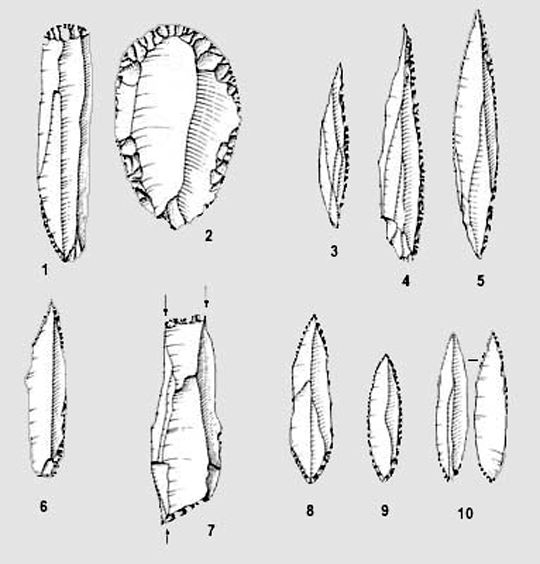

La Gravette. 1-2: grattatoi, 3-5: gravettes, 6: perforatore, 7: bulino, 8-10: flechettes (da Broglio-Kozlowski 1986, p. 286)

At the site of La Gravette, according to F. Lacorre (Lacorre 1960) we distinguish two different levels: the bottom (layer C) is characterized by fléchettes ("Bayacien") and devoid of gravettes, the upper (layers D and F) by gravettes of a large, medium and small size ( "Gravettien"). The flechette is a leaf-shaped point, with two symmetrical sides, obtained by steep marginal retouch. The Gravette is a point with a straight or slightly curved back.

(Note that the flechettes are leaf shaped, with marginal retouch, anticipating the full development of the classic Solutrean leaf shaped points - Don)

Photo and associated and adapted and translated text: http://www.antiqui.it/doc/preistoria/psup2.htm




The understandable desire for an immediate resumption of excavations at la Gravette has been thwarted because of the conditions on the site imposed by the donor. Thus, the study of the Bayacien, or the so-called Bayacien, can not be undertaken except for the study of the more or less truncated Lacorre collections in museums. It is therefore a unique situation, but it has resulted, of necessity, in much of the work undertaken in recent years in the Musée des Antiquités Nationales.

La Gravette coupe stratigraphique

Stratigraphy of La Gravette, from the excavations by Lacorre.

a: Sterile layers.
b: Excavations previous to those of Lacorre.
c: Excavations by Lacorre.
d: Strikes of the cross sections used for the diagram.

Photo: Delporte (1972)




Stratigraphy.

As with most stations, the stratigraphy of la Gravette is not uniform from one end to the other of the deposit. Lacorre successively dug three trenches, numbered from east to west, and for each of which he has surveyed and published a cross section; in addition, his monograph provides us with a sagittal section (a division of left from right) for the second trench.

Using the same numbering system for the layers as Lacorre, it is then possible to precisely describe the depositions, from the bottom to the top:

1. At the base, a layer of dry rubble in which are dispersed flints allocated to the Aurignacien évolué, with a thickness of about 30 cm. This layer is separated from the the second layer by the sterile Layer 2.

2. A sterile layer whose thickness varies between 20 and 50 cm.

3. The second archeological layer exists only in trenches 1 and 2. The second trench, however, turned up some rare pieces that have not been found in the first trench.

In the second trench, the archeological layer has an average thickness of 65 cm, and has furnished an abundant set of tools to which Lacorre has given the name Bayacien. It is directly, but partially, overlain by the Gravettian formations.

4. A sterile layer non-existent in the first trench and merged with Layer 2 in the third trench.

The upper set of sediments containing the Gravettian seems complex, and was divided, on the basis of colour, into three layers:

5. A yellow layer (average thickness, 40 cm), relatively poor and only existing in the first two trenches.

6. A red layer, with a maximum thickness of 70 cm, rich in artefacts, which was encountered in three trenches, and is directly superimposed on the previous layers where they exist. Moreover, we do not know the reasons for the colour variation between the two layers.

7. In the second and third trenches, there is a sterile layer of 10 cm thickness, which, according to Lacorre, systematically separates the two upper Gravettian formations 6 and 8.

8. A black layer, average thickness of 40 cm, also very rich in artefacts, present in the second and third trenches. 9. Sterile and superficial formations of variable thickness.

Within this stratigraphy, two facts seem interesting to remember: the first, quite unique, is the existence of two sets of Gravettian deposits, clearly separated from each other. The second is the absence of a sterile layer between the Bayacien and the Gravettian, so that one wonders how their separation can be objectively determined...

It is also worth noting that Lacorre was preoccupied about what he calls the environment of the Paleolithic populations of Gravette and has therefore published paleontological and sedimentological indications of variable value, but which are none the less interesting.

He noted in particular that the Aurignacian and, to some extent, the Gravettian correspond to periods of a fairly moderate cold climate, while that of the Bayacien is much more rigorous. Insofar as these proposals can suggest a hypothesis, and by reference to recent work on the climate of the Aurignacian-Perigordian period (Leroi-Gourhan, 1968), we are able to place the Aurignacian of la Gravette at the end of the interstadial D'Arcy, the Bayacien in the stadial Arcy-Paudorf and Gravettian in the interstadial Paudorf. This last position would fit well with that of the Gravettian shelter of l'abri Pataud, of which it is well to remember that the Carbon 14 dating ranges between 28 000 and 26 000 B.P.

In any case, even if in the future - which could be quite distant - we must make clarifications and corrections to what we know about la Gravette, it is nevertheless the case that this station has delivered rich and original industries which should be submitted to an accurate typological study, at least with regard to the Aurignacian and the "Bayacienne" series.

Aurignacian blade
It should be noted that the Aurignacian, where it occurs at the same site as the Gravettian, precedes it.

This is an Aurignacian scraper on a blade, from the type site, Aurignac Cave in Southern France.

Date: between 37 000 and 28 000 Before Present (Aurignacian)
Medium: Flint
Current location: Muséum de Toulouse, France
Object history: Findspot: Aurignac cave, Haute-Garonne, France. Former collection of Édouard Lartet, 1861

Photo: Didier Descouens
Permission: Creative Commons Attribution-Share Alike 3.0 Unported license.




The Upper Aurignacian

The Aurignacian deposits, in which 107 artefacts were recovered, is characterised by more homogenous material than the Gravettian series. Against this result, it must be reported that there was a great variety of patina and the fact that a good number of the pieces had traces of lustre.

Typologically, the industry is defined by the following:

1. Scrapers (grattoirs) are very numerous (67.29%) and, overall, well made and very regular. The scrapers were made on the end of a blade, sometimes on both ends, and were not usually on a retouched blade, and never on a true Aurignacian blade. There was a good series of scrapers on large and relatively flat flakes, but which were different, by their dimensions as well as by their retouch, to those of the Gravettian. The tools, generally large, are characteristic, although the lamellar retouch of the used portion does not reach the fineness and smoothness of many examples of the Aurignacian II. As for Grattoirs à museau, known in English as muzzle shaped scrapers, or "nose" scrapers, they are virtually absent.

 grattoir museau



This is an illustration, for reference and explanation, from another site, of a particularly good Grattoir à museau, or muzzle shaped scraper.

Photo: http://che70.blog4ever.com/blog/lesphotos-13327-8270.html

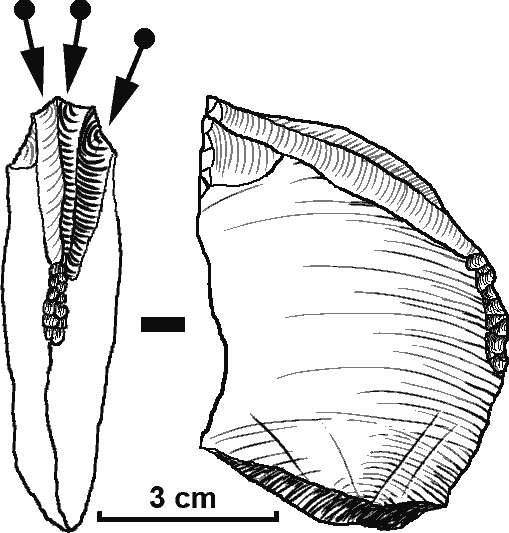

burin burin

Left: Dihedral burin on a blade

Right: Carinated burin, a small multiple burin characteristic of the Gravettian, ca. 28-23 000 BP; these flake tools have been restruck and refined to give several chisellike edges and a blunt, grippable rear edge.

Photo and text: Wikipedia




2. Burins are relatively abundant for the Aurignacian (20.56%) and they almost all belong to the family of dihedral burins or chisels, the series has only one burin with oblique truncation. The most interesting group is made up of small tools ( Lacorre, 1960), which represent a transitional form between the dihedral angle burin and the beaked burin.

(The beaked burin is especially common in the Middle Aurignacian. In appearance it rather resembles the prow of a ship turned upside down; the working edge is convex, being formed by a flat graver facet on one side, and a series of convex graver facets up the prow; this produces a keeled scraper made on the breadth of a blade. There are two sub-varieties, one with a notch to prevent the little convex graver facets from going too far down the blade, and the other without.) Burkitt (1925)

Burin busqué
Burin busqué - the Beaked Burin

Figure 6 - Burin busqué, n°1 : Abri 2, couche 2, et burin busqué à tendance Vachons, n°2 : Abri 1, couche 2 (dessins D. Pesesse). Figure 6 - Burin busqué, n°1 : shelter 2, layer 2 and burin busqué near of the Vachon’s type, n°2 : shelter 1, layer 2 (drawings D. Pesesse).

Photo and text: http://paleo.revues.org/index184.html




abri pataud burin busque burin busque


burin busque burin busque
Un outil caractéristique de l'Aurignacien moyen - le burin busqué. C'est un outil robuste dont le biseau est formé par la rencontre d'un enlèvement lamellaire assez large et de plusieurs enlèvements contigus parfois incurvés et arrêtés par une encoche.

A characteristic Middle Aurignacian tool - the beaked chisel or burin. It is a solid, heavily constructed tool whose bevel is formed by a large reduction of diameter from a large base to a relatively small point.

Photo: Don Hitchcock 2008

Source: Display at Abri Pataud Museum. These appeared to be originals.




Burin busqué
Burin busqué - the Beaked Burin

Three or more fairly regular spalls, often removed from a Spall Removal Surface (SRS) of dihedral type, approximate a semicircle. An edge of this shape is sometimes described as the "gouge" or "busqué" type.

(This is an excellent diagram of what I think of as a "classic" beaked burin, as described by Burkitt (1925) above. Note the front vertical spall, and the notch taken out of the rear of the burin to make sharpening easier, so that a spall comes off easily when retouching. - Don)

Photo and text: Movius et al (1968)




It is interesting to observe that the great majority of burins in this ensemble - exactly 2/3 - is represented by dihedral burins and by atypical beaked burins, and also that there is a real morphological relationship between the two types of burins.

3. Apart from scrapers and chisels, which together represent nearly 90% of the tools, the rest comprise nothing very distinctive, except perhaps for one "choked" blade, reminiscent of the Aurignacian I, for which the retouch is irregularly denticulate.

 Aurignacian blades

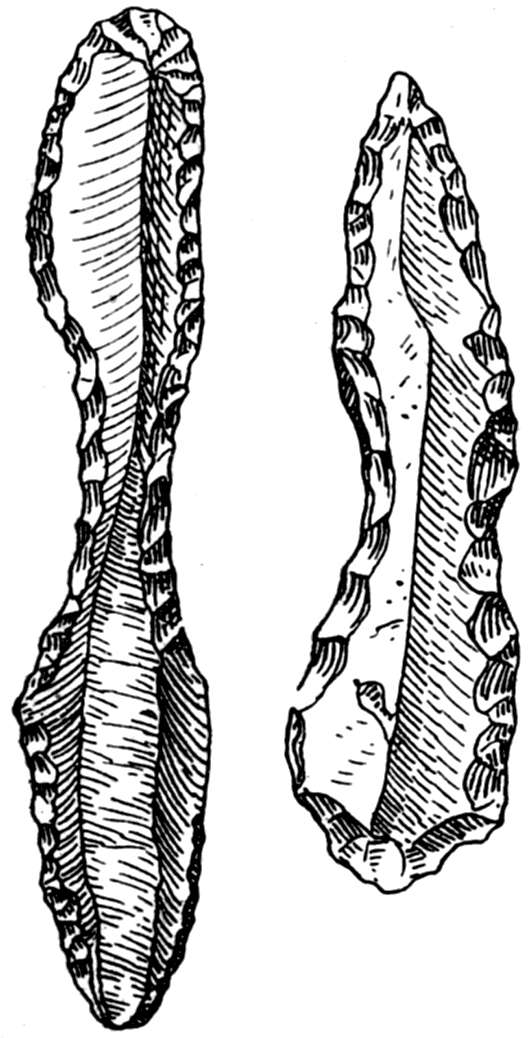

Aurignacian blades. (These are "choked" blades. Note the waisted appearance of the blade - Don)

Photo and text: Wikipedia - public domain image. Aurignacian blades personal scan from 'Manuel d'archéologie préhistorique, celtique et gallo-romaine', fr:Joseph Déchelette (1862-1914).




Bayacien

Because any control digging is impossible in the immediate future, it must suffice to recall the problem of the authenticity of this industry. There are indeed several fléchettes in many other paleolithic stations, but they are directly associated with a Gravettian industry such as at l'abri Vignaud (Dordogne), or a set of finds belonging to the Périgordian V complex, as at Font-Robert (Corrèze).

La Gravette is thus the only site where this fléchette industry was found pure, essentially without any of the classic elements of the Gravettian; this is amazing, but it is not a sufficient reason to formally question the comments of the excavator.

Certainly the stratigraphy, as so often happens, does not facilitate the task. In trench 2, the Bayacien is well separated from the Gravettian, but only "a few scattered elements" were found there.

In contrast, it is much richer in trench 1, but this time it is in direct contact with the Gravettian, at least in one part of the excavated area.

It is reasonable to ask on what criteria Lacorre based the establishment of the separation.

It appears, however, from the book, that the area of habitat was not the same, that of the Bayacien being further from the abri than was the Gravettian; not only that, but the inscriptions carried by some pieces suggests that separate living areas existed in the Bayacienne layer which, we should remember, attained in trench 1, a thickness of about 65 cm.

The situation is admittedly complicated by the fact that, apart from the fléchettes, there is a certain community of material, of patina and even debitage (waste material, flakes struck off a core which are not used - Don) between the Bayacien and the Gravettian series.

We should also remember that in this ensemble, the Gravettian tools are larger than those of the Bayacian.

All told, it appears however legitimate not to reject a priori the possibility of the existence of the archaeological layer and of this industry as the original Gravettian industry.

In this industry, the number of fléchettes is exceptionally high: with some unusual pieces and some very rare, we arrive at a total of 119 fléchettes, comprising 56.47% of the tools.

Although that is exceptional, this fact should not be regarded as impossible; we should recall that in certain Solutrean deposits, Laugerie-Haute for example, the proportion of laurel leaf points exceeds 40% and can be as high as 53.9% ( Sonneville-Bordes, 1960; Smith, 1966).

In general, artefacts collected from a site or, more generally, from a fraction of a site, do not constitute a completely accurate sample of a more or less theoretical civilization, but consists of all the tools in one place at one time - perhaps a season - and in particular circumstances.

The problem of this specificity of tools has already been discussed with respect to the Perigordian V Noailles burins industries (Sonneville-Bordes, 1953; Delporte, 1962, 1968a). Also, we should not neglect the phenomena of localization already mentioned above about Aurignacian habitats.

The fléchettes have also been called Bayac points.

A review undertaken on a batch of 109 whole fléchettes leads to the following observations:

1. The leaf-like shape is almost universal (especially as the expression remains rather vague!)

However we may also add two descriptors about these tools - they are stretched and thin.

Stretched, because the average ratio length / width was 3.96.

Thin, because the average thickness is about 2 mm, which differs significantly from the fléchettes of the Gravettian points for example.

2. The term "sublozangoid" implies, inter alia, the existence of a point at both ends. This is the case, in general.

But it should be added that although the distal tip is always sharp and often very acute, the proximal end sometimes tends to swell and it often forms a rather obtuse angle, sometimes lopsided, and therefore tends to be a true oblique truncation. It is only in 35.77% of cases that we can really speak of fléchettes which are acute at both ends. It seems necessary to add the definition: "the distal end is more often acute.


Direct and inverse retouch definitions

(Before continuing, it is worth noting these definitions of types of retouch - Don)


direct retouch
Direct retouch
Direct (or obverse) retouch position has been defined as "retouch in which the...removals start from the ventral or bulbar surface. Also called normal retouch" (Tixier 1974).

It is called normal retouch as it is the most common retouch found and is the easiest to apply - the knapper works from the ventral surface, which forms a flat striking platform, onto the convex dorsal surface. As illustrated it can only be seen from the dorsal surface and leaves no traces on the ventral face.

Photo and text: http://www.hf.uio.no/iakh/forskning/sarc/iakh/lithic/retouchposition.html

(Visit this site for good definitions of alternate retouch, alternating retouch, bifacial retouch, and invasive retouch - Don)




inverse retouch
Inverse retouch
Inverse retouch position is the opposite of direct retouch position in that it is formed "when removals start from the dorsal surface" (Tixier 1974). It is more difficult to apply than direct retouch in that the knapper must work from a convex surface on to a flat surface. No traces of it can be seen from the dorsal face - it is only visible from the ventral surface.

Photo and text: http://www.hf.uio.no/iakh/forskning/sarc/iakh/lithic/retouchposition.html

(Visit this site for good definitions of alternate retouch, alternating retouch, bifacial retouch, and invasive retouch - Don)







3. The retouch is characterised by its restraint. However, given the thinness, the retouch could change the shape of the blade very significantly. The retouch is almost always abrupt: on 3 pieces, the reverse retouch tends to flatten and become invasive. It is abrupt or semi-abrupt - abruptly when it is thin, with a thickness which does not exceed a millimetre. When semi-abrupt, it is also very fine, slightly more marked than that of the Dufour blade.

4. Direct retouch is most common, since 67.89% of fléchettes studied bear no traces of inverse retouch. Where it exists, it is - except for some pieces mentioned above - semi-steep, or, more rarely, thin and abrupt, and it is organized in different ways.

One problem is the distinction between the fléchettes and various well-defined similar pieces from the Upper Paleolithic:

1. The lamelle Dufour is, by definition, a blade, much smaller than the fléchette. But it is essentially the morphological characters and technology that separates them. The often curved shape of the lamelle Dufour is opposed to the straightness of the fléchette.

2. The pointe de Font-Yves is of equal size or smaller than the fléchette, from which it differs significantly: the shape, perhaps longer, is also less rhombic; the ends are less consistently pointed, and especially the proximal end is often convex; retouch, almost exclusively fine and semi-abrupt, covers the entire length of the edge, not just on the ends, and it is almost never inverse.

3. The pointe de Laugerie-Basse or "fléchette with inverse retouch" (Sonneville-Bordes, 1960) is close to the typical fléchette. It diverges, however, by the fact that the proximal part is rarely angular or truncated, and especially by the disposition of the retouch.

4. The pointe de Tursac can not be defined accurately, but it differs from the fléchette in its greater size and by special arrangement of its retouch, but the general shape of some of them approaches that of the fléchette.

5. The pointe de Châtelperron: some fléchettes with abrupt retouch have some analogy with the pointe de Châtelperron. Separation is, however, on two criteria: first, that the retouch on the pointe de Châtelperron is primarily on one of the two edges. On the other hand we note the fact that the base of the pointe de Châtelperron is convex or square.

Apart from fléchettes, bayacien stone tools are relatively poor and commonplace; they are distinguished from the overlying Gravettian, first by the absence of large pieces, and also by the almost total lack of forms typical of the Gravettian.

Scrapers (11.43%) are mostly represented by scrapers on the end of unretouched blades, of varying shape, often quite massive and there are some scrapers on flakes, different from the Gravettian.

Burins (16.67%) are more numerous than the scrapers, with a net preponderance of dihedral burins (9.52%) and truncated burins (3.81%). Dihedral burins were varied, most lopsided.

The series is complemented by a few pieces of Perigordian type, by two pointes de Châtelperron and some flakes of l'Abri Audi type, as well as some truncated blades and some scrapers.

The presence of some pointes Châtelperron had led Lacorre to assume that this industry is an evolved form of the lower Perigordian, which has little evidence to commend it.

As for the bone tools, they are also commonplace, with some broken points and broken fragments of bone cutting and reindeer antlers, and a small oval ivory plaquette in ivory, very flat, is considered by Lacorre to be a broken pendant.

It seems unnecessary to publish the cumulative pattern of this industry, given that, in the current situation, we know of no standard of comparison. All we can say is that it represents a particularly original ensemble, which corresponds, presumably, to an industry which has so far been met only at la Gravette. This ensemble differs markedly from those of the classical Gravettian, with which it has really very little in common

In these circumstances, it seems not unreasonable to accept at least hypothetically, and with reservations, the proposed term of Bayacien.





References

  1. Burkitt M., 1925: Prehistory: a study of early cultures in Europe and the Mediterranean basin, Cambridge, Cambridge University Press. 1925, Second Edition.
  2. Delluc, B. and Delluc, G., 1982: La Gravette à Bayac (Dordogne). Rapport de fouilles de L. Tabanou (1888-1889) Bull. de la Soc. d’études et de rech. préhist. des Eyzies, 32, 9 p., 3 fig.
  3. Delporte, H., 1972: L'Aurignacien et le « Bayacien » de la Gravette : mise en oeuvre statistique et problèmes posés Bulletin de la Société préhistorique française, Année 1972, Volume 69, Numéro 1 p. 337 - 346
  4. Dibble, H. and Lenoir, M., 1995: The Middle Paleolithic site of Combe-Capelle Bas, University of Pennsylvania Museum Publication, December 1995, ISBN-10: 0924171383 ISBN-13: 978-0924171383
  5. Lacorre F., 1960: La Gravette, le Gravettien et le Bayacien, Laval, 1960, 369 pp., 26 fig, 78 planches
  6. Movius H.L. Jr, David N., Bricker H., Clay B., 1968: The analysis of certain major classes of upper palaeolithic tools: Stratigraphy, American School of Prehistoric Research, Peabody Museum, Harvard University, Cambridge, Massachusetts
  7. Movius H.L. Jr, 1977: Excavation of the abri Pataud, Les Eyzies (Dordogne): Stratigraphy, American School of Prehistoric Research, bull. 31, Peabody Museum, Harvard University, Cambridge, Massachusetts, 167 p., planches h. t.
  8. Pesesse D., 2008: Le statut de la fléchette au sein des premières industries gravettiennes, Paléo: 20 | 2008, 277-290, http://paleo.revues.org/1572
  9. Pesesse, D., Michel A., 2008: Le burin des Vachons : apports d’une relecture technologique à la compréhension de l’aurignacien récent du nord de l’Aquitaine et des Charentes, Paléo, 18, 2008, 143-160
  10. Tixier, J. (translated by M. Newcomer), 1974: Glossary for the Description of Stone Tools with Special Reference to the Epipalaeolithic of the Maghreb, Newsletter of Lithic Technology: Special Publication Number 1 - December 1974


Back to Don's Maps


walls of china Back to Archaeological Sites
