Australopithecus boisei or Paranthropus boisei

Nutcracker man

Paranthropus boisei

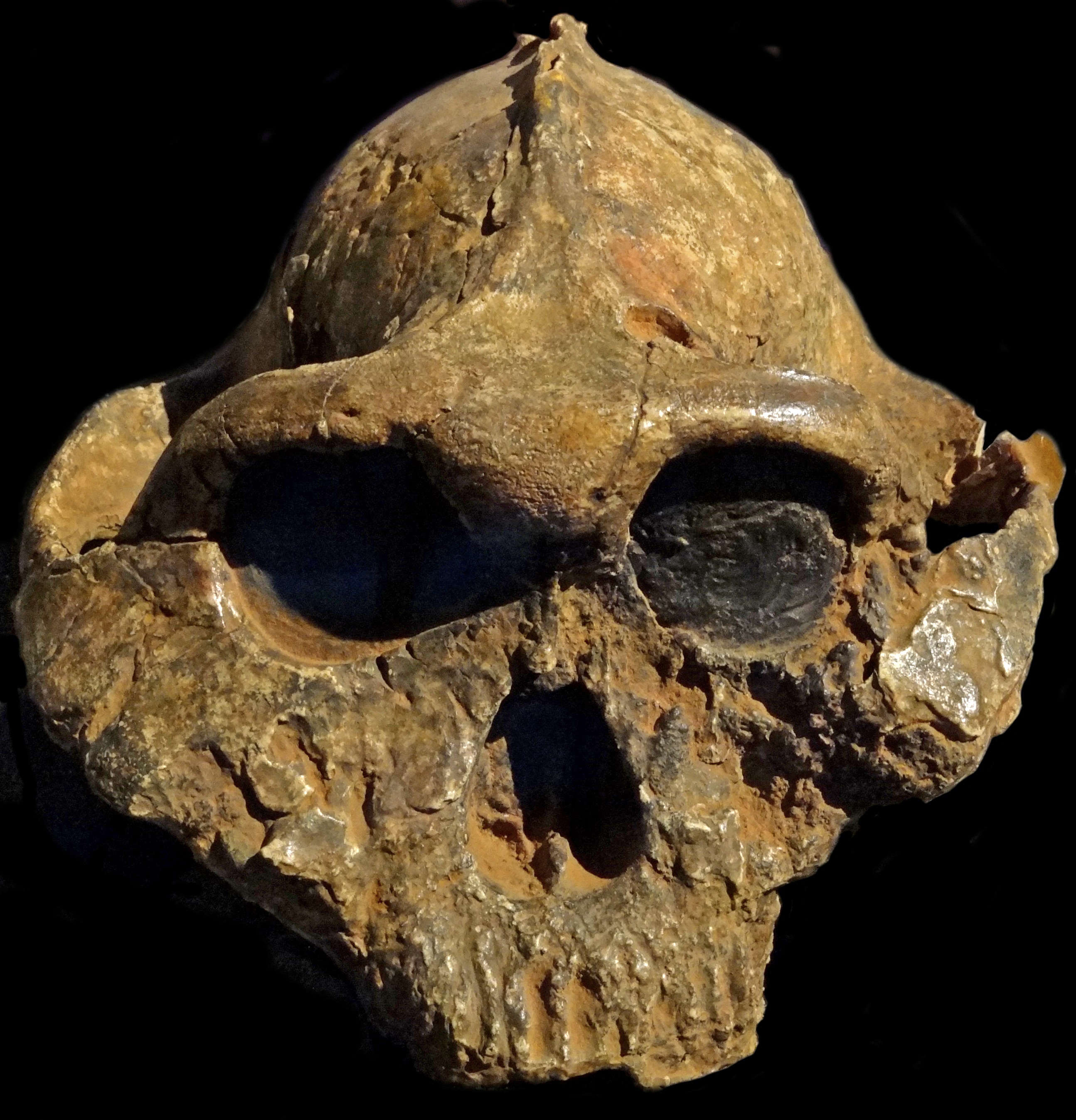

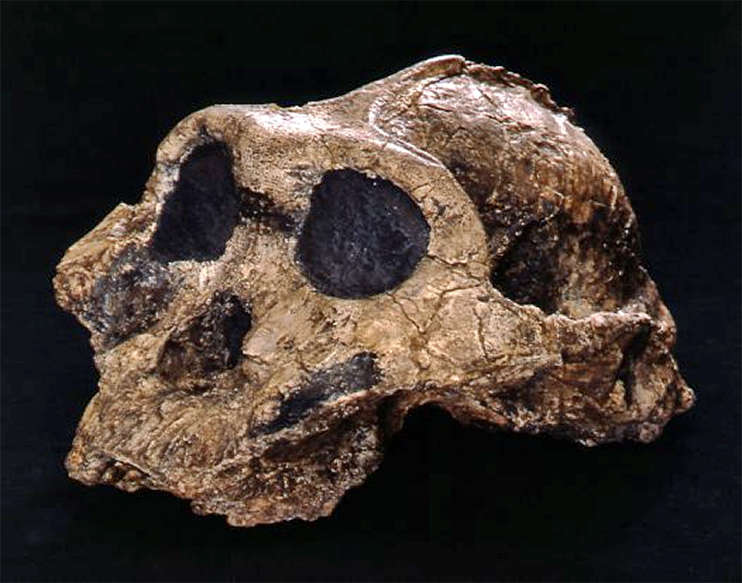

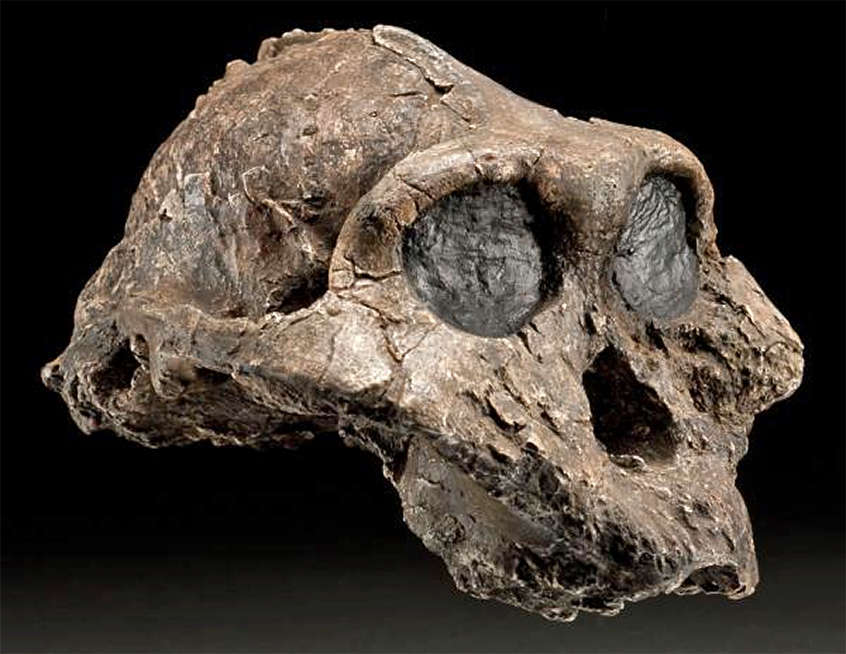

OH 5 (cranium)

This is the largest of the robust australopithecines, with the biggest cheek teeth and the thickest enamel of any known hominin. Carbon isotope ratios of P. boisei teeth suggest a diet dominated by tropical grasses and sedges.

Olduvai Gorge, Tanzania
1.8 million years BP
Discovered by M.D. Leakey, 1959
Facsimile

Photo: Don Hitchcock 2018
Catalog: OH5, PA EM 1317
Source: Facsimile, display at The Natural History Museum, Cromwell Road, London SW7 5BD
Original: in the National Museum of Tanzania.

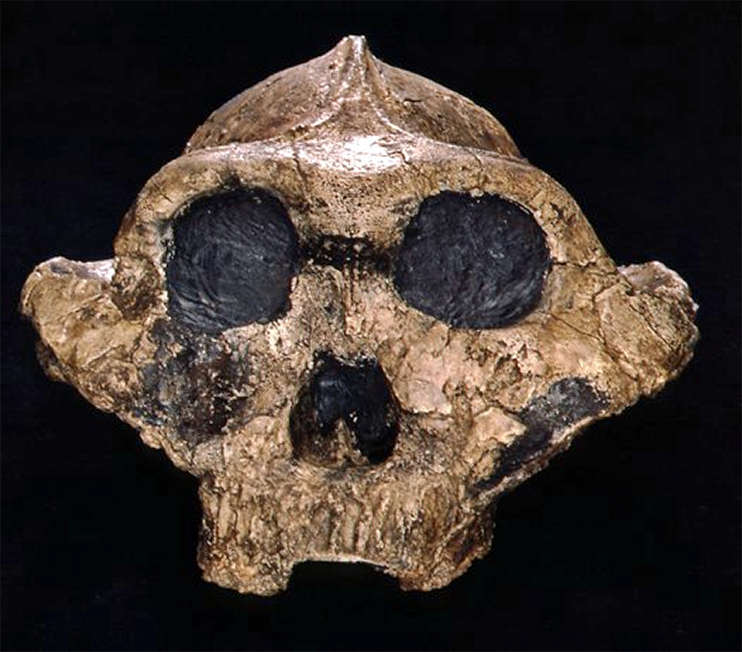

Paranthropus boisei, type specimen, OH 5

Cranium, Olduvai, Tanzania.

Circa 1 800 000 BP.

Photo: Don Hitchcock 2015
Source and text: Vienna Natural History Museum, Naturhistorisches Museum Wien

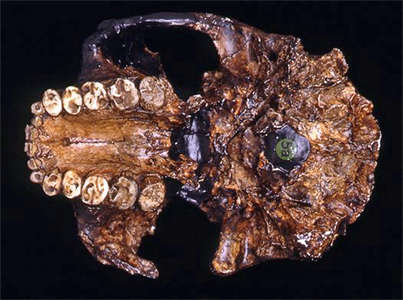

Underside of skull of Paranthropus boisei

Cast of Paranthropus boisei OH 5 Type specimen. Found in Olduvai Gorge, Tanzania in 1959.

The jaw clearly shows that the front teeth (incisors and canines) were very small compared with the extremely large molar teeth. The molar teeth were very effective for crushing and grinding tough plant foods

Photo: © http://australianmuseum.net.au/image/Underside-of-skull-of-Paranthropus-boisei/

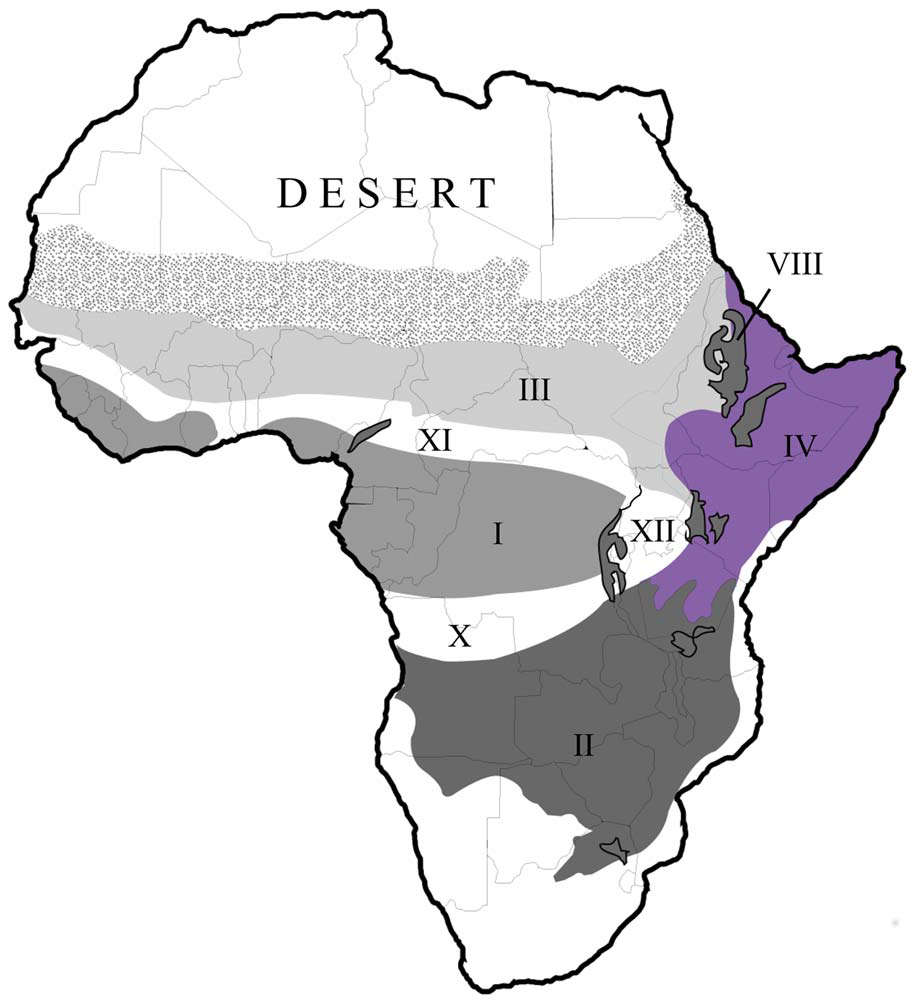

Map of Africa showing the phytogeographical zones, with the Paranthropus boisei range in purple.

The phytogeographical zone IV (Somalia-Masai steppe and shrubland) was occupied byParanthropus boiseiand is now occupied by the Papio cynocephalus population used in this study.

I Guineo- Congolian humid forest
II Zambezian miombo woodland
III Sudanian woodland
V Somalia-Masai steppe and shrubland
X–XII transition mosaic of forest/savanna/woodland
VIII Afromontane domain

The location of the A. bahrelghazali sites in Chad falls outside these recognised zones (stippled). Hence, no attempt was made to more accurately assess the possible dietary ecology of this species. doi:10.1371/journal.pone.0084942.g001

Photo and text: Macho (2014)
Permission: © 2014 Gabriele Macho. This is an open-access article distributed under the terms of the Creative Commons Attribution License.

Garniss Curtis (right) and Jack Evernden with a mass spectrometer they used to determine the age of rocks, ca. 1960. Photo by J. Hampel/UC Berkeley.

Geologist Garniss H. Curtis, a professor emeritus of earth and planetary science at the University of California, Berkeley, was a pioneer of the use of radioactive isotopes to date relatively young rocks to provide the first solid timeline for human evolution.

Curtis collaborated with late UC Berkeley professors John Reynolds, a physicist, and Jack Evernden, a seismologist, to take advantage of the radioactive decay of potassium into argon in volcanic rock to determine how long ago the rock formed. Using this potassium-argon method, they established precise dates for recent geologic time periods that allowed Curtis to assign dates to fossilised human remains and prove they were much older than once thought.

Reynolds developed a precise way to date meteorites in the 1950s, but it was Garniss who adapted the technique to work on geological problems.

Since the late 19th century, radioactive isotopes such as uranium and potassium have been used to date billion-year-old rocks, but dating 'young' rocks (on the geological timescale) was a challenge because the radioactive decay products in such rocks are present in minuscule quantities. Using then-new ultra high vacuum systems combined with mass spectrometry, UC Berkeley researchers were finally able to count these atoms and provide precise dates on young rocks.

'Garniss was the first to show that you could date things younger than a couple of million years, and he teamed up with the Leakeys to date their finds in Olduvai gorge in Kenya,' said Curtis’s former student Paul Renne, now director of the Berkeley Geochronology Center, which Curtis founded. 'His major contribution was putting numbers on the timescale of human evolution.'

'This work formed the quantitative ground work for paleoanthropology and human evolutionary history by providing a set of 'clocks' with which to read and hence interpret past events in proper sequence,' wrote geologist George Brimhall in a 1989 letter recommending Curtis for a Berkeley Citation, an honour bestowed by the chancellor for distinguished or extraordinary service to the university.

Photo and text above adapted from http://news.berkeley.edu/2013/02/26/garniss-curtis-pioneer-of-precision-fossil-dating-has-died-at-93garniss-curtis-pioneer-of-radioactive-dating-has-died-at-93/

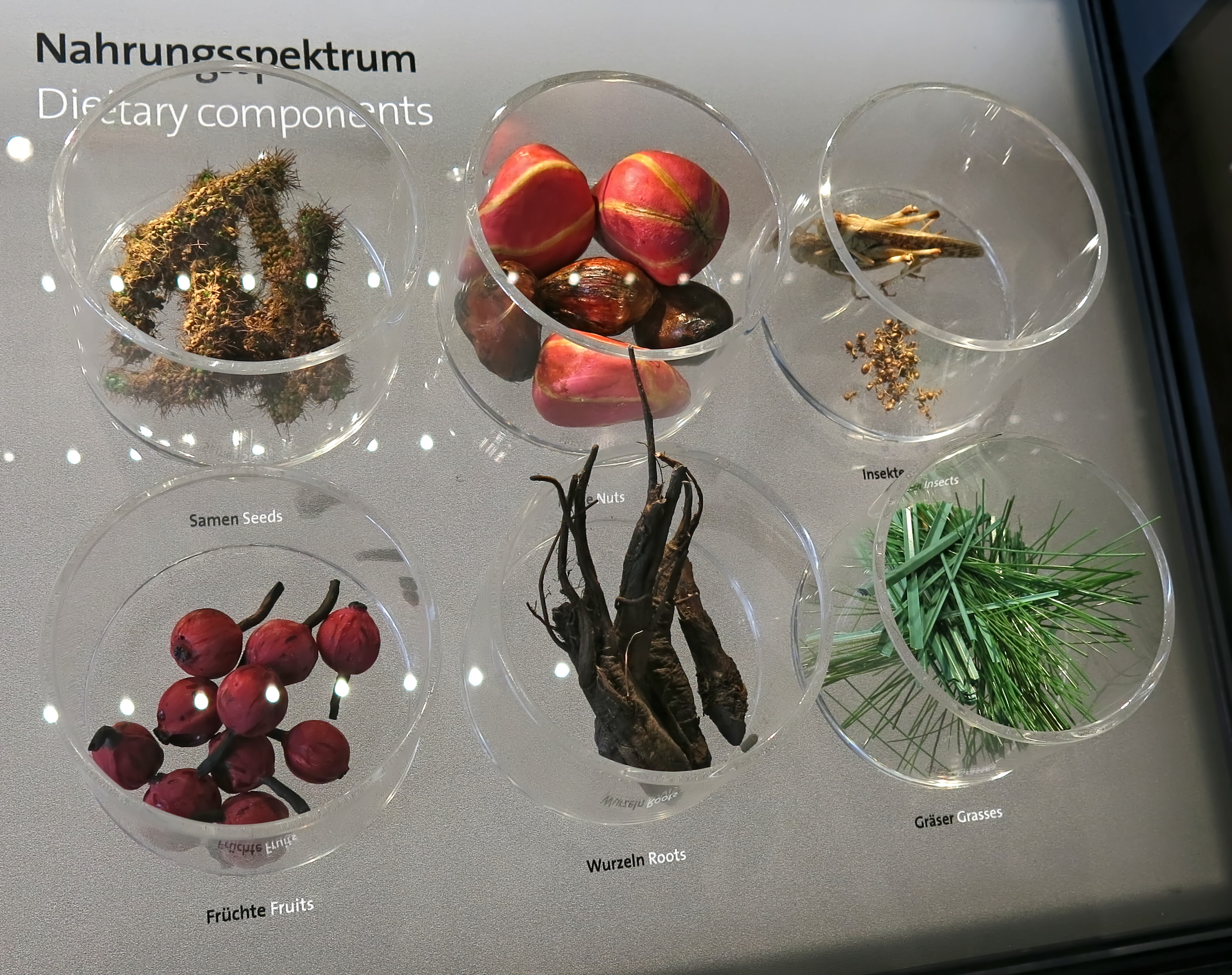

Paranthropus had a varied diet rich in fibre. Included were seeds, nuts, insects, fruits, roots, and grasses.

Photo: Don Hitchcock 2015
Source and text: Vienna Natural History Museum, Naturhistorisches Museum Wien

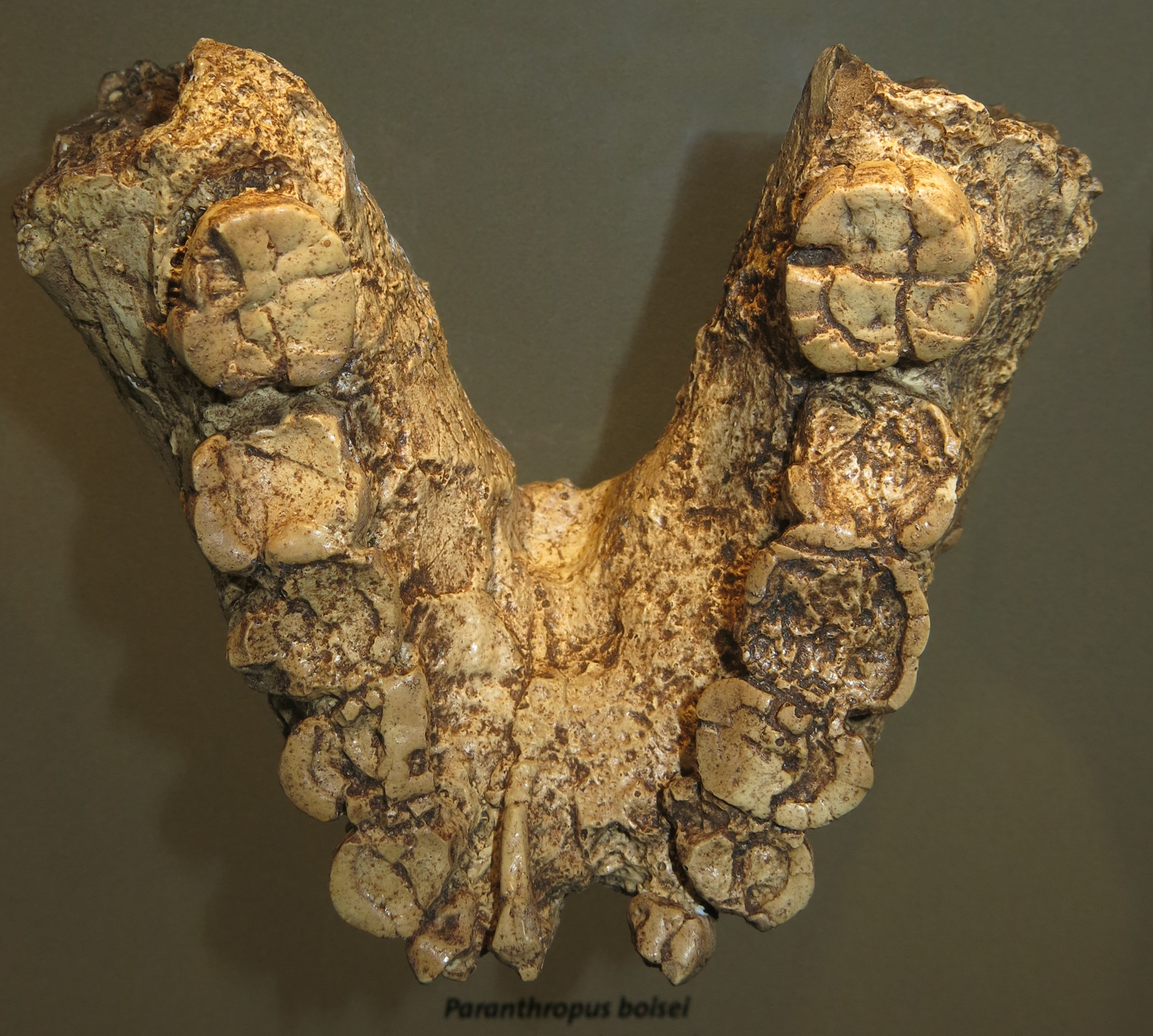

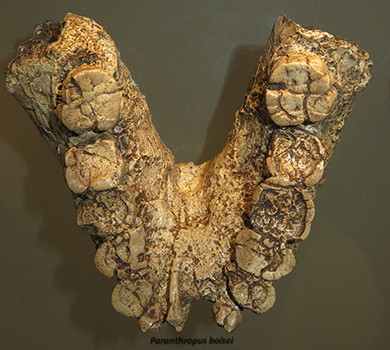

Paranthropus boisei

Partial upper jaw, Malema, Malawi.

Circa 2 500 000 - 2 300 000 BP.

HCRP RC911

Photo: Don Hitchcock 2015
Source and text: Vienna Natural History Museum, Naturhistorisches Museum Wien

Paranthropus boisei

Lower jaw, Koobi Fora, Kenya.

Circa 1 600 000 BP.

KNM-ER 3230

Photo: Don Hitchcock 2018
Source and text: Vienna Natural History Museum, Naturhistorisches Museum Wien

Paranthropus boisei

Lower jaw, Omo, Ethiopia.

Circa 2 200 000 BP.

L7a-125

Photo: Don Hitchcock 2015
Source and text: Vienna Natural History Museum, Naturhistorisches Museum Wien

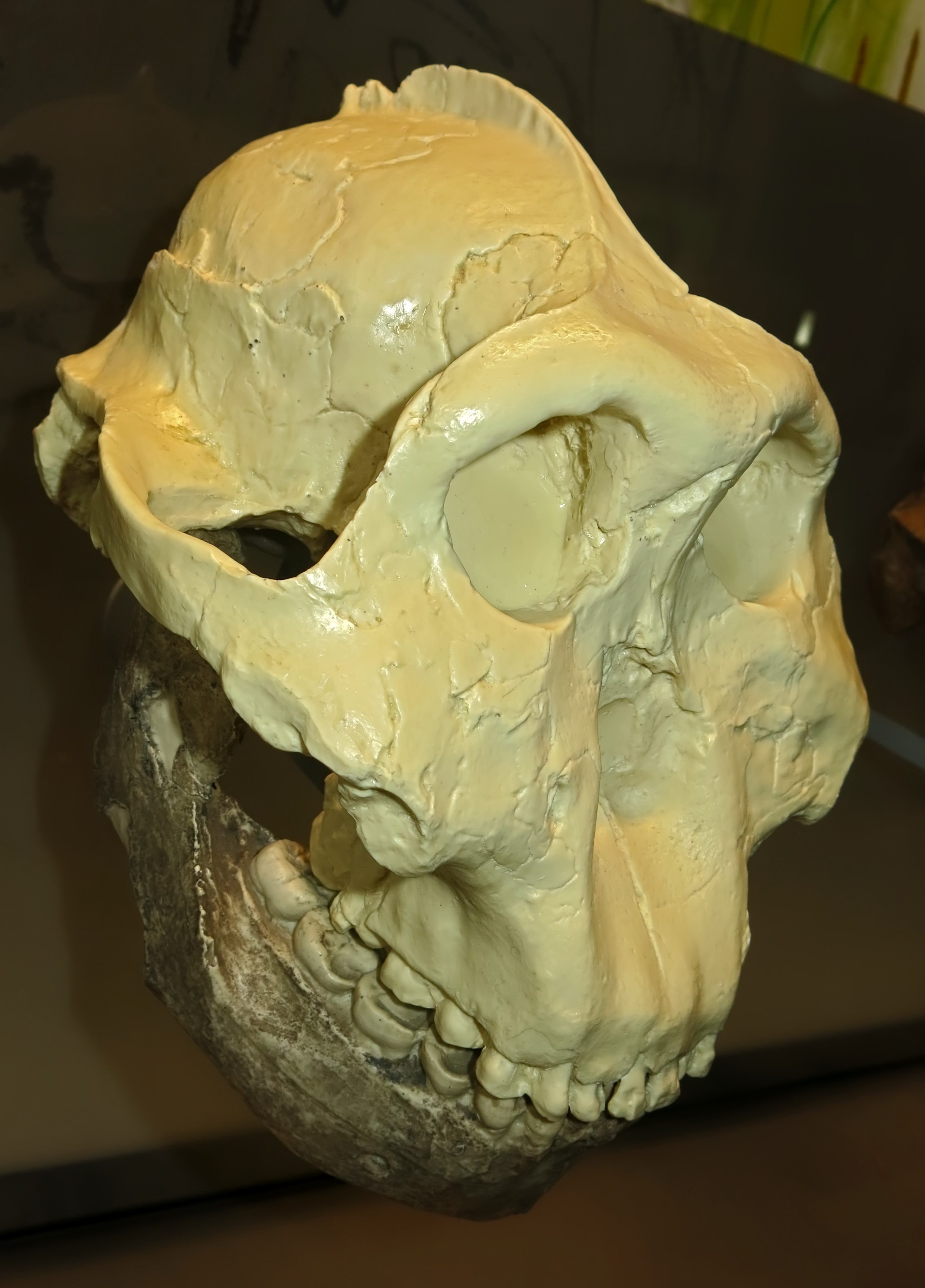

Paranthropus boisei, PENINJ 1

Lower jaw, Peninj, Tanzania.

( note that a facsimile cranium of the type specimen, OH 5, has been placed with the facsimile lower jaw so that a better concept of the original hominin may be formed - Don )

Circa 1 600 000 BP.

Photo: Don Hitchcock 2015
Source and text: Facsimile, Vienna Natural History Museum, Naturhistorisches Museum Wien

Hominin timeline.

Note that Homo floresiensis has not been placed on this timeline. van den Bergh et al. (2016) indicate that it may be a form of Homo erectus.

Photo: © National Geographic, Jason Treat, NGM staff
Source: Lee Berger, University of the Witwatersrand (WITS), John Hawks, University of Wisconsin-Madison
Proximate source: http://news.nationalgeographic.com/2017/05/homo-naledi-human-evolution-science/

Corms eaten by Paranthropus boisei.

Cyperus esculentus (or chufa sedge, nut grass, yellow nutsedge, tigernut sedge, or earth almond) is a crop of the sedge family native to warm temperate to subtropical regions of the Northern Hemisphere.

It can be found wild, as a weed or as a crop. It has been cultivated since the fourth millennium BC in Egypt, and for several centuries in Southern Europe. Nowadays it is often cultivated for its edible tubers (tigernuts), mainly in Spain for the preparation of the milky beverage Horchata de chufa. But in many countries Cyperus esculentus is considered a weed and it is underused.

Photo: Dr Stanley Kays, http://www.uga.edu/rootandtubercrops/English/photographs/
Text: adapted from Wikipedia

Corms eaten by Paranthropus boisei.

Cyperus rotundus (coco-grass, Java grass, nut grass, purple nut sedge, red nut sedge, Khmer kravanh chruk) is a species of sedge (Cyperaceae) native to Africa, southern and central Europe (north to France and Austria), and southern Asia.

Cyperus rotundus is a perennial plant, that may reach a height of up to 140 cm (55 inches). The names 'nut grass' and 'nut sedge' (shared with the related species Cyperus esculentus) are derived from its tubers, that somewhat resemble nuts, although botanically they have nothing to do with nuts.

Photo: Rickjpelleg
Permission: Creative Commons Attribution-Share Alike 3.0 Unported license. Text: adapted from Wikipedia

Corms eaten by Paranthropus boisei

Cyperus rotundus - as in other Cyperaceae, the leaves sprout in ranks of three from the base of the plant, around 5–20 cm long. The flower stems have a triangular cross-section. The flower is bisexual and has three stamina and a three-stigma carpel, with the flower head have 3-8 unequal rays. The fruit is a three-angled achene.

The root system of a young plant initially forms white, fleshy rhizomes, up to 25 mm in dimension, in chains. Some rhizomes grow upward in the soil, then form a bulb-like structure from which new shoots and roots grow, and from the new roots, new rhizomes grow. Other rhizomes grow horizontally or downward, and form dark reddish-brown tubers or chains of tubers.

It prefers dry conditions, but will tolerate moist soils, it often grows in wastelands and in crop fields.

Photo: Rickjpelleg
Permission: Creative Commons Attribution 2.5 Generic license Text: adapted from Wikipedia

Paranthropus boisei may have been a fruit eater, despite the large and strong teeth which it possessed.

Researchers in 2008 examined the teeth of Paranthropus boisei, also called the 'Nutcracker Man', an ancient hominin that lived between 2.3 and 1.2 million years ago. The 'Nutcracker Man' had the biggest, flattest cheek teeth and the thickest enamel of any known human ancestor and was thought to have a regular diet of nuts and seeds or roots and tubers. But analysis of scratches on the teeth and other tooth wear reveal the pattern of eating for the 'Nutcracker Man' was more consistent with modern-day fruit-eating animals.

(Other researchers have more recently (2011) suggested that the hominin had a diet rich in grasses, herbs and forbs, which would account for the large and strong teeth. Analysis of the Carbon isotopes in the tooth enamel indicates that this is the case - Don )

Photo and text: http://www.sflorg.com/sciencenews/scn043008_02.html

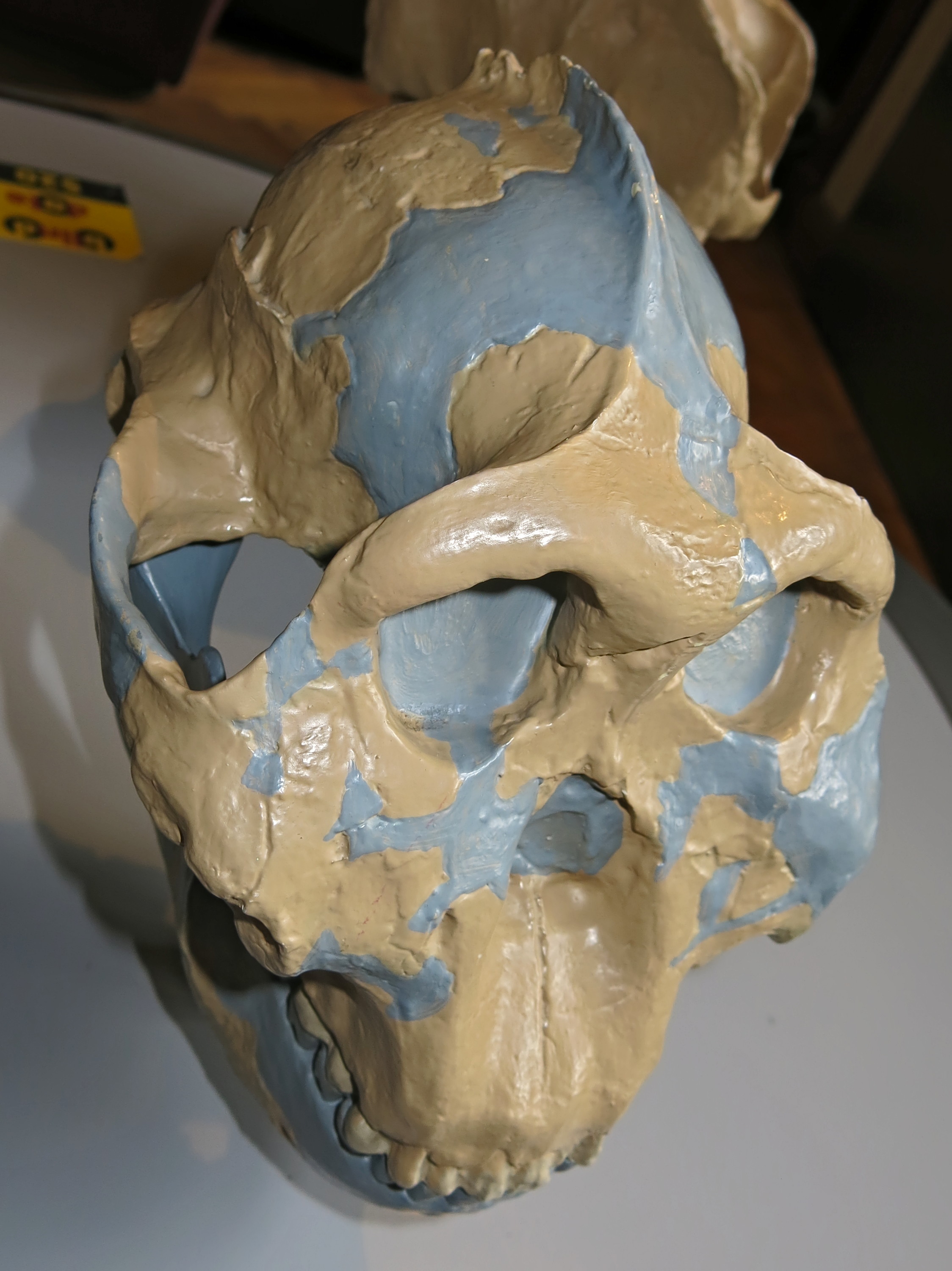

Australopithecus boisei, KNM-ER 406, L7a-125

Paranthropus boisei / Australopithecus boisei, KNM-ER 406, L7a-125, 1 700 000 BP.

Adult male with an estimated cranial capacity of 510 cc, from Koobi Fora, Kenya.

( note that this valuable facsimile includes the mandible, which is not present on other facsimiles of this particular find, shown further down this page. It was not part of the original find, but was added from another fossil, L7a-125, found at the Ethiopian Omo site, shown further up this page - Don )

Koobi Fora refers primarily to a region around Koobi Fora Ridge, located on the eastern shore of Lake Turkana. The ridge itself is an outcrop of mainly Pliocene/Pleistocene sediments. It is composed of claystones, siltstones, and sandstones that preserve numerous fossils of terrestrial mammals, including early hominin species. Presently, the ridge is being eroded into a badlands terrain by a series of ephemeral rivers that drain into the northeast portion of modern Lake Turkana. In 1968 Richard Leakey established the Koobi Fora Base Camp on a large sandspit projecting into the lake near the ridge, which he called the Koobi Fora Spit.

A subsequent survey and numerous excavations at multiple sites established the region as a source of hominin fossils shedding light on the evolution of man over the previous 4.2 million years. Far exceeding the number of hominin fossils are the non-hominin fossils which give a detailed view of the fauna and flora as far back as the Miocene.

KNM-ER 406 is a nearly complete adult male Paranthropus boisei. It has the facial and cranial features typical of the species such as massive cheek teeth, and the widely flaring zygomatic arches with a forward placed connection to the other facial bones, and large cheek bones supported powerful chewing muscles - the latter two features giving it a 'dish-shaped' face. Other muscles extended from his jaw to the sagittal crest at the top of his head. The cranial capacity of this skull has been estimated at 510 cc.

Catalog: Australopithecus boisei, KNM-ER 406, L7a-125
Photo: Don Hitchcock 2015
Source and text: Facsimile, LVR-LandesMuseum Bonn, Germany
Additional text: Wikipedia, http://humanorigins.si.edu/evidence/human-fossils/fossils/knm-er-406

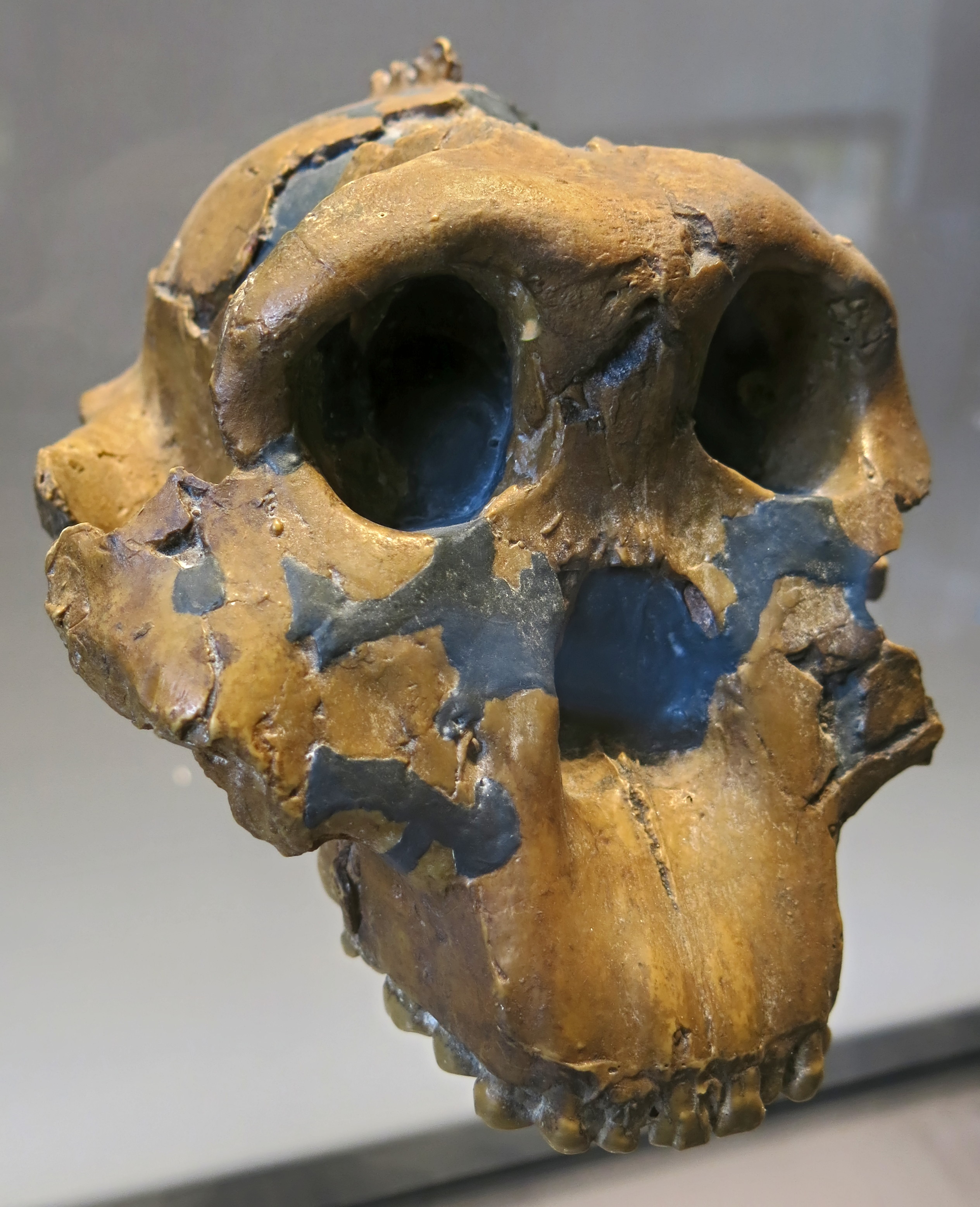

Paranthropus boisei, KNM-ER 406.

Cranium only, no lower jaw, Koobi Fora, Kenya.

Circa 1 700 000 BP.

Photo: Don Hitchcock 2015
Source and text: Facsimile, Vienna Natural History Museum, Naturhistorisches Museum Wien

Paranthropus boisei

The skull of Paranthropus boisei, known as KNM ER 406, photographed at the Nairobi National Museum in August 2012.

Photo: Bjørn Christian Tørrissen
Permission: Creative Commons Attribution-Share Alike 3.0 Unported license

Paranthropus boisei

KNM-ER 406 is a nearly complete adult male Paranthropus boisei. It has the facial and cranial features typical of the species such as massive cheek teeth, and the widely flaring zygomatic arches with a forward placed connection to the other facial bones, and large cheek bones supported powerful chewing muscles - the latter two features giving it a "dish-shaped" face. Other muscles extended from his jaw to the sagittal crest at the top of his head. The cranial capacity of this skull has been estimated at 510 cubic centimetres.

P. boisei commonly ate fruit and other soft foods. But these early humans were also able to crush and grind tough plant foods during difficult times.

Photo: © Chip Clark, Smithsonian Institution
Source: http://humanorigins.si.edu/evidence/human-fossils/fossils/knm-er-406

Cast of KMN-ER 406

Almost complete skull of Paranthropus boisei. Features include sagittal and nuchal crests, a well-developed mastoid process, and a broad face. Brain size was around 510 cm³

Photo: © Australian Museum, http://australianmuseum.net.au/image/Skull-cast-of-Paranthropus-boisei/

Reconstruction of Paranthropus boisei

Photo: Lillyundfreya
Permission: Creative Commons Attribution-Share Alike 3.0 Unported license
Source: Photographed at Westfälisches Museum für Archäologie, Herne

Reconstruction of Paranthropus boisei

Photo: Cicero Moraes
Permission: Creative Commons Attribution-Share Alike 3.0 Unported license
3D scanning of the skull: Dr. Moacir Elias Santos

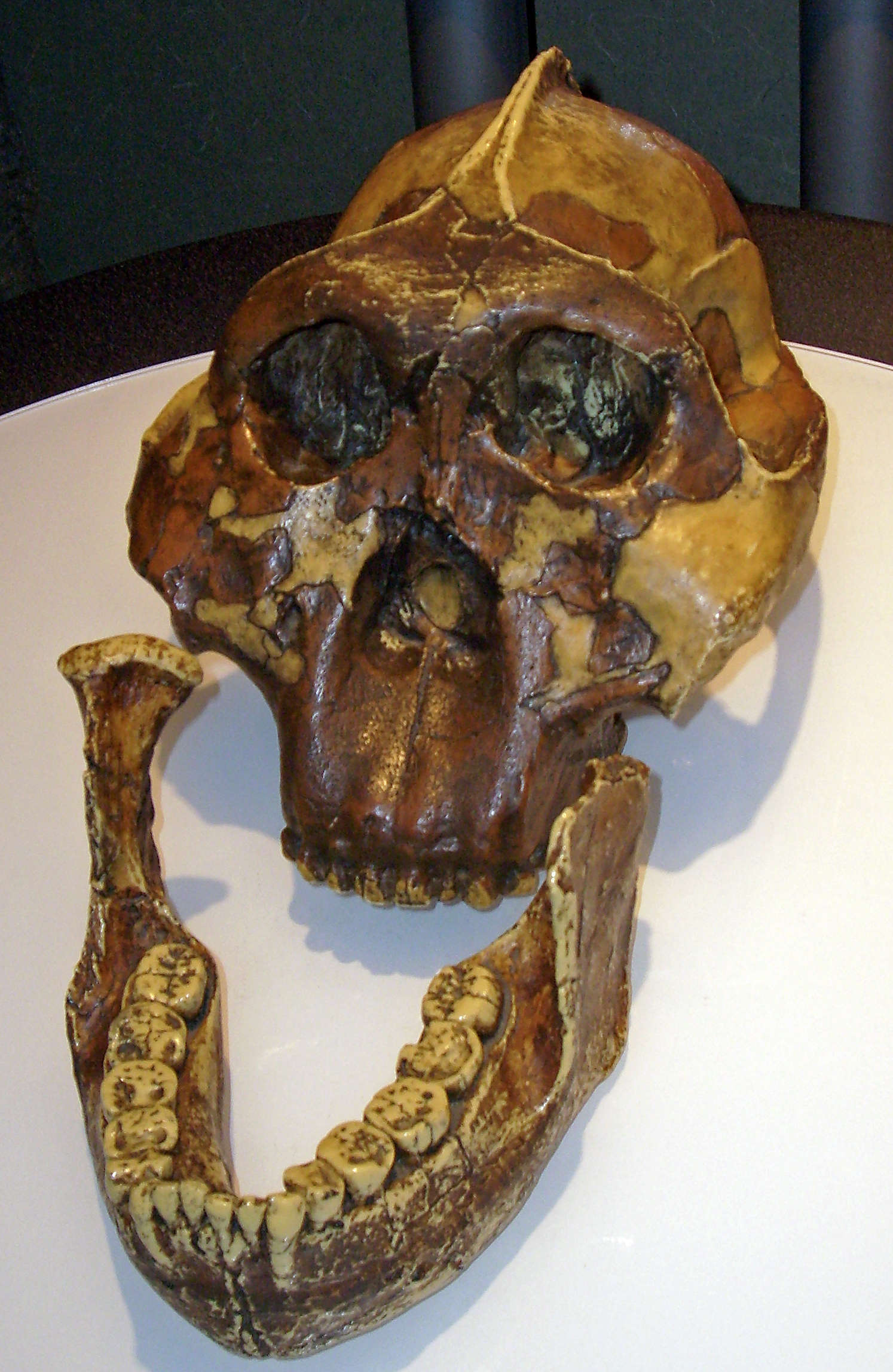

Replica Paranthropus boisei skull. Cast from originals.

Skull discovered by Mary Leakey, Olduvai Gorge, Tanzania, in 1959 - 1.75 million years old.

Jaw discovered by Kamoya Kimeu in 1964 - 1.5 million years old.

Photo: Durova
Permission: GNU Free Documentation License, Version 1.2
Source: Museum of Man, San Diego, California

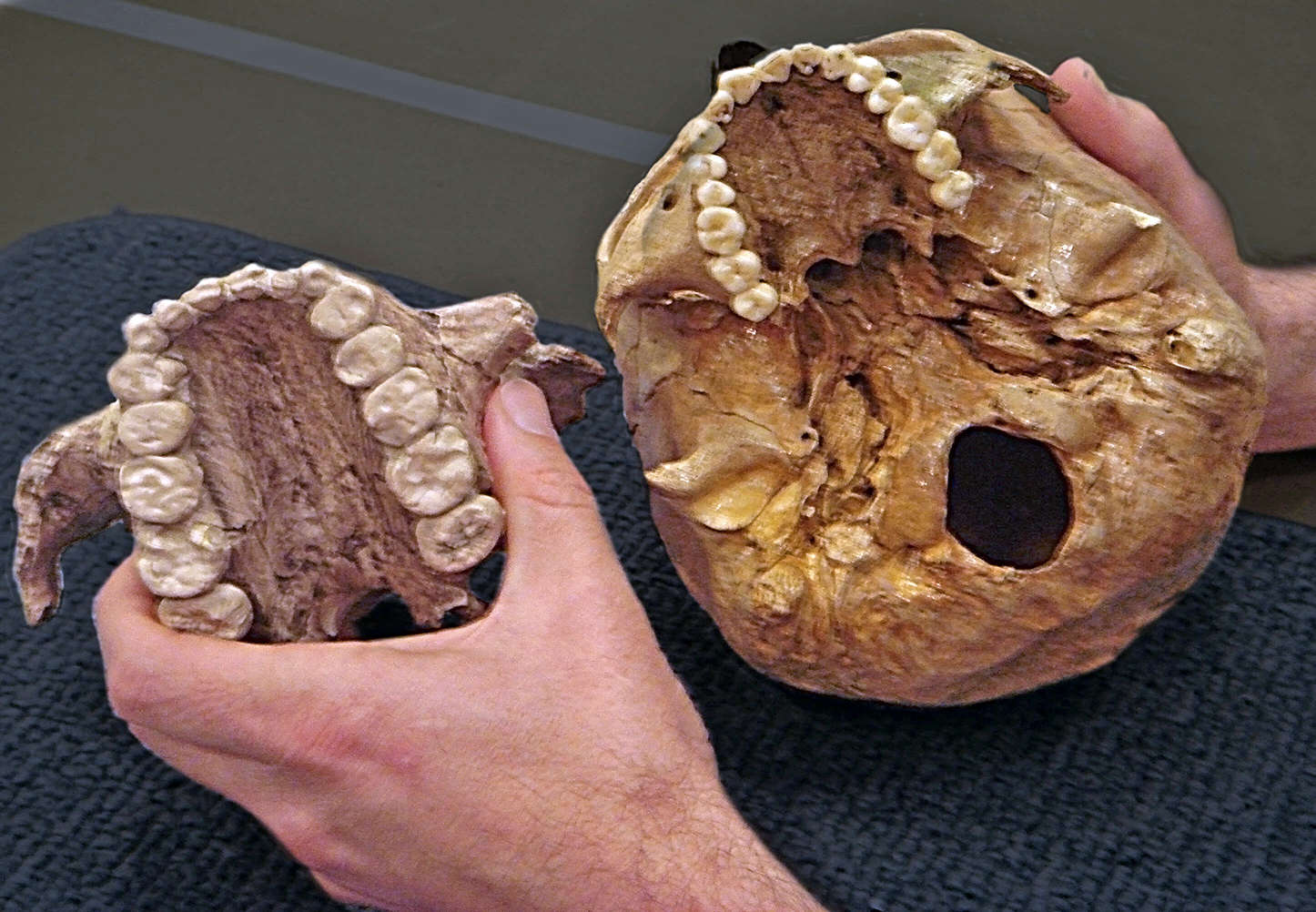

Paranthropus boisei teeth on the left, modern human teeth on the right.

Nutcracker Man' had the biggest, flattest cheek teeth and the thickest enamel of any known human ancestor and was thought to have a regular diet of nuts and seeds or roots and tubers. But analysis of scratches on the teeth and other tooth wear reveal the pattern of eating was more consistent with modern-day fruit-eating animals.

Tiny marks on the teeth of an ancient human ancestor known as the 'Nutcracker Man' may upset current evolutionary understanding of early hominid diet. Using high-powered microscopes, researchers looked at rough geometric shapes on the teeth of several Nutcracker Man specimens and determined that their structure alone was not enough to predict diet.

Peter Ungar, professor of anthropology at the University of Arkansas in Fayetteville, contends the finding shows evolutionary adaptation for eating may have been based on scarcity rather than on an animal's regular diet.

'These findings totally run counter to what people have been saying for the last half a century,' says Ungar. 'We have to sit back and re-evaluate what we once thought.'

Ungar and his colleagues, Frederick E. Grine of State University of New York at Stony Brook and Mark F. Teaford of Johns Hopkins University, Baltimore, Md., reported their findings last week in the Public Library of Science One, a peer-reviewed, international, online journal. The research was funded in part by the National Science Foundation.

The researchers examined the teeth of Paranthropus boisei, an ancient hominin that lived between 2.3 and 1.2 million years ago and is known popularly as the 'Nutcracker Man' because it has the biggest, flattest cheek teeth and the thickest enamel of any known human ancestor.

'Ungar and colleagues' work on Paranthropus boisei diet is extremely important,' says Joanna Lambert, physical anthropology program director at NSF. 'Understanding what and how early hominins ate sheds light not only onto the feeding biology of our fossil ancestors, but also onto the very evolution of our own species.'

Scientists long have believed that Paranthropus boisei fed on nuts and seeds or roots and tubers found in the savannas throughout eastern Africa because the teeth, cranium and mandible appear to be built for chewing and crunching hard objects.

But Ungar points out that the teeth only suggest 'what Paranthropus boisei could eat, but not necessarily what it did eat.'

Anthropologists have traditionally inferred the diet of ancient human ancestors by looking at the size and shape of the teeth and jaws. However, by using powerful microscopes to look at the patterns of wear on a tooth, scientists can get direct evidence of what the species actually ate.

Since food interacts with teeth, it leaves behind telltale signs that can be measured. Hard foods like nuts and seeds, for instance, lead to more complex tooth profiles, while tough foods like leaves lead to more parallel scratches. Researchers compared dental microwear profiles of Paranthropus boiseito modern-day primates that eat different types of foods. Paranthropus boiseiteeth were compared to those of the Old World Monkey species grey-cheeked mangabeys, and the New World Monkey species brown capuchin monkeys - both of these species consume mostly soft items but fall back on hard nuts or palm fronds.

Old World monkeys are found today in South and East Asia, the Middle East, Africa and Gibraltar at the southern tip of Spain. New World monkeys are found in tropical forest environments in southern Mexico, Central and South America. Paranthropus boiseidental profiles also were compared to the New World mantled howling monkey and Old World silvered leaf monkey, which eat mostly leaves. Researchers also compared them to some of Paranthropus boisei's more contemporary counterparts - Australopithecus africanus, which lived between 3.3 million and 2.3 million years ago, and Paranthropus robustus, which lived between 2 million and 1.5 million years ago.

The findings showed that Paranthropus boisei teeth had light wear, suggesting that none of the individuals ate extremely hard or tough foods in the days leading up to death. The pattern was more consistent with modern-day fruit-eating animals than with most modern-day primates. 'It looks more like they were eating Jell-O,' Ungar said.

This finding, while contradictory to previous speculation on the diet of Paranthropus boisei, is in line with a paradox documented in fish. Liem's Paradox states that animals may actively avoid eating the very foods they have developed adaptations for when they can find other food sources. It appears the paradox may hold true for Paranthropus boisei and for some modern-day primates as well.

'If you give a gorilla a choice of eating fruit or a leaf, it will take the fruit every time,' Ungar says. 'But if you look at a gorilla's skull, its sharp teeth are adapted to consuming tough leaves. They don't eat the leaves unless they have to.' Accordingly, the finding represents a fundamental shift in the way researchers look at the diets of early human ancestors.

'For many years, the perspective has been that the very large teeth and thick dental enamel of Paranthropus boisei were adaptations to consuming very hard food types year-round,' says Lambert. 'Such specialization has historically been viewed as a potential cause for this fossil species' extinction. The research team demonstrated that such generalizations require careful re-thinking, and that Paranthropus boisei was a more flexible feeder than has classically been viewed. This challenges the fundamental assumptions of why such specializations occur in nature,' Ungar says. 'It shows that animals can develop an extreme degree of specialization without the specialized object becoming a preferred resource.'

Source: NSF, 2008

(Other researchers have more recently (2011) suggested that the hominin had a diet rich in grasses, herbs and forbs, which would account for the large and strong teeth. Analysis of the Carbon isotopes in the tooth enamel indicates that this is the case - Don )

Photo and text: http://www.sflorg.com/sciencenews/scn043008_02.html

References

1. Breuil, H., 1979: Beyond the Bounds of History, Scenes from the Old Stone Age, Gawthorn, 1979, reprinted from the edition of 1949, London.
2. Macho, G., 2014: Baboon Feeding Ecology Informs the Dietary Niche of Paranthropus boisei, PLoS ONE, 9(1): e84942. doi:10.1371/journal.pone.0084942
3. van den Bergh G. et al., 2016: Homo floresiensis-like fossils from the early Middle Pleistocene of Flores, Nature, 534 (7606): 245–248. doi:10.1038/nature17999. PMID 27279221.
